Paper Egg Tray Making Machine Rotary 3 by 4 Mold Production Line Compact and Easy Operation Producing 2000 Egg Trays Per Hourt

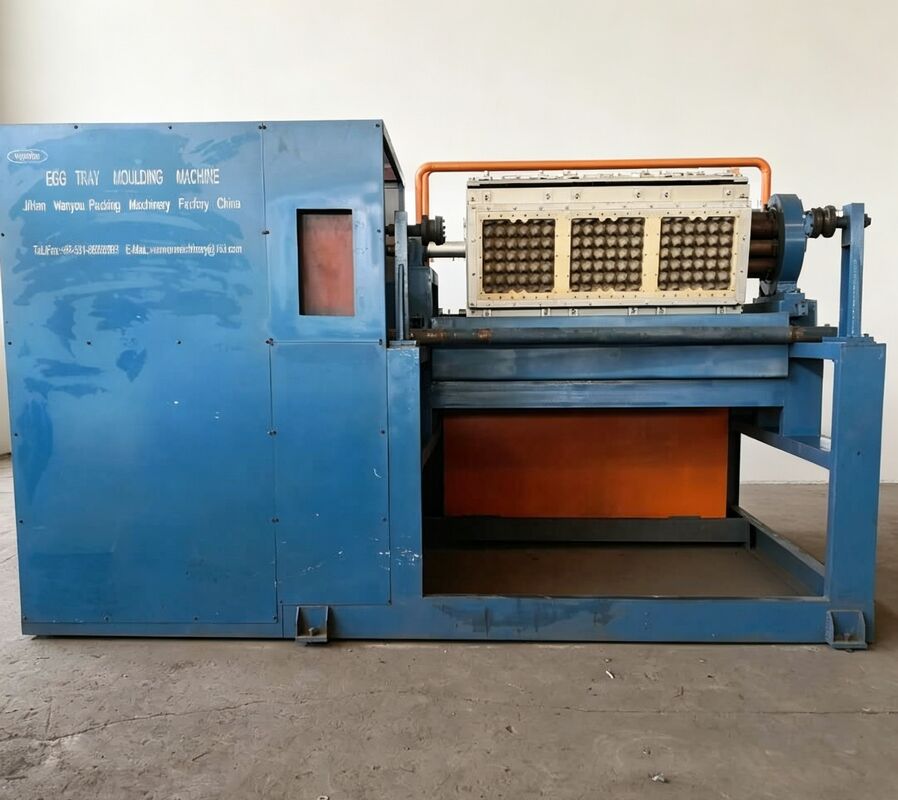

3×4 Molds Rotary Egg Tray Production Line Egg Tray Machine
This 4-sided rotary drum egg tray machine is a cost-effective entry-level solution specially designed for SMEs and new startups.
Equipped with 3 molds per side, it delivers a stable output of 2000 pieces per hour for 30-cell egg trays.

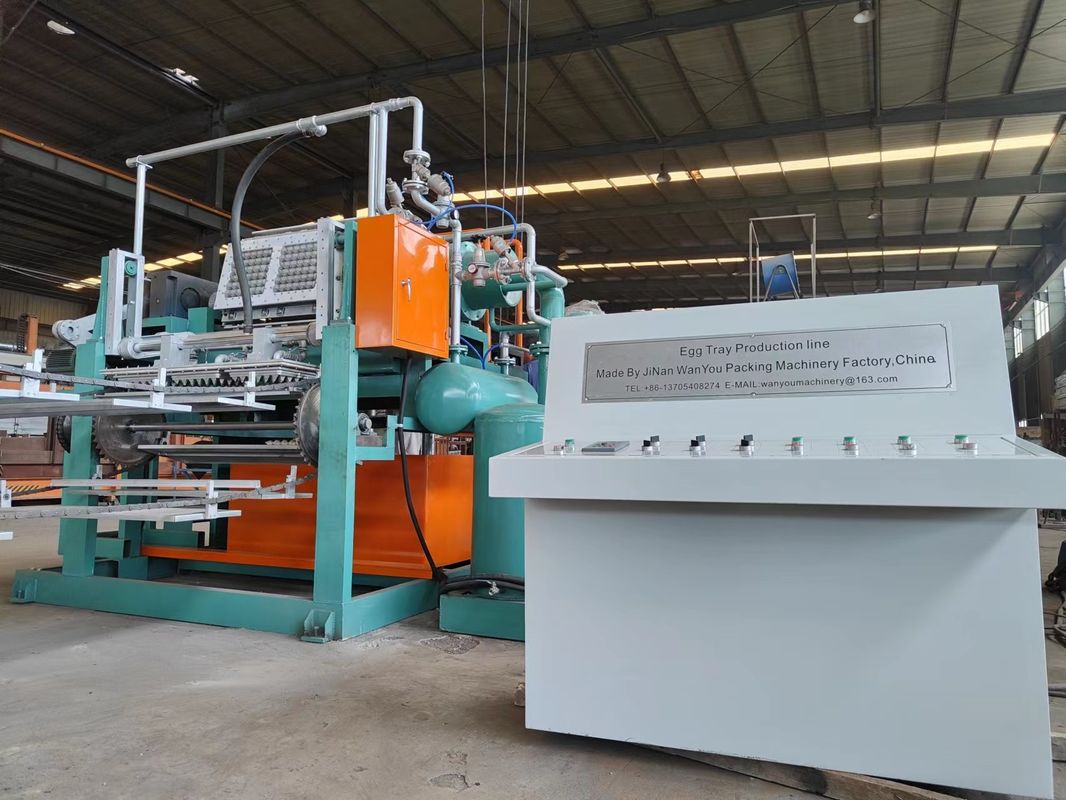

The full integrated production line covers pulping, forming, drying and automatic stacking, featuring compact structure, easy operation and low operating cost.
It is an ideal choice for beginners to start a profitable paper egg tray machine business.
Production Flow
Waste Paper Pulping → Vacuum Forming on Rotary Drum → Drying Treatment → Automatic Stacking → Finished Products
The main sections of the egg tray production line:

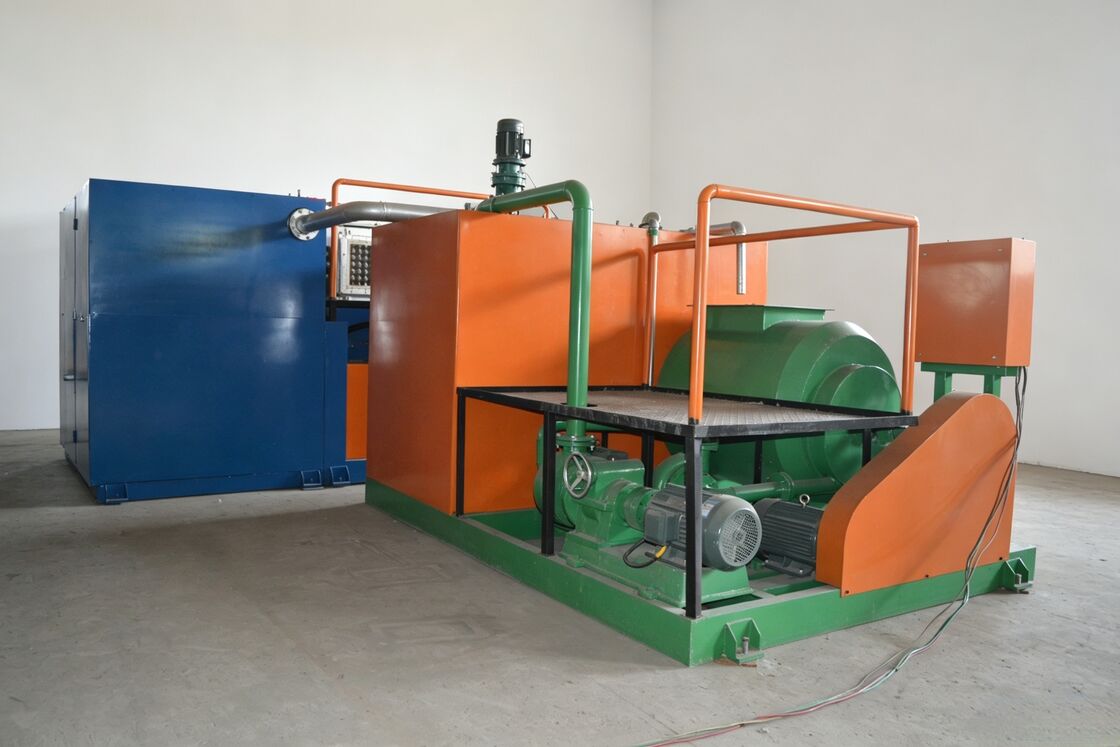

1.Pulping system:
Including the hydrapulper,pump,mixer, vibrating screen, etc..to make the wastepaper into pulp.

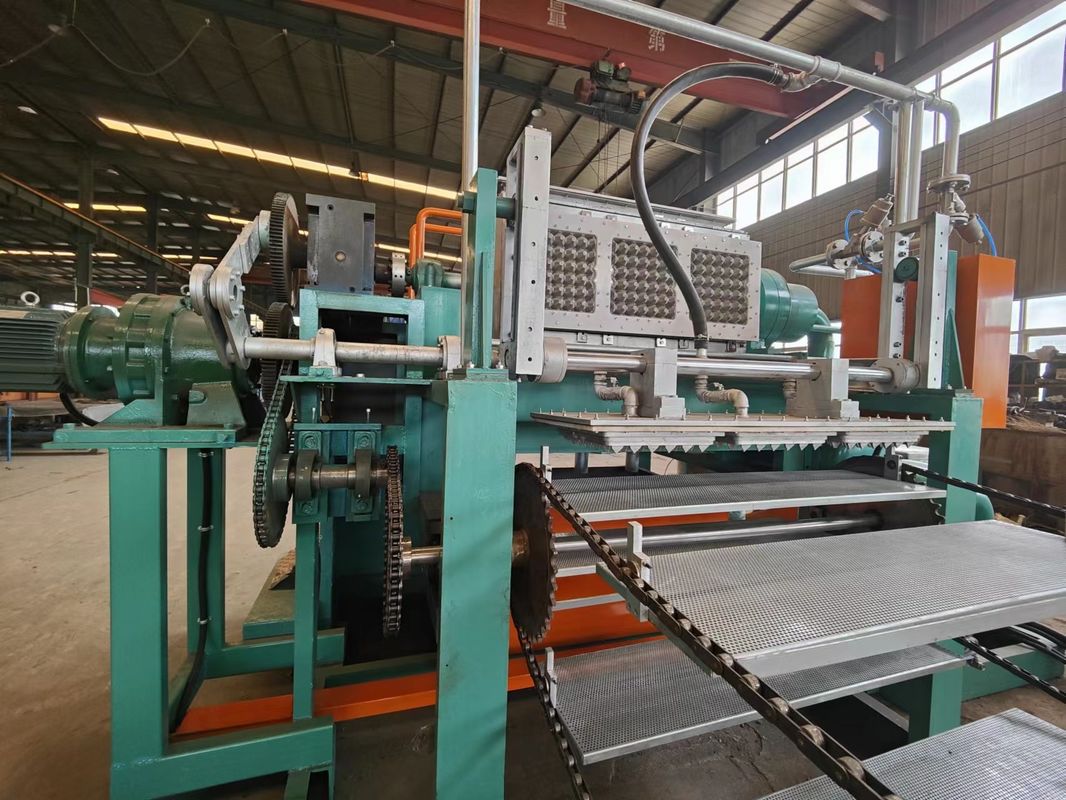

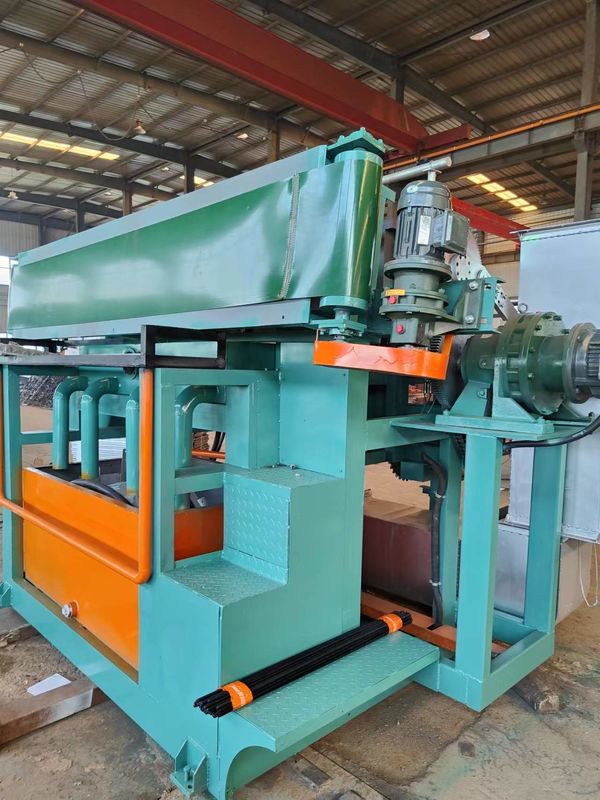

2. Forming system:

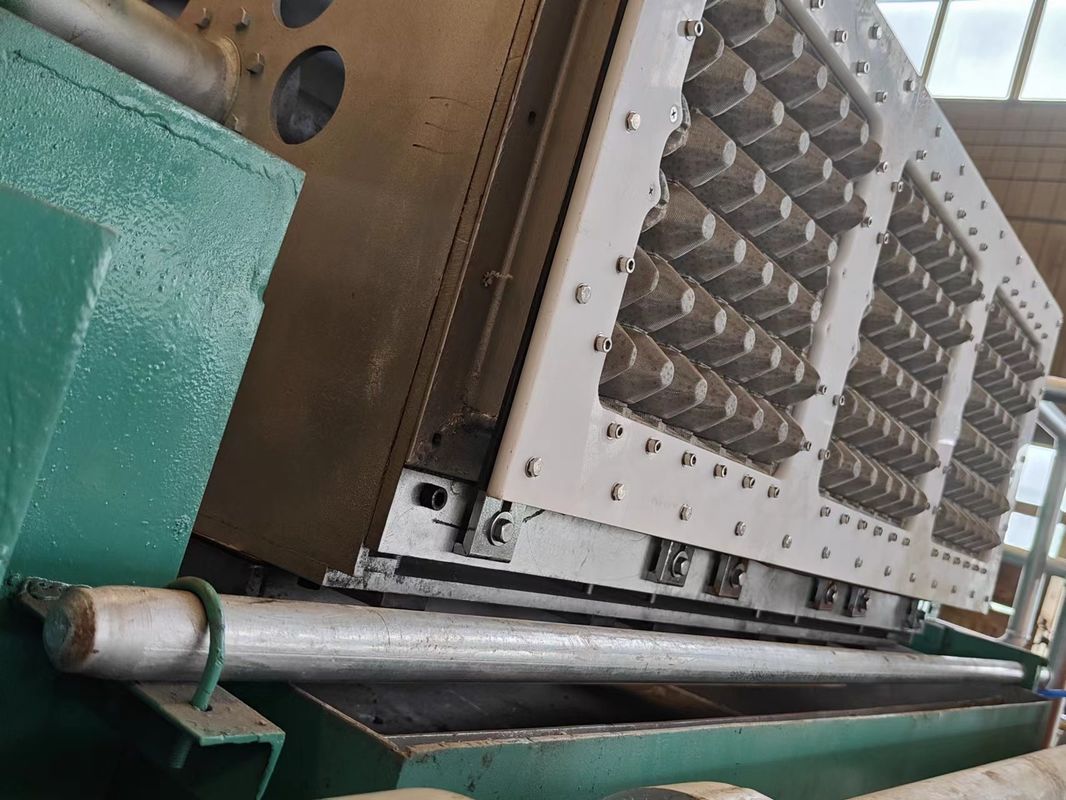

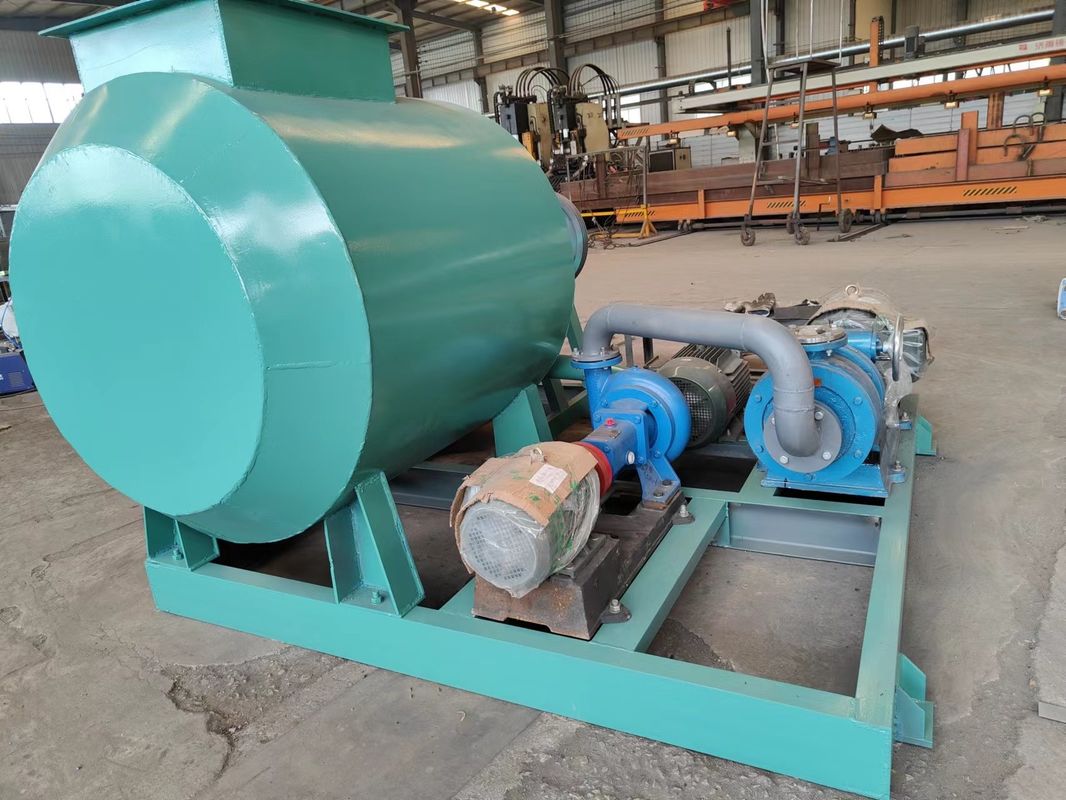

Including the molding machine,egg tray forming molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3.Drying system:
Including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
4.Automatic Stacker:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.
Core Advantages
1. Startup-friendly & Cost-efficient: Reasonable investment, small floor space and low energy consumption, quick return on investment.

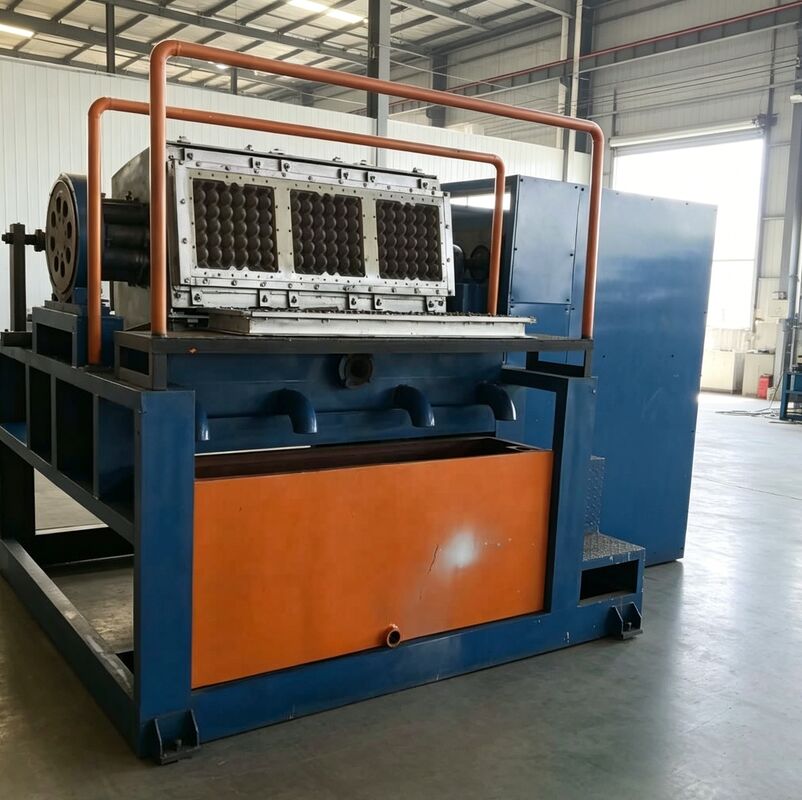

2. Stable Rotary Structure: 4-sided drum with 3 sets of molds, continuous running and uniform product quality.
3. Easy Operation & Maintenance: Simple control system, few workers required, low daily maintenance cost.
4. Eco-friendly Raw Material: Runs on waste paper, cardboard and scrap paper; finished egg trays are biodegradable and widely accepted globally.
Technical Parameters:
|
Parameter
|
Specification
|
|
Model
|
3×4 Rotary Egg Tray Machine
|
|
Rated Capacity
|
2000 pcs/h (30-cell egg trays)
|
|
Mold Configuration
|
3 molds/side, 4-sided rotary drum (12 molds total)
|
|
Raw Material
|
Waste paper, cardboard, newspaper, scrap paper
|
|
Finished Product
|
30-cell paper egg trays (customization: 10/12/15/18/24 cells)
|
|
Total Power
|
45–55 kW
|
|
Power Supply
|
220V/380V/415V, 50/60Hz (customization)
|
|
Paper Consumption
|
~150 kg/h
|
|
Water Consumption
|
~450 kg/h (recyclable)
|
|
Machine Size (L×W×H)
|
3.3×2.7×2.6 m
|
|
Weight
|
~9000 kg
|
|
Drying Options
|
Natural sun drying, brick dryer, metal dryer (customization)
|
|
Labor Required
|
3–4 workers
|
|
Warranty
|
12 months
|
Payment and delivery:
|
Delivery Time: 60 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
1-year after the Egg tray machine received.
|
|
Terms of delivery
|
Jinan Factory,China or negotiable
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
