We are professional paper egg tray machine supplier.
Quality First, Customer First
With Jinan Wanyou, Turn Your Waste Into Money
|Place of Origin:||Jinan, Shandong, China|
|Model Number:||RL- ZJM|
|Minimum Order Quantity:||1 set|
|Packaging Details:||in container|
|Delivery Time:||30 working days after get deposit payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||1 sets per month|
|Power:||20KW-150KW||Raw Material:||Waste Paper, Waste Cardboard, Carton, Books Etc.|
|Guarantee:||2years||Capacity Of Egg Trays:||350 -3000pcs/h|
|Processing Type:||Pulp Molding Machine||Forming Molds:||ABS Engineering Plastic Material / Aluminum Molds|
|Product Type:||Egg Tray Machine,pulp Equipment||Finished Products:||Egg Tray Egg Carton'/egg Plate/egg Box|
egg tray manufacturing machine,
egg tray machine
New Condition and Pulp Molding Machine Processing Type egg tray making machine
Technical parameters of egg tray machine:
|1.||Egg tray mould quantity||1pcs||2pcs||3pcs|
|2.||Raw material||Waste paper||Waste paper||Waste paper|
|3.||Output for egg tray||350pcs/hour||700pcs/hour||1000pcs/hour|
|4.||Net weight per piece (gram)||70g-75g||70g-75g||70g-75g|
|5.||waste paper consumption||0.025ton / hour||0.053ton / hour||0.1ton / hour|
|6.||water consumption||0.075ton / hour||0.15ton/hour||0.15ton / hour|
|8.||Area of workshop||Without dryer||≥100M²||
|≥ 120 M²|
|9.||Capacity of power||Without dryer||20KW||30KW||40KW|
|10.||Machine length||Without dryer||7meters||8meters||9meters|
|11.||Size of container||Without dryer||20ft*1||20ft*1||40ft*1

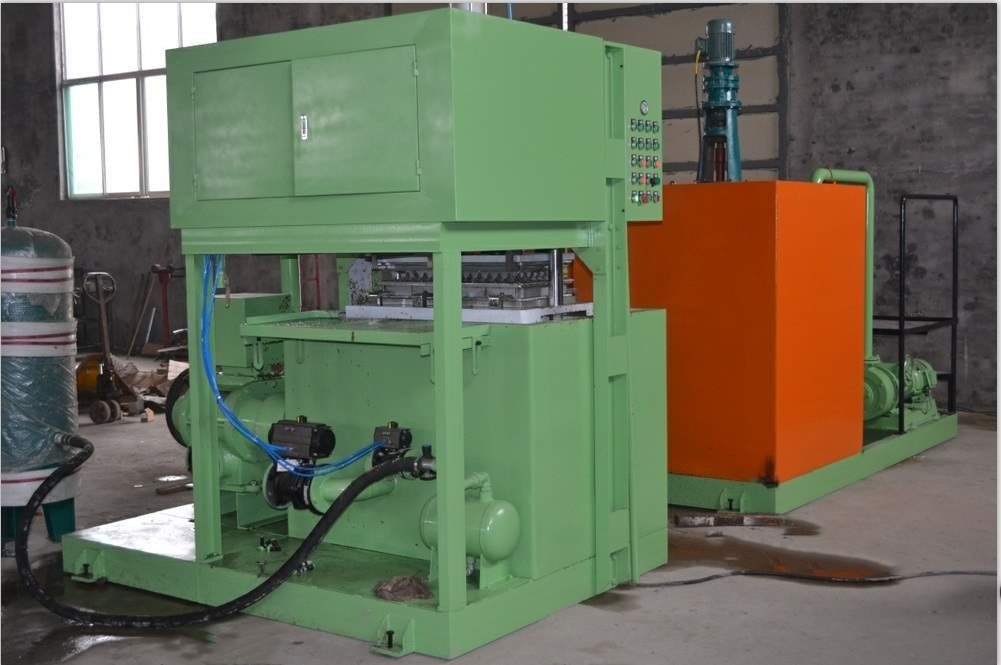

Machine Introduction of egg tray machine:
This type semi-automic production line is not equipped with drying system, after pulp making process and automatic forming process, the wet prodcuts should be moved to another place for drying by workers, and then prodcut can be dried by sunshine.
the above mentioned production line are suitable for all kinds of paper pulp molded product.
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Payment and delivery of egg tray machine:
|Trade terms||FOB Qingdao or EXW Factory|
|Delivery time||About 45 working days after receiving the deposit.|
|Payment term||BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC|
|Time of payment||When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.|
|Warranty time||Two years after the Egg tray machine received.|
|TERMS OF DELIVERY||FOB Qingdao Port, China|
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELL
Welcome to contact us.

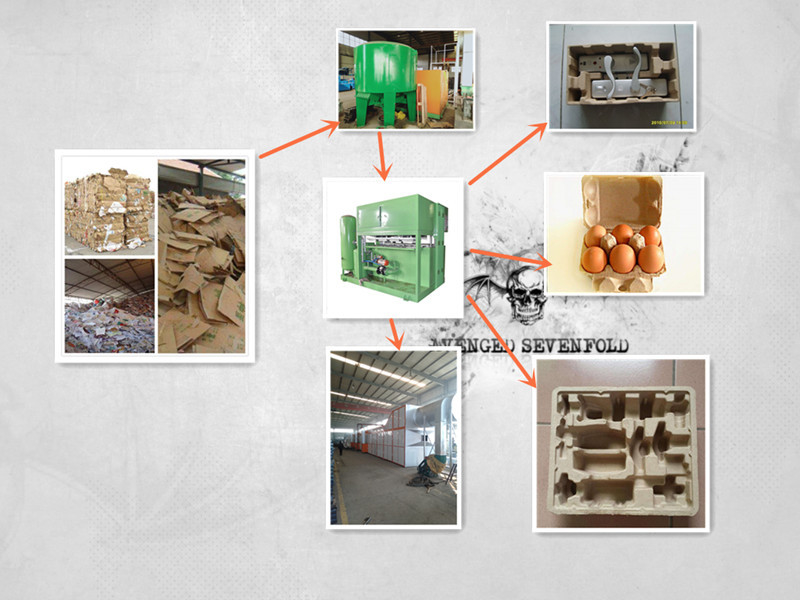

Working Process of egg tray machine:
Samples of egg tray machine:
We can do what you want,pls contact us.
Contact Person: Mandy
