Egg Tray Mould Pulp Tray Machine With Plc Cabinet 2 Years Guarantee

Egg Tray Mould Pulp Tray Machine With Plc Cabinet 2 Years Guarantee

paper egg tray making machine

egg tray machine

Egg Tray Mould Pulp Tray Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Raw Material:
Waste Paper, Waste Cardboard, Carton, Books Etc.
2 Years
Capacity Of Egg Trays:
350 -3000pcs/h
Processing Type:
Pulp Molding Machine
Forming Molds:
ABS Engineering Plastic Material / Aluminum Molds
Product Type:
Egg Tray Machine,pulp Equipment
Finished Products:
Egg Tray Egg Carton'/egg Plate/egg Box
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
in container
Delivery Time
30 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description


China egg tray mould pulp tray machine with plc cabinet wholesaler



Machine Introduction of  egg tray machine:


This type semi-automic production line is not equipped with drying system, after pulp making process and automatic forming process, the wet prodcuts should be moved to another place for drying by workers, and then prodcut can be dried by sunshine.

the above mentioned production line are suitable for all kinds of paper pulp molded product.


1. Pulping System:


Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .


2. Forming System :


The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

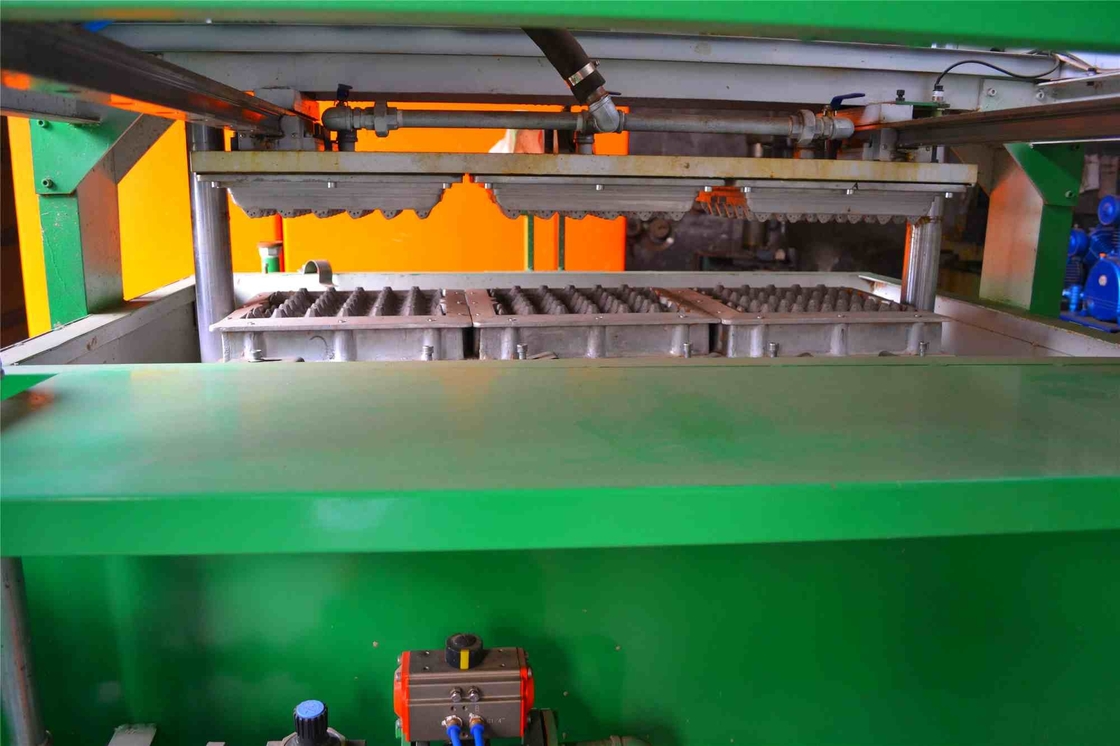

Egg Tray Mould Pulp Tray Machine With Plc Cabinet 2 Years Guarantee 0

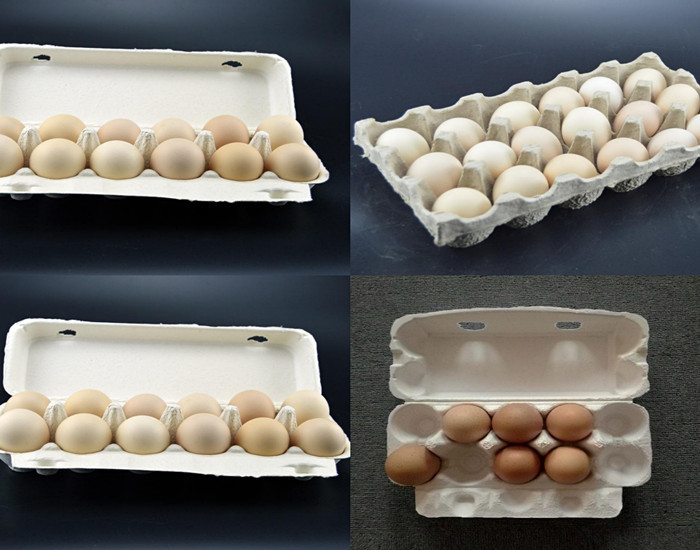

This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.


Technical parameters of egg tray machine:


1. Egg tray mould quantity 1pcs 2pcs 3pcs
2. Raw material Waste paper Waste paper Waste paper
3. Output for egg tray 350pcs/hour 700pcs/hour 1000pcs/hour
4. Net weight per piece (gram) 70g-75g 70g-75g 70g-75g
5. waste paper consumption 0.025ton / hour 0.053ton / hour 0.1ton / hour
6. water consumption 0.075ton / hour 0.15ton/hour 0.15ton / hour
7. Operators number 2-3workers 3-4workers 4-6workers
8. Area of workshop Without dryer ≥100M²


≥ 120 M²
9. Capacity of power Without dryer 20KW 30KW 40KW
10. Machine length Without dryer 7meters 8meters 9meters
11. Size of container Without dryer 20ft*1 20ft*1 40ft*1

Egg Tray Mould Pulp Tray Machine With Plc Cabinet 2 Years Guarantee 1


Payment and delivery of egg tray machine:


Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 45 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE


Some world famous brands of the fittings:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)--DELTA




Welcome to contact us.

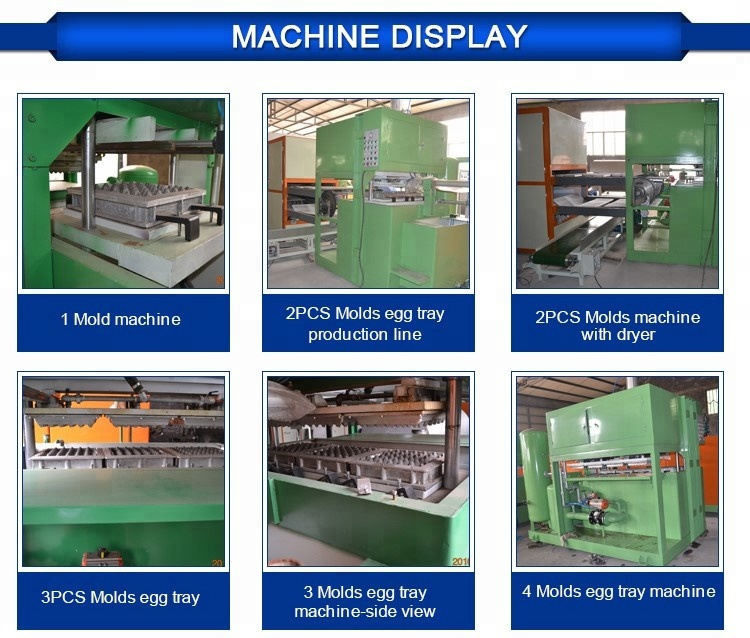

Working Process of egg tray machine:


Egg Tray Mould Pulp Tray Machine With Plc Cabinet 2 Years Guarantee 2

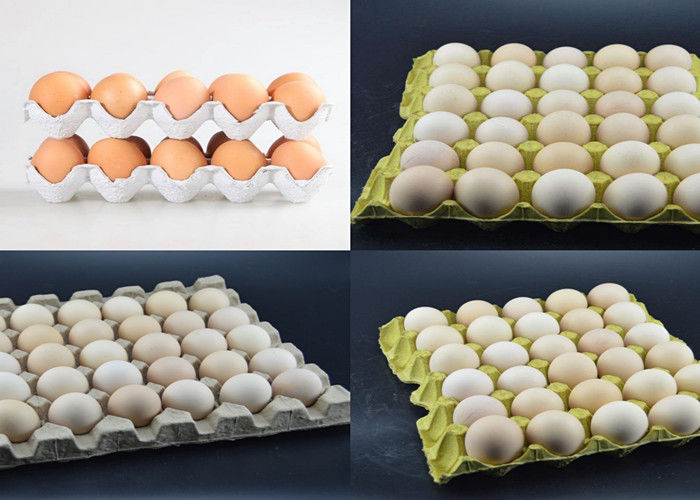

Samples of egg tray machine:

Egg Tray Mould Pulp Tray Machine With Plc Cabinet 2 Years Guarantee 3

We can do what you want,pls contact us.
