|Place of Origin:||Jinan, Shandong, China|
|Model Number:||ZSJ series|
|Minimum Order Quantity:||1 set|
|Packaging Details:||in container|
|Delivery Time:||30 working days after get deposit payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||1 sets per month|
|Power:||20KW-150KW||Raw Material:||Waste Paper, Waste Cardboard, Carton, Books Etc.|
|Guarantee:||2years||Capacity Of Egg Trays:||350 -3000pcs/h|
|Processing Type:||Pulp Molding Machine||Forming Molds:||ABS Engineering Plastic Material / Aluminum Molds|
|Product Type:||Egg Tray Machine,pulp Equipment||Finished Products:||Egg Tray Egg Carton'/egg Plate/egg Box|
paper egg tray making machine,
egg tray manufacturing machine
2020 low price china egg tray machine paper recycling machine prices

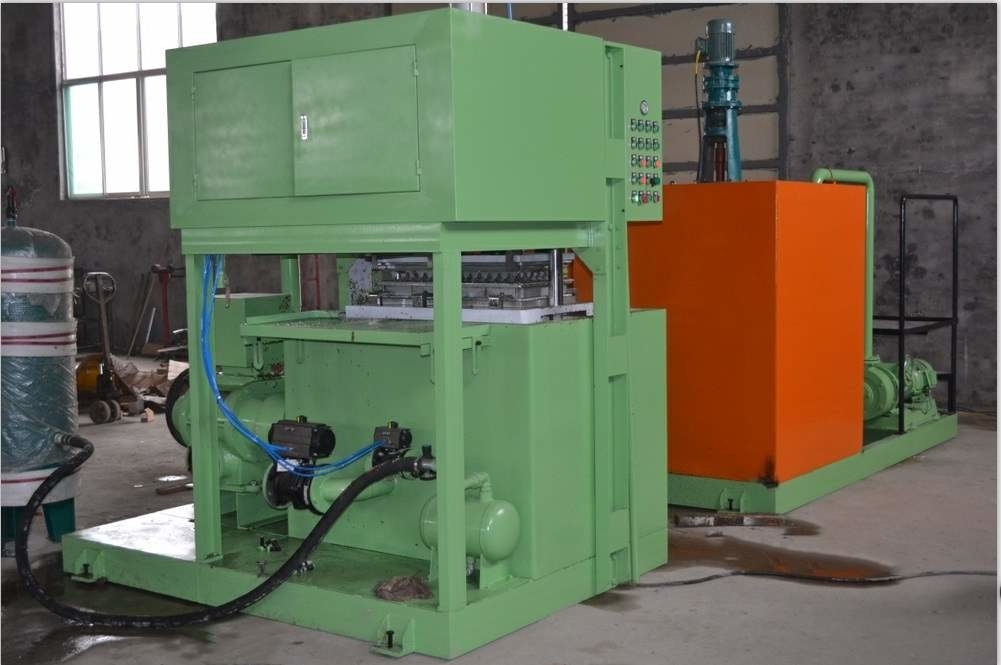

Machine Introduction of China egg tray machine:
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Forming System :

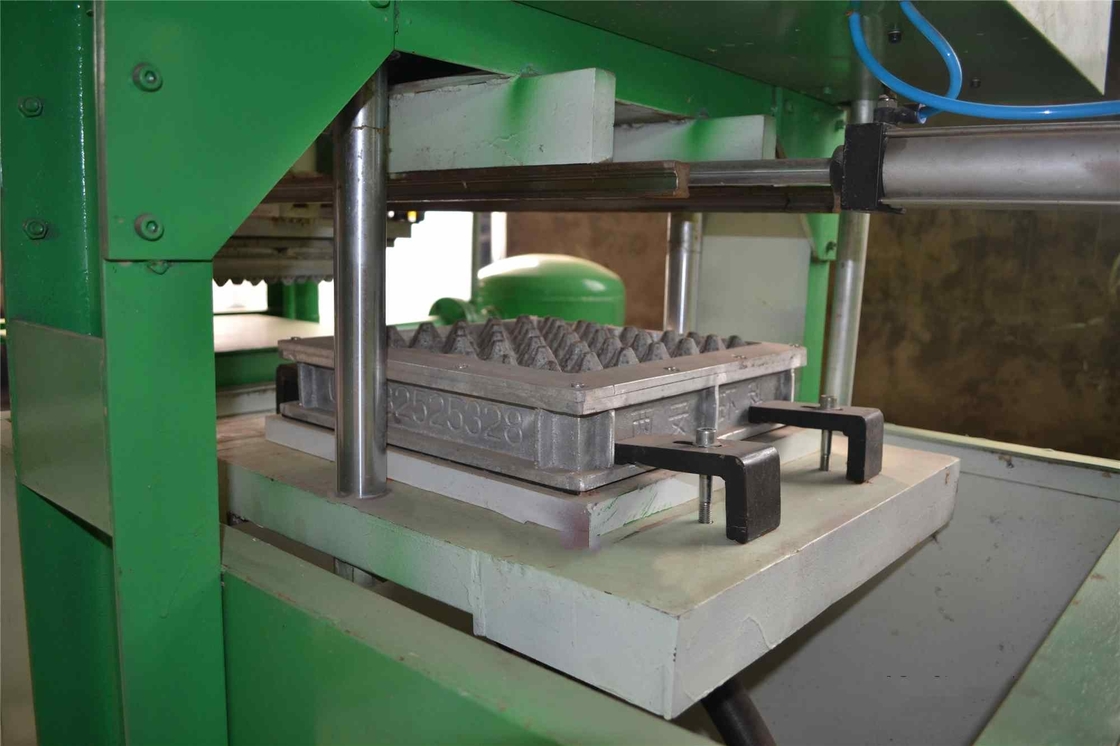

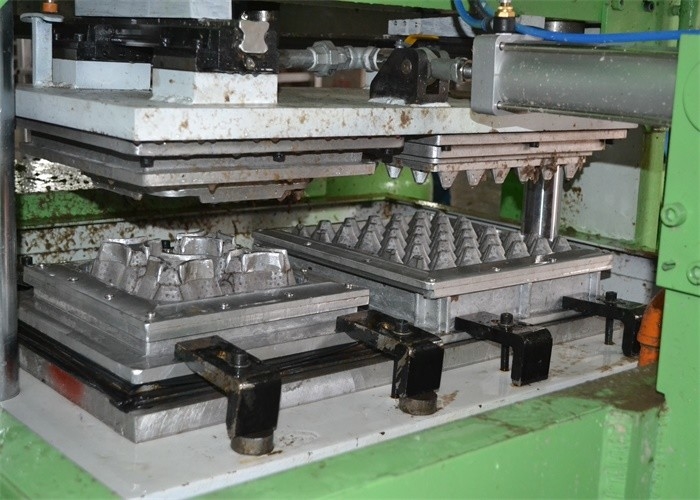

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
This type semi-automic production line wasn't equipped with drying system, after pulp making process and automatic forming process, the wet prodcuts should be moved to another place for drying by workers, and then prodcut can be dried by sunshine.the above mentioned production line are suitable for all kinds of paper pulp molded product.

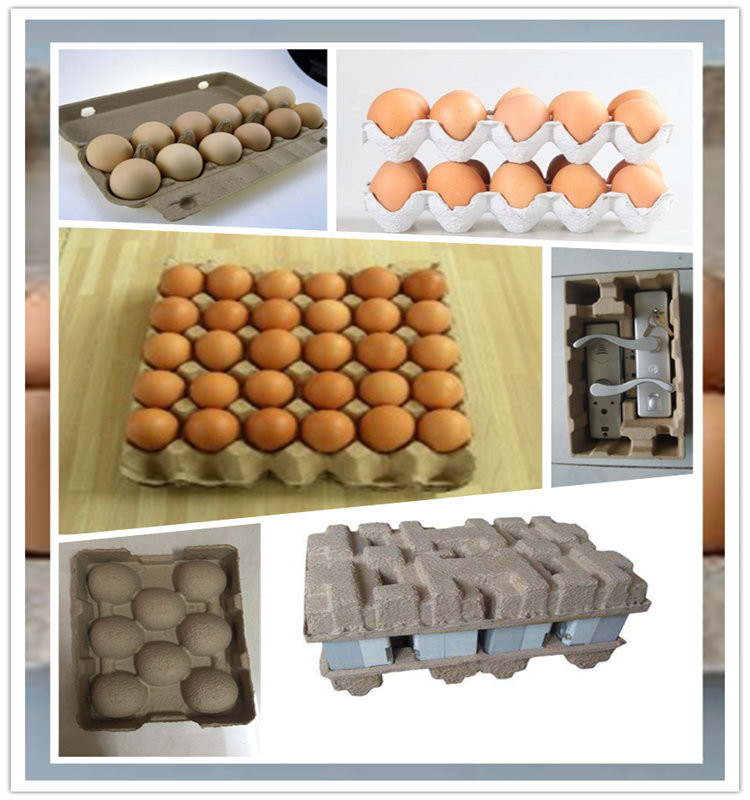

This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
|1.||Egg tray mould quantity||1pcs||2pcs||3pcs|
|2.||Raw material||Waste paper||Waste paper||Waste paper|
|3.||Output for egg tray||350pcs/hour||700pcs/hour||1000pcs/hour|
|4.||Net weight per piece (gram)||70g-75g||70g-75g||70g-75g|
|5.||waste paper consumption||0.025ton / hour||0.053ton / hour||0.1ton / hour|
|6.||water consumption||0.075ton / hour||0.15ton/hour||0.15ton / hour|
|8.||Area of workshop||Without dryer||≥100M²||
|≥ 120 M²|
|9.||Capacity of power||Without dryer||20KW||30KW||40KW|
|10.||Machine length||Without dryer||7meters||8meters||9meters|
|11.||Size of container||Without dryer||20ft*1||20ft*1||40ft*1|
Payment and delivery:
|Trade terms||FOB Qingdao or EXW Factory|
|Delivery time||About 45 working days after receiving the deposit.|
|Payment term||BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC|
|Time of payment||When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.|
|Warranty time||Two years after the Egg tray machine received.|
|TERMS OF DELIVERY||FOB Qingdao Port, China|
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELL
Jinan Wanyou Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Samples of china egg tray machine:
