PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation

PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation

egg tray manufacturing machine

egg tray machine

PLC Control Paper Egg Tray Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ-700

Contact Us
Request A Quote
Product Details
Guarantee:
2years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support
Processing Type:
Pulp Molding Machine
Raw Material:
Waste Paper
Voltage:
220V50HZ/380V50HZ
Weight:
6 Tons-18 Tons
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
40 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



Pulp Molding Machine Egg Tray Machine PLC Control Easy Operation



Egg Tray Machine Introduction:



Product Name: Pulp Molding Machine Egg Tray Machine PLC Control Easy Operation

Product Model: ZSJ-700

Applicable industries: Poultry, animal husbandry, agriculture, carton production industry, printing industry, paper industry

Usage: egg tray, egg carton, fruit tray, apple tray, coffee cup tray, wine tray,Industrial Packaging Tray, electrical products tray



Egg Tray Production Line Description:

---Using high precision reducer servo motor to form and transfer the trays, ensuring fast and smooth operation.

---Using absolute encoder to realize accurate correction/calibration.

---The use of high quality casting static and dynamic ring structure is more suitable for product drying technology.



Egg tray machine Pulp Molding Machine is composed of the following sections:

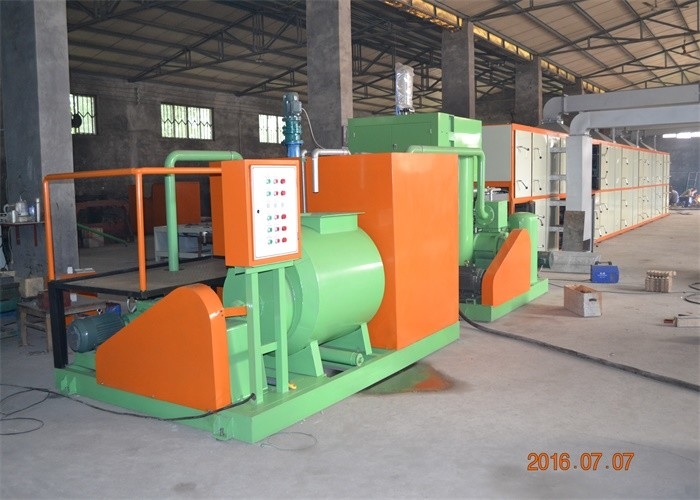

1. Pulping System

Turn waste paper, such as old newspapers, magazines, cartons, into a certain concentration pulp through pulping, screening, or adding chemical additives , for forming of molding machines.



PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation 0

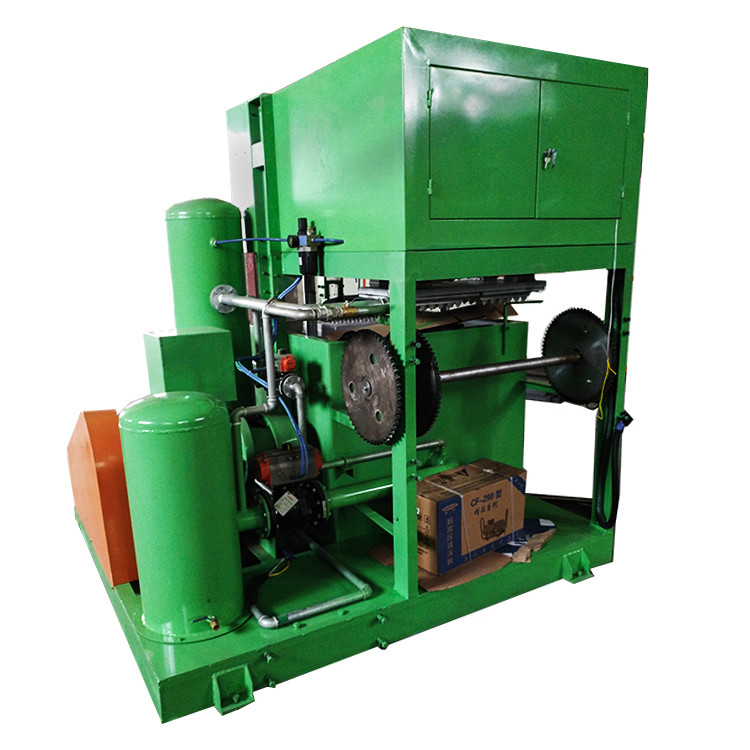

2. Forming System

Attaching the pulp onto the specially made forming mold evenly through vacuum effect to make it into wet trays and then deliver it to drying system.

PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation 1

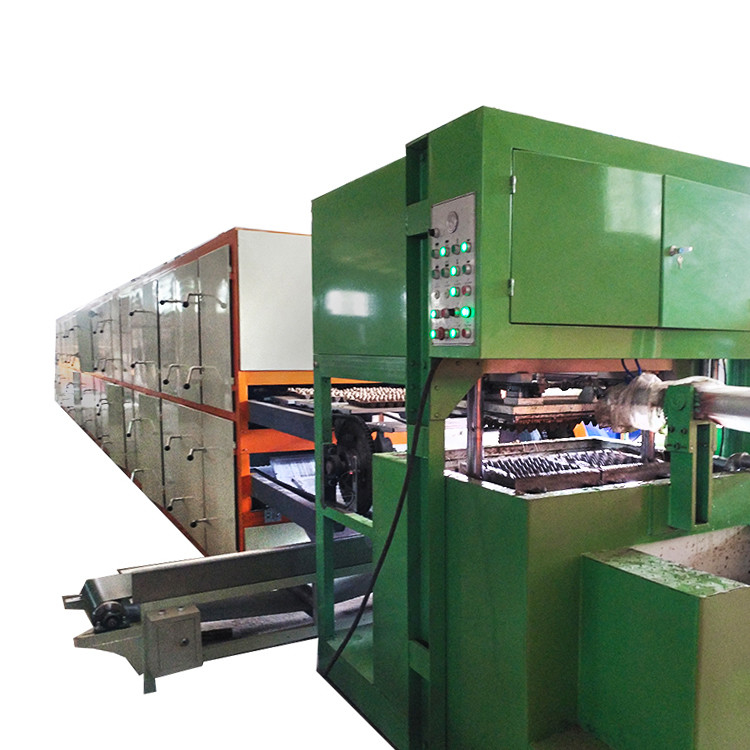

3. Drying System

Using heat source like Gas, Diesel, Steam, Conduction oil, coal, Wood to dry the wet trays after forming.

PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation 2

4. Stacking & Packing System

Count the number of dried trays, separate them and pack them for automatic packaging.

PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation 3

Vacuum System

Offer vacuum for forming product



Air Compressor System

Supply compressed air for transferring product

Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



Technical data

  Description Quantity Motor power

Pulping system



Pulping machine 1set 7.5kw
Pulp Pump 1set 4kw
Pulp pump 1set 1.5kw
Mill pulp pump 1set 7.5kw
Water pump 2sets 0.75kw*2=1.5kw
Mixer 1set 1.5kw
Pulp pool and Water pool 1set

Forming system































Moulding machine



1set With 4 pcs forming molds(Aluminum Molds)
Vacuum pump 1set 7.5kw
Mold Washer 1set 1.1kw
Pulp pump 1set 1.5kw
Air Compressor 1set 11kw
Vacuum tank 1set
Air tank 1set

Drying system



Boiler 1 Set
Natural gas burner(Riello) 1 Set
  Electric Control Cabinet 1 Set
Fan with motor 1Set 7KW
Delivery Belt 1Set
Chimney 4m

Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 40 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time

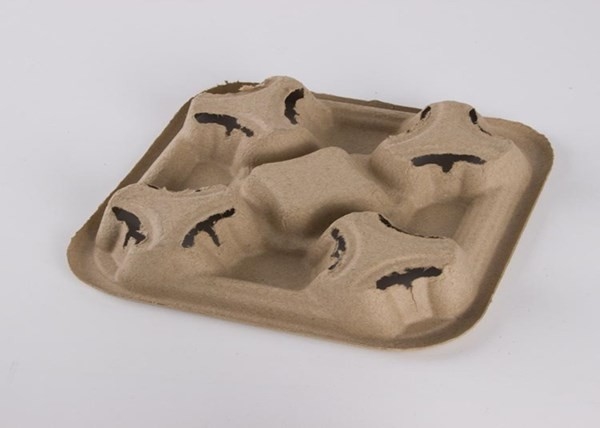

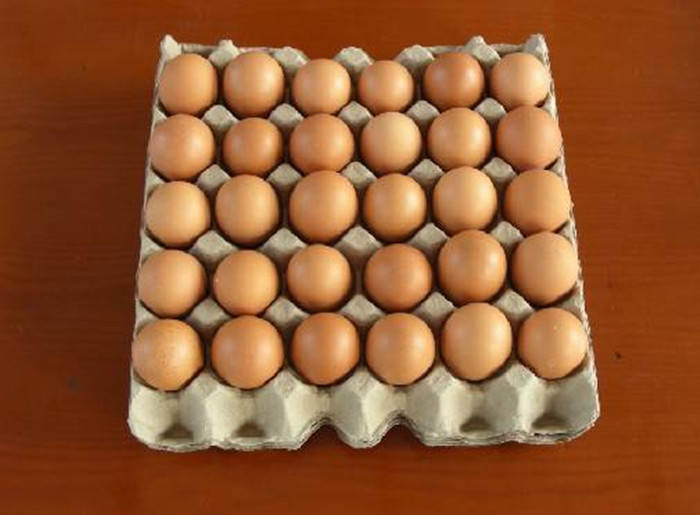

Egg Tray Machine end products includes:

The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.

PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation 4

PLC Control Paper Egg Tray Machine Pulp Molding Machine Easy Operation 5
