Eco - Friendly Automatic Paper Egg Tray Machine Waste Paper Recycling

Eco - Friendly Automatic Paper Egg Tray Machine Waste Paper Recycling

egg tray manufacturing machine

egg tray machine

Rotary Egg Tray Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ-6000

Contact Us
Request A Quote
Product Details
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Egg Tray Forming Type:
Rotary
Processing Type:
Pulp Molding Machine
Voltage:
220V/380V,380V,380v / 450v
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support
Waste Paper Consumption:
300kg/h
Water Consumption:
0.9ton/h
Worker Requirment:
8-10 Worker
Power Requirment:
100-150KW
Waste Paper Consumption:
450kg/h
Water Consumption:
1.35t/h
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
90 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description

                                                 Eco-friendly Automatic waste paper recycling egg tray making machine



Our Service:

1. Service phone line keep 24 hours unlocked
2. All emails will get response within 24 hours
3. Any needed machine parts can be supplied with professional guiding and ordinary price.
4. Engineer can be dispatched abroad for installation and maintenance.
5. Collect after-sale-service feedback from customer, keep improving.



Automatic egg tray making machineis composed of the following sections:



1. Egg Tray Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

Eco - Friendly Automatic Paper Egg Tray Machine Waste Paper Recycling 0

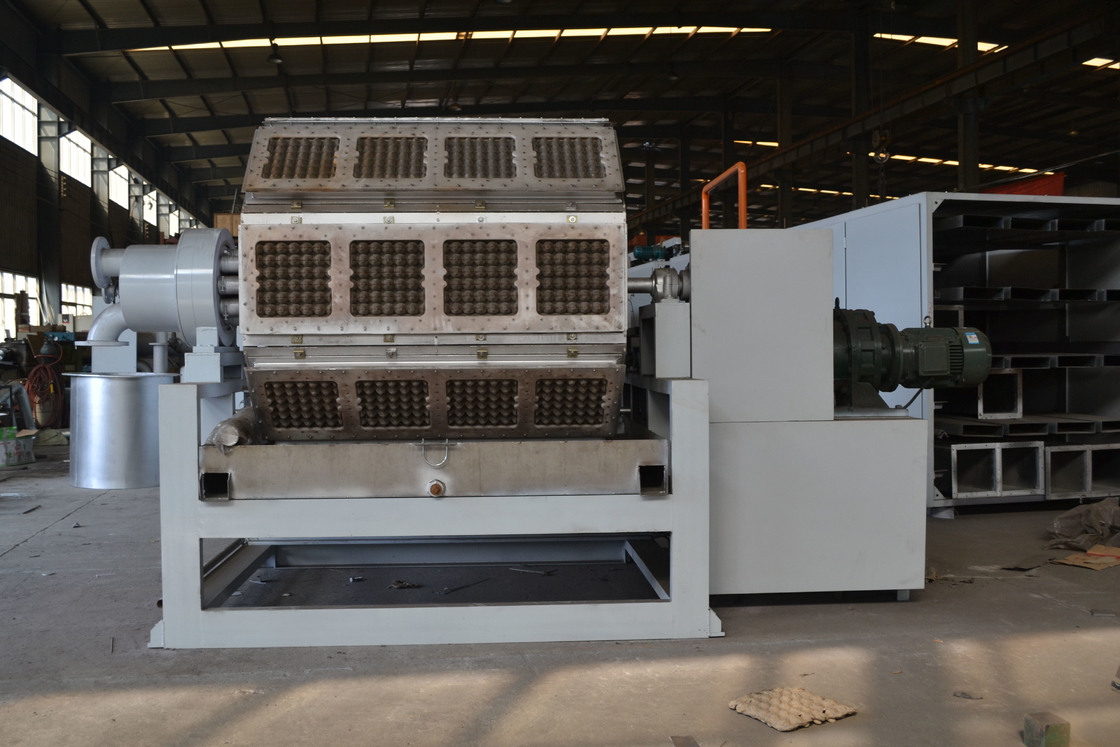

2. Egg Tray Molding Forming System :

The Egg Tray Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

Eco - Friendly Automatic Paper Egg Tray Machine Waste Paper Recycling 1

3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

Eco - Friendly Automatic Paper Egg Tray Machine Waste Paper Recycling 2

4. Egg Tray Automatic Stacking Machine:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



Machine Features of Automatic egg tray making machine:



1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2 years warranty.

​ 5. The installation of the whole line is easy.



Many capacity Automatic egg tray making machine:

Egg Tray Mold Quantity



48pcs(6*8)



Raw material



Waste paper



Egg tray Capacity



6000pcs/hour



Net weight per piece (gram)



70g-75g



Waste paper consumption



450kg/hour



Water Consumption



1.35ton/hour



Natural Gas Consumption of Dryer



180cbm/h



Worker requirement



8-10workers



Machine Length



8m-38m



Machine weight



8-32tons



Payment and delivery:



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 90 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Automatic egg tray making machine Advantages:

1. Controlled by automatic computer software
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 1 year warranty time





Samples of Automatic egg tray making machine:

Eco - Friendly Automatic Paper Egg Tray Machine Waste Paper Recycling 3
