Disposable Paper Egg Tray Making Machine 1000pcs/h

Disposable Paper Egg Tray Making Machine 1000pcs/h

1000pcs/H Egg Tray Maker

Disposable Paper Egg Tray Maker

1000pcs/H Egg Tray Making Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:




Model Number:

ZSJ series

Contact Us
Request A Quote
Product Details
2 Year
After Sale Service:
Engineers Available To Overseas Installation
Processing Type:
Pulp Molding Machine
Product Type:
Egg Tray Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
in container
Delivery Time
35 working days
Payment Terms
Western Union, MoneyGram, T/T, L/C
Supply Ability
1 set per month
Product Description

                                  1000pcs/h Disposable Paper Egg Tray Maker Small Egg Tray Making Machine

    Wanyou disposable paper egg tray maker small egg tray making machine


Three sections of small egg tray making machine:

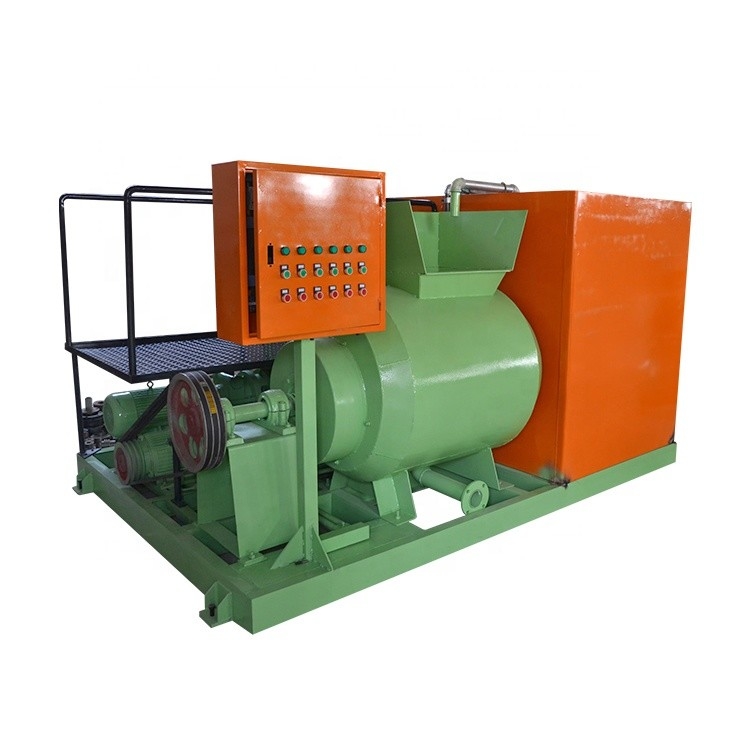

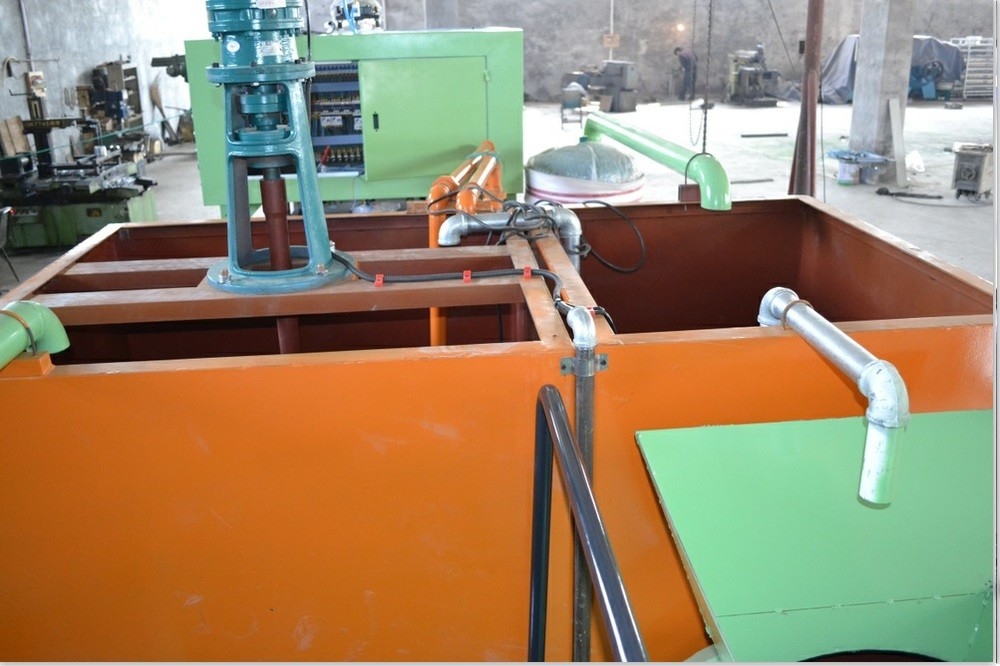

♦Pulping system

(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system.
Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator

Disposable Paper Egg Tray Making Machine 1000pcs/h 0

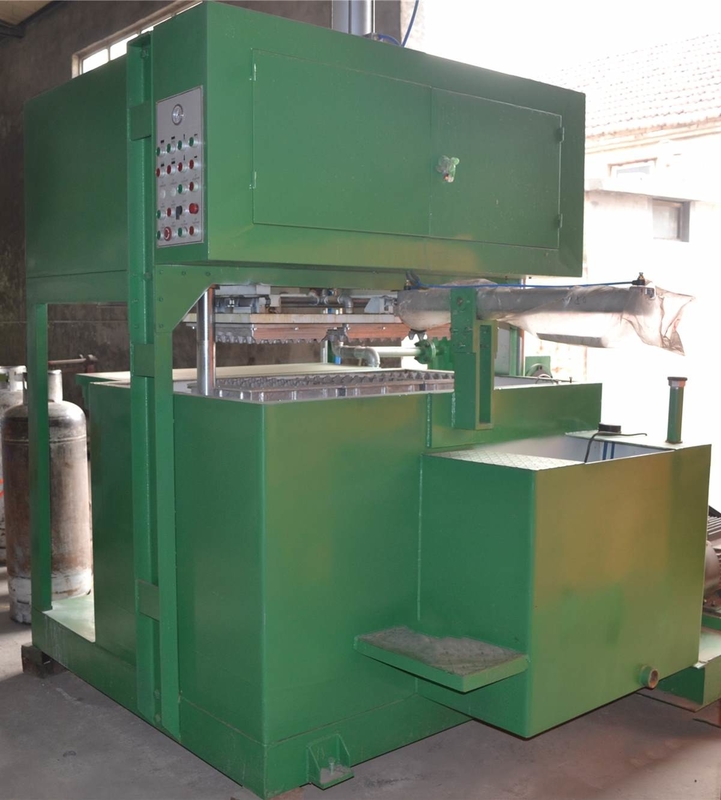

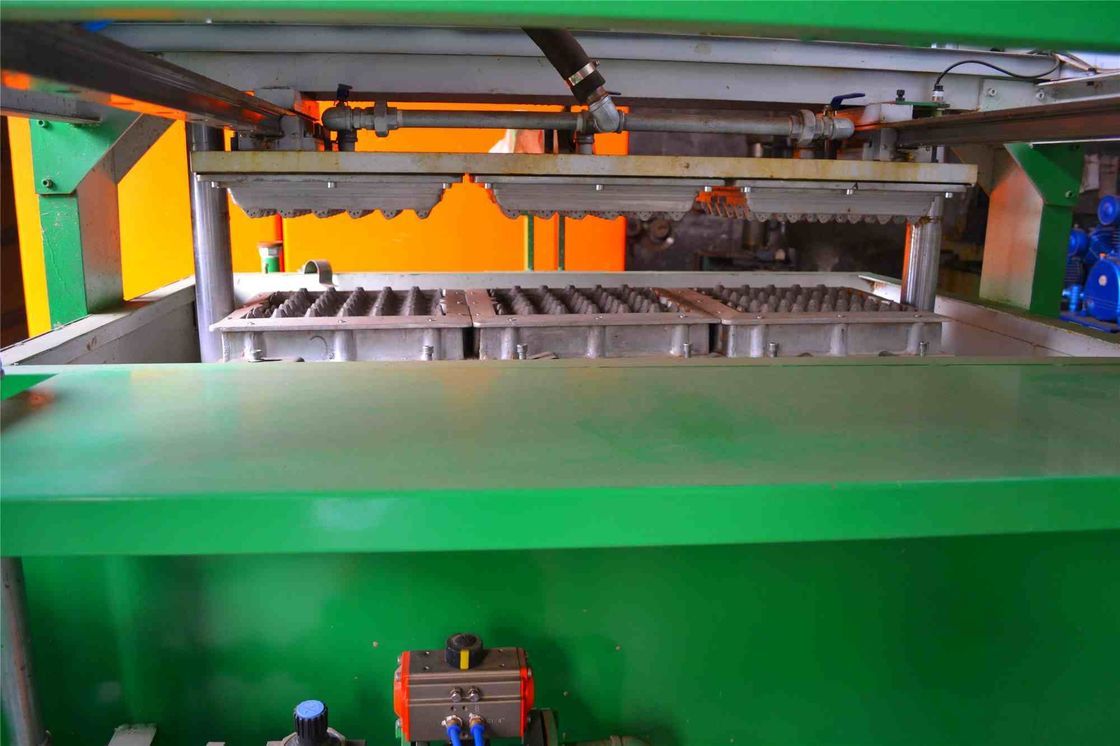

Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the  white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine

Disposable Paper Egg Tray Making Machine 1000pcs/h 1
Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.

Disposable Paper Egg Tray Making Machine 1000pcs/h 2
Finished product auxiliary packaging
(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor


Techinical Parameters of small egg tray making machine:


Technical Parameters
Egg Tray mould quantity      3pcs Container Required
Raw material Waste paper

About 40ft*1(without dryer)


Output for egg tray 1000pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 0.075ton / hour
The volume of water consumed 0.22ton / hour

The natural gas consumption of the dryer(about)




Machine Weight 8tons
Egg tray Size 295mm*295mm 30eggs
Remark: 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and engineer charge USD100/day )

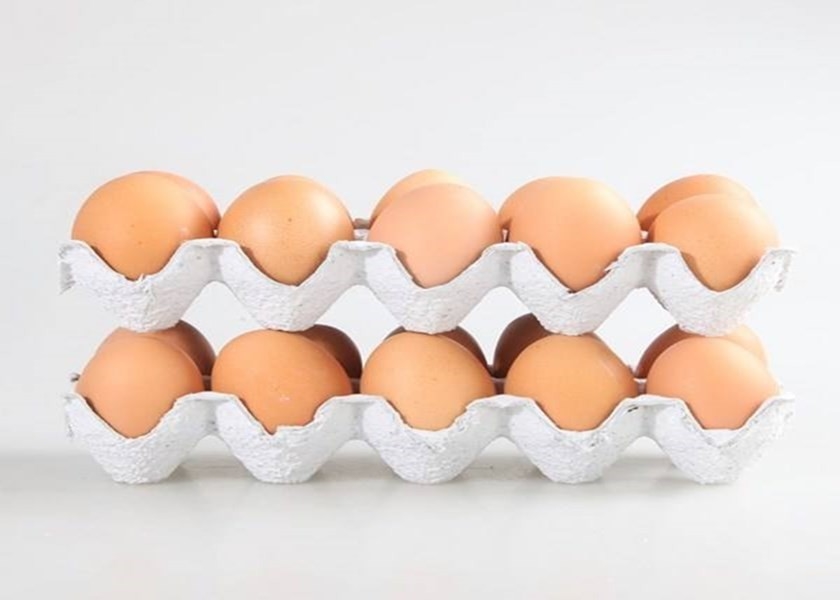

Samples by small egg tray making machine:


Disposable Paper Egg Tray Making Machine 1000pcs/h 3
