Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-2000
Video
Video
2000pcs/h Paper Egg Tray Making Machine With ABS Molds Easy Operation
1800pcs/h Paper Egg Tray Making Machine With ABS Molds Easy Operation
Machine Introduction:
Machine for make paper egg tray,egg tray making machine,egg tray machine,paper tray machine.pulp moulding machine
The quality of our egg tray making machines is superior to that of other suppliers,and our prices are lower than theirs.
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
The Egg Tray Molding System consists of various equipments and Molds.

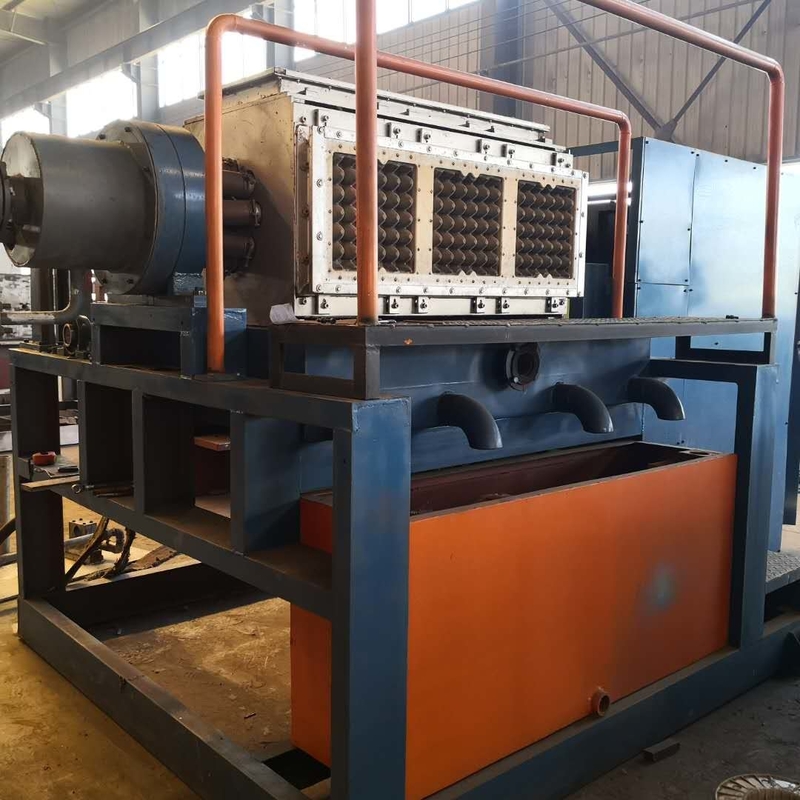

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

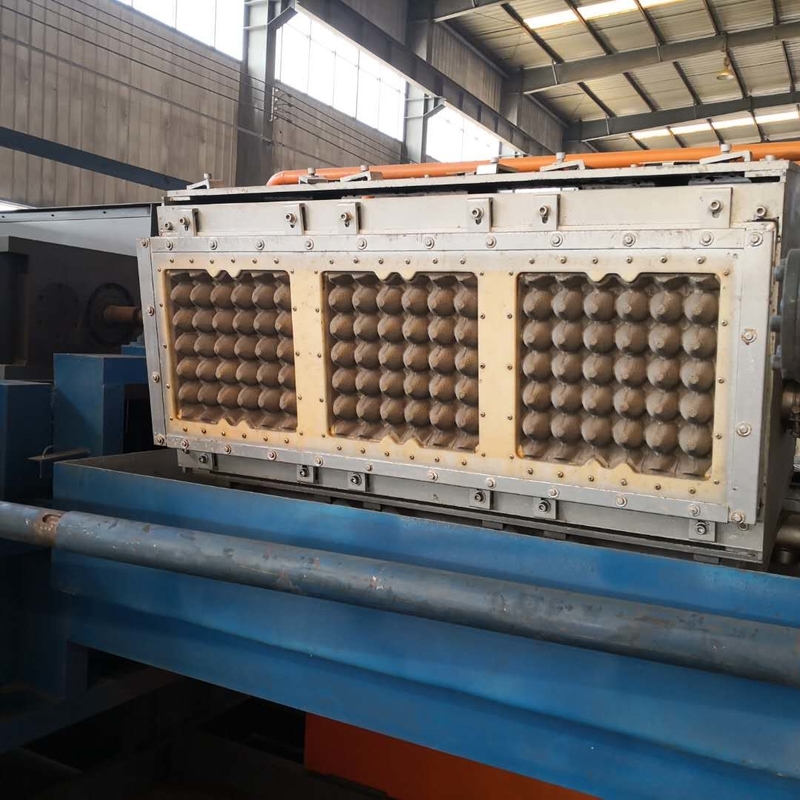

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by pre-formed stainless steel screens.
The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibres in recycled water. A vacuum system attracts the fibres to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

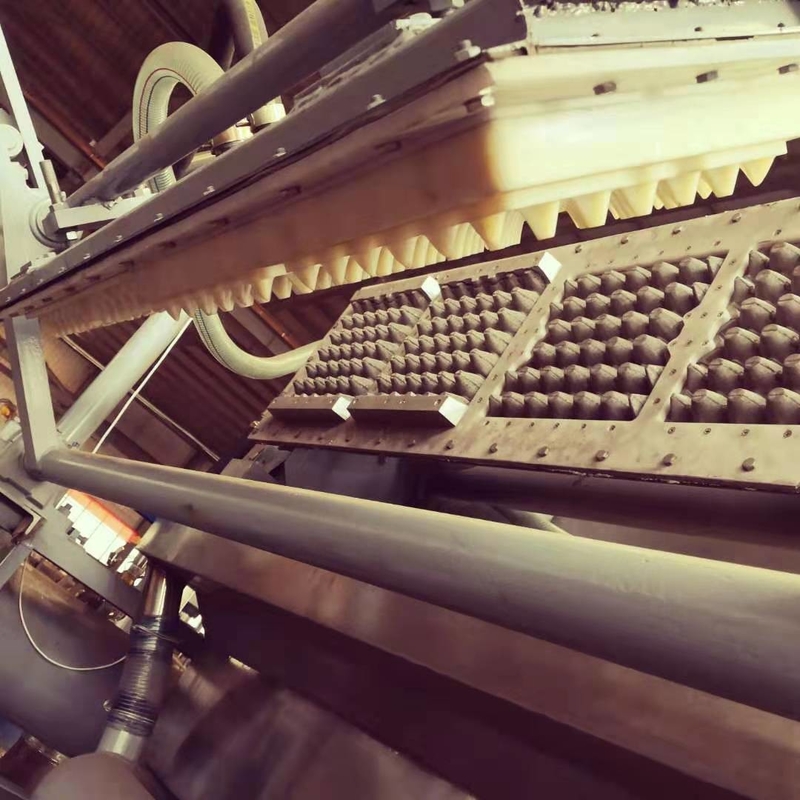

When the matching transfer die comes into contact with the freshly formed fibre product on the forming die, there is a gentle puff of air from the forming die and a vacuum in the transfer die that gently lifts off and transfers the delicate wet formed products (about 75% water at this stage) onto the transfer die. And to remove and transfer to dryer conveyor trays by an alternate gentle air puff through the transfer dies when they are above a matching dryer conveyor tray
With this machine production line, investors can turn their waste paper into Money!
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: Wanyou
Voltage: 220-440V
Power(W): Different Machine Model
Weight: 23tons around
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 1800pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray, egg carton, industrial packages
Workshop required: 400㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical parameters
| Egg Tray mould quantity | 3pcs*4(12 pcs) |
| Raw material | Waste paper |
| Output for egg tray | 1800pcs/hour |
| Net weight per piece (gram) | 70g-75g |
| The volume of waste paper consumed | 135kg/ hour |
| The volume of water consumed | 0.5ton / hour |
| The natural gas consumption of the dryer(about) | 60cbm/h |
| Machine Weight | 10-30tons |
| Egg tray Size | 295mm*295mm 30eggs |
| Product Name | Model | Qty(set) | Capacity |
| Egg Tray Machine | ZJM-1A | 1 | 2000pcs/h |
| Area of workshop | Without dryer | More than 200㎡ | |
| With dryer | More than 400㎡ | ||
| Capacity of power | Without dryer | 70KW | |
| With dryer | 80kw | ||
| Machine size | Without dryer | 7m*2m*2.2m | |
| With dryer | 37m*2m*2.2m | ||
| Size of container | Without dryer | 40ft*1 | |
| With dryer | 40ft*4 | ||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 45 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELL
Jinan Wanyou Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
End products of our machine:
