20KW-150KW Paper Egg Tray Making Machine With ABS Molds / Aluminum Molds

20KW-150KW Paper Egg Tray Making Machine With ABS Molds / Aluminum Molds

paper egg tray making machine

egg tray manufacturing machine

150KW Egg Tray Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

RL- ZJM

Contact Us
Request A Quote
Product Details
Power:
20KW-150KW
Raw Material:
Waste Paper, Waste Cardboard, Carton, Books Etc.
Guarantee:
2years
Capacity Of Egg Trays:
350 -3000pcs/h
Processing Type:
Pulp Molding Machine
Forming Molds:
ABS Engineering Plastic Material / Aluminum Molds
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
30 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



Waste Paper Egg Tray Machine / Eco-friendly Egg Tray Carton Machine With ABS Molds Or Aluminum Molds



Waste Paper Egg Tray Machine / Eco-friendly Egg Tray Carton Machine With ABS Molds Or Aluminum Molds



Machine Introduction:



1. Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

2. Forming System :

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

3. Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Automatic counting:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



With this machine production line, investors can turn their waste paper into Money!



Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model



Weight: 43tons around

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 3000pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  400㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Technical parameters

NO. Name Quantity Remark
1. 1.5m3 Hydraulic Pulper 1set 22KW-6P
2. Mill-pump 1 set 11Kw-4P Motor
3. Pulp-pump 1set 4KW
4. Water pool 1set 1.5m*1.5m*1.5m
5. Pulp pool

1set

1set

1.5m*1.5m*1.5m

2m*2m*1.5m

6.

Mixer

XLD3-43-0.55kw

2sets 0.55KW Motor
7.

Water Pump

80WQ40-10-3

3sets 2.2KW
8.

Pulping pump

80WQ40-10-3

2sets 2.2KW
9.

4*8Forming machine

Molds type: HK32

1set

Forming molds material is ABS

Transfering Molds material is Aluminum



10.

Roots Vacuum Pump ZBK15



2sets

18KW-4P

15kw-4P

11. Air Compressor 2sets 1.6m3
12.

Pulping pump



80WQ40-10-3

1set 2.2KW
13.

Main Motor

11kw-4P-1:87

1set 11KW
14. Electrical Cabinet 1set
15. Dryer oven 1line

6mLength*4

3.6m Length*1

16. Chains for dryer P2”*10. 680pieces 50.8*10=508mm
17. trays 300pieces
18.

Chain wheel

P50.8*Z30

9 pieces
19.

Chain wheel

P50.8*Z13

40pieces
20. Chain way 1set 5# Angle steel produced
21. Air pipe 1set 300mm*90mm
22. Air inlet pipe 1set
23.

Gas-burning hot-air furnace WRF-120

Burner TBG-150P

1set
24. Air blower 9-26-5.6A 1set 30KW-4p
25. Electric control Cabinet 1set
26. Chimney Ø273 4m
27. Hood(funnel cap) 6pcs
28. uptake ventilator 6pcs
29. transfer belt with one motor 1pcs 2.2KW-43
30. Platform 2 pcs
31. Boiler &accessory 1set



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 45 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Some world famous brands of the fittings:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)--DELTA

7. the burner-- BALTUR/RIELL



Factory Introduction


Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.

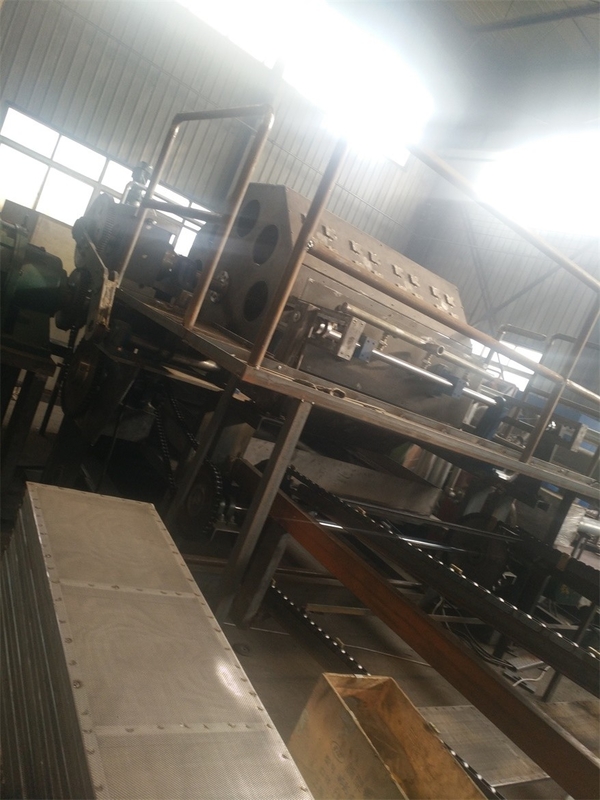

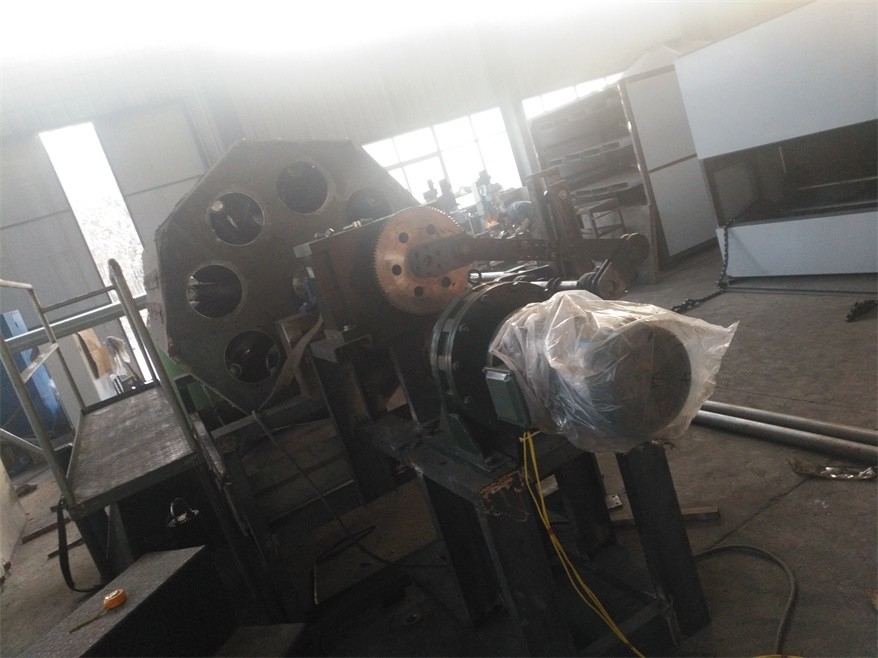

Working Process
