Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation

Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation
Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation
Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation

Large Image :  Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation

Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: Wanyou
Certification: CE
Model Number: ZSJ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: in container
Delivery Time: 30 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month

Small Capacity Paper Egg Carton Making Machine With ABS Molds Easy Operation

Description
Power: 20KW-150KW Raw Material: Waste Paper, Waste Cardboard, Carton, Books Etc.
Guarantee: 2years Capacity Of Egg Trays: 3000pcs/h
Processing Type: Pulp Molding Machine Forming Molds: ABS Engineering Plastic Material
High Light:

egg tray manufacturing machine

,

egg tray machine

,

Egg Carton Making Machine ABS Molds



Small Capacity Egg Tray Machine / Eco-friendly Egg Tray Carton Machine With ABS Molds



Machine Introduction:



The Egg Tray Molding System consists of various equipments and Molds.

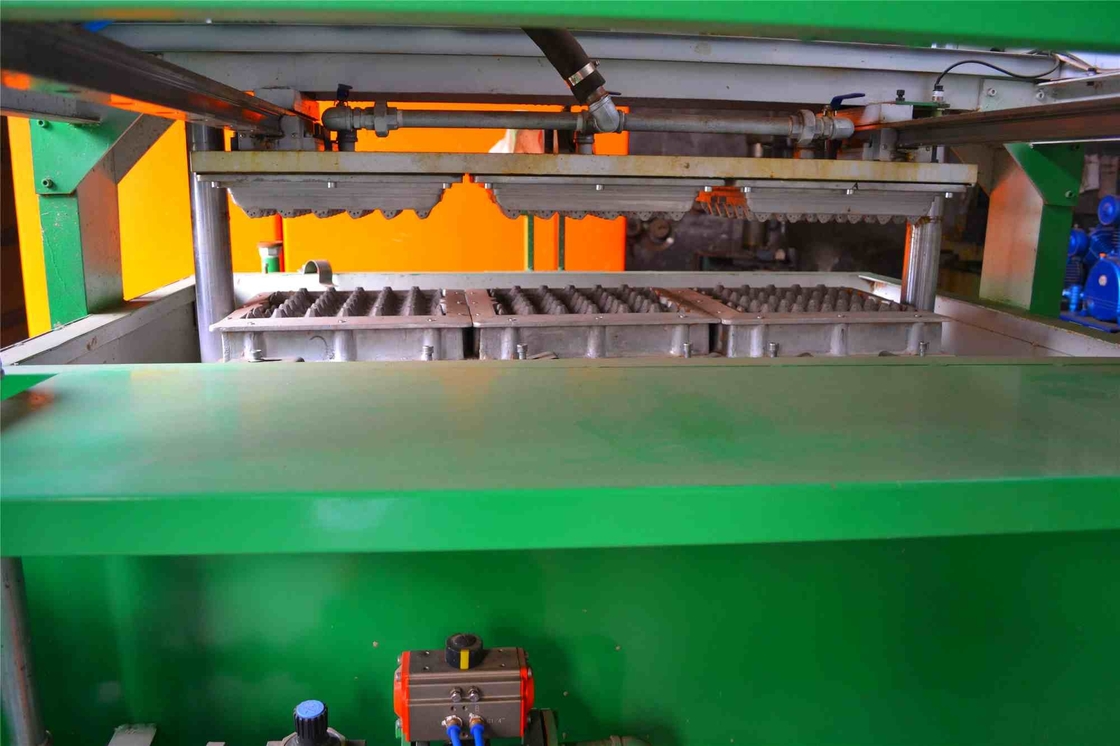

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by pre-formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibres in recycled water. A vacuum system attracts the fibres to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

When the matching transfer die comes into contact with the freshly formed fibre product on the forming die, there is a gentle puff of air from the forming die and a vacuum in the transfer die that gently lifts off and transfers the delicate wet formed products (about 75% water at this stage) onto the transfer die. And to remove and transfer to dryer conveyor trays by an alternate gentle air puff through the transfer dies when they are above a matching dryer conveyor tray



With this machine production line, investors can turn their waste paper into Money!



Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: Wanyou

Voltage: 220-440V

Power(W): Different Machine Model



Weight: 43tons around

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 3000pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  400㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

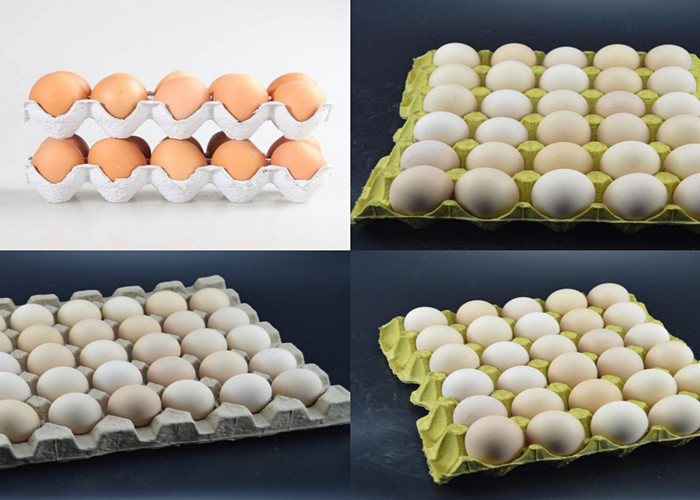

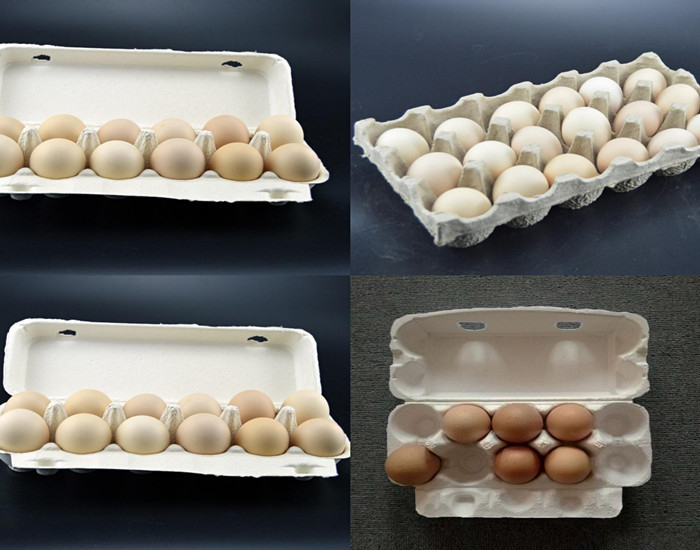

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Technical parameters

NO. Name Quantity Remark
1. 1.5m3 Hydraulic Pulper 1set 22KW-6P
2. Mill-pump 1 set 11Kw-4P Motor
3. Pulp-pump 1set 4KW
4. Water pool 1set 1.5m*1.5m*1.5m
5. Pulp pool

1set

1set

1.5m*1.5m*1.5m

2m*2m*1.5m

6.

Mixer

XLD3-43-0.55kw

2sets 0.55KW Motor
7.

Water Pump

80WQ40-10-3

3sets 2.2KW
8.

Pulping pump

80WQ40-10-3

2sets 2.2KW
9.

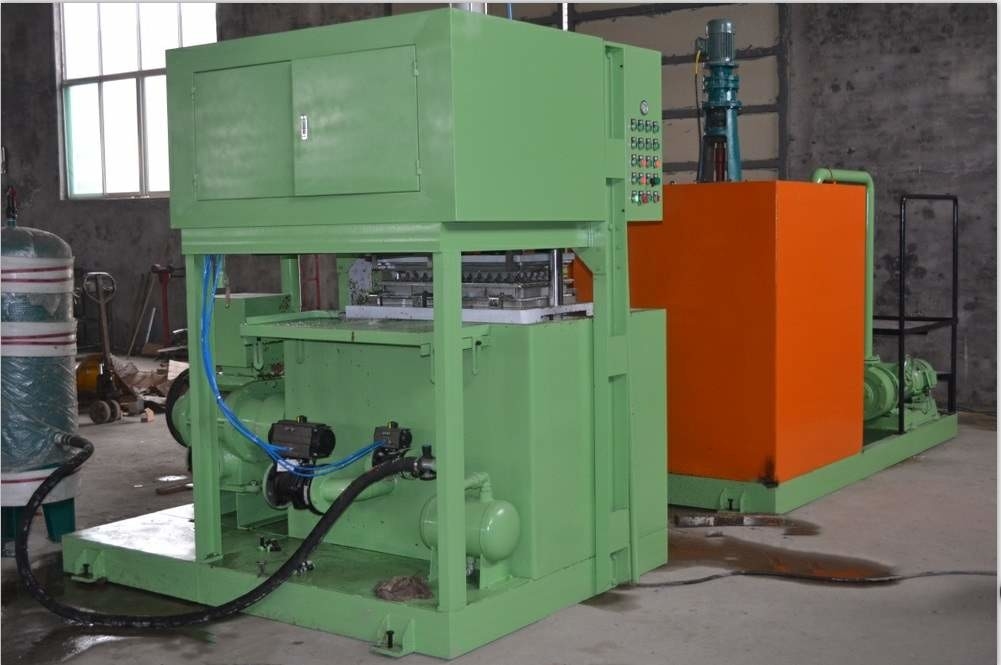

4*8Forming machine

Molds type: HK32

1set

Forming molds material is ABS

Transfering Molds material is Aluminum



10.

Roots Vacuum Pump ZBK15



2sets

18KW-4P

15kw-4P

11. Air Compressor 2sets 1.6m3
12.

Pulping pump



80WQ40-10-3

1set 2.2KW
13.

Main Motor

11kw-4P-1:87

1set 11KW
14. Electrical Cabinet 1set
15. Dryer oven 1line

6mLength*4

3.6m Length*1

16. Chains for dryer P2”*10. 680pieces 50.8*10=508mm
17. trays 300pieces
18.

Chain wheel

P50.8*Z30

9 pieces
19.

Chain wheel

P50.8*Z13

40pieces
20. Chain way 1set 5# Angle steel produced
21. Air pipe 1set 300mm*90mm
22. Air inlet pipe 1set
23.

Gas-burning hot-air furnace WRF-120

Burner TBG-150P

1set
24. Air blower 9-26-5.6A 1set 30KW-4p
25. Electric control Cabinet 1set
26. Chimney Ø273 4m
27. Hood(funnel cap) 6pcs
28. uptake ventilator 6pcs
29. transfer belt with one motor 1pcs 2.2KW-43
30. Platform 2 pcs
31. Boiler &accessory 1set



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 45 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Some world famous brands of the fittings:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)--DELTA

7. the burner-- BALTUR/RIELL



Factory Introduction


Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
