Free Sample High Quality Waste Paper Pulp Egg Tray Making Machine Price

Free Sample High Quality Waste Paper Pulp Egg Tray Making Machine Price

egg tray manufacturing machine

egg tray machine

Waste Paper Pulp Egg Tray Machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

RUNLIANG

Certification:

CE

Model Number:

WLJ

Contact Us
Request A Quote
Product Details
Voltage:
220V-440V
Warranty:
2 Year
After Sale Service:
Engineers Available To Overseas Installation
Processing Type:
Pulp Molding Machine
Product Type:
Egg Tray Machine
Worker:
4-6 People
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 16000-36000 per set
Packaging Details
in container
Delivery Time
35 working days
Payment Terms
Western Union, MoneyGram, T/T, L/C
Supply Ability
1 set per month
Product Description

Free Sample High Quality Waste Paper Pulp Egg Tray Making Machine Price



Machine Features:



1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2 years warranty.

​ 5. The installation of the whole line is easy.



Quick Detail



Condition: New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided: Engineers available to service machinery overseas

Capacity: 2500pcs/h

Color: As customer needs

Frequency: 50Hz-60Hz

Application: egg tray,fruit tray,bottle tray

Workshop required: 150-300㎡

Worker required: 5-6 persons

Fuel: Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



Many capacity egg tray machines we offered:

Egg Tray Mold Quantity



8pcs(4pcs/row, 2 rows)



Raw material



Waste paper



Egg tray Capacity



2500pcs/hour



Net weight per piece (gram)



70g-75g



Waste paper consumption



188kg/hour



Water Consumption



0.6ton/hour



Natural Gas Consumption of Dryer



80cbm/h



Worker requirement



5-7workers



Machine Length



8m-38m



Machine weight



8-32tons



Payment and delivery



Trade terms FOB Qingdao or EXW Factory
Delivery time About 90 working days after receiving the deposit.
Payment term BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time Two years after the Egg tray machine received.
TERMS OF DELIVERY FOB Qingdao Port, China
Package In container
Certification CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )



This machine is composed of the following sections:



1. Egg Tray Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

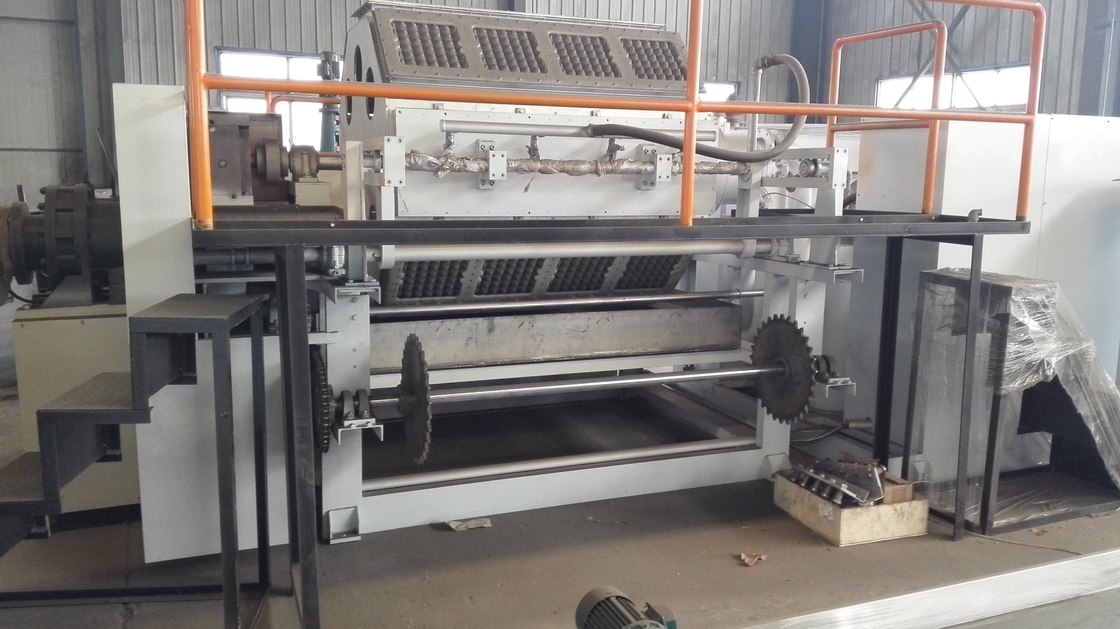

Free Sample High Quality Waste Paper Pulp Egg Tray Making Machine Price 0

2. Egg Tray Molding Forming System :

The Egg Tray Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

Free Sample High Quality Waste Paper Pulp Egg Tray Making Machine Price 1

3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

Free Sample High Quality Waste Paper Pulp Egg Tray Making Machine Price 2

4. Egg Tray Automatic Stacking Machine:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly

Free Sample High Quality Waste Paper Pulp Egg Tray Making Machine Price 3
