Place of Origin:
Jinan, Shandong, China
Brand Name:
WANYOU
Certification:
CE
Model Number:
ZSJ-700
Waste Paper Recycle Used making machine egg tray carton with 2 aluminum molds

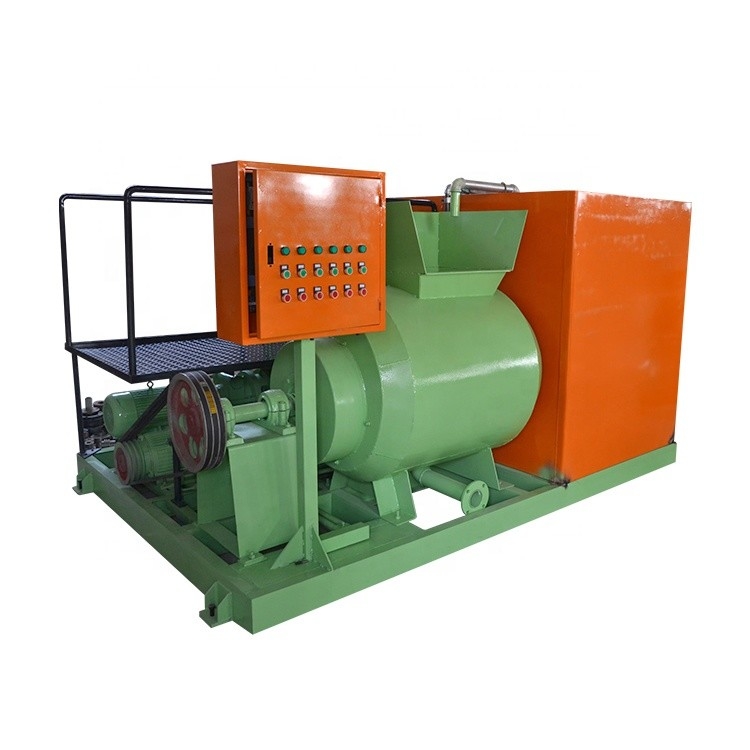

Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to adsorb the pulp to the molding mold, adsorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold adsorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the they drying tray.
Data of small egg tray machine:
1. | Egg tray mould quantity | 1pcs | 2pcs | 3pcs | 4pcs |
2. | Raw material | Waste paper | Waste paper | Waste paper | Waste paper |
3. | Output for egg tray | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour |
4. | Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
5. | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour |
6. | The volume of water consumed | 0.05ton / hour | 0.15ton / hour | 0.2ton / hour | |
7. | Operators number | 2-3workers | 3-4workers | 4-6workers | 4-6workers |
8. | Area of workshop | More than 200M² | More than 240M² | More than 240M² | More than 240M² |
9. | Capacity of power | 25KW | 40KW | 50KW |
60KW |

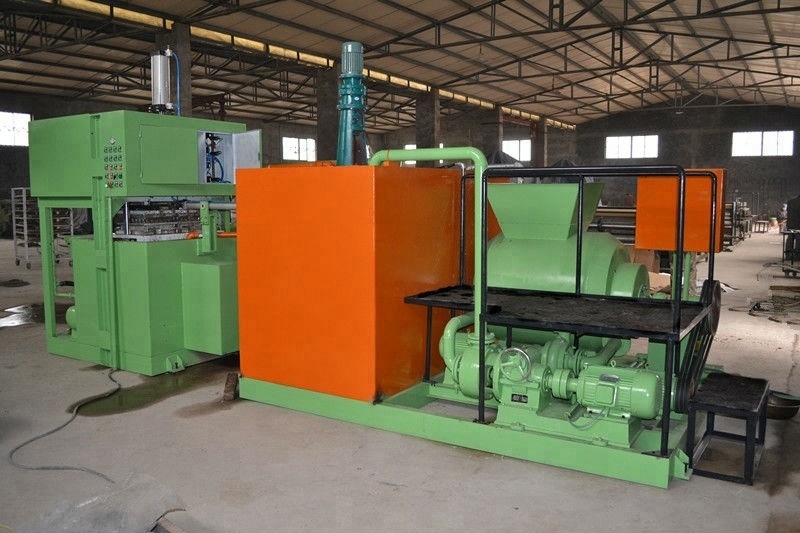

The advantage of this machine with water pool and pulp pool.can be use directly after connect the power.
Egg Tray Mold Quantity | 2pcs | |
Raw material | Waste paper | |
Egg tray Capacity | 700-800pcs/hour | |
Net weight per piece (gram) | 70g-75g | |
Waste paper consumption | 0.06ton / hour | |
Water Consumption | 0.1ton/hour | |
Natural Gas Consumption of Dryer | 25cbm/h | |
Worker requirement | 3-4workers | |
Machine Length | 7m-23m | |
Machine weight | 6-20tons | |
Power Requirement | Without dryer | 30KW |
With dryer | 45KW | |
Area of workshop | Without dryer | More than100M² |
With dryer, dryer-16m | More than240 M² | |
Container Requirement | Without dryer | 20ft*1 |
With dryer | 40ft*2+20ft*1 | |
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
Aluminum molds:

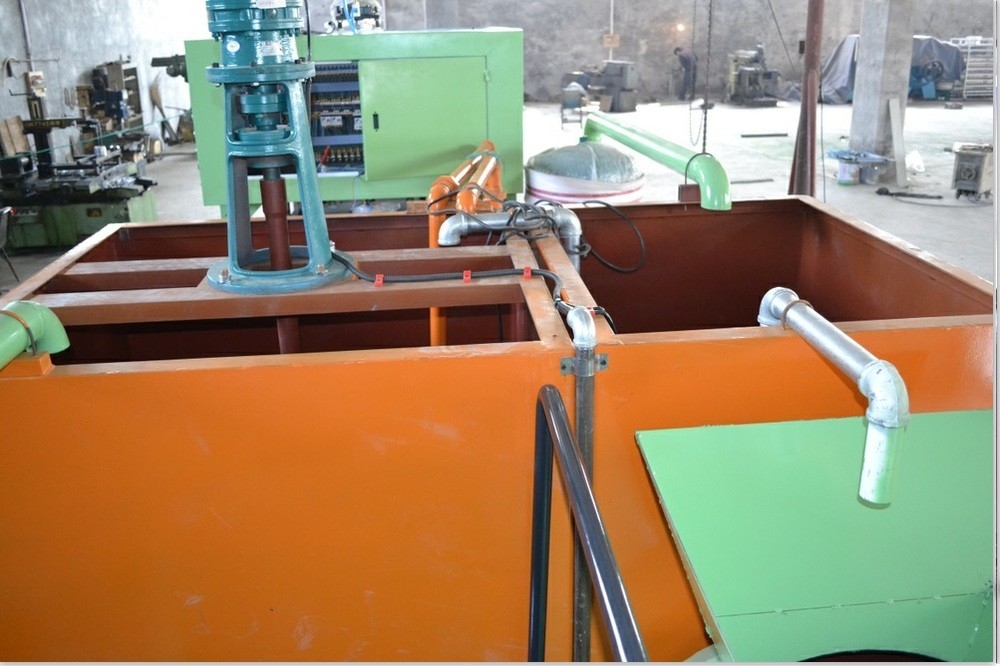

Water pool and pulp pool:
Warranty:1 years
