PLC Controlled Paper Egg Tray Machine Egg Carton Production Line 1500 pcs/h Egg Trays Apple Trays from Recycled Waste Paper Material 45-65kw
Technical parameters of egg tray machine:
|
Technical Parameters
|
|
Egg Tray mould quantity
|
4pcs
|
Container Required
|
|
Raw material
|
Waste paper
|
About 40HQ*1
|
|
Output for paper tray
|
1300-1500pcs/hour
|
|
Net weight per piece (gram)
|
Estimated 70-75g
|
|
Waste paper consumption
|
Estimated 113kg / hour
|
|
Water consumption
|
Estimated 338kg / hour
|
|
Machine Weight
|
6 tons around
|
|
Installed power
|
65kw
Practical usage is 70% of this power
|
|
Power supply
|
380V/50HZ
|
|
Workshop demand
|
At least 15L*10W*4mH
|
|
End tray Size
|
295*295mm
|
|
Remarks:
1.Usually, all installation and debugging work will be done before shipment.
2.We will offer online installation support for buyers. Either by video call or by phone call.
|
Machine Introduction of egg tray machine:
This semi-automic type paper egg tray production line is not equipped with drying system, after pulp making process and automatic forming process, the wet prodcuts should be moved to another place for drying by workers, and then prodcut can be dried by sunshine.
The egg tray/carton machine/ production line are suitable for all kinds of paper pulp molded product.

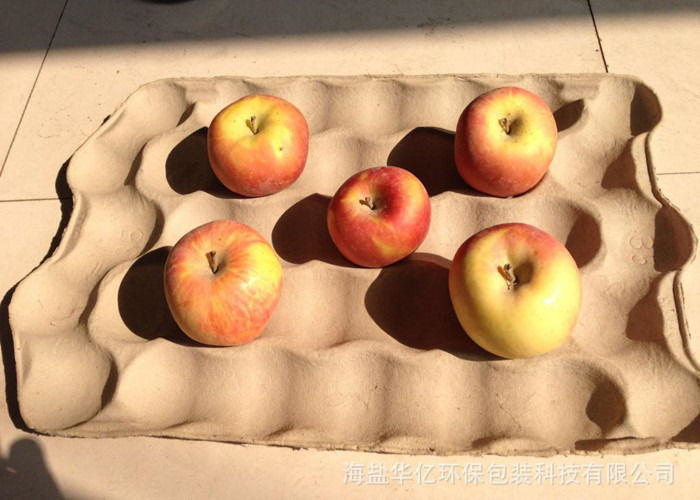

Usage: egg tray, egg carton, fruit tray, apple tray, coffee cup tray, wine tray
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
1500pcs/h 4 molds reciprocating forming type egg tray machine
1*4 molds 1500pcs/h capacity egg tray machine

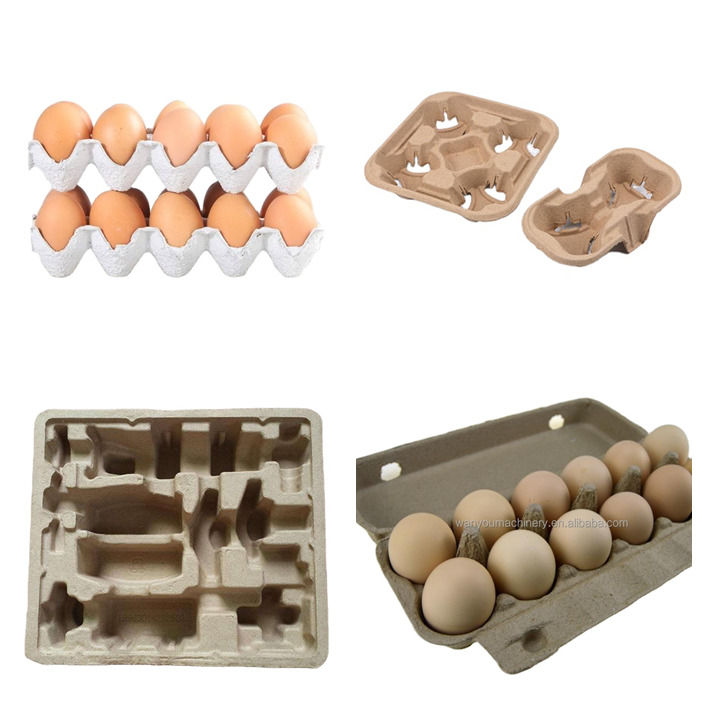

This paper egg tray machine/ egg carton production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Payment and delivery of egg tray machine:
| Trade terms |
FOB Qingdao or EXW Factory |
| Delivery time |
About 45 working days after receiving the deposit. |
| Payment term |
BY T/T 40%DEPOSIT+60%BALANCE |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
Two years after the Egg tray machine received. |
| TERMS OF DELIVERY |
FOB Qingdao Port, China |
| Package |
In container |
Welcome to contact us.
Working Process of egg tray machine:
Samples of egg tray machine:
