Place of Origin:
Jinan, Shandong, China
Brand Name:
RUNLIANG
Model Number:
WLJ
Document:
Paper egg tray machine /egg tray production line introduction:
1. Egg Tray Pulping System:
Put the waster paper into the hydraulic pulper , the paper and water will mix in hydraulic pulper ,then go to the refiner machine, refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool, the pulp will go to the forming machine pulp tank.

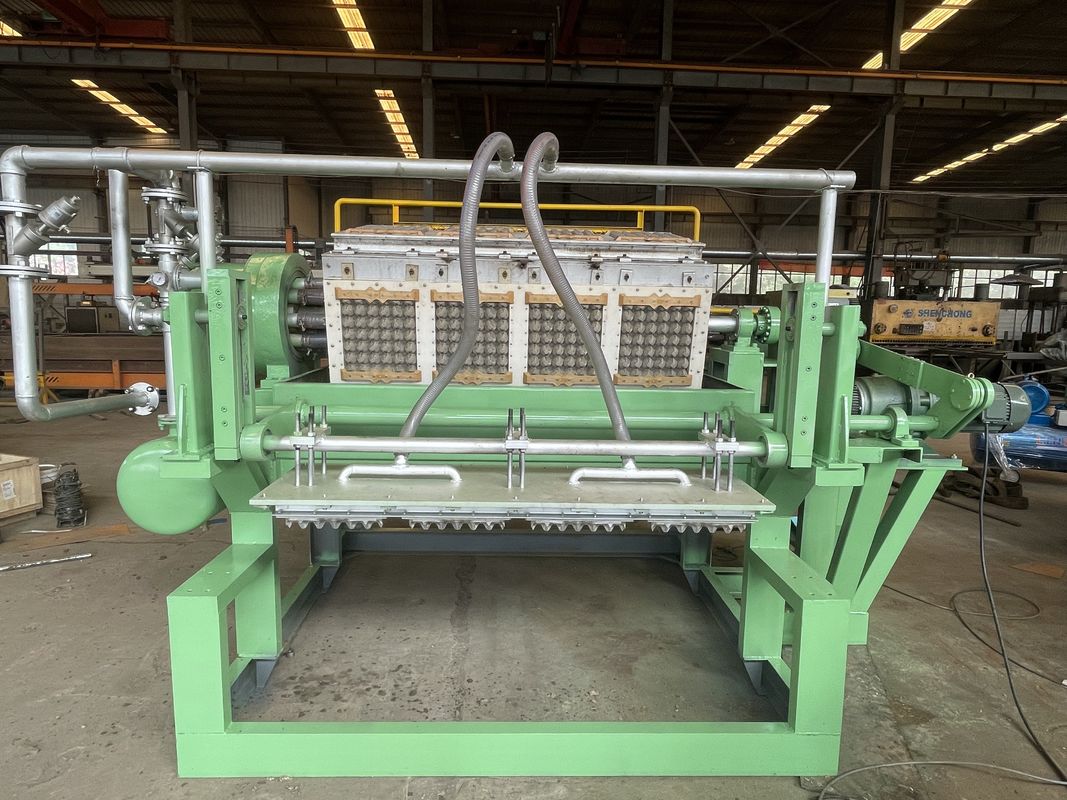

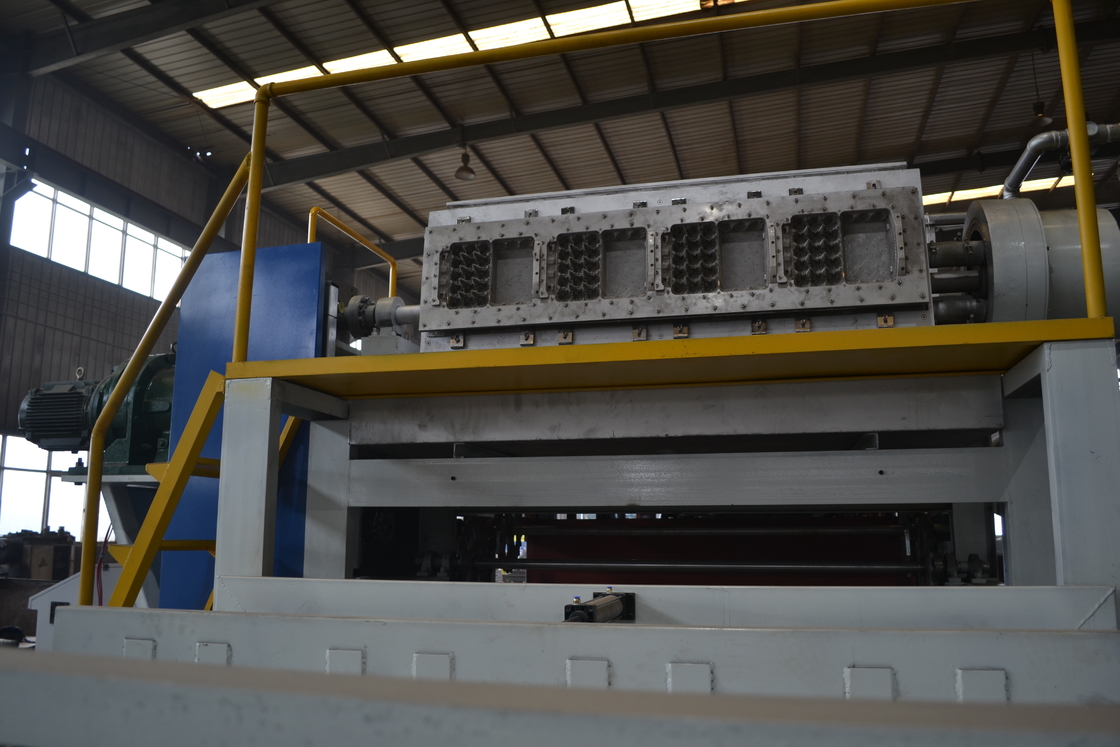

2. Egg Tray Molding/ Forming System :

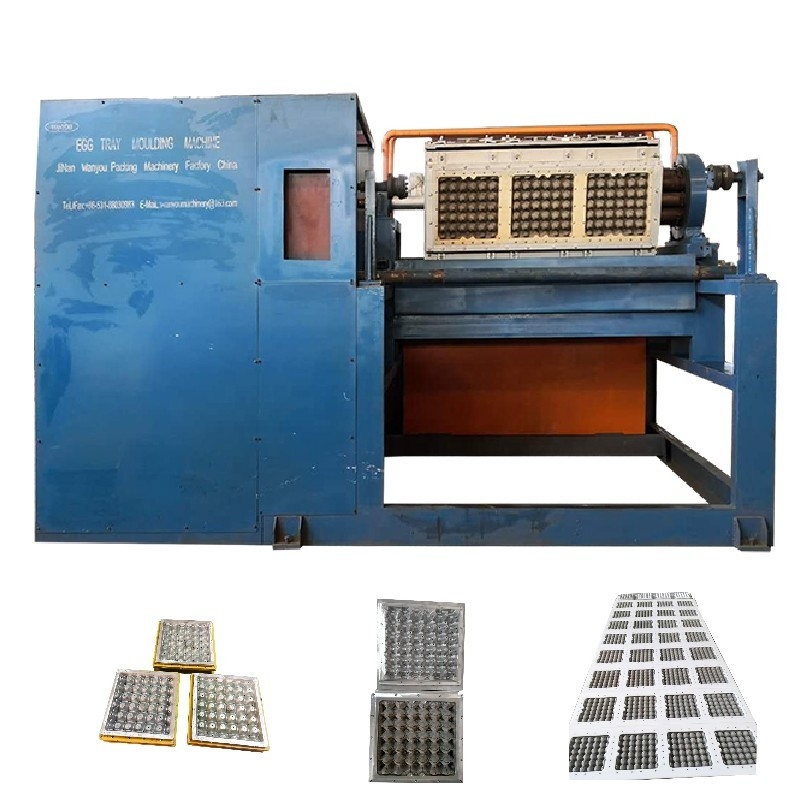

The Egg Tray Molding Forming System consists of various equipment and dies.
The egg tray forming die, the molding drum, the vacuum pump, one PLC cabinet, the forming mould, the transfer mould, the air compressor and other spare parts like connecting pipes, valves, etc.
3. Egg Tray Drying system (can use gas,diesel,coal, wood, LPG, or Biomass pellets for Boiler burner)
There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach150- 200 degree.

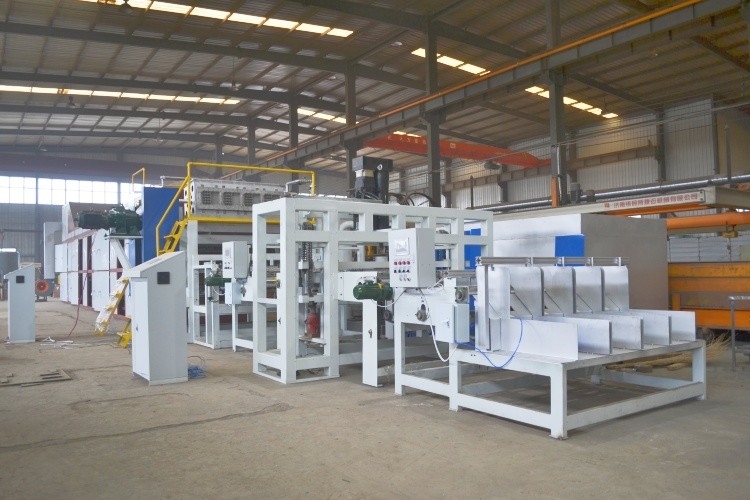

4. Egg Tray Automatic Stacking Machine:
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity number is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Technical Parameters:
Egg Tray mould quantity | 12pcs (3*4) | Container Required |
Raw material | Waste paper |
About 40ft*3+20ft*1with dryer |
Output for egg tray | 2000pcs/hour | |
Net weight per piece (gram) | 70g-75g | |
The volume of waste paper consumed | 150kg/h | |
The volume of water consumed | 0.45t/h | |
Diesel Oil consumption Natural gas consumption |
45Kg/h 75cbm/h |
|
Workshop dimension | Around400m2 | |
Electricity Power | 70-100KW | |
Machine Weight | 10-35tons around | |
Egg tray Size | 295mm*295mm 30eggs |

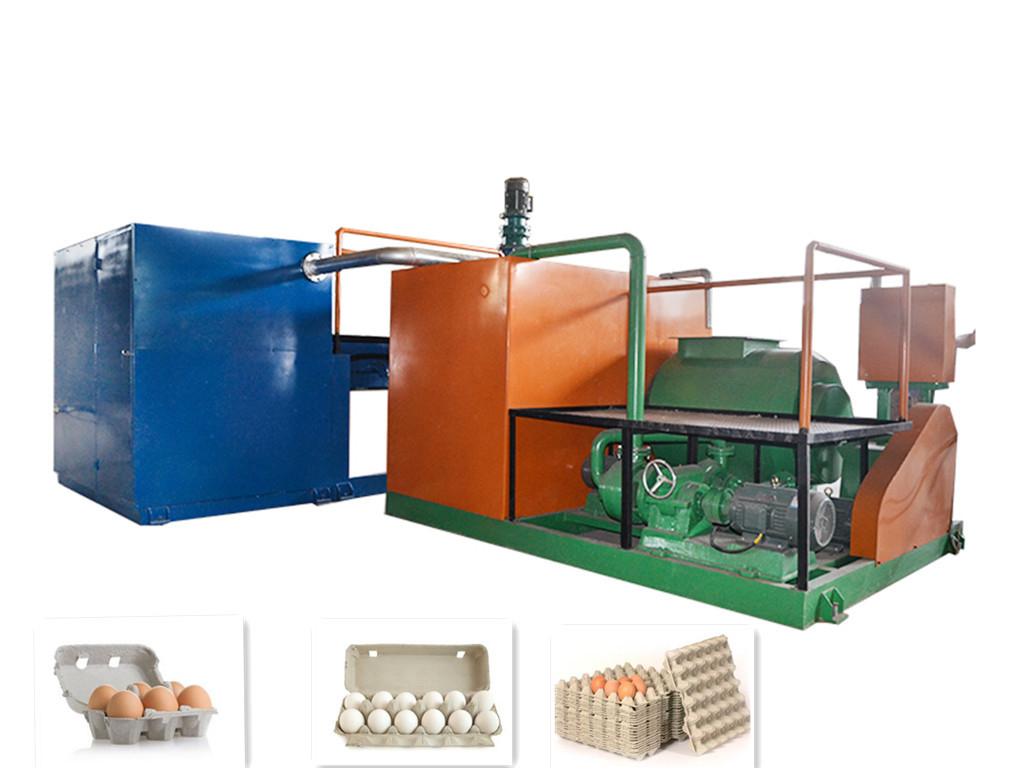

3*4 molds rotary egg tray production line paper egg tray machine without dryer 2000pcs/h capacity

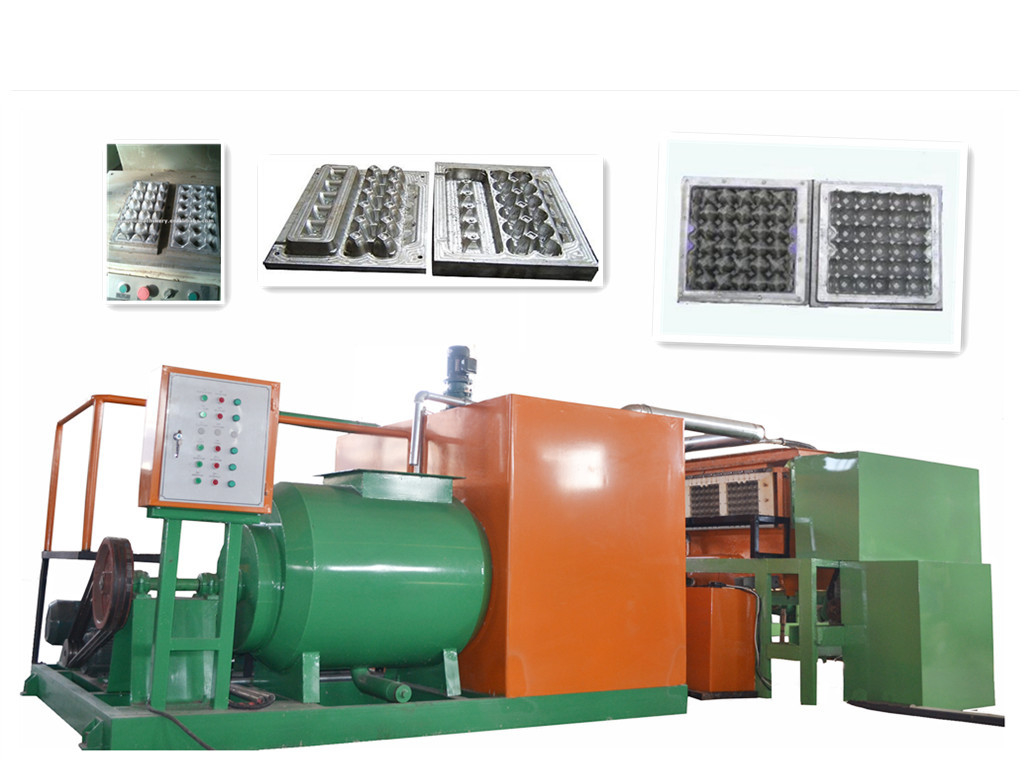

Pulping system machine of paper egg tray machine egg tray production line
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Why Choose Us
Advantages of our machine:
1. Controlled by automatic computer soft ware
2. Easy to be installed, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial packaging trays.
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
Dryer part of paper egg tray machine/egg tray production line of 2000pcs/h capacity 3*4 molds forming
End product of our paper egg tray machine/egg tray production line
Egg tray |
30,packed egg tray… quail egg tray |
Egg carton |
6, 10,12,15,18,24 packed egg carton…with lids |
Agricultural products |
Fruit tray, apple tray |
Coffee Cup tray |
2, 4 cup salver |
