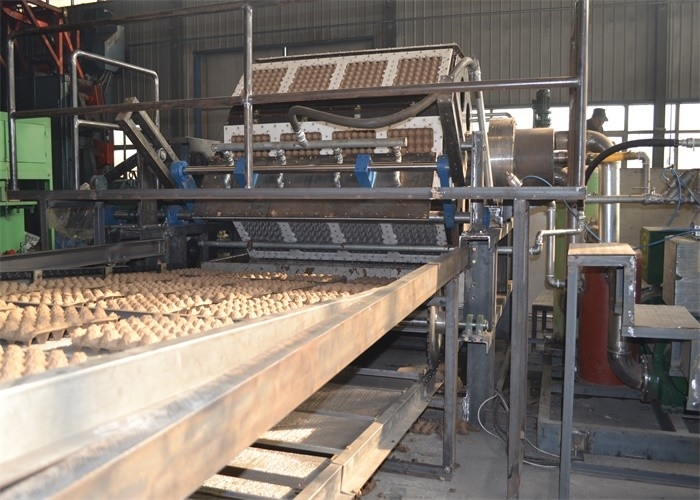

Professional Paper Pulp Molding Equipment Rotary Forming Paper Egg Tray Production Line
Machine Introduction:
Egg Tray Production Line Description:
---Using high precision reducer servo motor to form and transfer the trays, ensuring fast and smooth operation.
---Using absolute encoder to realize accurate correction/calibration.
---The use of high quality casting static and dynamic ring structure is more suitable for product drying technology.
Egg tray machine Pulp Molding Machine is composed of the following sections:
| Pulping System | Turn waste paper, such as old newspapers, magazines, cartons, into a certain concentration pulp through pulping, screening, or adding chemical additives , for forming of molding machines. |

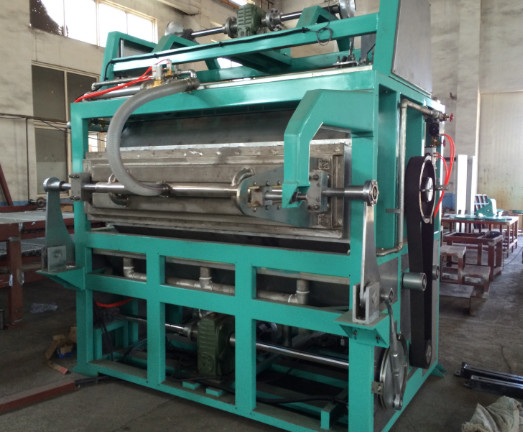

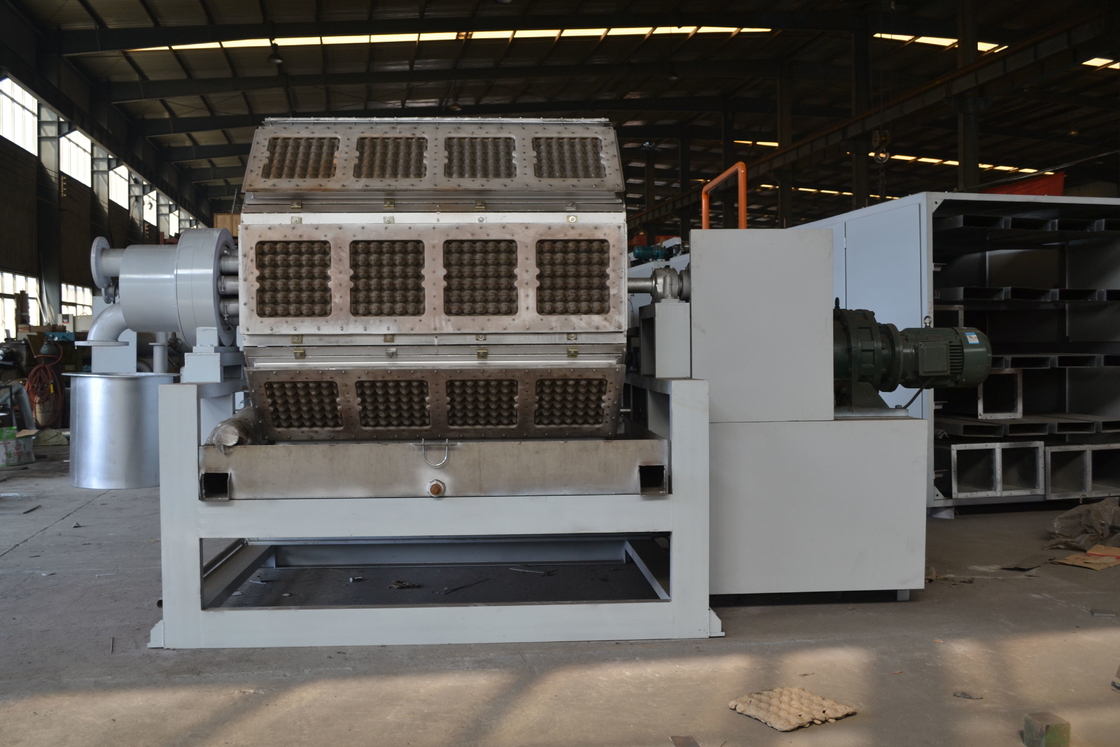

| Forming System | Attaching the pulp onto the specially made forming mold evenly through vacuum effect to make it into wet trays and then deliver it to drying system. |
| Drying System | Using heat source like Gas, Diesel, Steam, Conduction oil, coal, Wood to dry the wet trays after forming. |
| Stacking & Packing System |
Count the number of dried trays, separate them and pack them for automatic packaging. |
| Vacuum System | Offer vacuum for forming product |
| Air Compressor System | Supply compressed air for transferring product |
| High Pressure Water System |
Supply high pressure water for washing molds of forming machine. |
Egg Tray Machine Advantages:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2 years warranty.
5. The installation of the whole line is easy.
Many Types Machine to chose
| Egg Tray Mold Quantity | 1pcs | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 18pcs(3*6) | 24pcs(3*8) | 32pcs(4*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 1500-1800pcs/hour | 2000-2200pcs/h | 2500pcs/h | 3000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
| Waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 135kg/ hour | 150kg/h | 188kg/h | 225kg / hour | |
| Water Consumption | 0.05ton / hour | 0.1ton/hour | 0.15ton / hour | 0.2ton / hour | 0.5ton / hour | 0.55ton/h | 0.6ton/h | 0.65ton / h | |
| Natural Gas Consumption of Dryer | 12cbm/h | 25cbm/h | 35cbm/h | 50cbm/h | 60cbm/h | 60cbm/h | 80cbm/h | 80cbm/h | |
| Worker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 5-7workers | 8-10workers | 8-10workers | |
| Power Requirement | Without dryer | 20KW | 30KW | 40KW | 45KW | 70KW | 70KW | 100KW | 100KW |
| With dryer | 30KW | 45KW | 60KW | 65KW | 80KW | 80KW | 130KW | 150KW | |
| Area of workshop | Without dryer | More than100M² | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² | More than 200 M² | More than 250 M² | More than 250 M² |
| With dryer |
More than200 M² Dryer-12M |
More than 240 M²,dryer-18M |
More than300M² Dryer-18M |
More than 320 M²,dryer-24M | More than 400M²,dryer30M | More than 400M²;dryer30M | More than 520M² dryer36M | More than 520M²,dryer40M | |
| Container Requirement | Without dryer | 20ft*1 | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*2 | 40ft*2+20ft*1 | 40ft*3 | 40ft*3 | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. | |||||||||
Payment and delivery:
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 80 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
| Installation | |||||
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||

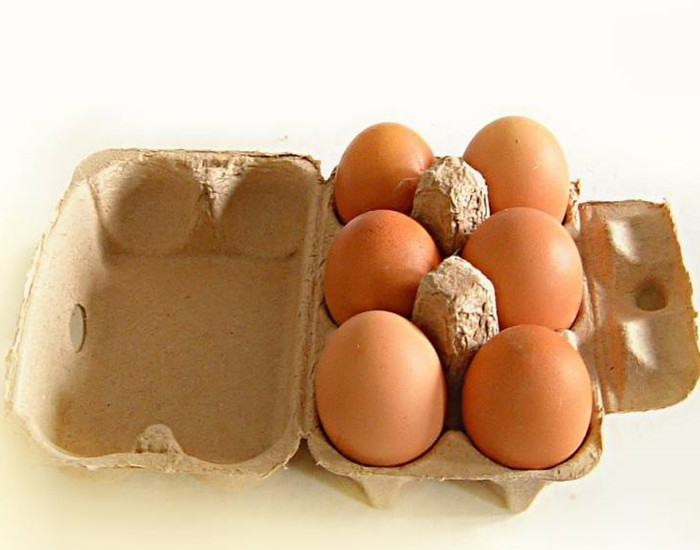

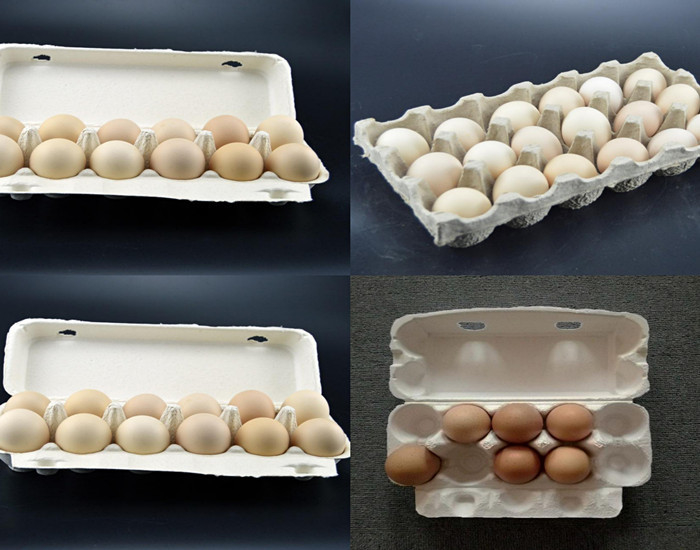

Egg Tray Machine end products includes:
The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.
