Rotary 3000- 5000pcs per hour Paper Egg Tray Production Line Egg Tray Machine with Complete Pulping Forming Drying and Automatic Stacking Systems
This is a fully automatic 4*4 molds rotary egg tray production line delivers integrated one-stop production.
Adopting advanced PLC intelligent control, this rotary molding machine features stable 3000PCS/H output, low energy consumption and minimal maintenance.
It is highly user-friendly and ideal for new entrants and startup investors in the paper pulp molding industry.
The main sections of the egg tray production line:
1.Pulping system:
Including the hydrapulper,pump,mixer, vibrating screen, etc..to make the wastepaper into pulp.
2. Forming system:

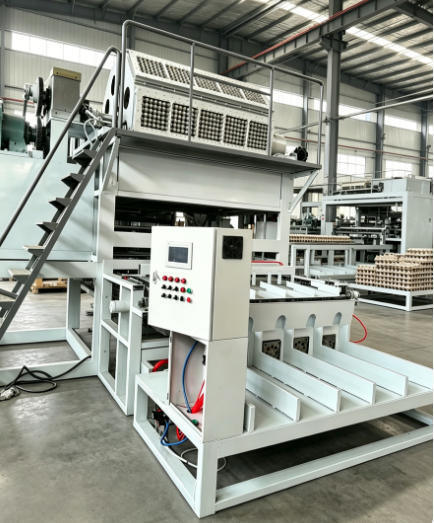

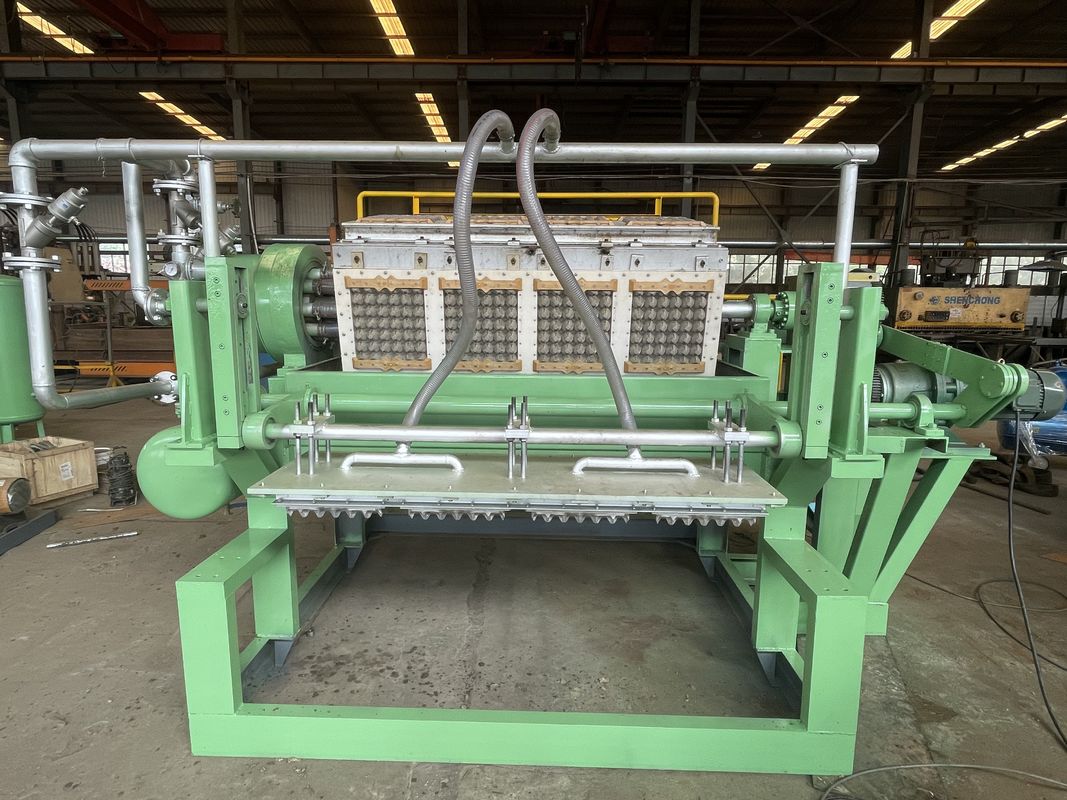

Including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
5*8molds rotary egg tray production line egg tray machine made by Wanyou.
3.Drying system:
Including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
4.Automatic Stacker:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.
Complete Paper Egg Tray Production Line
Rotary Type | 3000 PCS/Hour | 4*4 Molds
Fully integrated production line equipped with pulping, forming, drying and automatic stacking systems, designed for high-efficiency manufacturing of paper egg trays and egg boxes.
Key Features
· 4*4 Molds Rotary Forming System: Stable rotary structure delivers a steady output of 3000 pieces per hour, featuring high productivity and low failure rate.
· PLC Intelligent Control: Full automatic operation, simple operation and easy management, effectively cutting labor costs.
· One-stop Integrated Design: Combines pulping, forming, drying and automatic stacking as a complete production line to streamline the whole workflow.
· Versatile Production: Supports quick mold replacement to manufacture various specifications of egg trays, egg boxes and other pulp molded products.
· Energy-saving & Long Service Life: Optimized mechanical structure lowers power consumption, perfectly suitable for 24-hour continuous commercial operation.
Technical Parameters:
|
Technical Item
|
Specification
|
|
Machine Model
|
4*4 Molds Rotary Egg Tray Production Line
|
|
Production Capacity
|
3000 PCS/Hour (stable continuous output)
|
|
Forming Method
|
Rotary Forming
|
|
Mold Configuration
|
4 rows × 4 columns standard molds
|
|
Control System
|
Full automatic PLC intelligent control
|
|
Full Line Composition
|
Pulping System + Forming System + Drying System + Automatic Stacking System
|
|
Working Mode
|
24-hour continuous industrial operation
|
|
Applicable Raw Materials
|
Waste paper, carton scraps, sugarcane bagasse and other recycled pulp
|
|
Final Products
|
Standard egg trays, egg boxes and customized pulp molded packaging
|
Payment and delivery:
|
Delivery Time: 60 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
1-year after the Egg tray machine received.
|
|
Terms of delivery
|
Jinan Factory,China or negotiable
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
Welcome for more information.
