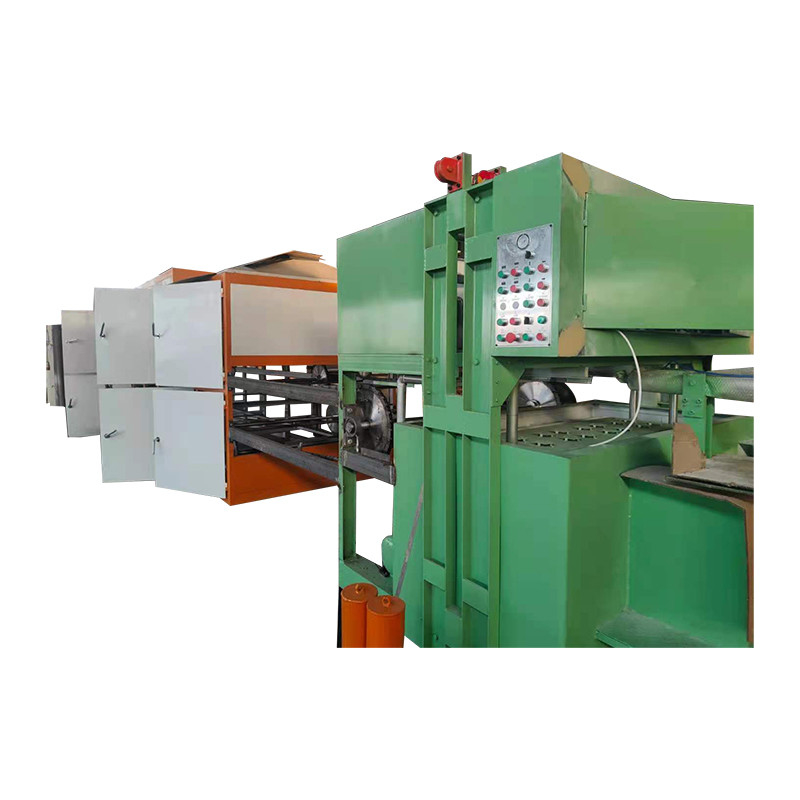

Waste Paper Automatic and Full Automatic Egg Tray Machine Compact Structure Easy Operate Various Model Paper Tray
The Paper Egg Tray Machine production line is mainly combined by THREE PARTS:
1. Paper Egg Tray Machine Pulping system: Use waste paper and water as raw material and pulp up;
A. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
B. Pulp pump will transfer the finished paper pulp into the slurry pool.
C. The pulp pond beater will mix the pulp concentration.
D. The pulp pump will transfer the pulp into forming machine.

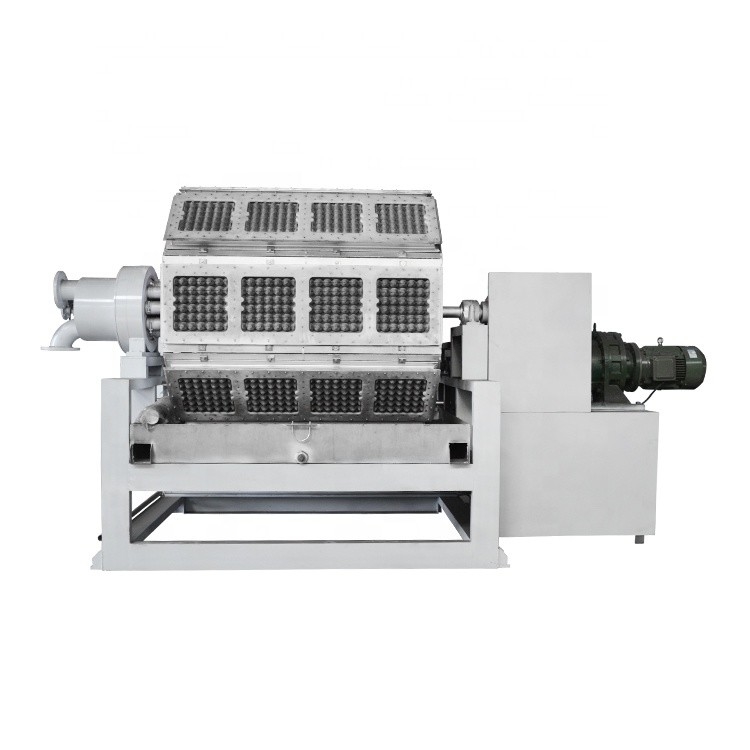

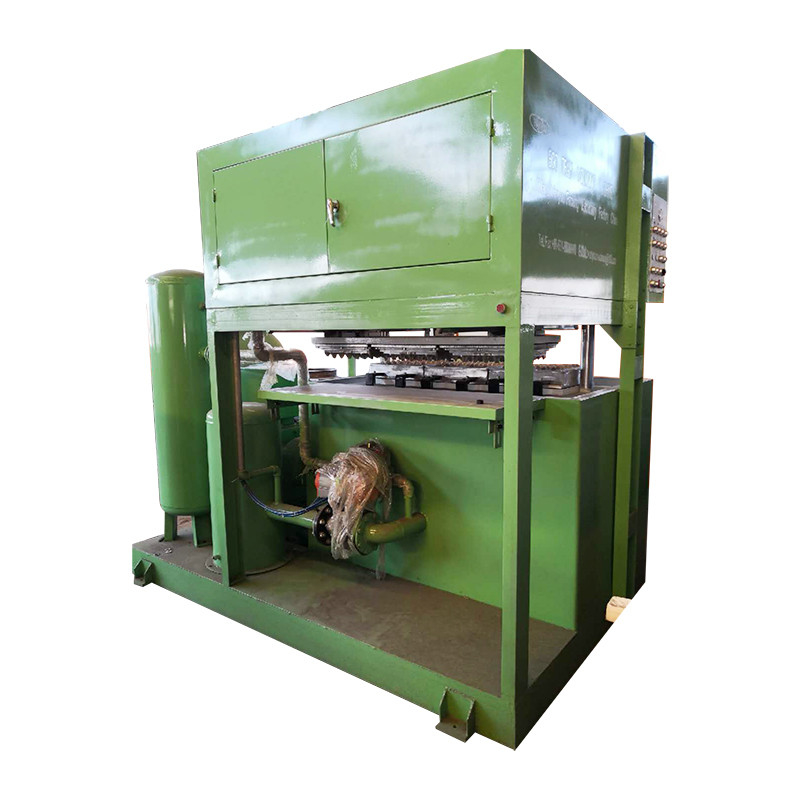

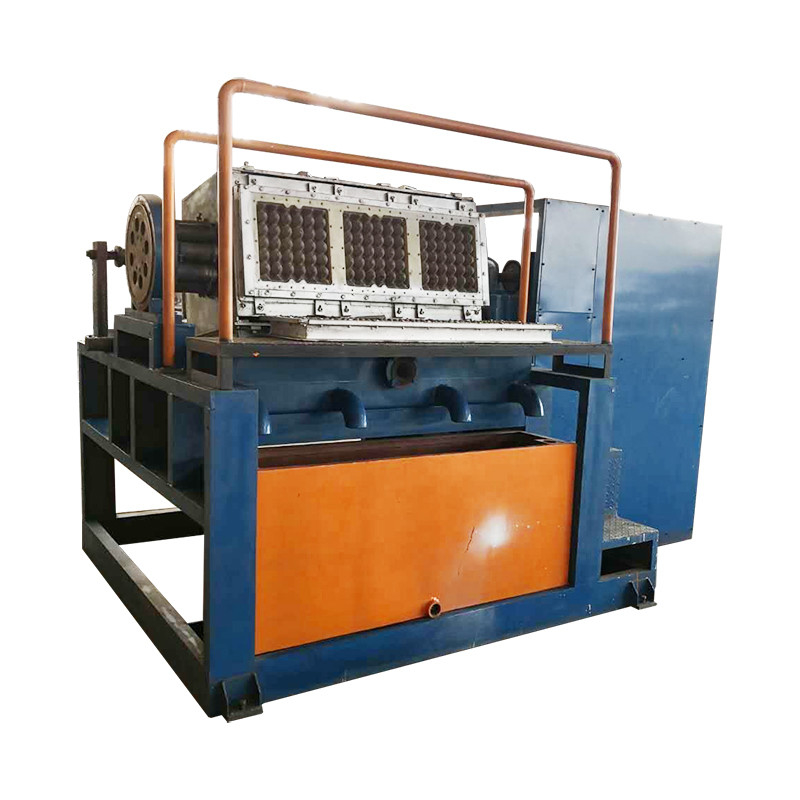

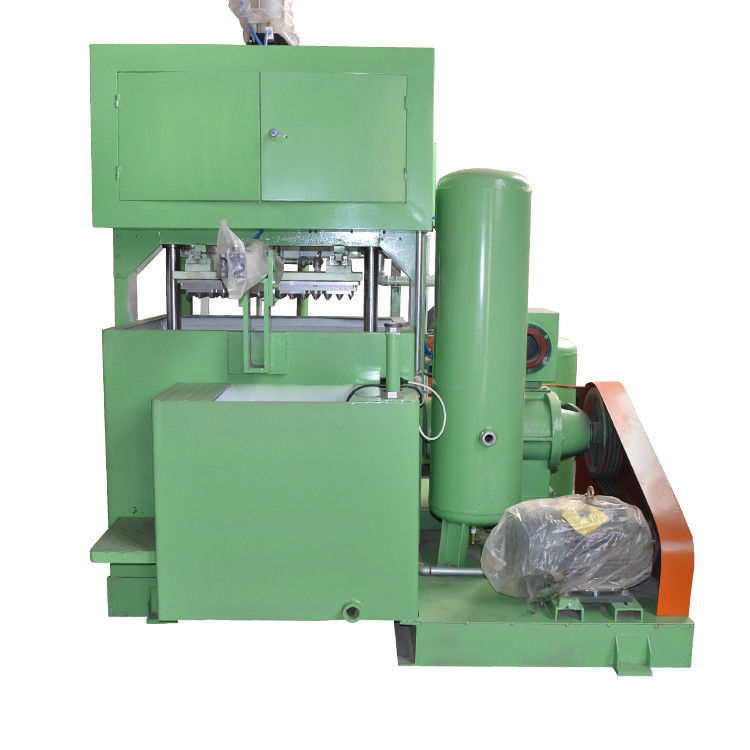

2. Paper Egg Tray Machine Forming system: The pulped material being delivered to paper product egg Tray molds, and forming to the Product paper Tray plate shape;
A. The molding machine is to absorb the pulp to the molding area of egg tray machine, absorb the pulp to the molding mold through the suction of the vacuum system, and absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
B. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
Paper egg tray machine forming molds can be changed as per buyer's different product requirement.
3. Paper Egg Tray Machine Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate. The egg tray machine drying system can be sun drying type, brick kiln drying type and metallic type. It is up to buyer's choice and budget.
The drying system boiler can use natural gas, diesel, LPG, coal or wood, electricity as energy. Customers must first confirm which kind of energy they will use before our production.
If the output of pulp tray is less than 1000 pieces per hour, and the weather is good enough, we recommend the manual operation type forming machine and sunshine drying mode, this can reduce the cost of equipment investment.
If the weather is not enough to dry the paper trays easily, or the output of the machine is more than 1000 pcs/h, we recommend the automatic drying system,ie. metallic dryer.
paper egg tray machine metallic dryer
paper egg tray machine brick kiln dryer
Paper egg tray machine sun drying type
A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.
Our egg tray machine can turn your waste paper and books into Money!
This production line is suitable for the following products:

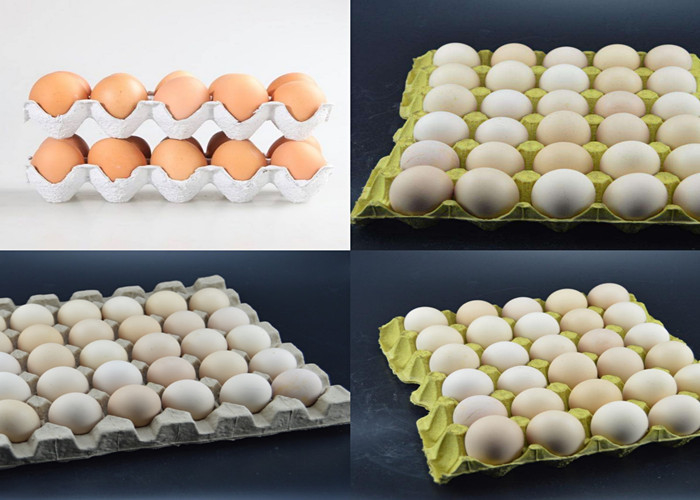

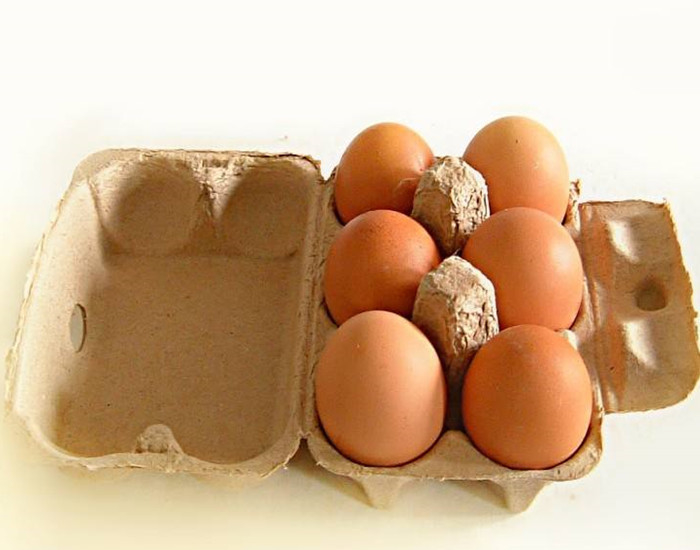

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

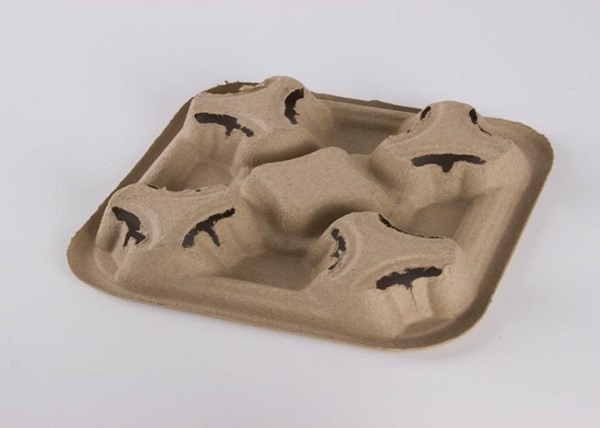

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data of 700pcs/h capacity egg tray machine
| Egg Tray mould quantity | 2pcs |
| Raw material | Waste paper |
| Output for egg tray | 700pcs/hour |
| Net weight per piece (gram) | 70g-75g |
| The volume of waste paper consumed | 0.06ton / hour |
| The volume of water consumed | 0.1ton / hour |
| The natural gas consumption of the dryer(about) | 25cbm/h |
| Machine Weight | 10-20tons |
| Egg tray Size | 295mm*295mm 30eggs |
Paper Egg Tray Machine Model
| Egg Tray Mold Quantity | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 24pcs(3pcs*8) | 32pcs(4pcs*8) | 40(5pcs*8) | 48(6pcs*8) | |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | |
| Egg tray Capacity(pcs/hour) | 700 | 1000 | 1300-1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | |
| Waste paper consumption | 0.06ton / h | 0.1ton / h | 0.13ton / h | 150kg/ h | 150kg/h | 188kg/h | 225kg / hour | 375kg/h | 450kg/h | |
| Water Consumption | 0.15ton/h | 0.22ton / h | 0.3ton / h | 0.45ton / h | 0.6ton/h | 0.68ton/h | 0.9ton / h | 1.1t/h | 1.35ton/h | |
| Natural Gas Consumption of Dryer | 25cbm/h | 45cbm/h | 60cbm/h | 75cbm/h | 90cbm/h | 110cbm/h | 120cbm/h | 150cbm/h | 180cbm/h | |
| Boiler model (natural gas fuel Kcal) | 300*103 | 450* | 600*103 | 800*103 | 1000*103 | 1200*103 | 1500*103 | 1800*103 | 2000*103 | |
| Worker requirement | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 5-7workers | 8-10workers | 8-10workers | 10-12 | 10-12 | |
| Power Requirement | Without dryer | 30KW | 40KW | 45KW | 70KW | 80KW | 100KW | 100KW | ||
| With dryer | 45KW | 60KW | 65KW | 100KW | 120KW | 130KW | 150KW | 180kw | 200kw | |
| Area of workshop | Without dryer | More than 100 M² | More than 120 M² | More than 150 M² | More than 200 M² |
More than 200 M² | More than 250 M² | More than 250 M² | ||
| With dryer | More than 240M² dryer-16M |
More than300M² Dryer-16M |
More than 320 M² dryer-18M |
More than 400M² Dryer18M |
More than 400M² Dryer20M |
More than 520M² dryer30M | More than 520M² Dryer32M |
600m2 Dryer 36m |
750m2 Dryer 40m |
|
| Container Requirement | Without dryer | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | ||
| With dryer | 40ft*2+20ft*1 | 40ft*3 | 40ft*3 | 40ft*4 | 40ft*4 | 40ft*5 | 40ft*5 | 40ft*6+20ft*1 | 40ft*7 | |
| Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
||||||||||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the egg tray machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | plastic film, naked package In container | ||||
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.
(4). Are you a manufacturer or a trading company?
Yes, our company has been fabricating pulp molding machine since 2000. We are one of the
most important pulp molding machine maufacturers in the world, and we are famous pulp
molding machine manufacturer in China, providing high quality and production capacity pulp molding
machinery at reasonable prices to the world.
(5). How to contact you?
(A) Visit us.Our head office is in Building 5-407, Xinyuanxin International Business Center, Huaxin
Road, Licheng District, Jinan City, Shandong Province, P.R. China.
The nearest airport is Jinan International Airport.
(B) Send email to tell us your requirments.
(C) Contact us at Whatsapp/Wechat: +86-15665703348
