Best selling egg tray dryer paper egg packing tray egg tray machine price
Pulp Moulding Machinery is the machine which can use all kinds of waste paper as the raw material to produce egg tray, egg box, industrial and other packing products etc. by changing different moulds. It has received good reputation for its good quality, high output, low energy-consuming and low maintenance.
The raw material use general waste paper, like old book, newspaper.carton books ,etc
The whole paper egg tray making machinery including 4 sections:
(1)Pulping system of egg packing machine:
Paper pulp making is the first step of the pulp mold products .The major equipment are:Hydraulic pulper ,pulp pump,water pup,stirrer,screen machine(vibration sieve,refiner machine and control cabinet. Hydraulic pulper and refiner machine are two major equipment in this system.
(2)Forming system of egg packing machine:
This part mainly is the egg tray forming machine. We could produce the forming mould and transfering mould based on our customers request. The material of the mould could be Alumminum, Resin, Plastic. And we can produce 4face,8face,12face rotory Egg Tray Machine.
Generally speaking the pressure indication of the vacuum should between 0.03-0.04,The gas tank should between 0.6-0.8 .when both of them satisfy the requirement at the same time .the product will have high effect and stable quality.

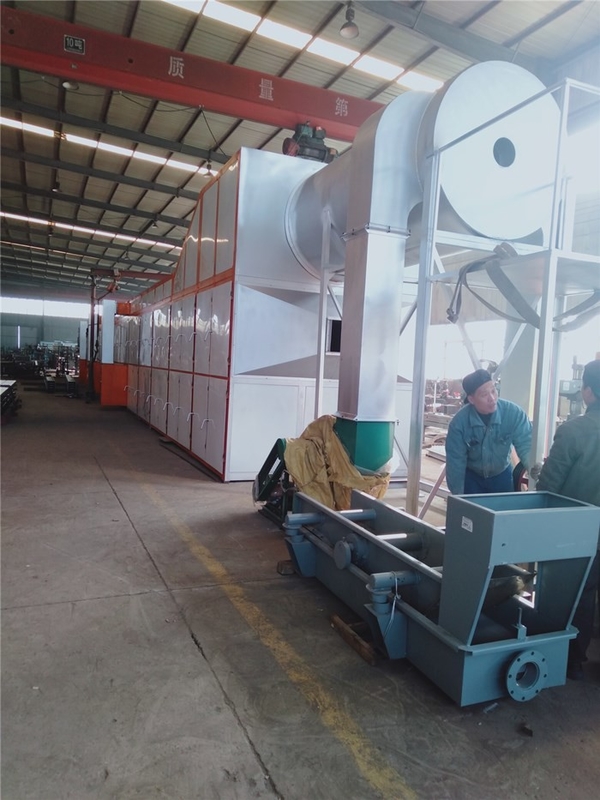

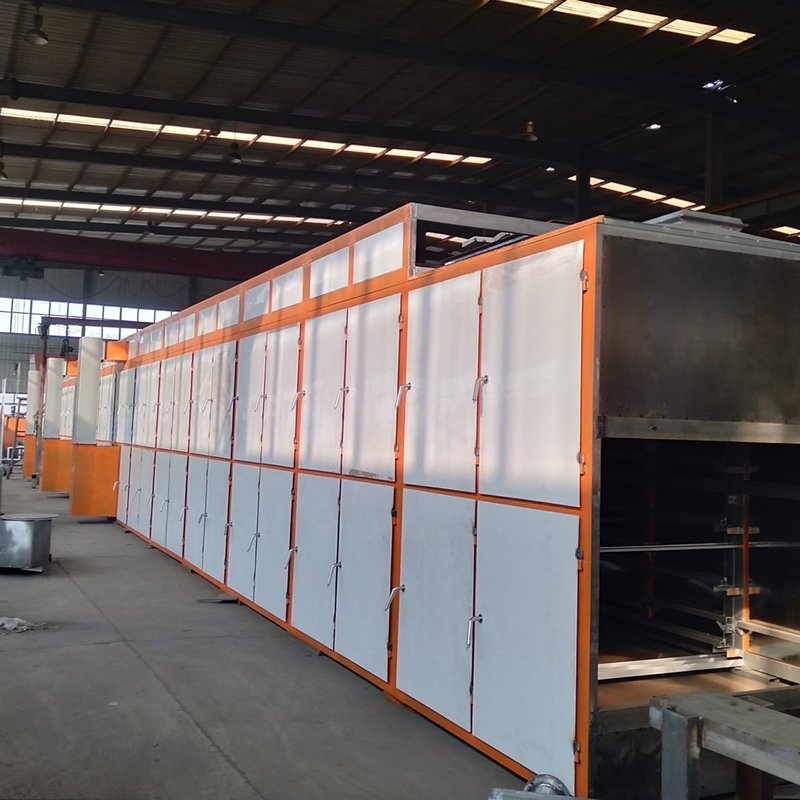

(3)Drying line of egg packing machine:
The drying of the product is very important ,it is directly related to the humidity of the products. The whole system is droved by the conveyor. The drying line including front transmission, rear drive, driver, air blower ,bellows ,damp-proof machine ,valves and burners
Adopt tunnel type drying line, Chain drive smoothly and installs single burners. Using single wind mouth drying, Heated evenly, product little deformation, stable quality. Moisture recycled second use, environmental protection and energy saving. Multi-layer drying line can save floor space
So We can supply Single layer or Multi layer dryer for our client.If your factory is not long enough,You can chose our Multi layer dryer.
(4)Packing machine of egg packing machine:
This is the last step of Egg Tray Machine, when we get the finished tray from the drying line, we can packing the egg tray.

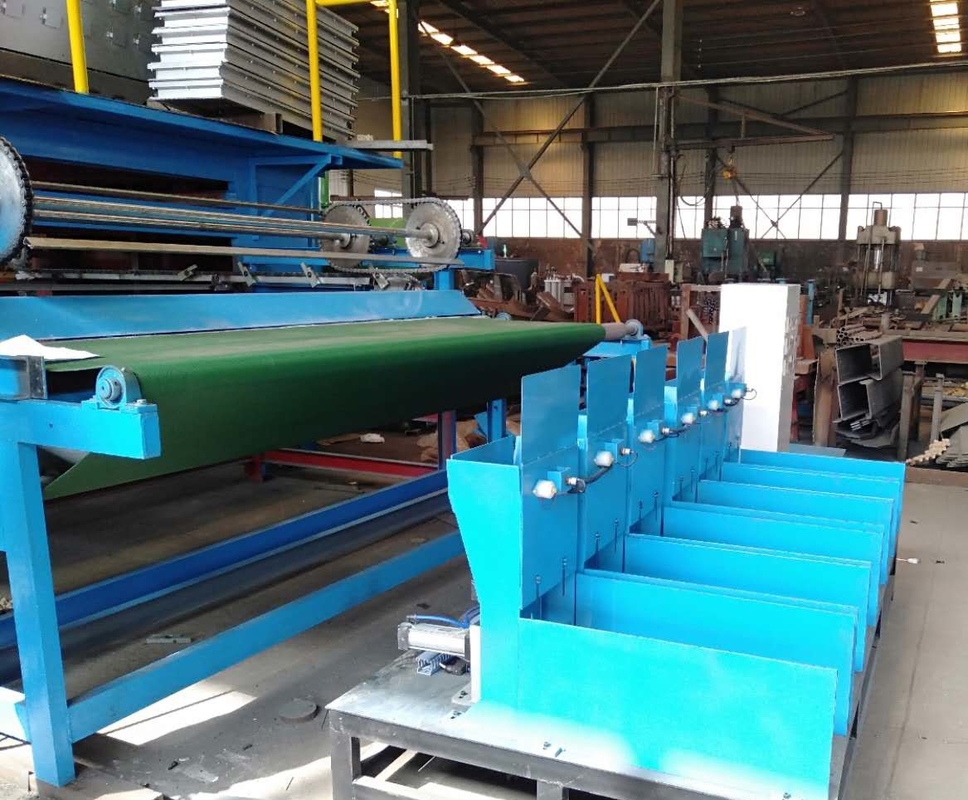

Automatic stacking and counting machine: Collect the egg trays and put them in order automatically, counting with induction.
Payment and delivery
|FOB Qingdao or EXW Factory
|About 90 working days after receiving the deposit.
|Time of payment
|When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|2 years after the Egg tray machine received.
|TERMS OF DELIVERY
|7*40ft In container
Welcome for more information.
