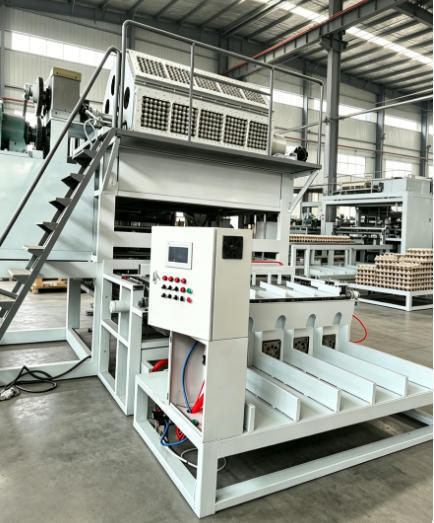

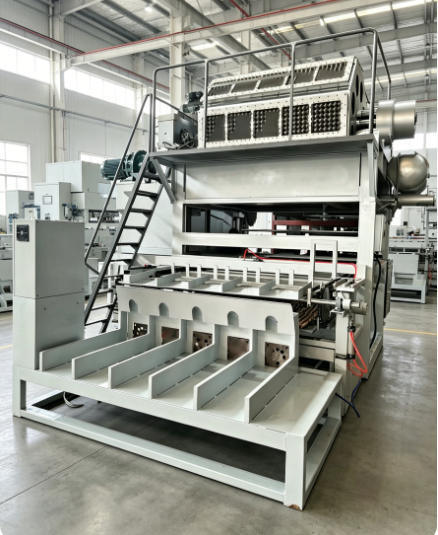

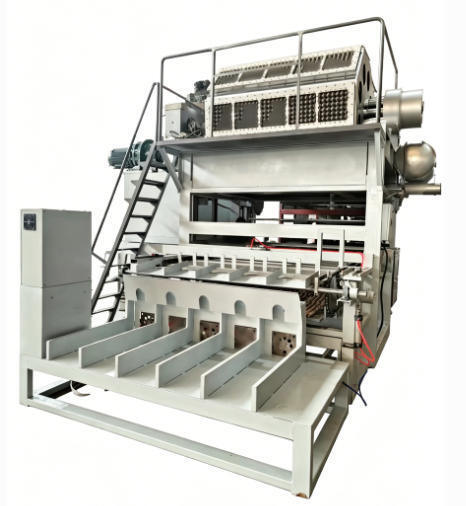

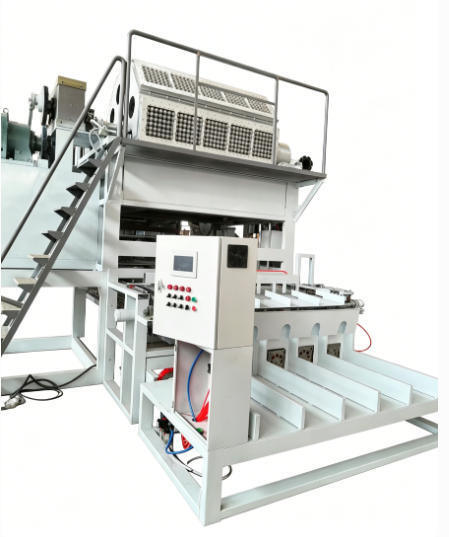

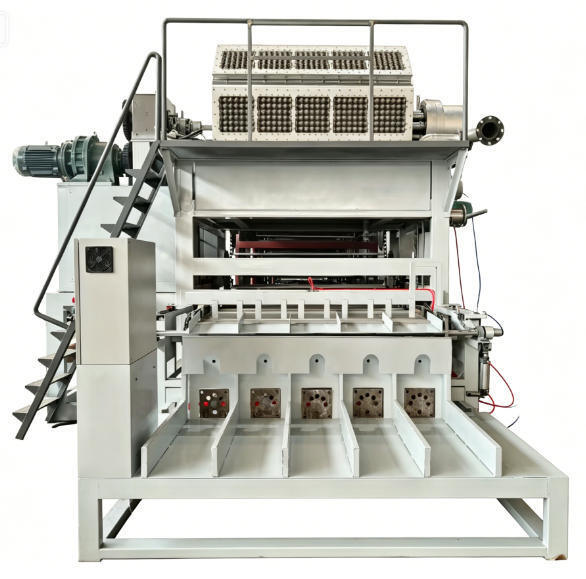

Rotary 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Apple Trays making with 5*8 Forming Molds
The main sections of the production line:
1.Pulping system:
Including the hydrapulper,pump,disk mill (refiner),mixer,etc..to make the wastepaper into pulp.

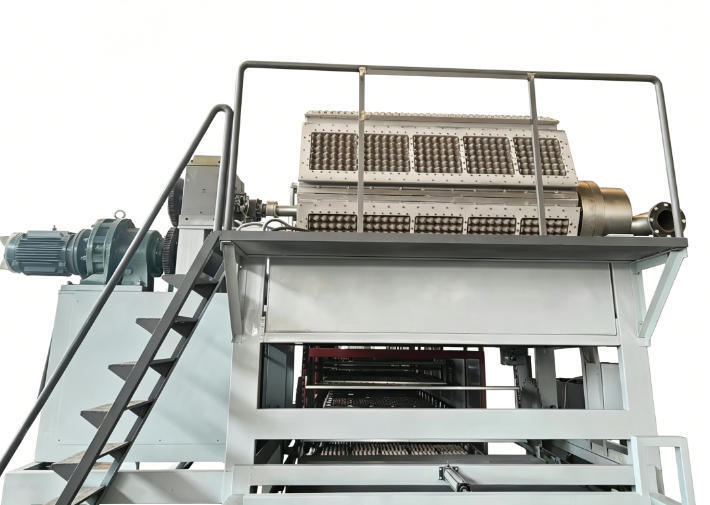

2. Forming system:
Including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3.Drying system:
Including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
4.Automatic Stacker:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.
Technical Parameters:
|
Egg Tray mould quantity
|
40pcs (5*8)
|
Container Required
|
|
Raw material
|
Waste paper
|
About 40HQ*6
|
|
Output for egg tray
|
5000pcs/hour
|
|
|
Net weight per piece (30holes egg tray/gram)
|
70g-75g
|
|
|
Waste paper consumption
|
375kg/h
|
|
|
Water consumption
|
1100kg/h
|
|
|
Diesel consumption
Natural gas consumption
|
115kg/h
120cbm/h
|
|
|
Workshop area
|
At least 50mL*10mW*4mH
|
|
|
Installed Power
|
221kw
Actual usage is 70% of 221KW.
|
|
|
Machine Weight
|
48 tons around
|
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
|
|
Installation & Training
1.Usually, all installation and debugging work will be done before shipment.
2. We will offer online support after sales services for problems during installation and testing.
3. If buyer needs seller to send engineers for installation, debugging and training, buyer shall undertake engineer salary 100$/day, and also needs to bear the cost of the engineer's accommodation and round-trip airfare.
|
Payment and delivery:
| Trade terms |
EXW Jinan |
| Delivery time |
About 100 working days after receiving the deposit. |
| Payment term |
BY T/T40%DEPOSIT+60%BALANCE |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
1 years after the Egg tray machine received. |
| TERMS OF DELIVERY |
EXW Jinan,China |
| Package |
7*40ft In container |
Product Advantages
• Compact & Space-Saving Structure
Adopts integrated optimized design with a simple mechanical structure.
• PLC Intelligent Control & Easy Operation
Equipped with mature PLC programmable control system and touch screen operation panel.
All production parameters (pulp suction time, molding pressure, drying parameters, etc.) are intelligently adjustable.
• Multi-Mold Replaceable & Wide Application
Matched with high-precision aluminum molds, customers can quickly replace different molds to produce diversified pulp products.
• Stable Performance & Long Service Life
Made of high-quality thickened steel and durable aluminum molds, the whole machine is wear-resistant and corrosion-resistant.
• Eco-Friendly & Compliant with Green Standards
All finished paper trays are 100% recyclable, biodegradable and compostable.
The whole production process uses waste paper as raw material, no harmful emissions, fully complying with global environmental protection and green packaging standards, meeting market environmental access requirements.
Welcome for more information.
