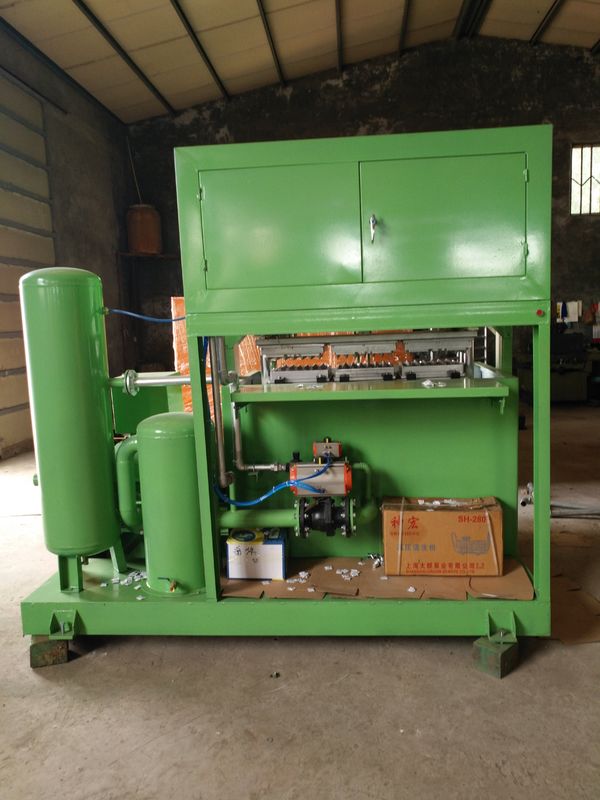

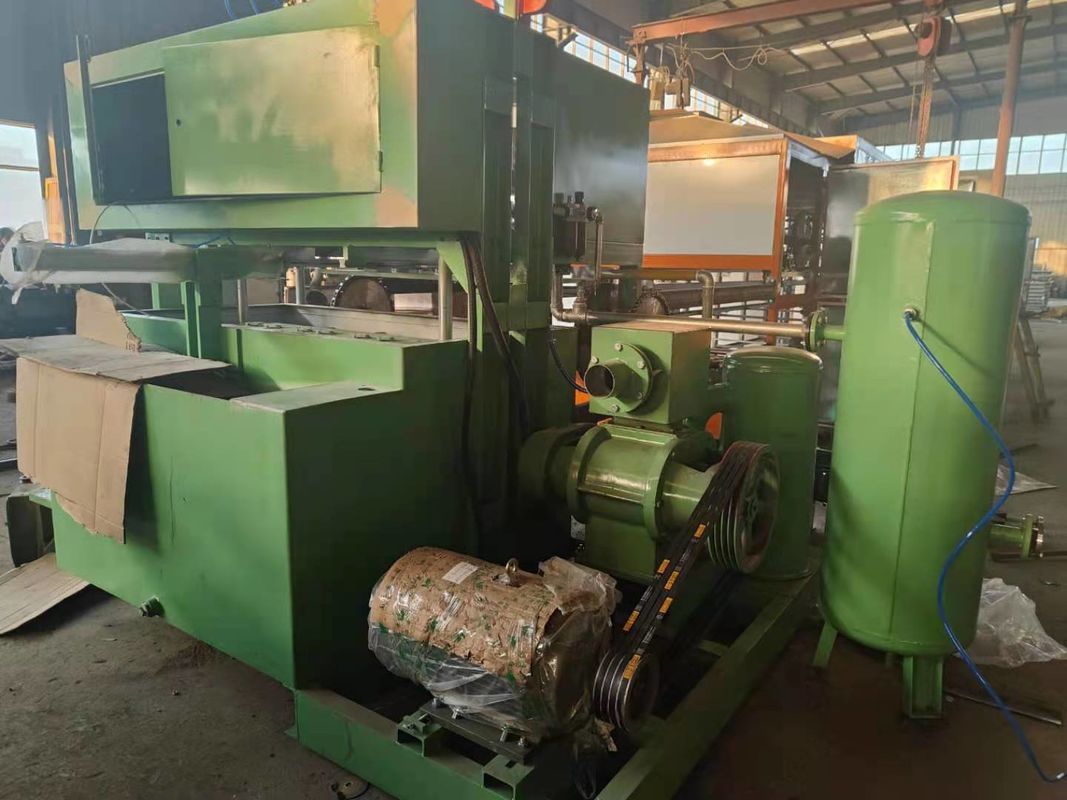

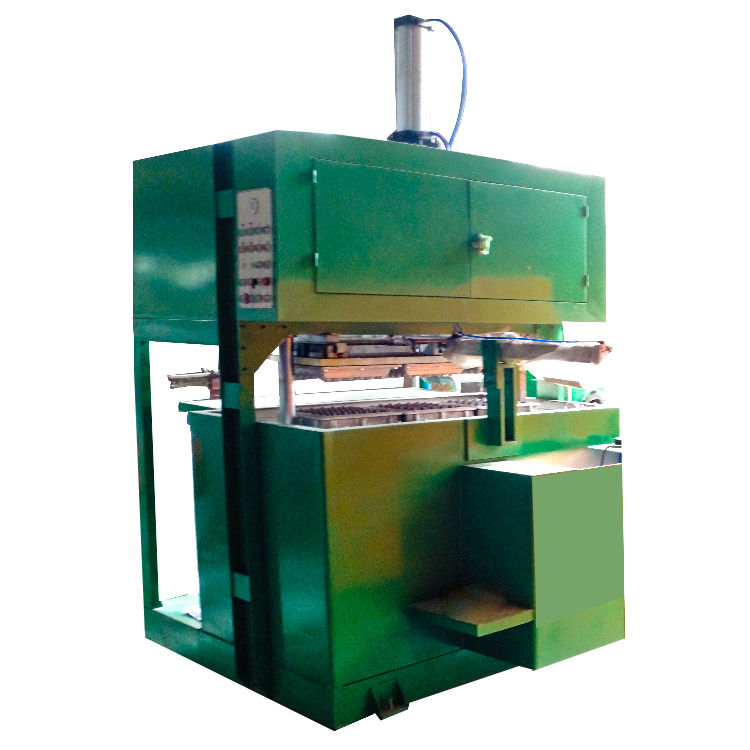

1000pcs/h Environment Friendly Egg Tray Machine / Paper Pulp Molding Machine PLC Controlled

1000pcs/h Environment Friendly Egg Tray Machine / Paper Pulp Molding Machine PLC Controlled

Product Information

It is semi automatic egg tray machine without dryer system.

It consists of following main sections:

Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.

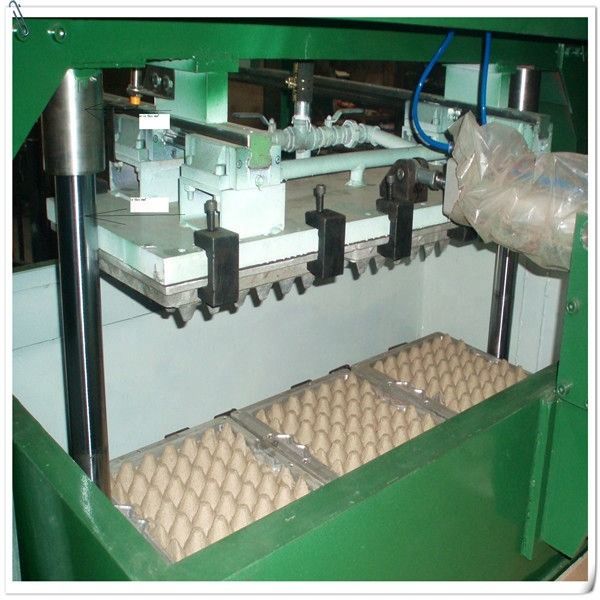

Molding System
1. The molding machine is to absorb the pulp to the molding mold, absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.

Raw material : Waste paper pulp, newspaper, cardboards, magazines

Waranatee time: 1 year

Dry system: steel. Optional

Production capacity: 1000pcs/h

Other capacity machine we can make

1000pcs/h capacity egg tray machine technical data
