Semi Automatic Small Egg Tray Making Machine PLC Control

Semi Automatic Small Egg Tray Making Machine PLC Control

automatic egg tray making machine

small egg tray making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Final Machine Production Line
Raw Material:
Waste Paper, Waste Cardboard, Carton
Processing Type:
Pulp Molding Machine
Key Words:
Egg Box Making Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
in container
Delivery Time
40 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description

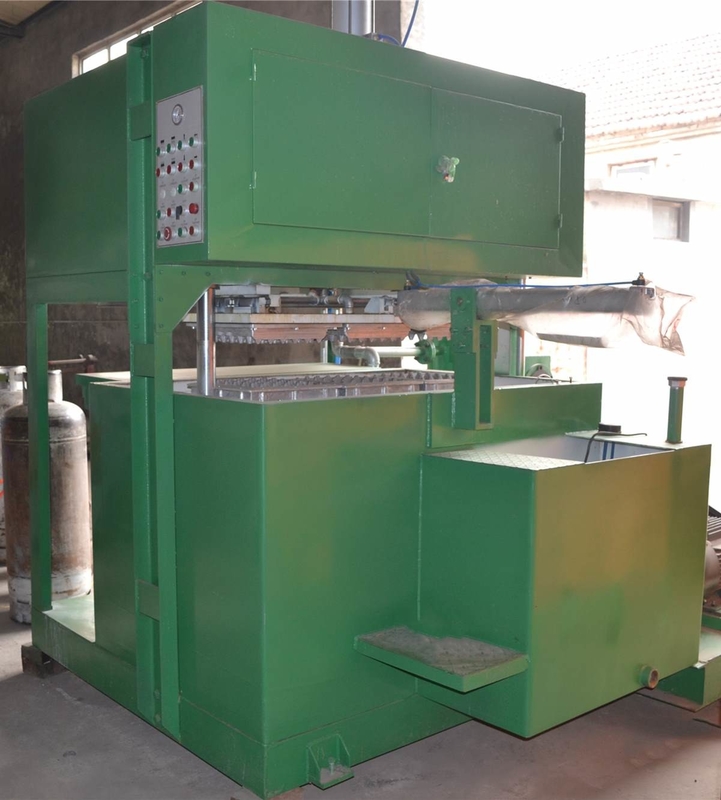

                                     Small Semi Automatic Egg tray machine PLC control egg box making machine



Machine Introduction:

Quick Detail


Product Type:Egg Tray Machine                                            Processing Type:pulp molding machine

Power(W):Different Machine Model                                       Warranty:2 Years

Condition:New Place of Origin:Shandong, China                   Voltage:220-440V Weight:8 tons-15tons

Certification:CE Raw material: Waste paper

Egg Tray mould quantity:1-32pcs                                           Output for egg tray:350pcs/h-6000pcs/h

Net weight per piece (gram):70g-75g


Machine Features:


 1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2 years warranty.

​ 5. The installation of the whole line is easy.


Egg box making machine


This machine is composed of the following sections:


1. Egg Tray Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .


2. Egg Tray Molding Forming System :

The Egg Tray Molding Forming System consists of various equipment and dies.

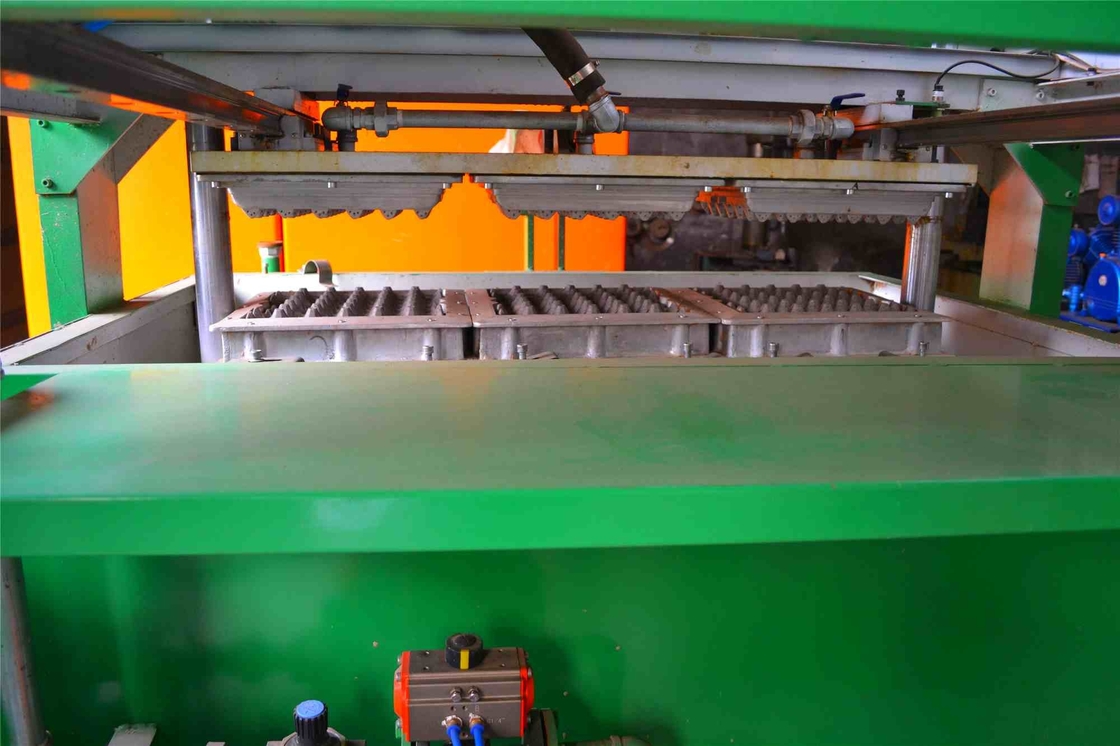

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.


The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.


The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

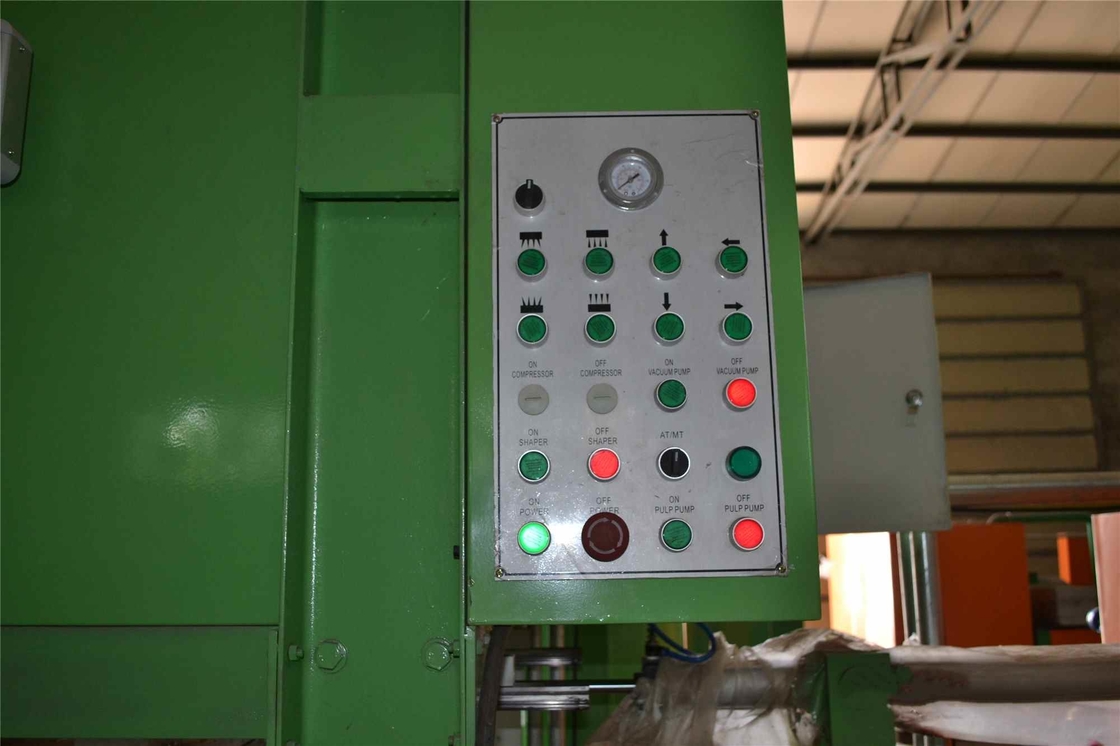

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould.


Frequently used capacity egg tray machines we offered:


Egg Tray Mold Quantity


Raw material

Waste paper

Egg tray Capacity


Net weight per piece (gram)


Waste paper consumption

750kg / hour

Water Consumption

0.2ton / hour

Natural Gas Consumption of Dryer


Worker requirement


Machine Length


Machine weight


Power Requirement

Without dryer


With dryer


Area of workshop

Without dryer

More than 150 M²

With dryer, dryer-24m

More than320M²

Container Requirement

Without dryer


With dryer


Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.


Payment and delivery


Trade terms

 FOB Qingdao or EXW Factory

Delivery time

 About 30 working days after receiving the deposit.

Payment term

 BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC

Time of payment

 When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.

Warranty time

 Two years after the Egg tray machine received.


 FOB Qingdao Port, China


 In container





1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )



This egg tray machine type will be used often for making following products:


The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.

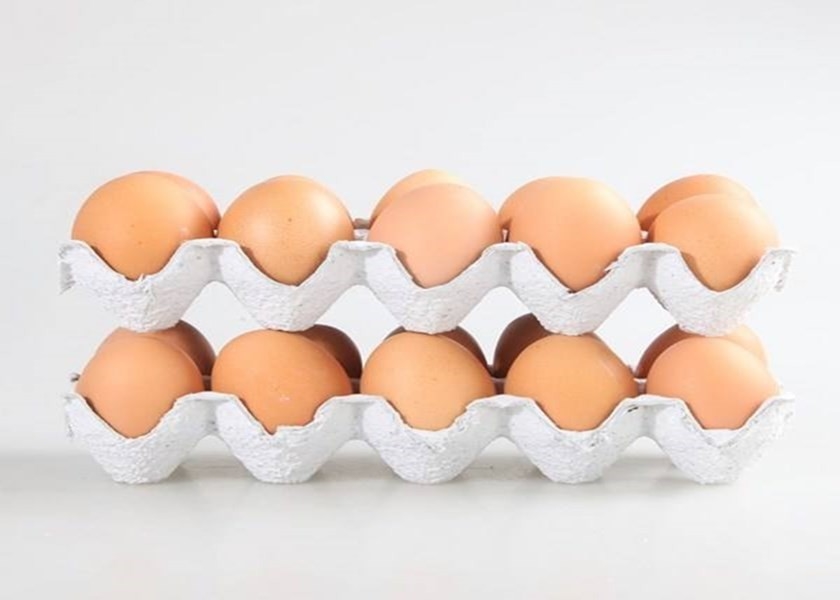

Samples of egg box making machine:

Semi Automatic Small Egg Tray Making Machine PLC Control 0
