Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-1000
High Efficiency Semi Automatic Egg Tray Machine , Fruit Tray Making Machine
Egg Tray Machin Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
The Egg carton Molding Forming System consists of various equipment and dies.
The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.
The egg carton forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.
The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

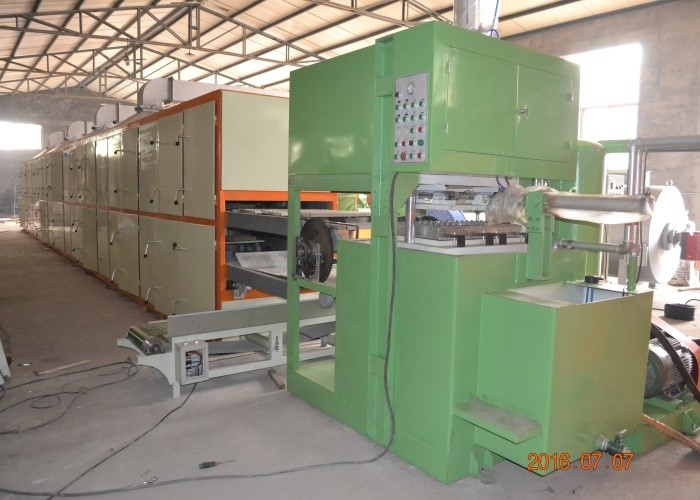

Egg Tray Drying system (fuel of boiler burner can use gas,dissel,coal ): There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
Egg Tray Automatic counting: After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
| Main parts | Quantity | |
|

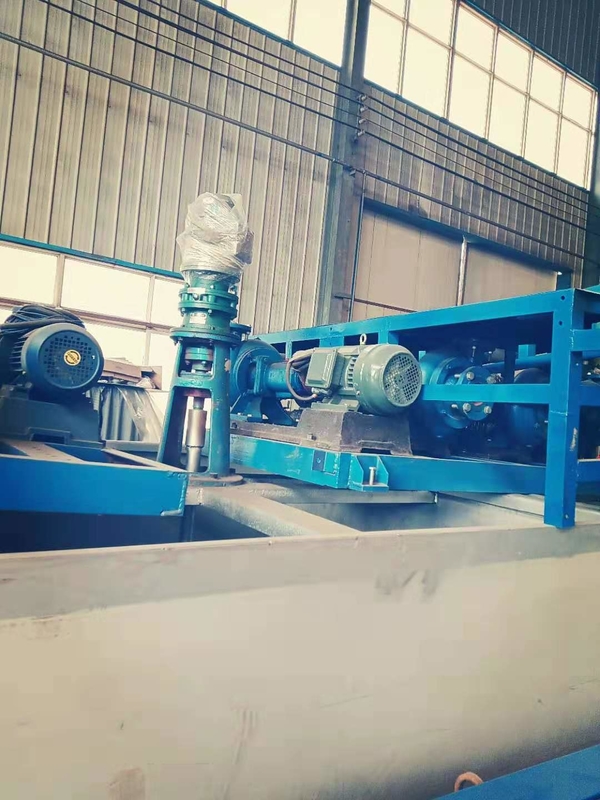

Pulping system
|
Including : mill pulp pump -1piece water pump-2pieces pulp pump -2pieces 1M³pulping machine –1piece |
1set |
|

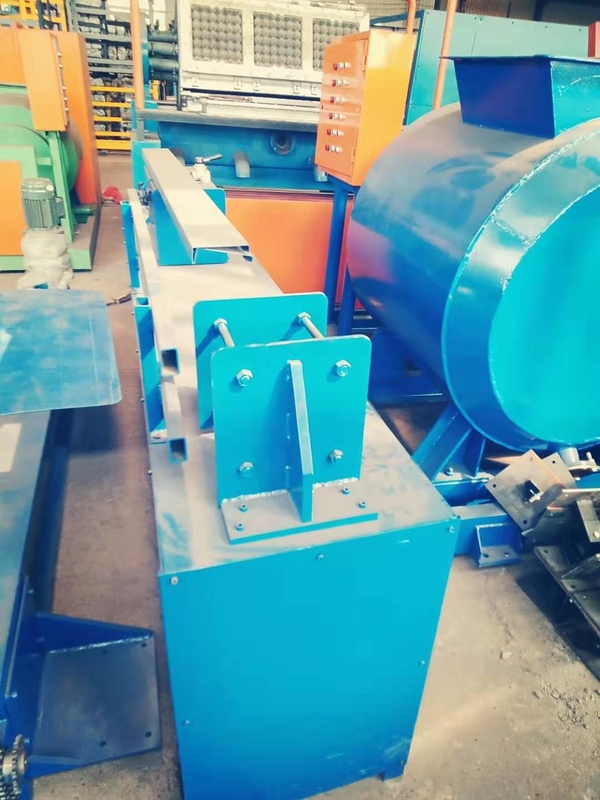

Forming system
|
Including 3 moulds forming machine -1piece Vacuum pump-1piece Compressor -1piece Washer –1piece Vacuum tank-1pcs Air tank—1pcs |
1set |
Technical parameters of 700pcs/h egg tray machine production line/Pulp molding machine
| Egg Tray Mold Quantity3 | pcs | |
| Raw material | Waste paper | |
| Egg tray Capacity | 1000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| Waste paper consumption | 0.1ton / hour | |
| Water Consumption | 0.15ton/hour | |
| Natural Gas Consumption of Dryer | 35cbm/h | |
| Worker requirement | 3-4workers | |
| Machine Length | 7m-25m | |
| Machine weight | 6-20tons | |
| Power Requirement | Without dryer | 40KW |
| With dryer | 60KW | |
| Area of workshop | Without dryer | More than120M² |
| With dryer, dryer-18m | More than300 M² | |
| Container Requirement | Without dryer | 40ft*1 |
| With dryer | 40ft*3 | |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. | ||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 50 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
| Installation | |||||
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||
