Fully Automatic 5*8 molds Paper Egg Tray Machine Price Production Line With Aluminum Molds
Egg tray machine Introduction:
The paper egg tray machine pulp molding machine is composed of the following sections:
Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to absorb the pulp to the molding mold, absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.

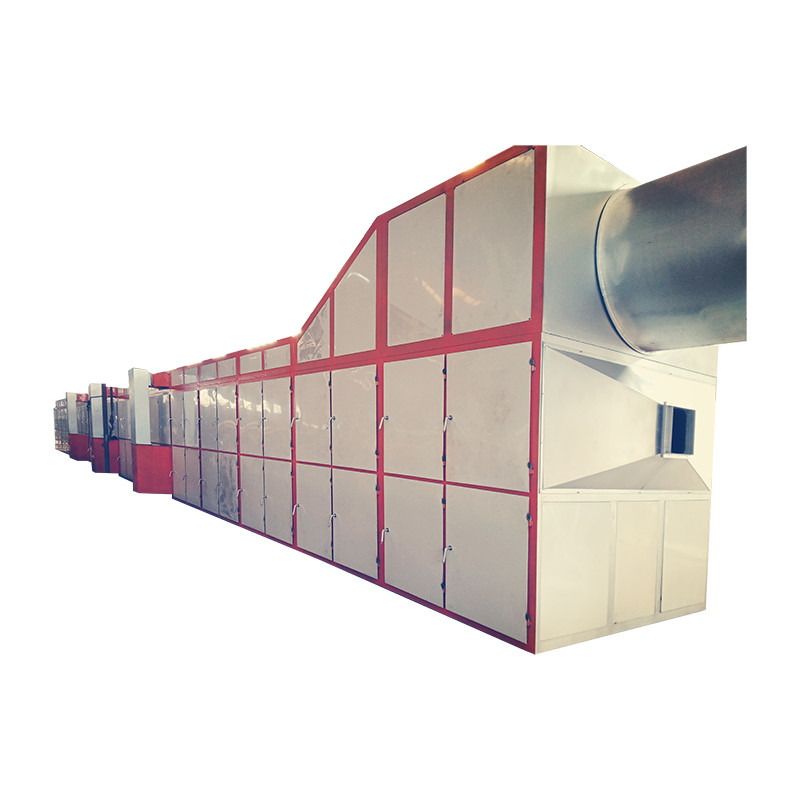

Single layer metal dryer for 5000pcs/h capacity egg tray production line
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 380V/50HZ
Power(W): Different Machine Model
Dimension(L*W*H): Up to final machine model
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 5000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
5*8 molds 5000pcs/h rotary forming egg tray machine technical data:
|
Egg Tray Mold Quantity
|
40(5pcs*8)
|
|
Raw material
|
Waste paper
|
|
Egg tray Capacity(pcs/hour)
|
5000
|
|
Net weight per piece (gram)
|
70-75
|
|
Waste paper consumption
|
375kg/h
|
|
Water Consumption
|
1.1t/h
|
|
Natural Gas Consumption of Dryer
|
150cbm/h
|
|
Boiler model (natural gas fuel Kcal)
|
1800*103
|
|
Worker requirement
|
10-12
|
|
Power Requirement
|
Without dryer
|
Not suggested
|
|
With dryer
|
180kw
|
|
Area of workshop
|
With dryer
|
600m2
Dryer 36m
|
|
Container Requirement
|
Without dryer
|
Not suggested
|
|
With dryer
|
40hq*5
|
|
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.
|
Payment and delivery
| Trade terms |
FOB Qingdao or EXW Factory |
| Delivery time |
About 80 working days after receiving the deposit. |
| Payment term |
BY T/T 40%DEPOSIT+60%BALANCE |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
1 year after the Egg tray machine received. |
| TERMS OF DELIVERY |
FOB Qingdao Port, China |
| Package |
In container |
| Installation |
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) |
|
Factory Introduction
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
