1300-1500pcs/h Paper Egg Tray Machine Pulp Molding Machine Semi-automatic Customized Molds
This 1300pcs-1500pcs/h capacity egg tray machine includes following 2 main sections:
1. pulping system: including the hydraulic pulper, water pump, pulp pump, mixer with blades, etc..to make the wastepaper into pulp.
2. forming system: including the molding machine, transferring molds and forming molds, vacuum pump, air compressor and electrical controller to make the pulp into wet trays.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small enterprises.
Technical Parameters of the 1300-1500pcs/h capacity 1*4molds egg tray machine( pulp molding machine)
|
Technical Parameters
|
|
Egg Tray mould quantity
|
4pcs
|
Machine volume
|
|
Raw material
|
Waste paper
|
About20ft*1
|
|
Output for egg tray
|
1300-1500pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
The volume of waste paper consumed
|
110kg / hour
|
|
The volume of water consumed
|
0.3ton / hour
|
|
Machine Weight
|
4tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
|
Installed power
|
41kw
|
|
Motor working efficiency
|
70%
|
|
Dimensions required to install the machine
|
More than L10m*W5m*H3m
|
|
Remarks:
1.Usually, debugging work will be done before shipment.
2. We will offer online installation support for buyers.Either by video or by phone.
3. Buyer needs to build underground type 1 water and 2 pulp pools with dimensions of 1.5mL*1.5mW*1.5m(deep)
|

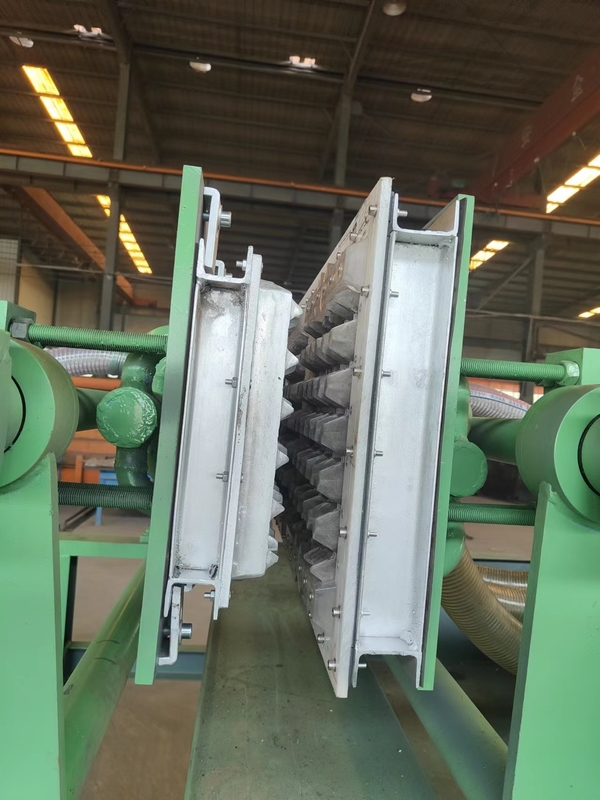

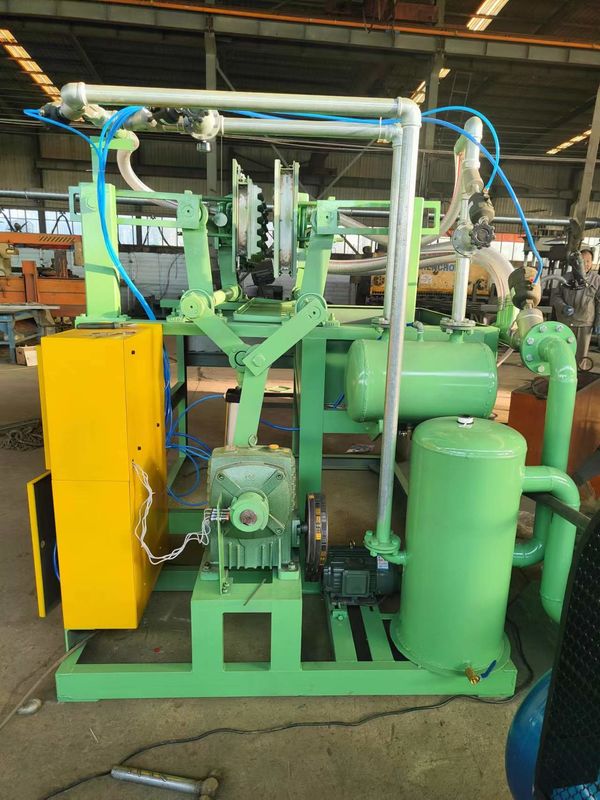

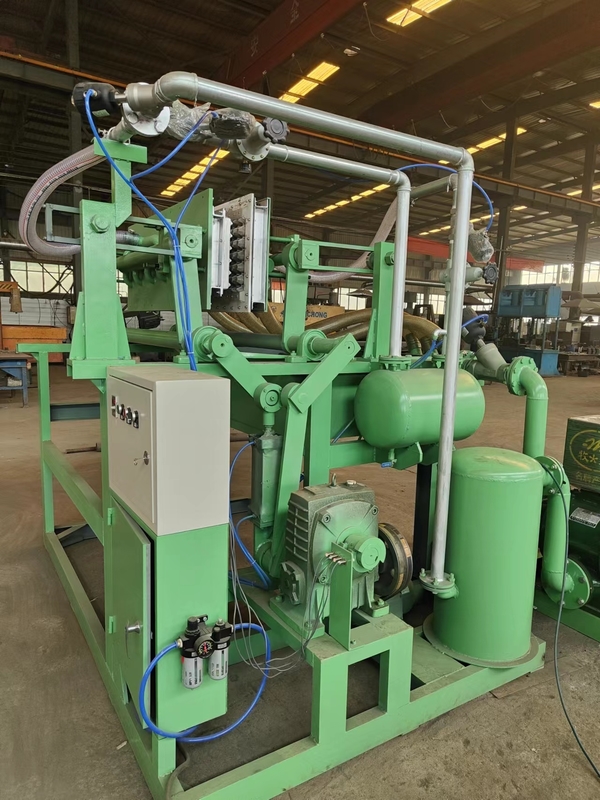

Forming machine part of 1300pcs/h capacity egg tray machine

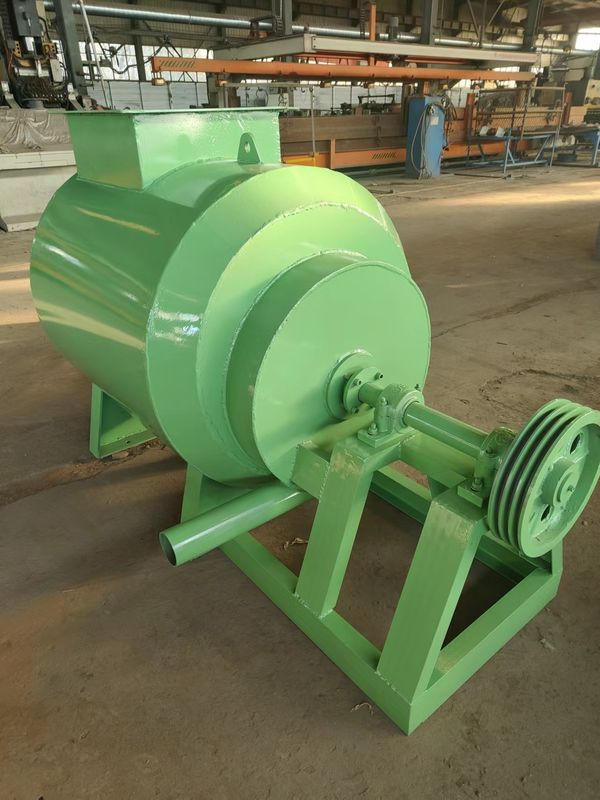

Pulping machine of 1300pcs/h capacity egg tray machine
Applications:
Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, etc.
With lower cost investment, you can achieve big profit by our machine.
Delivery of our egg tray machine paper pulp molding machine
Business Terms
|
Model
|
QTY
|
Unit price
|
EXW Jinan
|
|
FB1500 Egg tray machine
With molds
|
1
|
|
|
|
Delivery Time: 35 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
365 days after the Egg tray machine received.
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
THE TRADING PROCESS
1,After receiving of the deposit,we will start to make the equipment according to customer’s requests. All of our machines can be customized to meet the diverse demands of different customers.
2.All machines are fully tested and adjusted at our factory prior to shipment. Customers will receive video evidence demonstrating the successful commissioning and performance.
3.Once the balance is paid,we will arrange the delivery in time,and all the process will be shown to our customers.
4. Once the machine arrives at our customer’s factory, we will provide installation support and operational assistance in various ways.
