1000pcs/h Paper Egg Tray Machine Egg Carton Machine Semi-automatic for Small Business
Description:
Egg tray making machine refers to the machine that can be used to make paper egg trays. Paper egg trays, as a kind of protective shell to hold eggs, are becoming the mainstream packaging product on the market.
Jinan Wanyou Packing Machinery Factory egg tray machine enables customers to make egg trays with higher quality and higher bearing capacity.
Due to low cost and high return, more and more people are willing to invest in the machine. Especially for chicken farmers, they can sell the eggs packaged by egg trays at a higher price.
This 1000pcs/h capacity egg tray machine includes following 2 main sections:
1. pulping system: including the hydraulic pulper, water pump, pulp pump, mixer with blades, etc..to make the wastepaper into pulp.

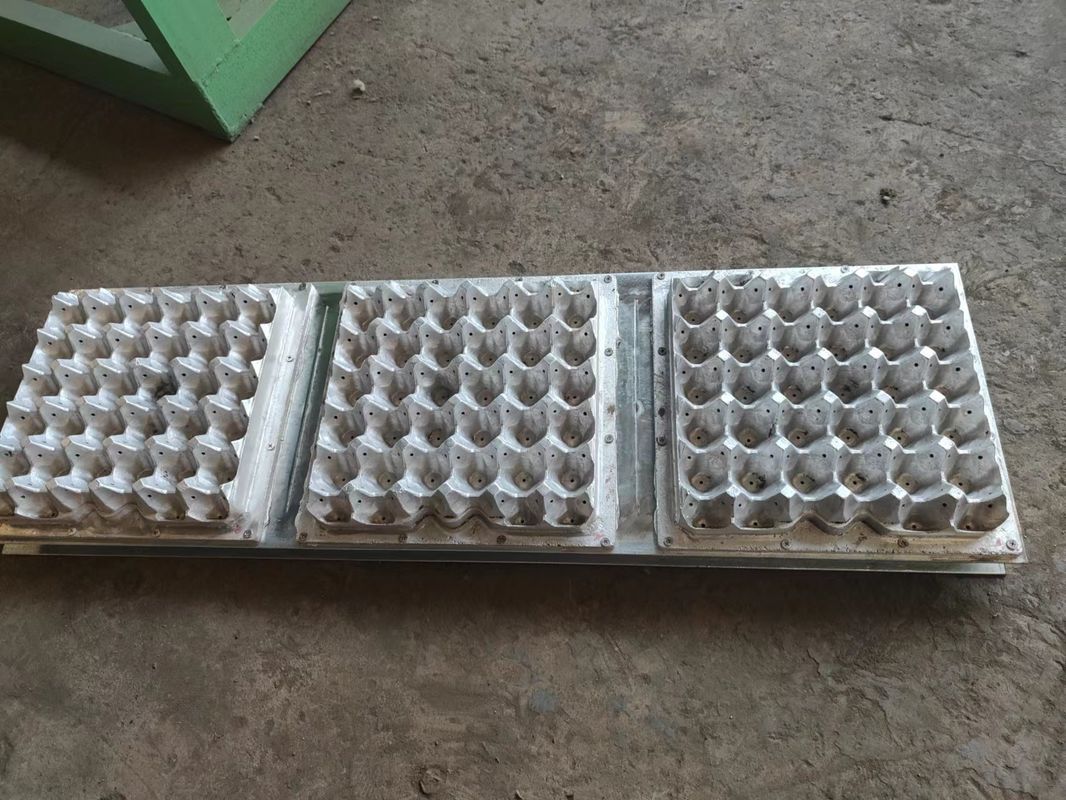

2. forming system: including the molding machine, transferring molds and forming molds, vacuum pump, air compressor and electrical controller to make the pulp into wet trays.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small enterprises.
Technical Parameters of the 1000pcs/h capacity 1*3molds egg tray machine( pulp molding machine)
|
Technical Parameters
|
|
Egg Tray mould quantity
|
1*3pcs
|
Machine volume
|
|
Raw material
|
Waste paper
|
About20ft*1
|
|
Output for egg tray
|
1000pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
The volume of waste paper consumed
|
75kg / hour
|
|
The volume of water consumed
|
0.22ton / hour
|
|
Machine Weight
|
3 tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
|
Installed power
|
30.5kw
|
|
Motor working efficiency
|
70%
|
|
Dimensions required to install the machine
|
More than L6m*W5m*H3m
|
|
Remarks:
1.Usually, debugging work will be done before shipment.
2. We will offer online installation support for buyers.Either by video or by phone.
3. Buyer needs to build underground type 1 water and 1 pulp pool with dimensions of 1.5mL*1.5mW*1.5m(deep)
|

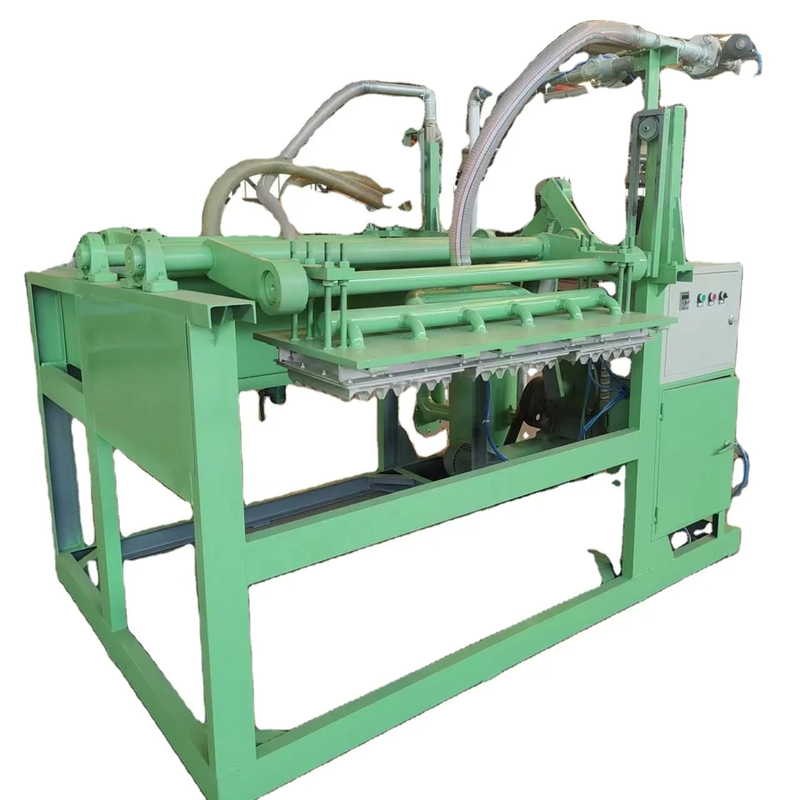

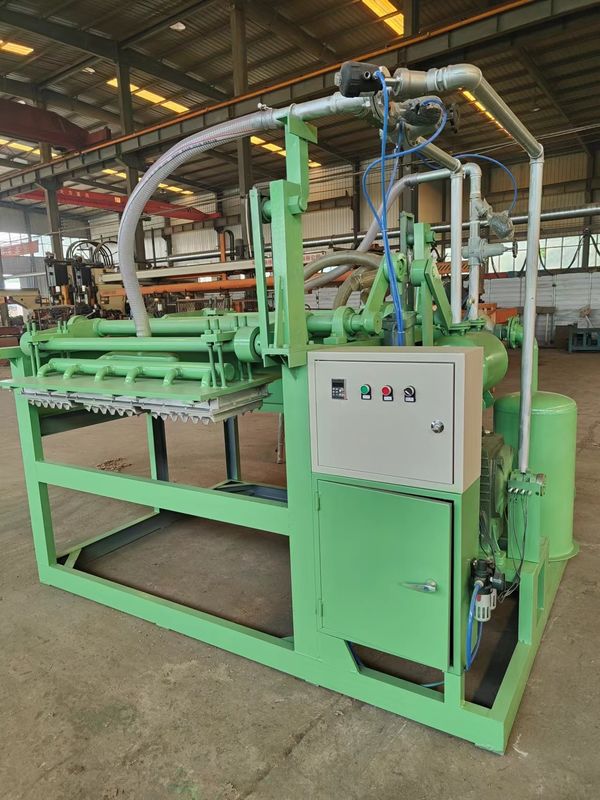

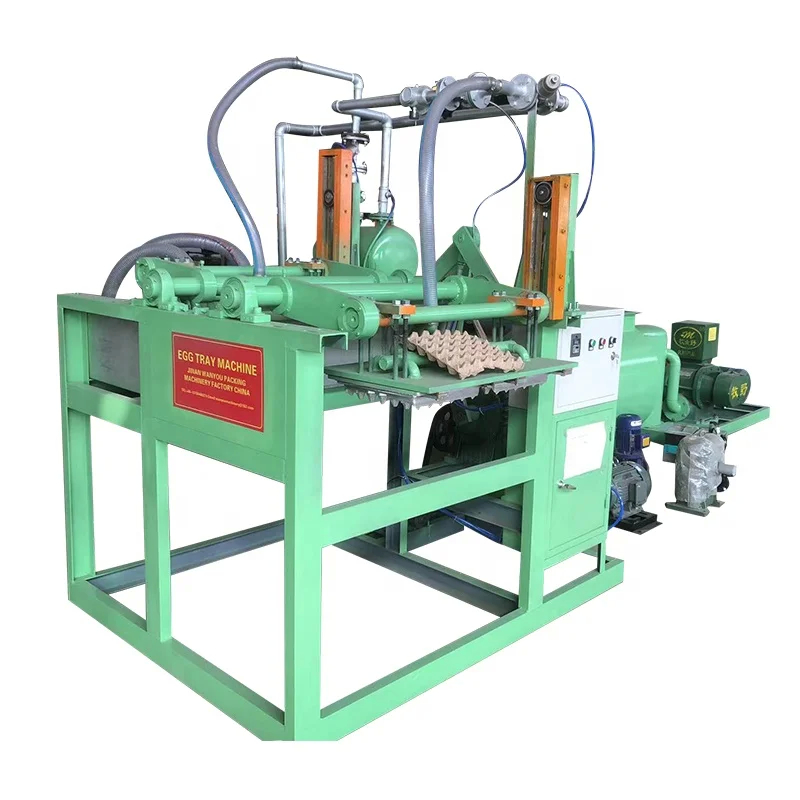

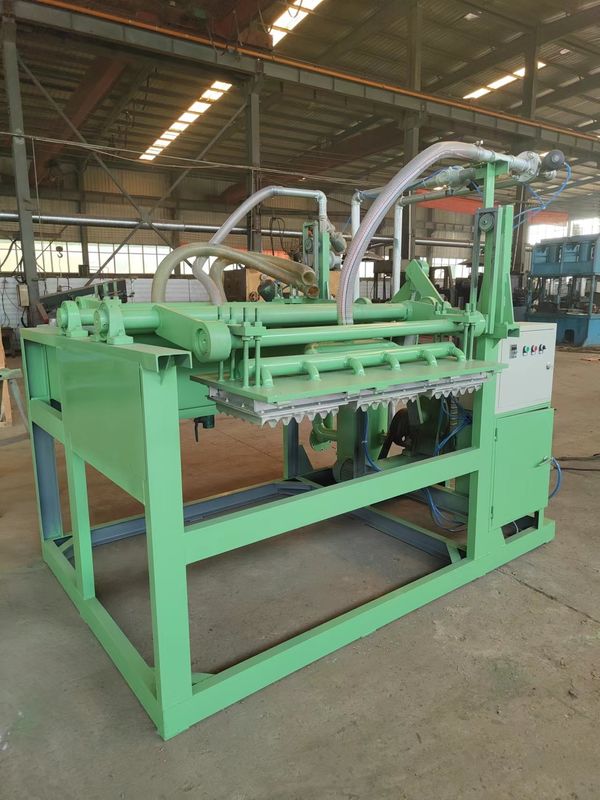

Forming machine part of 1000pcs/h capacity egg tray machine

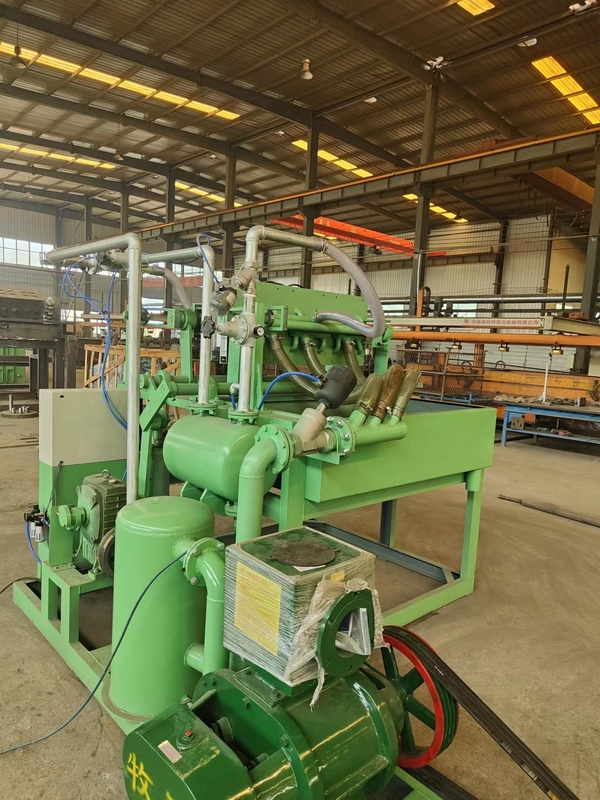

Pulping machine of 1000pcs/h capacity egg tray machine
Applications:
Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, etc.
With lower cost investment, you can achieve big profit by our machine.
Delivery of our egg tray machine paper pulp molding machine
Business Terms
|
The offer This offer valid 30 days
|
|
Model
|
QTY
|
Unit price
|
EXW Jinan
|
|
FB1000 Egg tray machine
With molds
|
1
|
|
|
|
|
|
|
Delivery Time: 30 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
365 days after the Egg tray machine received.
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
Wanyou Paper Egg Tray Machine Advantages:
1. 1 year of warranty for whole egg tray machine line
2. with computer software
3. Germany-made valves
4. easy to be installed and operated
5.High automation, low labor cost.
6.Low production cost
7.Energy saving(by 30%-50% compared with other manufacture)
8.Water saving(complete water treatment system equipped)
9.Efficient Multi layer dryer, saving space(by 33% compared with traditional dryer)
10.Stable final product quality(same weight, same dimension,strong and good look)
