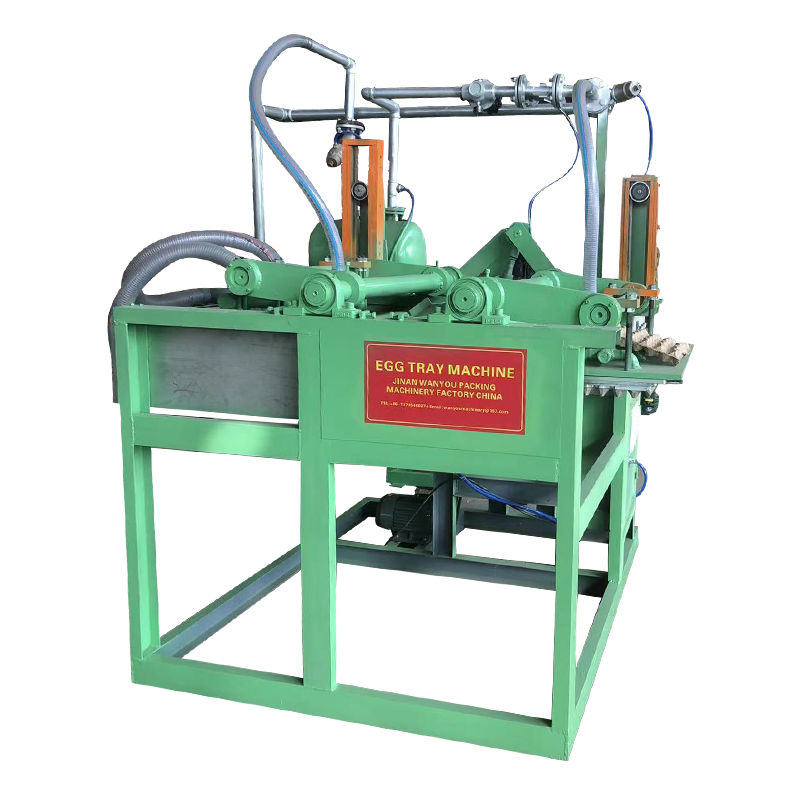

Simple Structure Capacity Paper Egg Tray Machine Pulp Molding Machine 700pcs/h Small Business
This simple structure 700pcs/h capacity egg tray machine includes 2 main sections:
1. pulping system: including the hydraulic pulper, water pump, pulp pump, mixer with blades, etc..to make the wastepaper into pulp.
2. forming system: including the molding machine, transferring molds and forming molds, vacuum pump, air compressor and electrical controller to make the pulp into wet trays.
Egg Tray Machine is with 700pcs/h capacity, which is very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small enterprises.
Technical Parameters of the 700pcs/h capacity 1*2molds egg tray machine( pulp molding machine)
|
Technical Parameters
|
|
Egg Tray mould quantity
|
1*2pcs
|
Machine volume
|
|
Raw material
|
Waste paper
|
About20GP*1
|
|
Output for egg tray
|
600-700pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
Waste paper consumption
|
50kg / hour
|
|
Water consumption
|
0.15ton / hour
|
|
Machine Weight
|
2.5 tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
|
Installed power
|
23.1kw
|
|
Motor Actual usage efficiency
|
70% of 23.1kw
|
|
Dimensions required to install the machine
|
around L10m*W10m*H3m
|
|
Remarks:
1.Usually, debugging work will be done before shipment.
2. We will offer online installation support for buyers.Either by video or by phone.
|

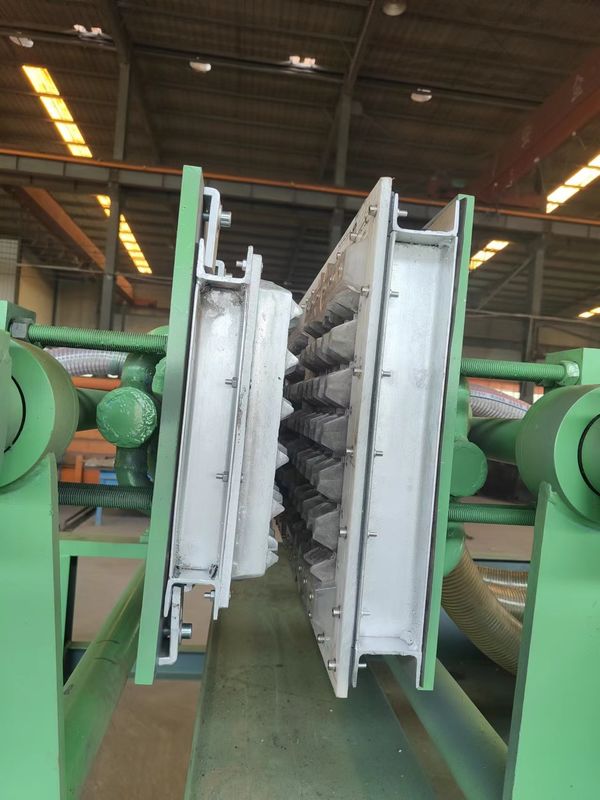

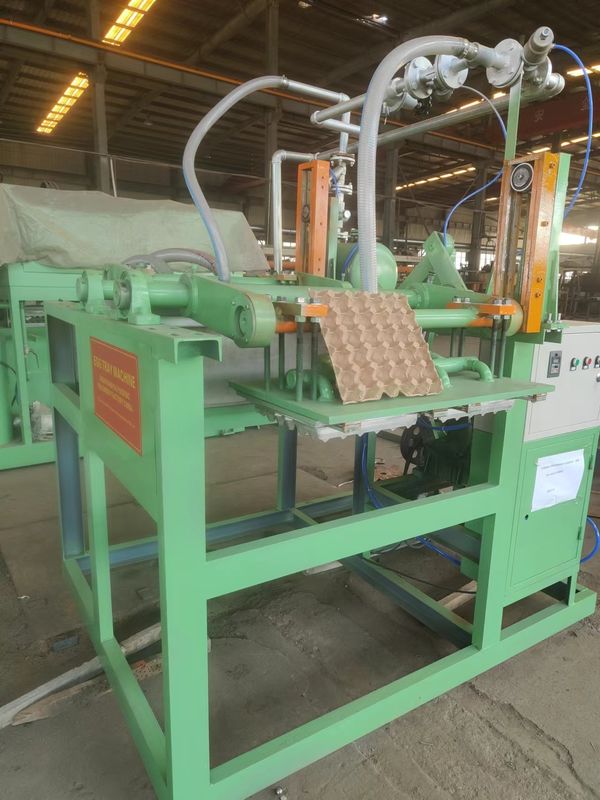

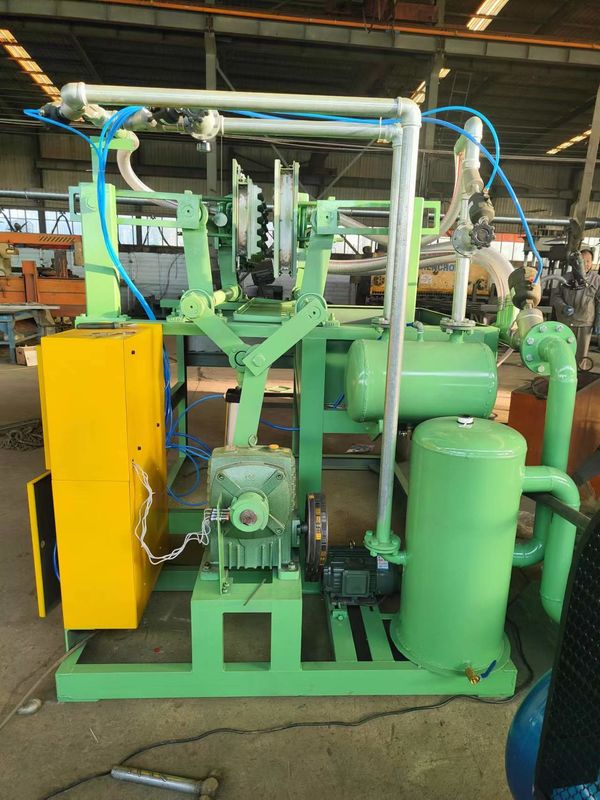

Forming machine part of 700pcs/h capacity egg tray machine

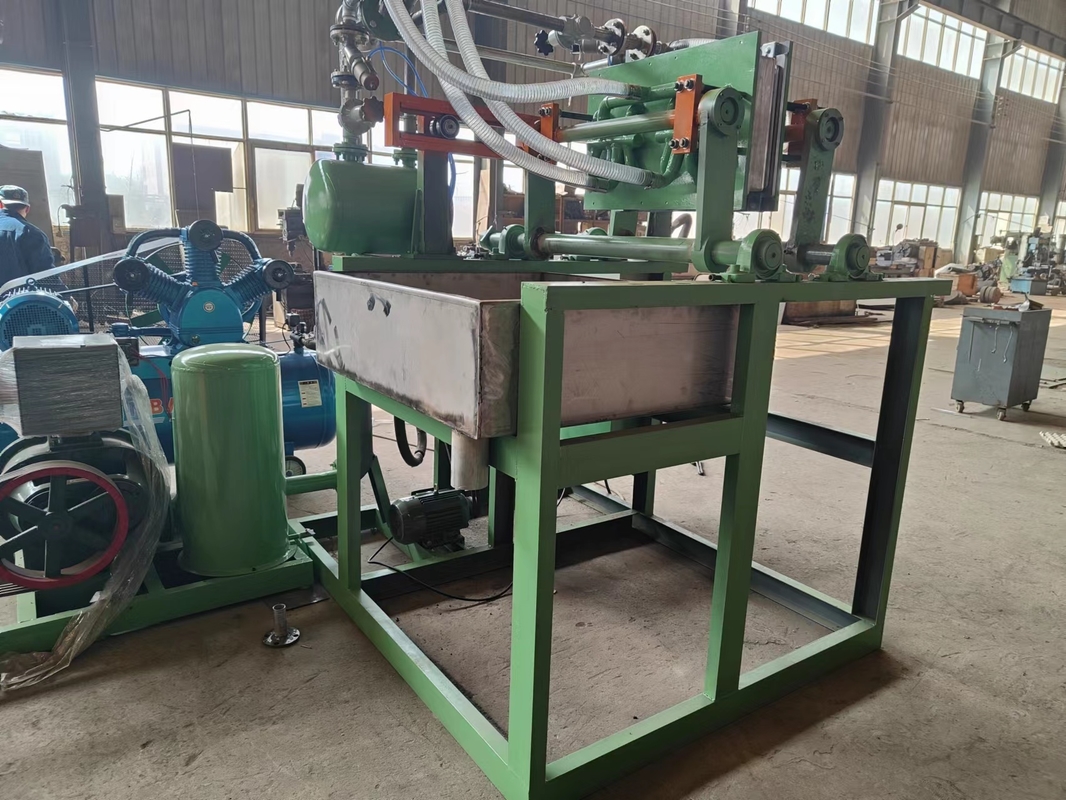

Pulping machine of 700pcs/h capacity egg tray machine
Applications:
Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, etc.
With lower cost investment, you can achieve big profit by our machine.
Delivery of our egg tray machine paper pulp molding machine
Business Terms
|
The offer This offer valid30 days
|
|
Model
|
QTY
|
Unit price
|
EXW Jinan
|
|
FB700 Egg tray machine
With molds
|
1
|
|
|
|
Delivery Time: 25 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
365 days after the Egg tray machine received.
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
Our Services
(1)Technical consultation ;
(2)Detailed design of customer workshop ;
(3)Installing and testing the whole production line before shipment;
(4)Training engineers and workers;
(5)Supplying spare part for long time;
(6) Online services anytime.
Wanyou Paper Egg Tray Machine Advantages:
1. 1 year of warranty for whole egg tray machine line
2. with computer software
3. Germany-made valves
4. easy to be installed and operated
5.High automation, low labor cost.
6.Low production cost
7.Energy saving(by 30%-50% compared with other manufacture)
8.Water saving(complete water treatment system equipped)
9.Efficient Multi layer dryer, saving space(by 33% compared with traditional dryer)
10.Stable final product quality(same weight, same dimension,strong and good look)
