Place of Origin:
Jinan, Shandong, China
Brand Name:
RUNLIANG
Certification:
CE
Model Number:
ZSJ-700

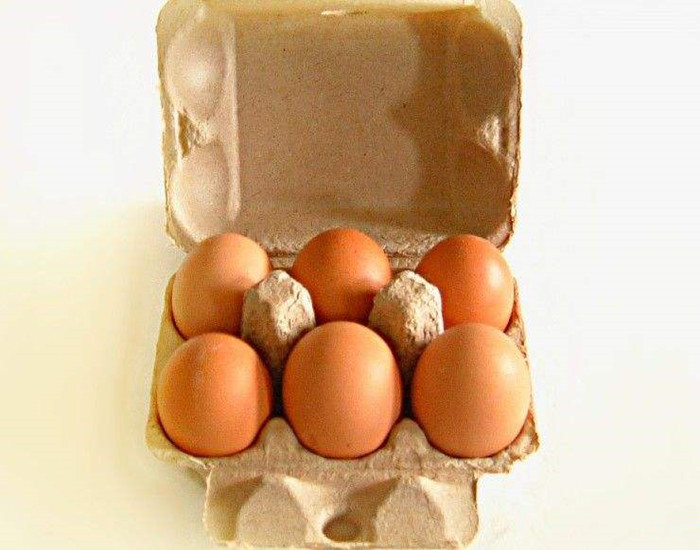

High quality customized 6 holes egg carton egg tray production line
China Recyclable fully tableware Pulp Molding Machine /egg packing carton machine Germany Valves uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Technical data
| 1, | Egg tray mould quantity | 1pcs | 2pcs | 3pcs | 4pcs | 6pcs |
| 2, | Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper |
| 3, | Output for egg tray | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 2000pcs/hour |
| 4, | Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
| 5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 0.2ton / hour |
| 6, | The volume of water consumed | 0.05ton / hour | 0.15ton / hour | 0.2ton / hour | 0.4ton / hour | |
| 7, | Operators number | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers |
| 8, | Area of workshop | More than 200M² | More than 240M² | More than 240M² | More than 240M² | More than 400M² |
| 9, | Capacity of power | 25KW | 40KW | 50KW | 60KW | 100KW |

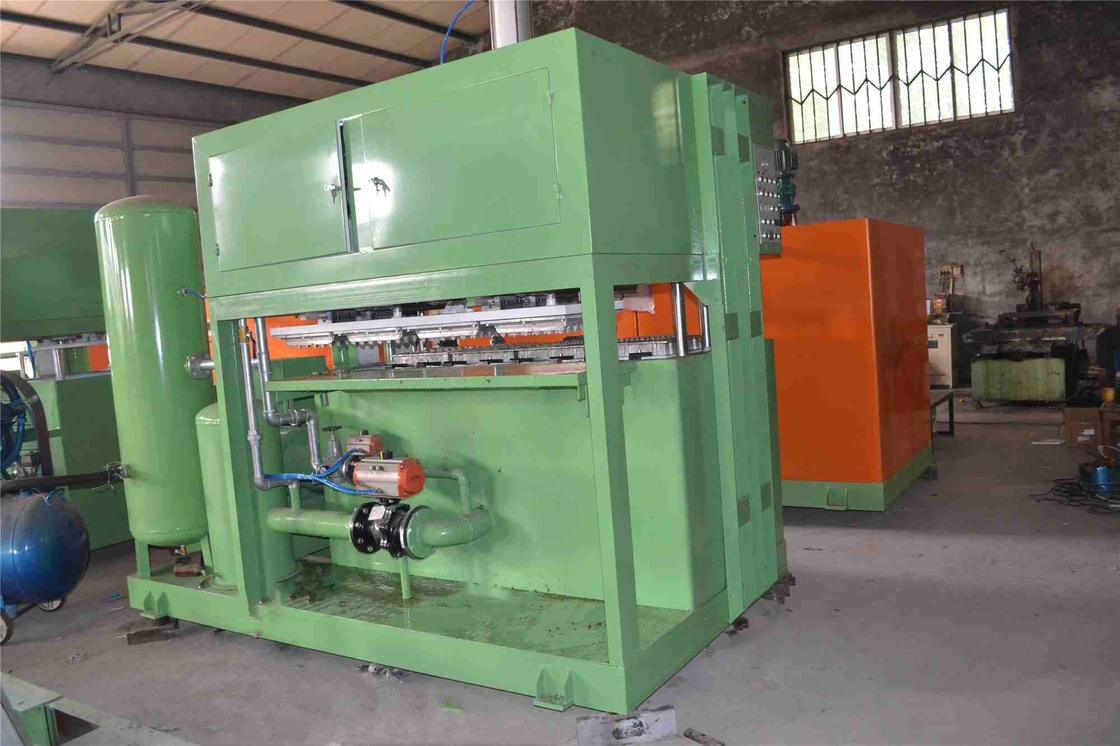

Forming Machine:
Advantages of our machine:
1. Controlled by automatic computer soft ware
2. Easy to be installed, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial packaging trays.
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time
