Place of Origin:
Jinan, Shandong, China
Brand Name:
RUNLIANG
Certification:
CE
Model Number:
ZSJ-1000
Video

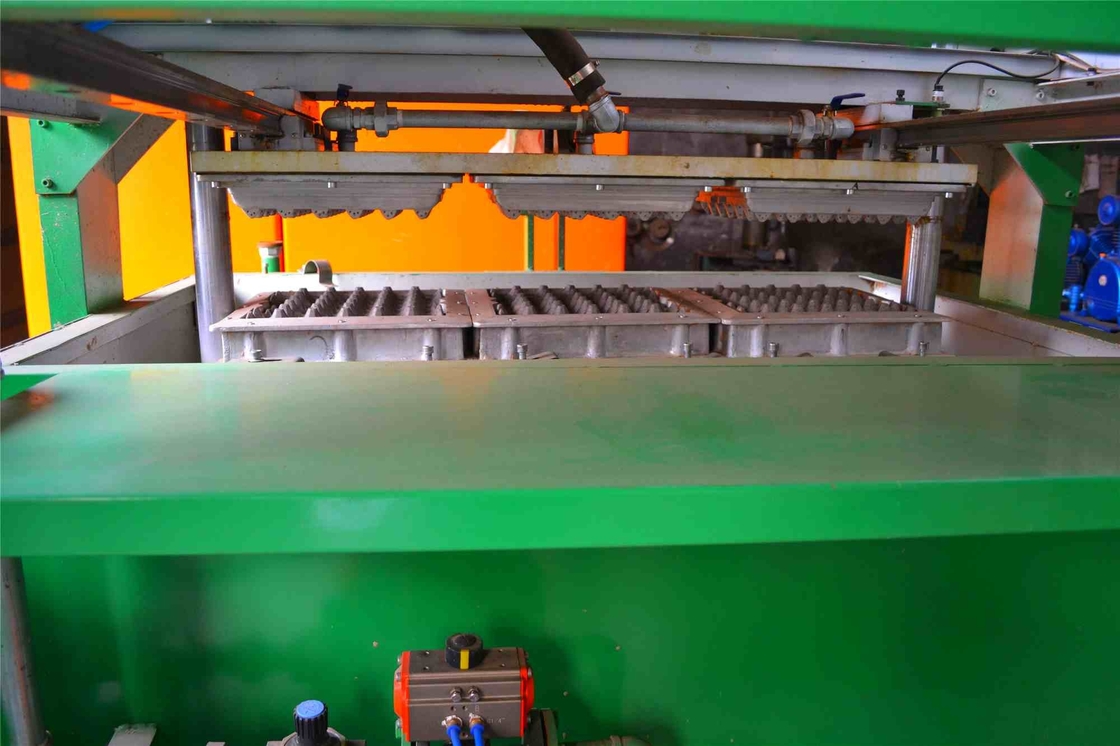

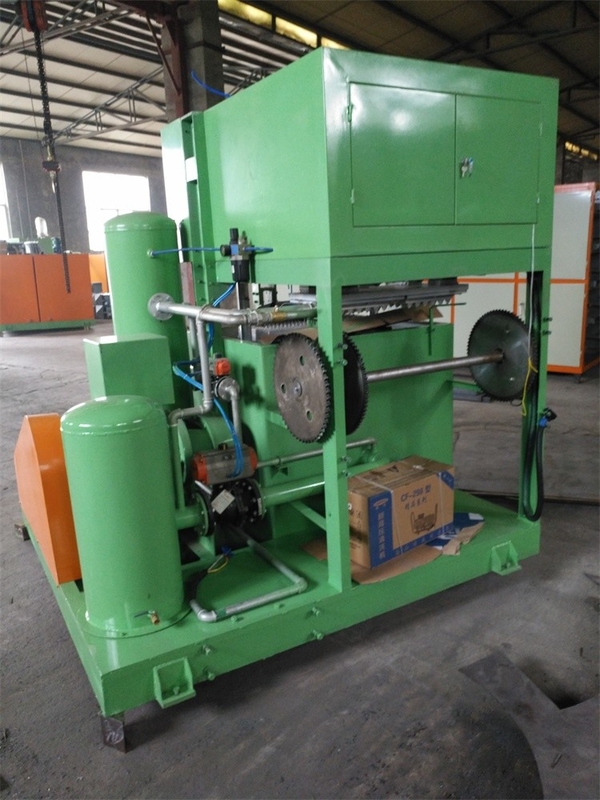

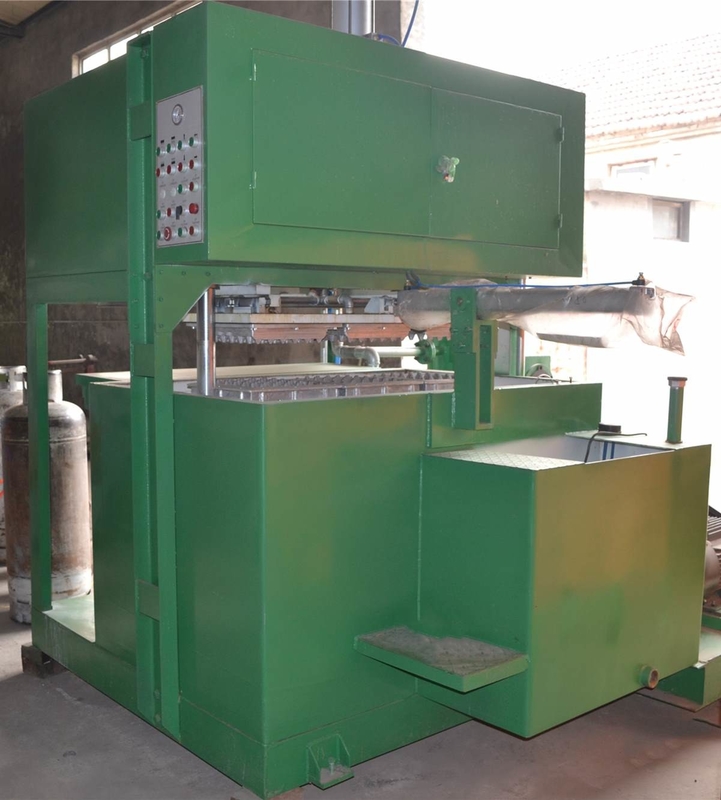

paper pulp egg tray machine
Advantages of Egg Tray production line:
Advantages of our machine:
1. Controlled by automatic computer software
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time
Technical parameters of egg carton making machine:
| 1, | Egg tray mould quantity | 1pcs | 2pcs | 3pcs | 4pcs | 6pcs |
| 2, | Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper |
| 3, | Output for egg tray | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 2000pcs/hour |
| 4, | Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
| 5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 0.2ton / hour |
| 6, | The volume of water consumed | 0.05ton / hour | 0.15ton / hour | 0.2ton / hour | 0.4ton / hour | |
| 7, | Operators number | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers |
| 8, | Area of workshop | More than 200M² | More than 240M² | More than 240M² | More than 240M² | More than 400M² |
| 9, | Capacity of power | 25KW | 40KW | 50KW | 60KW | 100KW |
Some world famous brands of our egg tray machine:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)–DELTA
7. the burner– BALTUR/RIELL
Samples by our machine:
Whatsapp&Wechat:86-15665704183
Welcome for more information.
