Automatic Paper Pulp Egg Tray Production Line,Egg Carton Maker Easy Operate

Automatic Paper Pulp Egg Tray Production Line,Egg Carton Maker Easy Operate

small egg tray machine

egg crate making machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Certification:

CE

Model Number:

ZSJ series

Contact Us
Request A Quote
Product Details
Voltage:
Depends
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Capapcity:
Customized
Processing Type:
Pulp Molding Machine
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
in container
Delivery Time
60 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



New Condition Paper Egg Tray Making Machine / Egg Tray Production Line / Egg Carton Maker



New Condition Paper Egg Tray Making Machine / Egg Tray Production Line / Egg Carton Maker uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.



Egg tray machine working flow as the following:



1. Pulping system

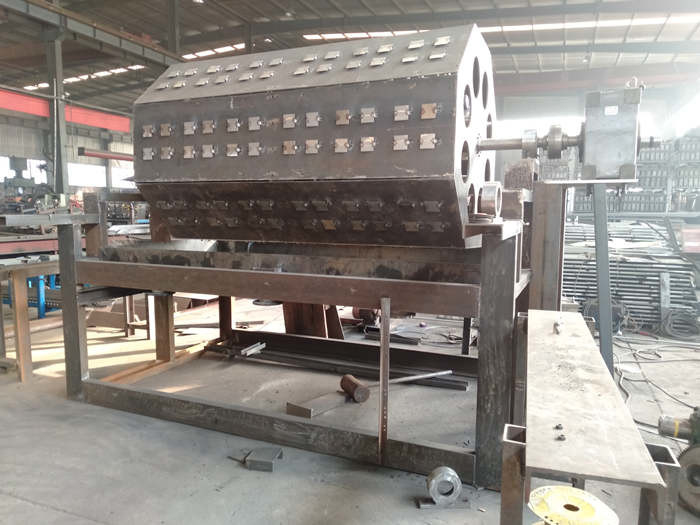

2. Forming system

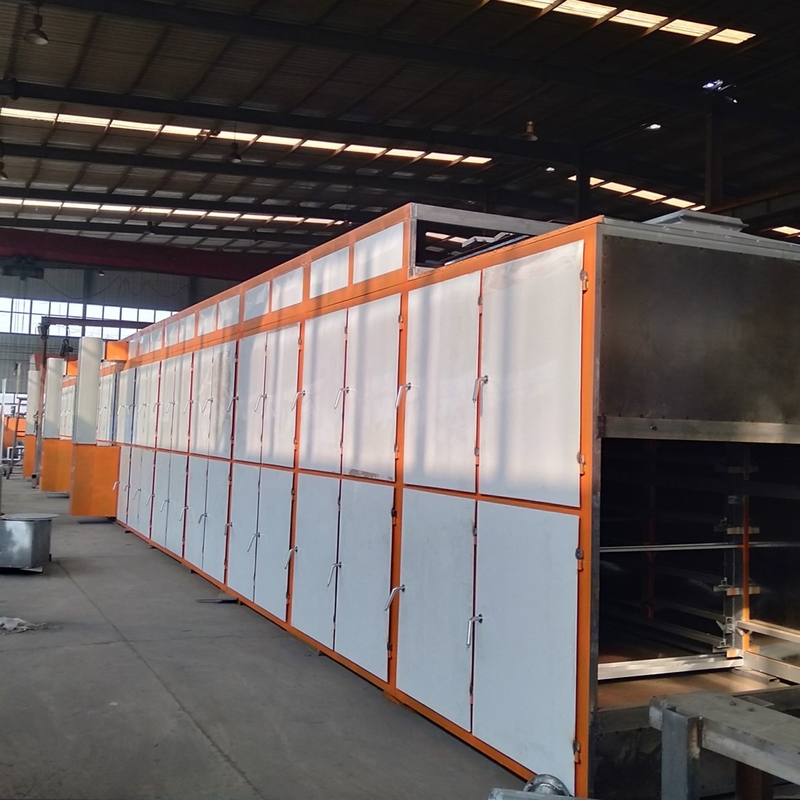

3. Drying system

4. Packing System



The machine Features:



1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2years warranty.

​ 5. The installation of the whole line is easy.

All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!



Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: Wanyou

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h-5000pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-600㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.



Technical data



1 Molds quantity 40pcs+5pcs(5*8) 60pcs+5pcs(5*12) 32pcs+4pcs(4*8) 18pcs+3pcs(3*6) 12pcs+3pcs(3*4)
2 Raw material Waste paper Waste paper Waste paper Waste paper Waste paper
3 capacity 4000-4500pcs/h 5000pcs/h 3000pcs/h 2400pcs/h 1800pcs/h
4 Weight of tray 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g
5 Waste paper consumption 500kg/h water can be 650kg/h 225kg/h 180kg/h 135kg/h
6 Water consumption 1-1.5t/h 1.5-2 t / hour water c 0.6T/h 0.5T/h 036T/h
7 natural gas consumption 60 m³/h 75-80 m³/h 30m³ 25m³ 20m³
8 Workshop dimension Without dryer More than200M²

More than300M²



120M² 100M² 100M²
With dryer 500M²(10*50 M)

750M²(15*50 M

)

55*12M 8*35M 8*35M
9 Installed power Without dryer 190KW

240KW

















60KW 55KW 45KW
With dryer 220KW 290KW 100KW 90KW 80KW
10 Machine dimension Without dryer 13*4m 19*10m 4*10M 4*10M 4*10M
With dryer 40*4m 50*10m 4*35 4*32M 4*30
11 Dimension container Without dryer 40ft*2 40ft*3 40ft*2 40ft*2 40ft*2
With dryer 40ft*3 40ft*4 40ft*5 40ft*4 40ft*4



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 35 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Factory Introduction


Jinan Wanyou Packing Machinery  Factory is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Don’t miss the chance of promoting the production efficiency of your company.



Welcome to contact us.



FAQ



(1). What kind of material we can use as the raw material?



Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.



(2). What kind of Fuel can be used for the whole production line?



Coal, natural gas, and dieseal oil.



(3). What kind of products can be made by this machine?



All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.



(4). Are you a manufacturer or a trading company?



Yes, our company has been fabricating pulp molding machine since 2000. We are one of the



most important pulp molding machine maufacturers in the world, and we are famous pulp



molding machine manufacturer in China, providing high quality and production capacity pulp molding



machinery at reasonable prices to the world.



(5). What capacity egg tray machine can you supply?



At the moment, we can supply 350 -6000pcs/h capcaity egg tray machine.
