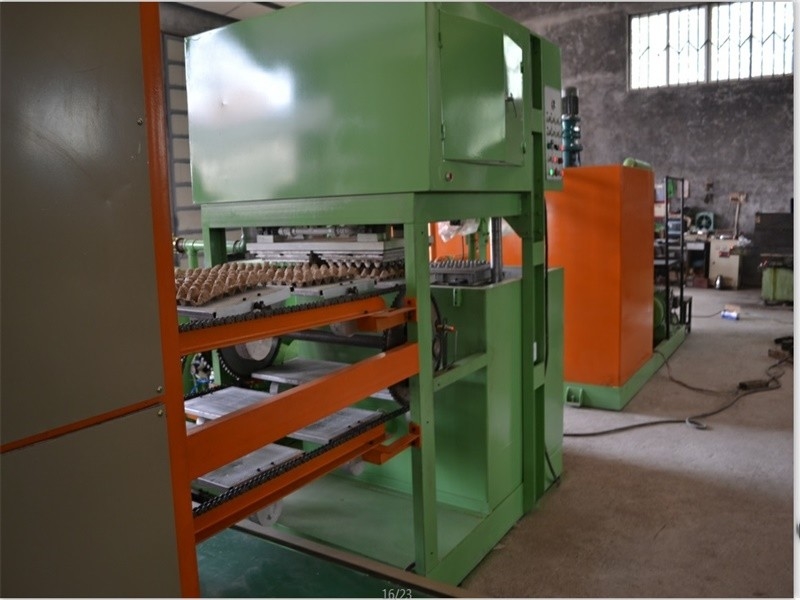

Competitive Advantage Used Waste Paper Pulp Molding Machine Egg Tray Production Line
Competitive Advantage Used Waste Paper Pulp Molding Machine Egg Tray Production Line
It is reciprocating type paper pulp molding egg tray making production line.

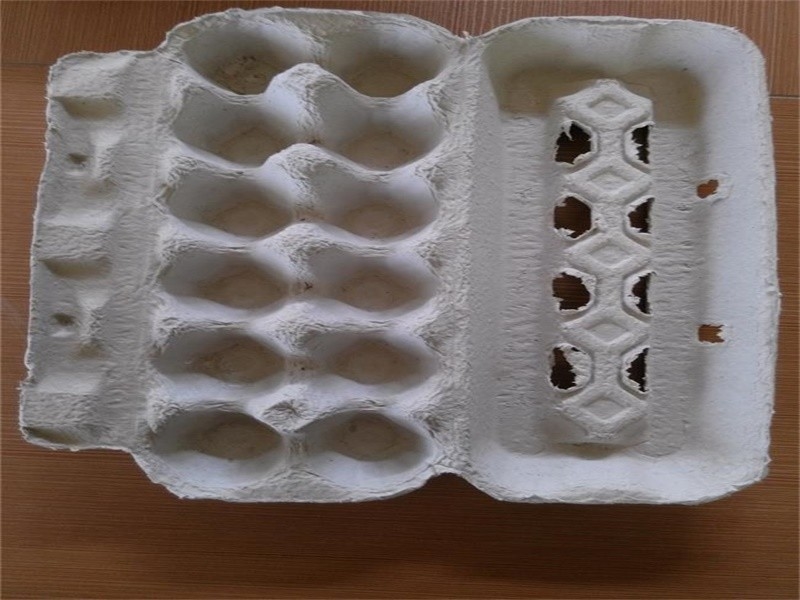

It is suitable for making any simple shape trays, such as egg trays, egg cartons, egg boxes, apple trays, bottle trays, coffee cup carrier tray or shoes tray and even medical care disposable products etc.
It is mainly composed of 3 parts: pulping system, forming system and drying system.
1. Pulping system: Use waste paper and water as raw material and pulp up;
2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;
3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Process flow of making egg tray:
1. Pulp system
Hydraulic Pulper,Crusher, Pulp Pump, Water Pool, Pulp Pool, Mill Pump,
2. Forming system
Foming Main machine, Washer
Water pulp, Air Comprocessor
Air Tank, Vacuum tank
Pump, Conveyor, Moulds
3. Drying system
Chain, Boiler, Burner, Air deflector, Grate bearing, Chamber, Fan shaft
Impeller, Bearing, Oven
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 2300mm*1950mm*1600mm
Weight: 8 tons-50tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 1800pcs/h-5000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-560㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Technical data (5000pcs/h for example)
| Model | Mechanization | Working mode | Capacity(Pcs/h) |
| ZJM-350 | Semi-auto or Automatic | Reciprocating | 350-400 |
| ZJM-700 | Semi- auto or Automatic | Reciprocating | 700-800 |
| ZJM-1000 | Semi- auto or Automatic | Reciprocating | 1000 |
| ZJM-1300 | Semi - auto or Automatic | Reciprocating | 1300-1500 |
| ZJM-2000 | Automatic | Reciprocating or Rotary | 1800-2000 |
| ZJM-2500 | Automatic | Reciprocating Rotary |
2000-2500
|
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 20-30 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
