Rotary Type Paper Egg Tray Production Line Big Capacity 1500-5000pcs/h

Rotary Type Paper Egg Tray Production Line Big Capacity 1500-5000pcs/h

egg crate making machine

paper pulp molding machine

Egg Tray Production Line 5000pcs/h

Place of Origin:


Brand Name:




Model Number:

ZSJ series

Contact Us
Request A Quote
Product Details
Product Name:
Paper Egg Tray Making Machine
Drying Fuel:
Natural Gas, LPG, Coal Or Electricity
1500 - 5000pcs/h
Forming Type:
Rotary Type
Raw Material:
Waste Newspaper, Books, Cardboard Cartons Etc.
End Product:
Egg Trays, Egg Boxes, Egg Cartons, Apple Tray
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
in container
Delivery Time
30 - 90 working days
Supply Ability
Product Description


1500-5000pcs/h Rotary Type Paper Egg Tray Machine / Egg Tray Production Line Big Capacity



1500-5000pcs/h Rotary Type Paper Egg Tray Machine / Egg Tray Production Line Big Capacity is usually used by customers who wants big capacity of the simple structure trays, such as egg trays, egg cartons, apple trays, fruit trays, coffee cup trays, wine trays, shoes trays,etc..

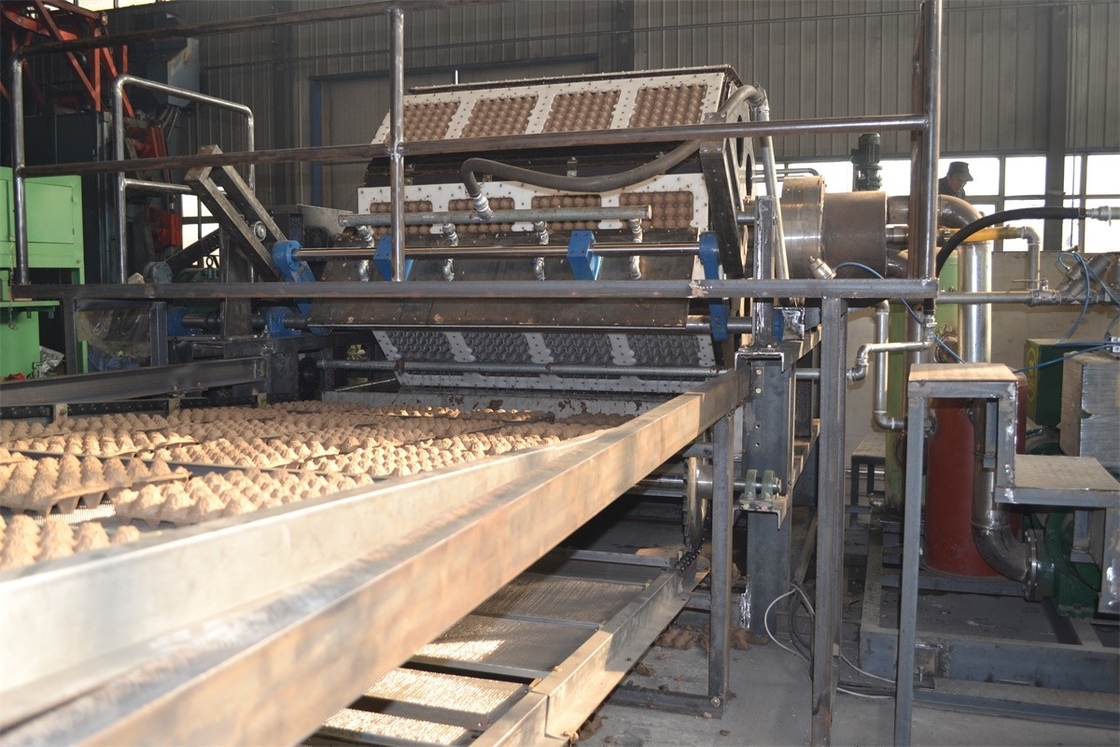

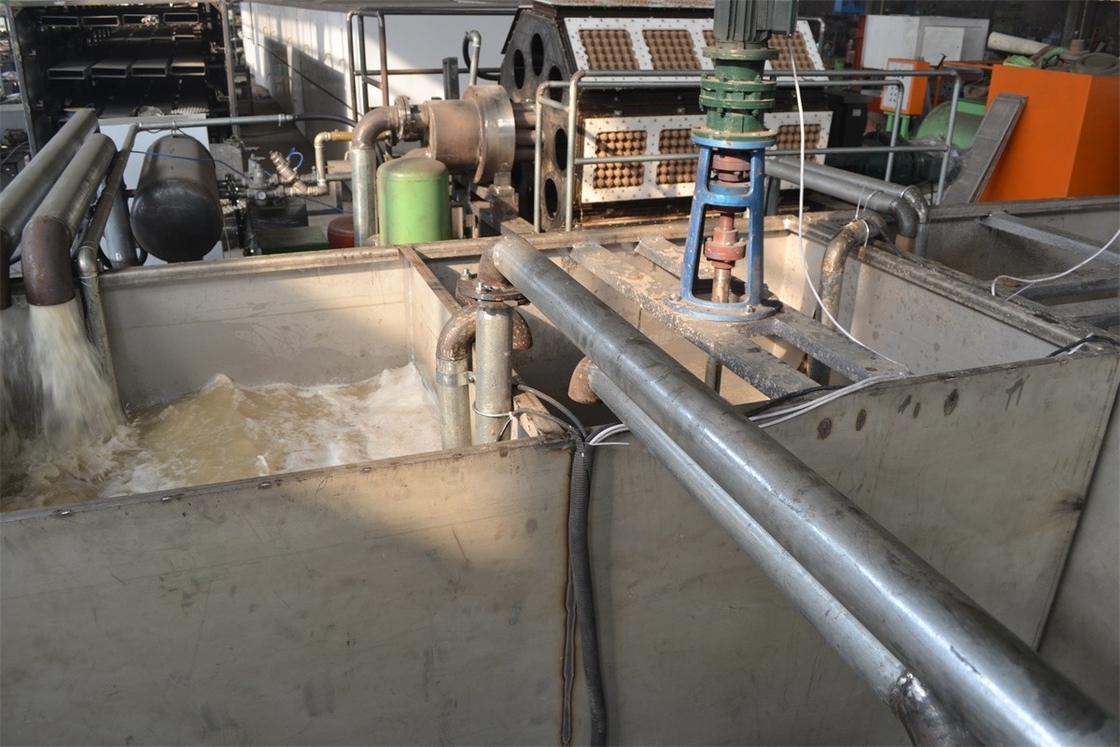

The whole machine production line is composed by pulping system, Forming System, and Drying System. Each part separatedly includes the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, make the wastepaper into pulp; the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays; the oven, chains, trays, heating pipes, fans, boiler, dry the wet trays so they can be used directly.


Our machine uses waste paper as raw material for producing the egg trays.


Technical Data


Egg Tray mould quantity 12pcs(3*4) -- 32pcs (4*8) Container Required
Raw material Waste paper About 40ft*3 - 40ft*8
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 135kg/h - 375kg/h
The volume of water consumed 0.36 - 0.6t/h
Natural gas consumption 50m3/h-150m3/h
Electricity Power 80kw - 200KW
Workshop dimension Around 150m2 - 750m2
Egg tray capacity 1500 pcs - 5000pcs/hour
Machine Weight 20tons - 80 tons around
Egg tray Size 295mm*295mm 30eggs


Payment and Delivery


Trade terms FOB Qingdao
Validity time Within 30days
Delivery time about 60 working days after receiving the deposit.
Payment term BY T/T 30%DEPOSIT+70%BALANCE. or 30% Deposit +70% Insight LC
Time of payment When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time Two years after the Egg tray machine received.
Package In container
Certification CE


The complete egg tray production line includes basically 3 sections: pulping system, molding forming system and drying system. Some assistant equipments are required as well such as air compressor, vacuum pumps, hot pressing machine, burners, etc.; which are all made by China Famous Brand and Germnay Brand.


Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.

With lower cost investment, you can achieve big profit by our machine.


Our company advantages:


Rich experience in manufacturing

1. More than 20 years experience in designing and manufacturing machine.

2. Over 20 years experience in manufacturing the pulp molding equipment.

3. Famous factory in the Egg tray machine field in China.


The most complete product line

1. More than 20 kinds of pulp molding equipment specifications, for Egg tray, Egg carton, Fruit Tray, Cup Carrier,Medical Care Product, Industrial package.

2. Fully-automatic production line and semi-automatic production line.

3. Different capacity can meet all the customers’ needs.


Advance processing technology

The most reliable choice for superb performance in the long run.


High Quality

1. Every process strictly controlled.

2. International brand and Germany brand for control parts.

3. Delivery after machine trail production.

4. England technology
