PLC 1300pcs 380V 50hz Egg Tray Production Line

PLC 1300pcs 380V 50hz Egg Tray Production Line

1300pcs Egg Tray Production Line

PLC Egg Tray Production Line

350pcs/h Egg Tray Pulping System

Place of Origin:

Jinan, Shandong, China

Brand Name:

RUNLIANG

Certification:

CE

Model Number:

RL- ZJM

Contact Us
Request A Quote
Product Details
Power:
Final Machine Production Line
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
2years
Processing Type:
Pulp Molding Machine
Voltage:
220V/380V,380V,220v,50hz,380v / 450v
Quantity Of Molds:
4 Pcs
Egg Tray Capacity:
1300pcs
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
in container
Delivery Time
60 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description



Professional waste paper recycle used Paper egg Tray Machine Production Line





Egg tray machine Pulp Molding Machine paper material is composed of the following sections:



1. Egg Tray Pulping System: Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

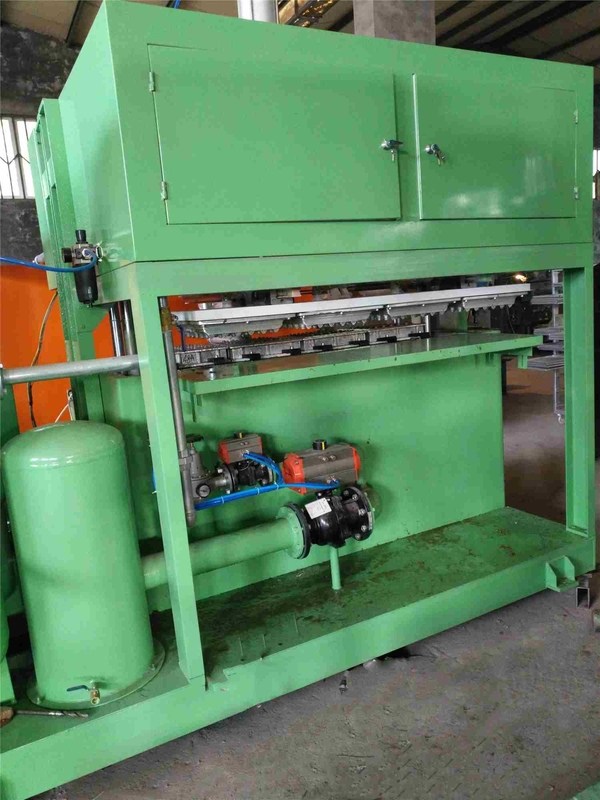

2. Egg Tray Molding Forming System : The Egg Tray Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

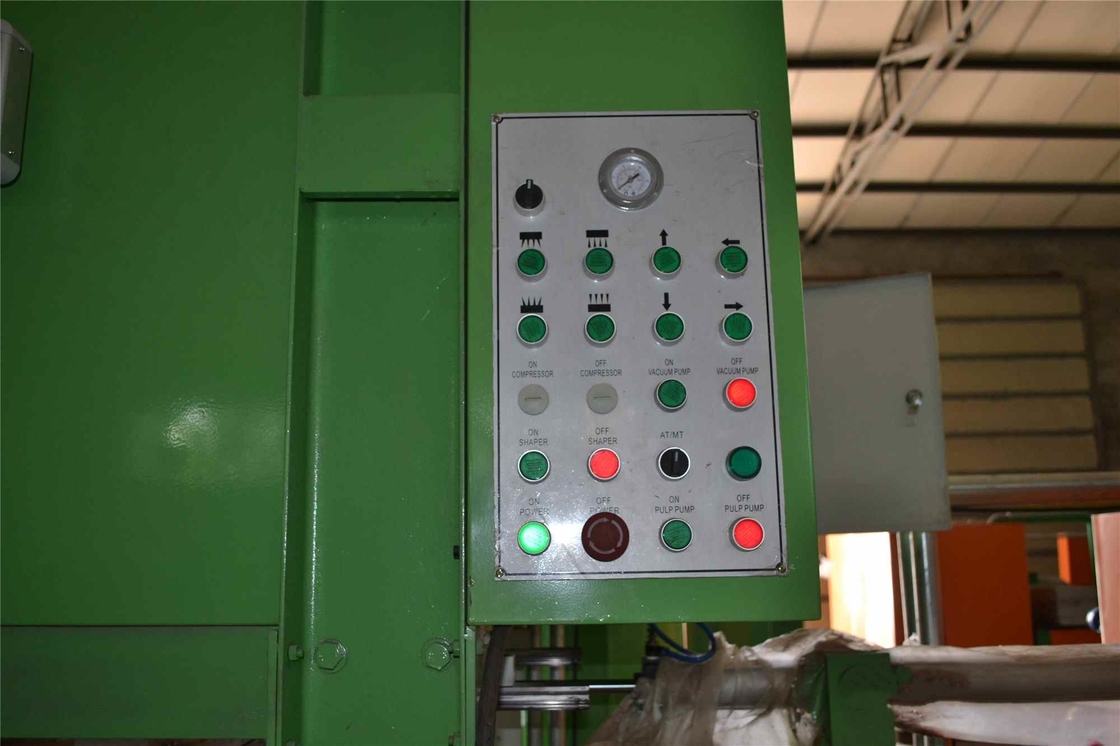

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.



3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.



4. Egg Tray Automatic counting:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .







Machine Introduction:



1. Automatic and semiautomatic egg tray pulp molding machine and production line



2. It is used for making large quantity easy shape products, like paper egg tray, fruit tray, coffee cup carrier tray, bottle tray, wine tray, egg carton with lid, disposable medical products and industrial packaging products etc.



3. Paper Egg Tray Machine Capacity: 350pcs/h, 700pcs/h, 1000pcs/h, 1300pcs/h, 1800pcs/h, 2000pcs/h, 2400pcs/h, 3000pcs/h, 4000pcs/h, 4500pcs/h, 5000pcs/h, 6000pcs/h.



4. Product Type: Egg Tray Machine



5. Process Type: Paper Pulp Molding Production



6. Raw material: waste paper, waste cardboard, newspapers etc. Any type waste paper without plastic.



7. Boiler fuel heating type: diesel, coal, natural gas, or LPG



8. Power Requirement: 20KW-100KW



9. Voltage needed: 220V-440V



10. Workshop requirement: 100㎡--550㎡



11. Machine Model: ZSJ350--ZSJ6000



12. Workers Requirement: depends on different capacity machine



13. Brand Name: Wanyou



14.Origin Place: Shandong, China



15.After-sales service system: Engineers are available for dispatching abroad to install the machine



16. Certificate: CE





Highly used by small and medium company egg tray machines we offered:

Egg Tray Mold Quantity 1pcs 2pcs 3pcs 4pcs 12pcs(3pcs*4) 32pcs(4*8)
Raw material Waste paper Waste paper Waste paper Waste paper Waste paper Waste paper
Egg tray Capacity 350pcs/hour 700pcs/hour 1000pcs/hour 1300pcs/hour 1800pcs/hour 3000pcs/hour
Net weight per piece (gram) 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g 70g-75g
Waste paper consumption 0.025ton / hour 0.06ton / hour 0.1ton / hour 0.13ton / hour 135kg/ hour 225kg / hour
Water Consumption 0.05ton / hour 0.1ton/hour 0.15ton / hour 0.2ton / hour 0.5ton / hour 0.6ton / hour
Natural Gas Consumption of Dryer 12cbm/h 25cbm/h 35cbm/h 50cbm/h 60cbm/h 80cbm/h
Worker requirement 2-3workers 3-4workers 4-6workers 4-6workers 5-7workers 8-10workers
Power Requirement Without dryer 20KW 30KW 40KW 45KW 70KW 100KW
With dryer 30KW 45KW 60KW 65KW 80KW 150KW
Area of workshop Without dryer More than100M² More than 100 M² More than 120 M² More than 150 M² More than 200 M² More than 250 M²
With dryer More than200 M² More than 240 M² More than300M² More than 320 M² More than 400M² More than 520M²
Container Requirement Without dryer 20ft*1 20ft*1 40ft*1 40ft*1 40ft*1 40ft*1
With dryer 40ft*1+20ft*1 40ft*2+20ft*1 40ft*2+20ft*1 40ft*3 40ft*3+20ft*1 40ft*5
  Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 30 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Don’t miss the chance of promoting the production efficiency of your company.



Egg Tray Machine end products includes: The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.
