Fully Automatic Paper Egg Tray Production Line High Efficiency Low Noise

Fully Automatic Paper Egg Tray Production Line High Efficiency Low Noise

Fully Automatic Paper Egg Tray Production Line High Efficiency Low Noise
Fully Automatic Paper Egg Tray Production Line High Efficiency Low Noise
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: Wanyou
Certification: CE
Model Number: ZSJ-6000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: in container
Delivery Time: 20 -80 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Raw Material: Waste Paper, Waste Cardboard, Carton Product Name: Egg Tray Production Process
Power(w): 200KW Weight: Depends
Dimension(l*w*h): Depends Capacity: 350pcs/h - 6000pcs/h
Raw Material: Waste Paper Net Weight Per Piece: 70-75g
High Light:

small egg tray machine


egg crate making machine

                  Wanyou Waste Paper Pulp Molding Euipment Rotary Egg Tray Egg Box Machine


This production line is suitable for the following products:

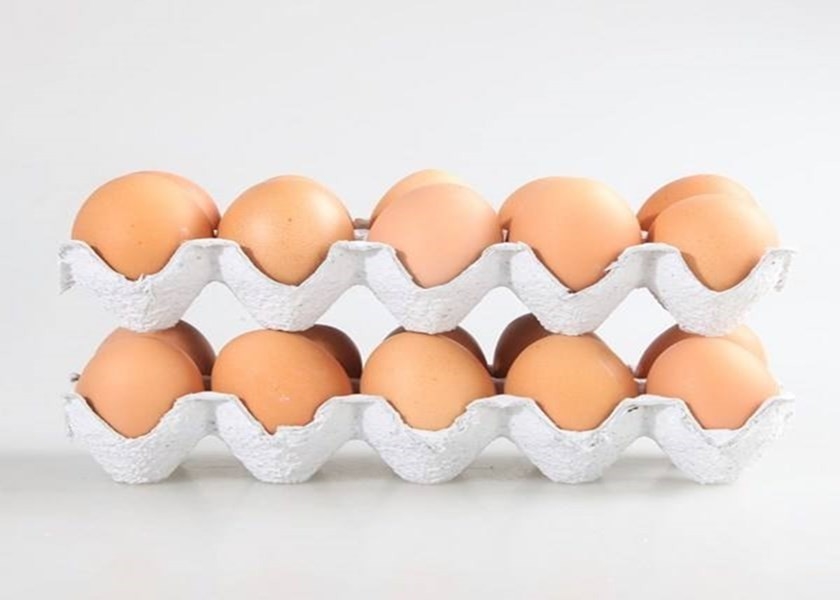

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

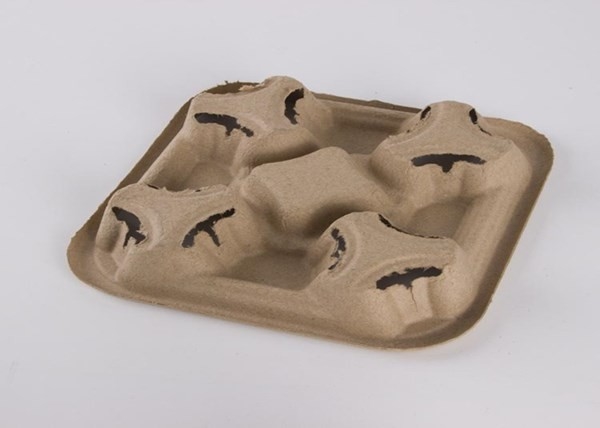

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity


Process flow:


The Egg Tray production line is mainly combined by THREE PARTS:

1. Pulping system: Use waste paper and water as raw material and pulp up;

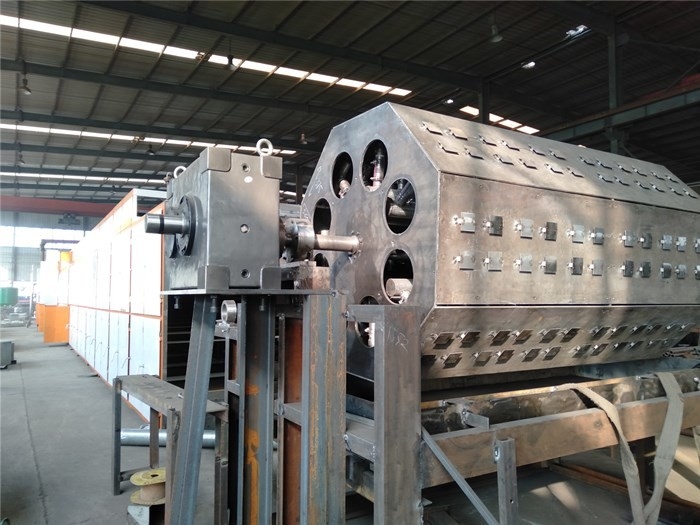

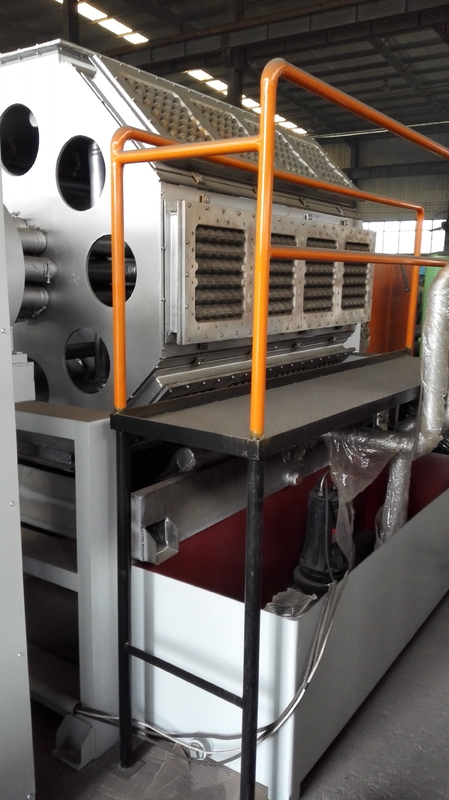

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

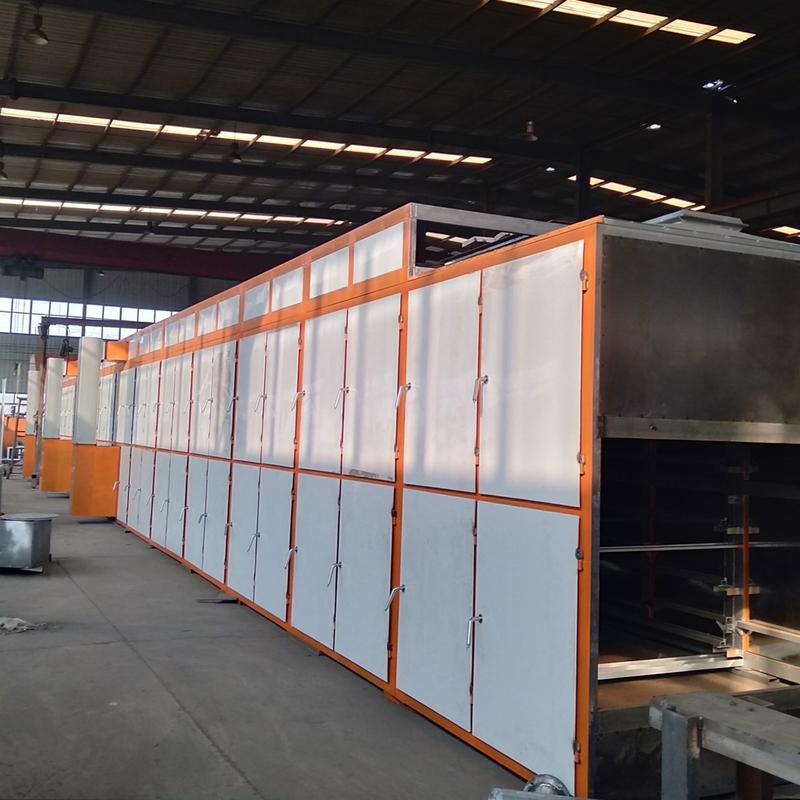

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

4. Automatic counting


Our egg tray machine is better quality than that of other egg tray production line supplier. We have been in the egg tray making machine filed for over 20 years. We have advanced technology and good quality spare parts for the machine production.


All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!


Tech data of Egg Tray Production process :


Egg Tray Mold Quantity 6000pcs(6*8)egg tray production process
Raw material Waste paper
Egg tray Capacity2 6000pcs/hour
Net weight per piece (gram) 70g-75g
Waste paper consumption 450kg / hour
Water Consumption 1.35ton / hour
Natural Gas Consumption of Dryer 180cbm/h
Worker requirement 8-10workers
Machine Length 7m-40m
Machine weight 8-30tons
Power Requirement Without dryer 200KW
With dryer 200KW
Area of workshop Without dryer More than 250 M²
With dryer, dryer-18m More than520M²
Container Requirement Without dryer 40ft*1
With dryer 40ft*7
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.
























Payment and delivery


Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 65 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE





(1). What kind of material we can use as the raw material?


Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.


(2). What kind of Fuel can be used for the whole production line?


Coal, natural gas, and dieseal oil.


(3). What kind of products can be made by this machine?


All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.


(4). Are you a manufacturer or a trading company?


Yes, our company has been fabricating pulp molding machine since 2000. We are one of the


most important pulp molding machine maufacturers in the world, and we are famous pulp


molding machine manufacturer in China, providing high quality and production capacity pulp molding

machinery at reasonable prices to the world.


(5). What capacity egg tray machine can you supply?


At the moment, we can supply 350 pcs/h, 700,1000,1300,2000, 3000,4000,5000,6000pcs/h capcaity egg tray



Our Factory:

Fully Automatic Paper Egg Tray Production Line High Efficiency Low Noise 0

Fully Automatic Paper Egg Tray Production Line High Efficiency Low Noise 1

Welcome to contact us!
