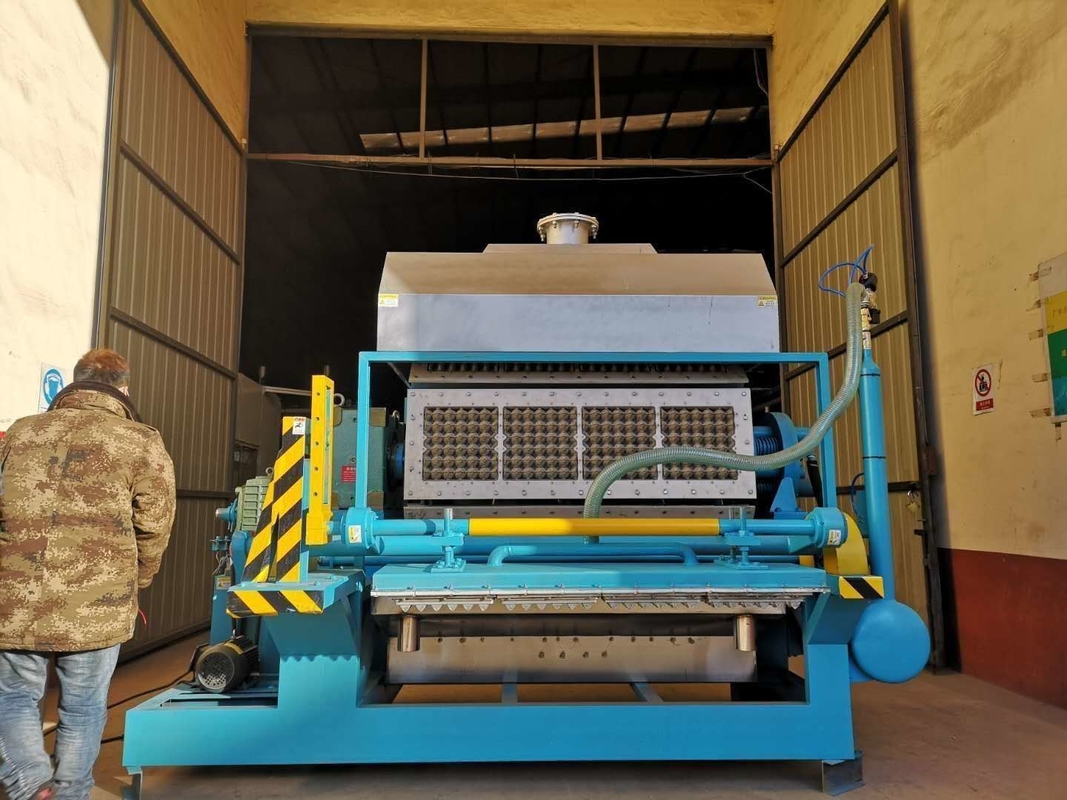

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers
video
Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: Wanyou
Certification: CE
Model Number: ZSJ-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: in container
Delivery Time: 90 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Guarantee: 2years Egg Tray Forming Type: Reciprocating
Voltage: 220V/380V,380V,380v / 450v Weight: 40 Tons Around
Raw Material: Waste Paper Product Type: Egg Tray Machine
High Light:

small egg tray machine

,

paper pulp molding machine



Big Capacity Rotary Type Paper Egg Tray Machine Production Line Controlled By Computer



4 main sections of the egg tray machine:



1. Egg Tray Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers 0

2. Egg Tray Molding Forming System :

The Egg Tray Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

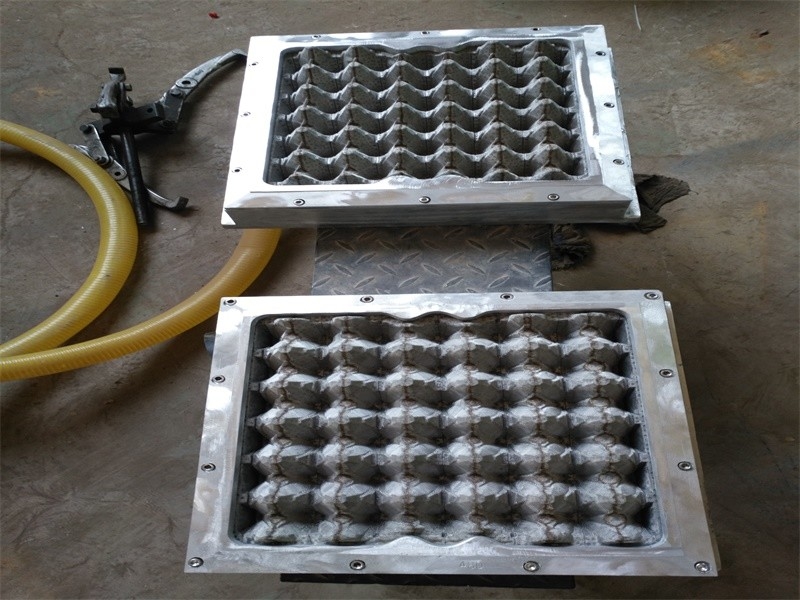

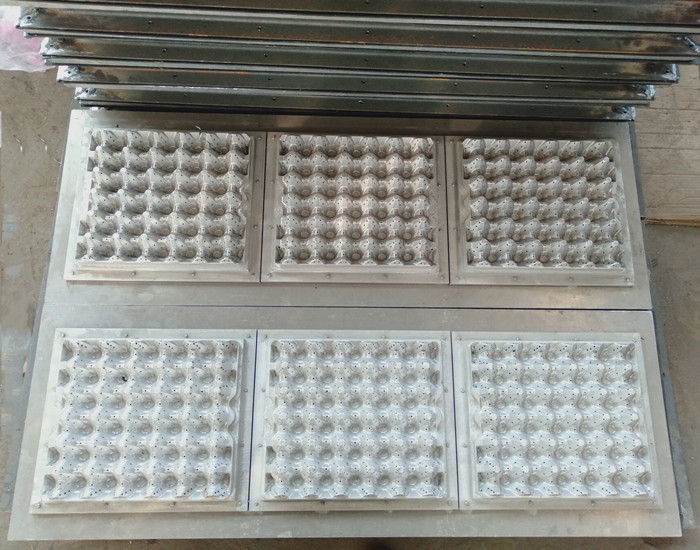

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers 1

3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers 2

4. Egg Tray Automatic Stacking Machine:

After drying line, the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile,like 100pcs or 200pcs egg trays, when the quantity no. is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly.

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers 3



Also this egg tray production line system is controlled by computer, no needs any construction. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine. This Egg Tray Machine uses England technology, and​ spare parts is very famous brand from Germany, Taiwan... We can offer customer with 2 years warranty for the egg tray machine line.  Plus, The installation of the whole line is easy.



Technical data:



Egg Tray Mold Quantity



8pcs(4pcs/row, 2 rows)



Raw material



Waste paper



Egg tray Capacity



2500pcs/hour



Net weight per piece (gram)



70g-75g



Waste paper consumption



188kg/hour



Water Consumption



0.6ton/hour



Natural Gas Consumption of Dryer



80cbm/h



Worker requirement



5-7workers



Machine Length



8m-38m



Machine weight



8-32tons



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 90 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds

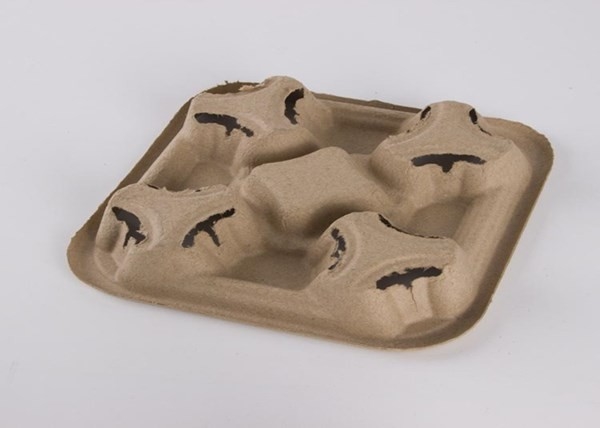

5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers 4

Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers 5





Big Capacity Rotary Type Paper Egg Tray Machine Controlled By Computers 6
