3000pcs/hr paper egg carton making machine paper tray equipment with drying line

3000pcs/hr paper egg carton making machine paper tray equipment with drying line

  • 3000pcs/hr paper egg carton making machine paper tray equipment with drying line
  • 3000pcs/hr paper egg carton making machine paper tray equipment with drying line
  • 3000pcs/hr paper egg carton making machine paper tray equipment with drying line
3000pcs/hr paper egg carton making machine paper tray equipment with drying line
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: RUNLIANG
Certification: CE
Model Number: RL-WLJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: in container
Delivery Time: 35 working days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 1 set per month
Contact Now
Detailed Product Description
Voltage: 220V-440V Warranty: 2 Year
After Sale Service: Engineers Available To Overseas Installation Condition: New
Raw Material: Used Waste Paper Processing Type: Pulp Molding Machine
High Light:

small egg tray machine

,

paper pulp molding machine

3000pcs/hr paper egg carton making machine paper tray equipment with drying line

PRODUCT DESCRIPTION

Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place Of Origin: Shandong, China
Approval: CE
Warranty: 24Monthes
Rotary: 4 /8 /12 Faces
Matches with 4-layer dryer, energy efficient and conserve energy
Full automatic egg box production line equipped with automatic hot pressing and intelligent conveying stacking technology.
Mainly applied for egg tray, egg carton, fruit tray, cup carrier, bottle tray etc.

3000pcs/hr paper egg carton making machine paper tray equipment with drying line 0



Technical Parameters
Egg Tray mould quantity 24pcs (3*8) Container Required
Raw material Waste paper About 40ft*5
Output for egg tray 3000pcs/hour
Net weight per piece (gram) 70g-75g
The volume of waste paper consumed 225kg/h
The volume of water consumed 0.6t/h
Diesel oil
Natural Gas consumption of the dryer
60kg/h around
80cbm/h around

Electricity Power 130kw
Machine Weight 40tons around
Egg tray Size 295mm*295mm 30eggs
  Main Parts Picture

Pulping system



Including :

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

pulping machine –1sets

3000pcs/hr paper egg carton making machine paper tray equipment with drying line 1

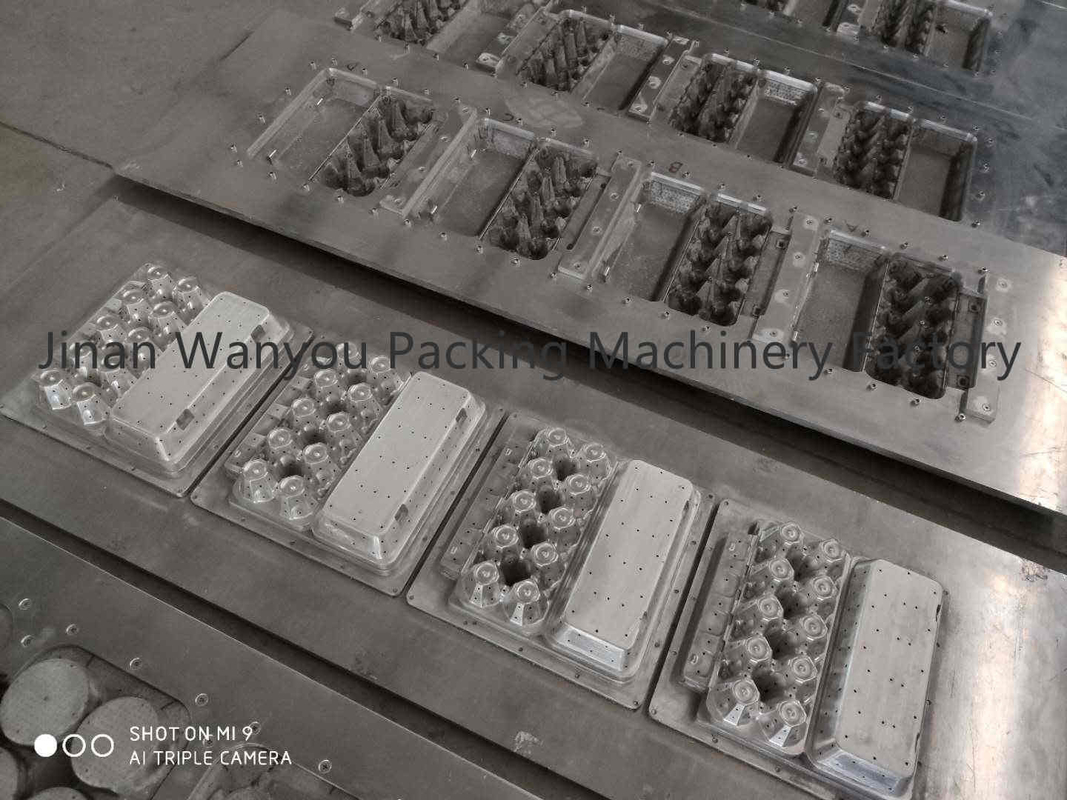

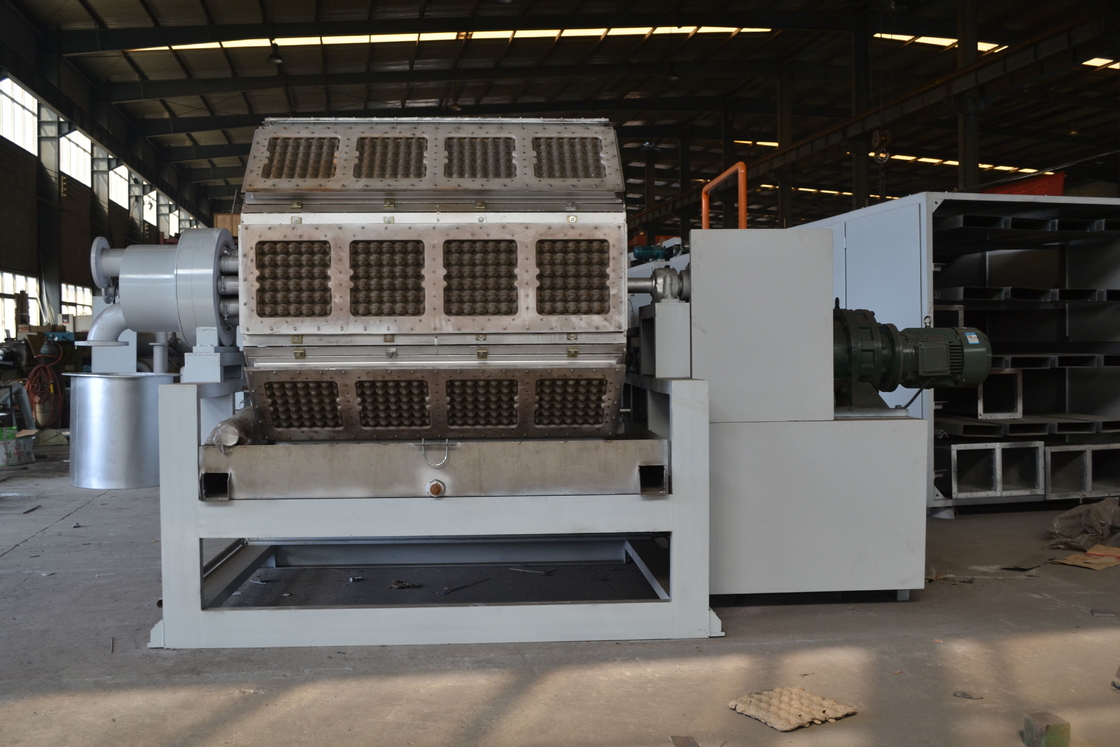

Forming system



Including

24 moulds (3*8)forming machine -1set

Vacuum pump-1set

Compressor -2sets

Washer –1set

Vacuum tank-1pcs

Air tank—1pcs

3000pcs/hr paper egg carton making machine paper tray equipment with drying line 2

Drying system



Including

Drying oven 4 layer –1set

(L 30M*W2M*H2.2M)

Chain and tray –1sets

Hot air pipe –1sets

Chain wheel with shaft—1sets

Delivery belt –1set

Drive motor –1set

3000pcs/hr paper egg carton making machine paper tray equipment with drying line 3



   Stacker system

Including

Stacker-1set

Height limit pressor-1set

3000pcs/hr paper egg carton making machine paper tray equipment with drying line 4

Advantages of our machine:

1). Controlled by automatic computer soft ware

2). No need for basic infrastructure, machine can start running only after connecting some pipes, power and water, and preparing the material

3). Some parts are Germany brand or other famous brand

4). Our egg tray machine can make different trays at same time by using different moulds

5). Besides egg tray, fruit trays, our machine also can produce industrial package

6). All installation and debugging work will be done before shipment.

7). 20 years' experience on egg tray machine

8). 2 years warranty time



Some world famous brands of the fittings:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)--DELTA

7. the burner-- BALTUR/RIELLO
