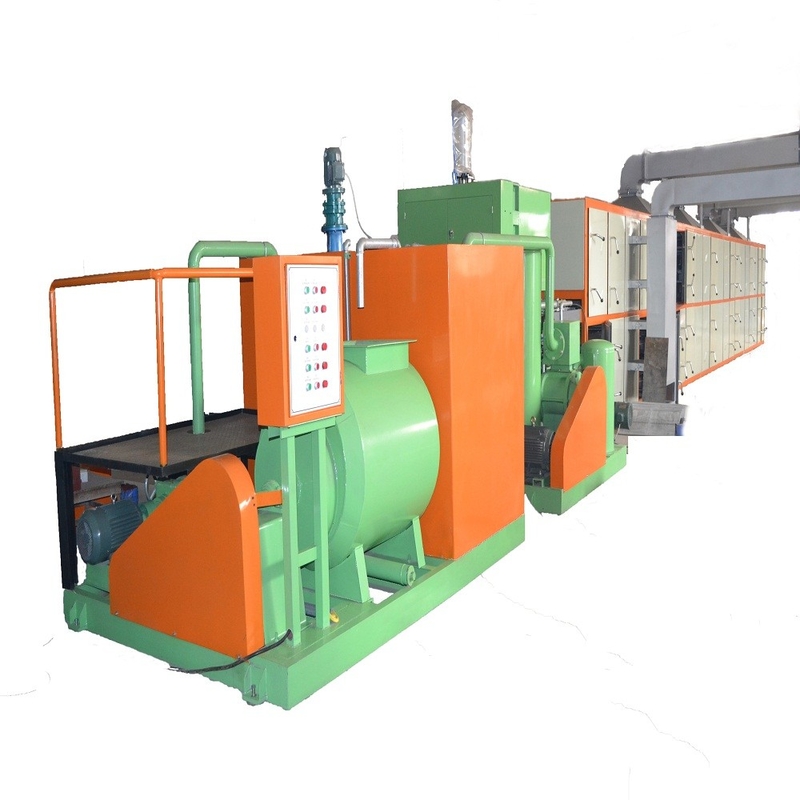

Waste Paper Egg Tray Making Machine / Pulp Molding Machine For Egg Tray / Egg Pack Box Maker
Waste Paper Pulp Molding Egg Tray Making Machine / Egg Pack Box Maker Customized Molds
This is our main machine offered to customers. It uses all kinds of waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It is a Reciprocating Type Egg Tray Making Machine. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Working Theory of our machine:
1. Pulping system: Use waste paper and water as raw material and pulp up;
2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;
3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.
If you don’t want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.

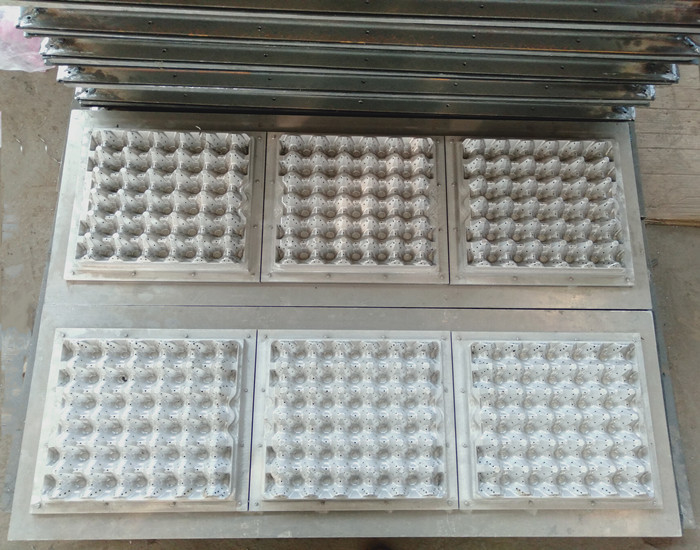

Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)
The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our machine can turn your waste paper and books into Money!
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: WANYOU
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:

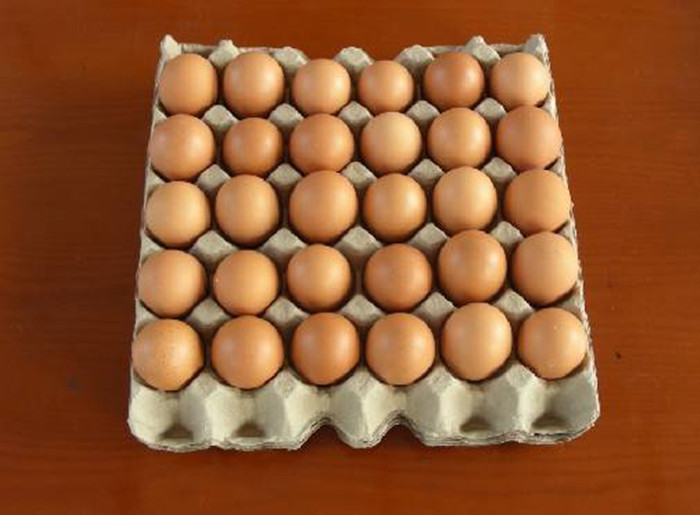

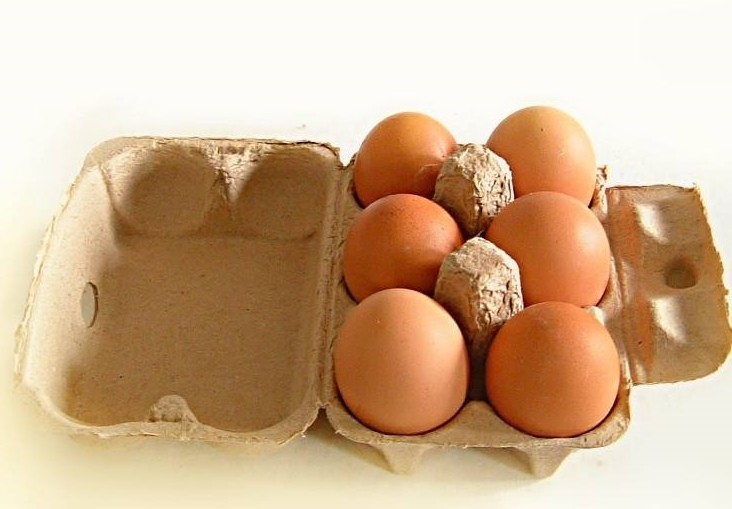

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

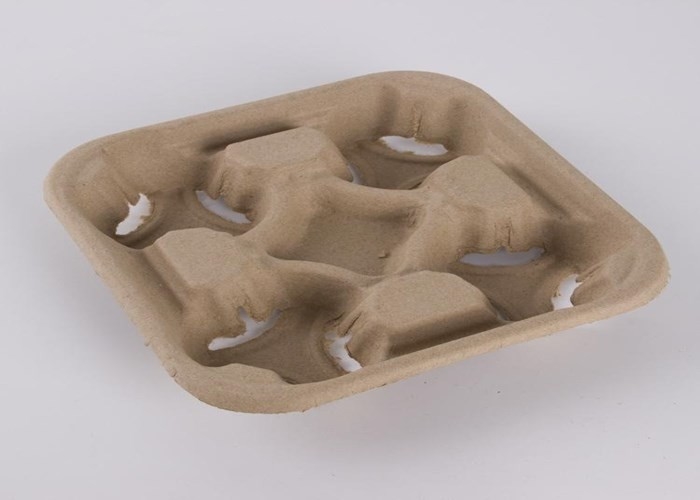

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data (350pcs/h for example)
| Egg Tray mould quantity | 1pcs | |
| Raw material | Waste paper | |
| Output for egg tray | 350pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 0.025ton / hour | |
| The volume of water consumed | 0.05ton / hour | |
| The natural gas consumption of the dryer(about) | 12cbm/h | |
| Machine Weight | 5-10tons | |
| Egg tray Size | 295mm*295mm 30eggs | |
| Product Name | Model | Qty(set) | Trade Terms |
| Egg Tray Machine | ZSJ-1A | 1 | FOB Qingdao |
| Area of workshop | Without dryer | More than 100㎡ | |
| With dryer | More than 200㎡ | ||
| Capacity of power | Without dryer | 20KW | |
| With dryer | 30kw | ||
| Machine size | Without dryer | 7m*2m*2m | |
| With dryer | 24m*2m*2m | ||
| Size of container | Without dryer | 20ft*1 | |
| With dryer | 40ft*2+20ft*1 | ||
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 25 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.
(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and dieseal oil.
(3). What kind of products can be made by this machine?
All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.
(4). Are you a manufacturer or a trading company?
Yes, our company has been fabricating pulp molding machine since 2000. We are one of the
most important pulp molding machine maufacturers in the world, and we are famous pulp
molding machine manufacturer in China, providing high quality and production capacity pulp molding
machinery at reasonable prices to the world.
(5). How to contact you?
(A) Visit us.Our head office is in Building 5-407, Xinyuanxin International Business Center, Huaxin
Road, Licheng District, Jinan City, Shandong Province, P.R. China.
The nearest airport is Jinan International Airport.
(B) Send email to tell us your requirments.
(C) Contact us at Whatsapp/Wechat: +86-15665703348
Welcome to contact us!
