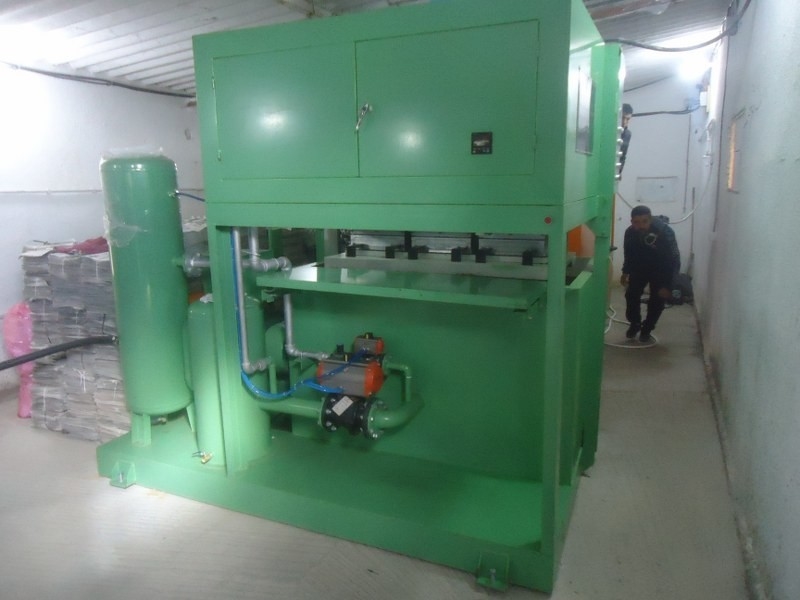

Environment Friendly Paper Pulp Molding Machine Controlled By Computer

Environment Friendly Paper Pulp Molding Machine Controlled By Computer

Environment Friendly Paper Pulp Molding Machine Controlled By Computer

Product Details:

Place of Origin: Jinan, Shandong, China
Brand Name: RUNLIANG
Certification: CE
Model Number: RL- ZJM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: in container
Delivery Time: 40 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Power: Final Machine Production Line Raw Material: Waste Paper, Waste Cardboard, Carton
Guarantee: 2years Processing Type: Pulp Molding Machine
Voltage: 220V/380V,380V,220v,50hz,380v / 450v After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support
High Light:

egg tray manufacturing machine

,

paper tray making machine



Environment Friendly Paper Pulp Molding Machine Controlled By Computer With High Efficiency​



Environment Friendly Paper Pulp Molding Machine Controlled By Computer With High Efficiency



Machine Introduction:

Egg tray machine Pulp Molding Machine paper material is composed of the following sections:



1. Egg Tray Pulping System:

Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

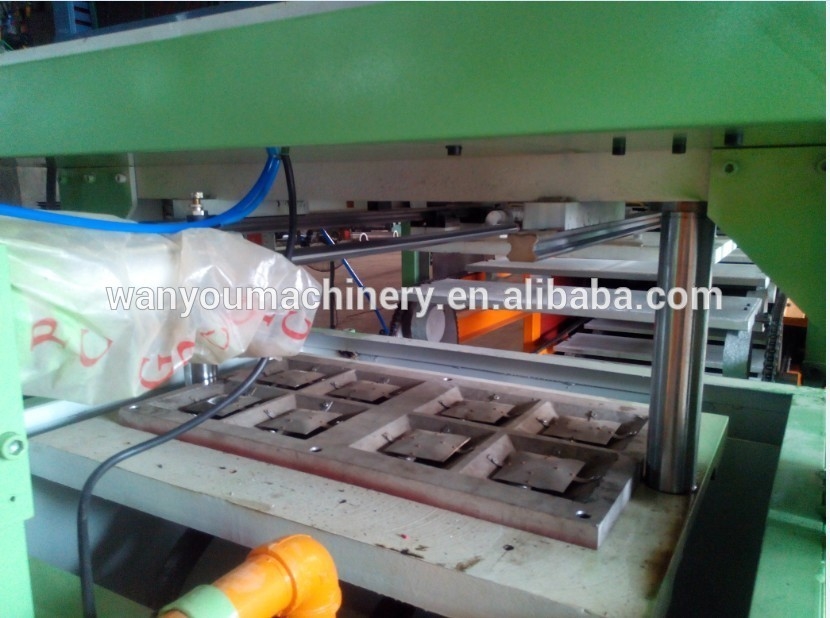

2. Egg Tray Molding Forming System :

The Egg Tray Molding Forming System consists of various equipment and dies.

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.

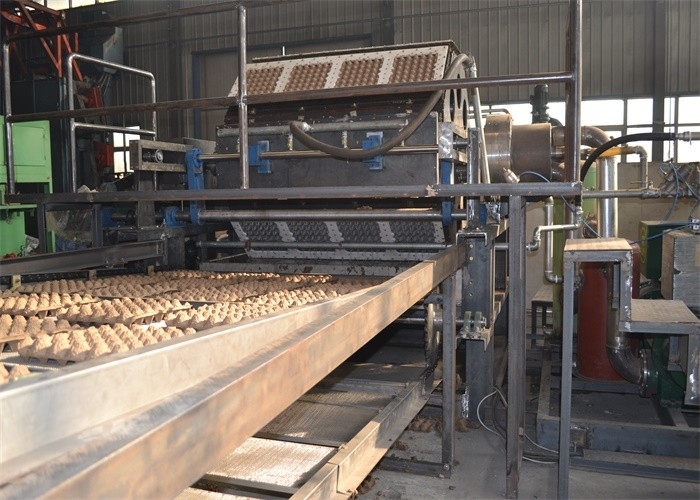

The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.

3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)

There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.

4. Egg Tray Automatic counting:

After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .



Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2 years warranty.

​ 5. The installation of the whole line is easy.



Highly used by small and medium company egg tray machines we offered:

Egg Tray Mold Quantity 32pcs(4*8)
Raw material Waste paper
Egg tray Capacity 4000pcs/hour
Net weight per piece (gram) 70g-75g
Waste paper consumption 3000kg / hour
Water Consumption 0.9ton / hour
Natural Gas Consumption of Dryer 110cbm/h
Worker requirement 4-6workers
Machine Length 8m-35m
Machine weight 8-30tons
Power Requirement Without dryer 45KW
With dryer 65KW
Area of workshop Without dryer More than 150 M²
With dryer, dryer-24m More than320M²
Container Requirement Without dryer 40ft*1
With dryer 40ft*3
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 30 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Installation
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )

Our Machine Advantages:

1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time



Don’t miss the chance of promoting the production efficiency of your company.

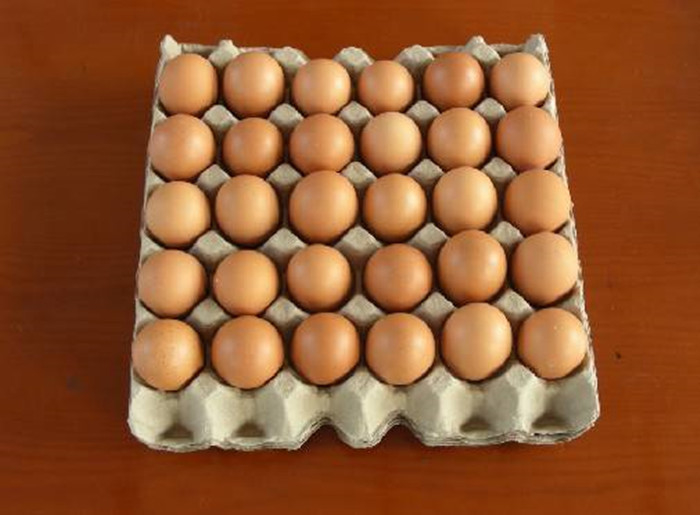

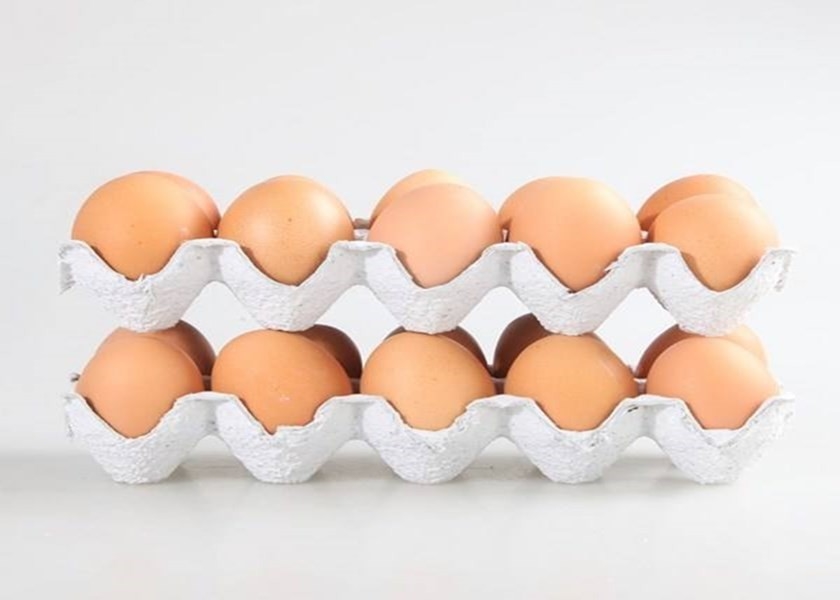

Egg Tray Machine end products includes: The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.
