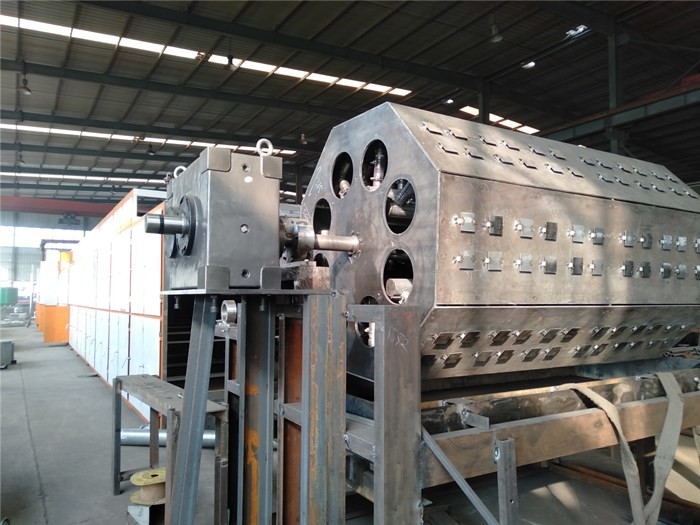

Waste Paper Egg Tray Moulding Machine Rotary Egg Tray Egg Box Machine

Waste Paper Egg Tray Moulding Machine Rotary Egg Tray Egg Box Machine

Waste Paper Egg Tray Moulding Machine Rotary Egg Tray Egg Box Machine

Product Details:

Place of Origin: Jinan, Shandong, China
Brand Name: RUNLIANG
Certification: CE
Model Number: RL- ZJM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: in container
Delivery Time: 20 -80 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Raw Material: Waste Paper, Waste Cardboard, Carton Product Name: Paper Pulp Molding Euipment
Power(w): 100-130KW Weight: Depends
Dimension(l*w*h): Depends Capacity: 350pcs/h - 3000pcs/h
Raw Material: Waste Paper Net Weight Per Piece: 70-75g
High Light:

egg tray manufacturing machine

,

paper tray making machine



                                       Wanyou Waste Paper Pulp Molding Euipment Rotary Egg Tray Egg Box Machine



Quick Detail



Condition: New

Product Type: wine carrier making machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided: Engineers available to service machinery overseas

Capacity: 350pcs/h-5000pcs/h

Color: As customer needs

Frequency: 50Hz-60Hz

Application: egg tray,fruit tray,bottle tray

Workshop required: 150-600㎡

Worker required: 5-6 persons

Fuel: Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword:Paper Pulp Molding Euipment



Process flow:



The Egg Tray production line is mainly combined by THREE PARTS:

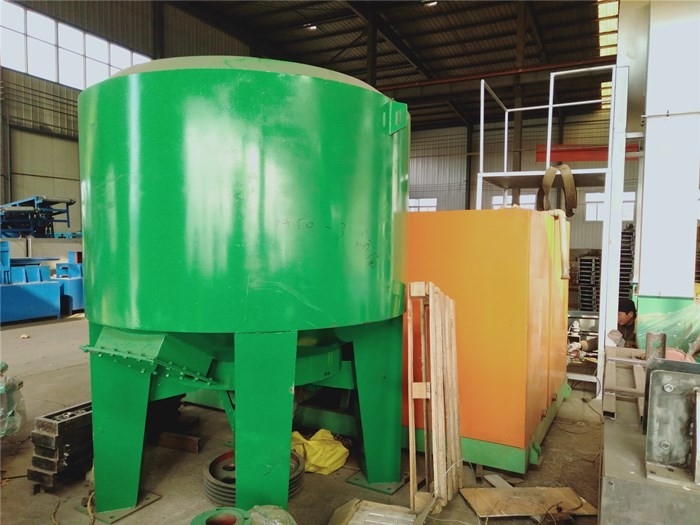

1. Pulping system: Use waste paper and water as raw material and pulp up;

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

4. Automatic counting



Our egg tray machine is better quality than that of other egg tray production line supplier. We have been in the egg tray making machine filed for over 20 years. We have advanced technology and good quality spare parts for the machine production.



All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.

Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Our machine can turn your waste paper and books into Money!



Tech data of Paper Pulp Molding Euipment:



Egg Tray Mold Quantity 2000pcs(3*4)
Raw material Waste paper
Egg tray Capacity2 000pcs/hour
Net weight per piece (gram) 70g-75g
Waste paper consumption 225kg / hour
Water Consumption 0.68ton / hour
Natural Gas Consumption of Dryer 110cbm/h
Worker requirement 8-10workers
Machine Length 7m-40m
Machine weight 8-30tons
Power Requirement Without dryer 200KW
With dryer 200KW
Area of workshop Without dryer More than 250 M²
With dryer, dryer-18m More than520M²
Container Requirement Without dryer 40ft*1
With dryer 40ft*3+20ft*1
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

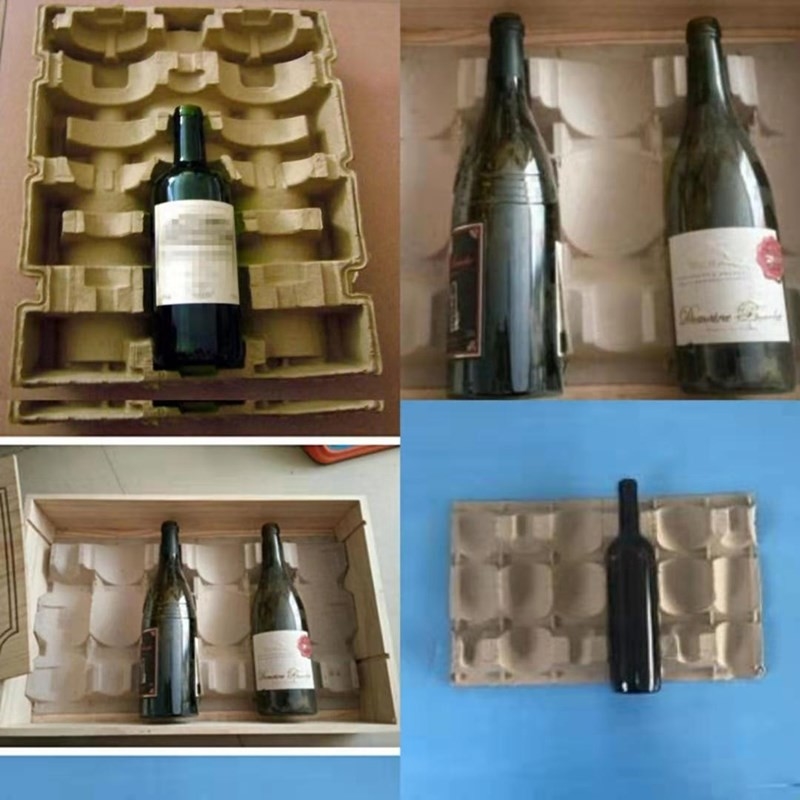

This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity





Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 65 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE





FAQ



(1). What kind of material we can use as the raw material?



Any kind of waste paper like old newspaper,magazines,books,A4 paper, corrugated cartons, paperboard etc.



(2). What kind of Fuel can be used for the whole production line?



Coal, natural gas, and dieseal oil.



(3). What kind of products can be made by this machine?



All paperpackage such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.



(4). Are you a manufacturer or a trading company?



Yes, our company has been fabricating pulp molding machine since 2000. We are one of the



most important pulp molding machine maufacturers in the world, and we are famous pulp



molding machine manufacturer in China, providing high quality and production capacity pulp molding

machinery at reasonable prices to the world.

(5). What capacity egg tray machine can you supply?

At the moment, we can supply 350 pcs/h, 700, 1000, 1300, 1800, 2000, 2400, 3000pcs/h capcaity egg tray

machine.



Our Factory:

Waste Paper Egg Tray Moulding Machine Rotary Egg Tray Egg Box Machine

Waste Paper Egg Tray Moulding Machine Rotary Egg Tray Egg Box Machine
