Rotary Type Paper Tray Production Line for Egg Cartons / Apple Trays 4000pcs/h

Rotary Type Paper Tray Production Line for Egg Cartons / Apple Trays 4000pcs/h

  • Rotary Type Paper Tray Production Line for Egg Cartons / Apple Trays 4000pcs/h
  • Rotary Type Paper Tray Production Line for Egg Cartons / Apple Trays 4000pcs/h
Rotary Type Paper Tray Production Line for Egg Cartons / Apple Trays 4000pcs/h
Product Details:
Place of Origin: Jinan, Shandong, China
Brand Name: RUNLIANG
Certification: CE
Model Number: RL- ZJM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: in container
Delivery Time: 60-90 working days after get deposit payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 sets per month
Contact Now
Detailed Product Description
Product Type: Paper Egg Tray Machine Drying Fuel: Natural Gas, LPG, Coal Or Electricity
Guarantee: 2years Power: Different Model Depends
Processing Type: Pulp Molding Machine Raw Material: Any Waste Paper
High Light:

egg crate making machine

,

paper pulp molding machine



High Capacity 4000pcs / h Paper Pulp Molding Machine Rotary Type Egg Tray Production Line​



High Capacity 4000pcs / h Paper Pulp Molding Machine Rotary Type Egg Tray Production LineTray is a rotary type egg tray forming machine. It is for customers who need large capacity request for the egg trays, egg cartons, egg boxes, apple trays, bottle trays, coffee cup carrier tray or shoes tray etc.

It  is composed of 3 parts:  pulping system, forming system and drying system.

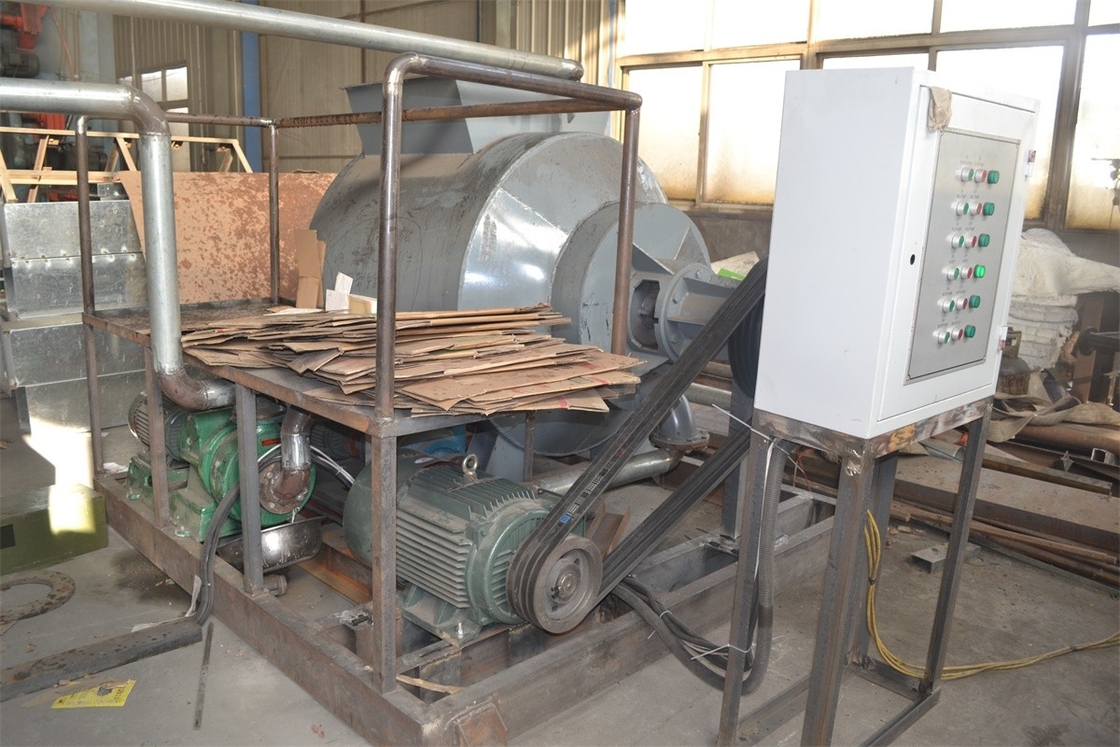

1. Pulping system: Use waste paper and water as raw material and pulp up;

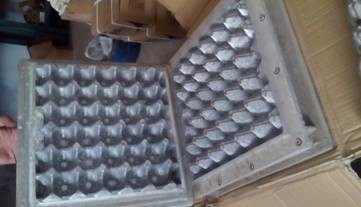

2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

To meet the environmental friendly goal, many enterprises have began to use paper egg carton. So egg tray machine complies with the trend of times. The egg tray making machine uses the raw material of waste paper and water to produce paper egg trays.

The egg tray manufacturing process is raw materials pulping – ingredients (as per customer needs)– mold forming – drying –packing. The additive is Food-Grade pigment which you can use to produce all colors of egg cartons. Another kind of additive is glue which has the anti-water function. When you use the additives, you should add the appropriate amount. The type machine can not only produce egg tray / carton but also produce apple tray, shoe trays, bottle trays, strawberry carton, etc.

And our machine has various capacity for this type, such as 1800pcs/h, 2000pcs/h, 3000pcs/h, 4000 pcs/h, 5000pcs/h.
Our machine is all in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.

Quick Detail



Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 2300mm*1950mm*1600mm

Weight: 8 tons-50tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 1800pcs/h-5000pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-560㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine



This production line is suitable for the following products:

Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)

Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.

Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.





Technical data (4000pcs/h for example)



Section Name Quantity Rated Power

Pulping system



Pulping system

Including :

water pool1pcs

mix pool-1pcs

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

pulping machine 1sets

1sets





180KW

Forming system



Including

40 moulds (5*8)forming machine -1set

Vaccum pump-1set

Compressor -2sets

Washer 1set

Vaccum tank-1pcs

Air tank1pcs

1sets

Drying system



Including

Drying oven 1set

(L 40M*W2M*H2.2M)

Chain and tray 1sets

Hot air pipe 1sets

Chain wheel with shaft1sets

Delivery belt 1set

Drive motor 1set

1sets

Boiler



Including

Boiler 1set

Natural gas burner(Riello)-1set

Fan with motor -1set

Electric control -1set


Packing system

Including

Counting and stacking machine-1 set

Packing machine-1 set





Rotary Type Paper Tray Production Line for Egg Cartons / Apple Trays 4000pcs/h 0



Payment and delivery



Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 60-90 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE



Factory Introduction


Jinan Runliang Packing Machinery Co.,Ltd is a famous packing machinery company which has a good mix of science, industry and trade.

It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.

It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.

These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.



Rotary Type Paper Tray Production Line for Egg Cartons / Apple Trays 4000pcs/h 1
