Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

rotary paper egg tray machine

egg carton production line 3000 pcs/h

recycled paper pulp molding machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Model Number:

WY-2

Contact Us
Request A Quote
Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine
Product Details
Production Capacity:
2500-3000 Pieces Per Hour
Control System:
PLC Automatic With Touch Screen Panel
Forming Method:
Vacuum Adsorption Rotary Drum Continuous Forming
Demolding Method:
Automatic Pneumatic Demolding
Total Power:
108KW
Raw Material:
Waste Paper, Recycled Carton, Newspaper, Kraft Paper Scraps
Paper Consumption:
190 Kg/hr
Mold Configuration:
4x4 Rotary Mold With Replaceable Inserts
Finished Products:
Egg Trays, Egg Cartons, Fruit Trays, Coffee Cup Holders, Industrial Paper Trays
Operating Speed:
18-25 Forming Cycles Per Minute
Continuous Working:
24-hour Uninterrupted Operation Supported
Application Industries:
Farm, Packaging, Food, Industrial
Highlight:

rotary paper egg tray machine

,

egg carton production line 3000 pcs/h

,

recycled paper pulp molding machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD 19,800 / Set
Packaging Details
In export-grade container with moisture-proof wrapping and steel frame fixation
Delivery Time
65 working days after deposit payment
Payment Terms
T/T,L/C,Western Union
Supply Ability
10 Sets per Month
RELATED PRODUCTS
Good price WANYOU Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding For Mexican Poultry Farm online

WANYOU Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding For Mexican Poultry Farm

Get Best Price
Good price Rotary Paper Egg Tray Machine Egg Carton Production Line 5000 pcs/h Recycled Paper Pulp Molding for Mexican Poultry Farm online Video

Rotary Paper Egg Tray Machine Egg Carton Production Line 5000 pcs/h Recycled Paper Pulp Molding for Mexican Poultry Farm

Get Best Price
Good price WANYOU WY-2 Rotary Egg Tray Forming Machine Egg Carton Production Line 2500-3000 pcs/h Recycled Paper Pulp Molding for Brazilian Poultry Farm online

WANYOU WY-2 Rotary Egg Tray Forming Machine Egg Carton Production Line 2500-3000 pcs/h Recycled Paper Pulp Molding for Brazilian Poultry Farm

Get Best Price
Good price WANYOU Rotary Egg Tray Machine Egg Carton Production Line 2000-5000 pcs/h Recycled Paper Pulp Molding for Brazilian Poultry Farm online

WANYOU Rotary Egg Tray Machine Egg Carton Production Line 2000-5000 pcs/h Recycled Paper Pulp Molding for Brazilian Poultry Farm

Get Best Price
Contact Us
+8615665703348
jnrunliang@hotmail.com
Contact Now
Product Description

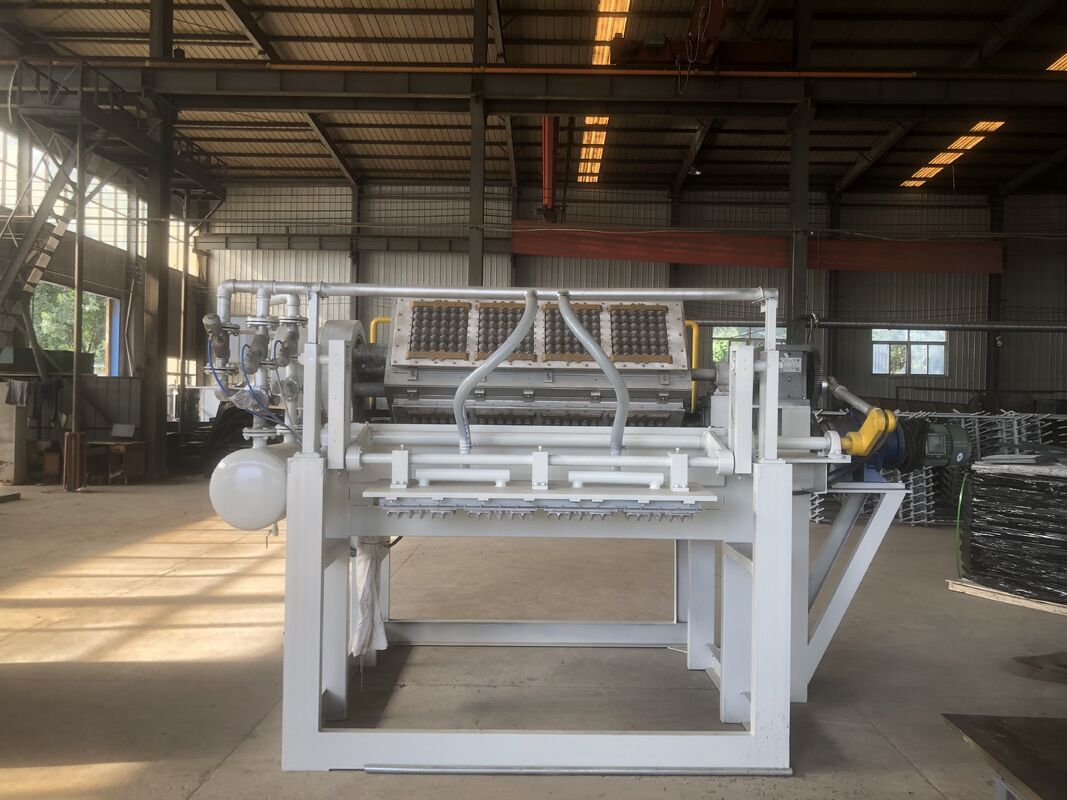

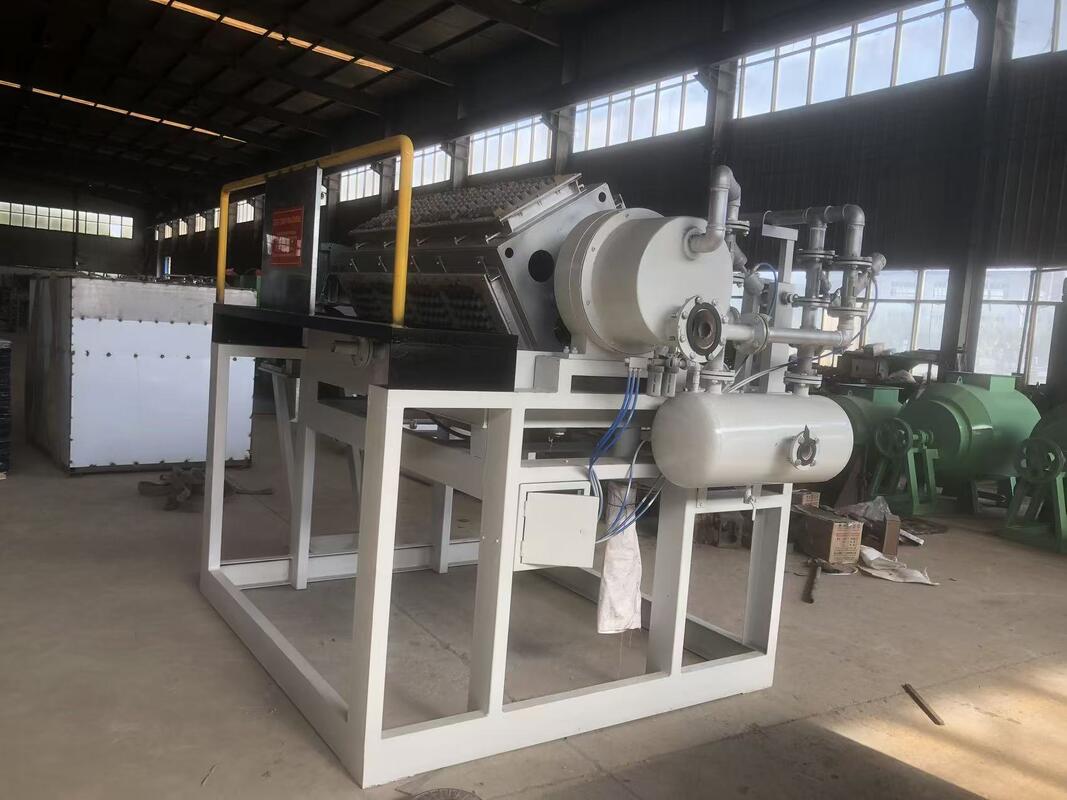

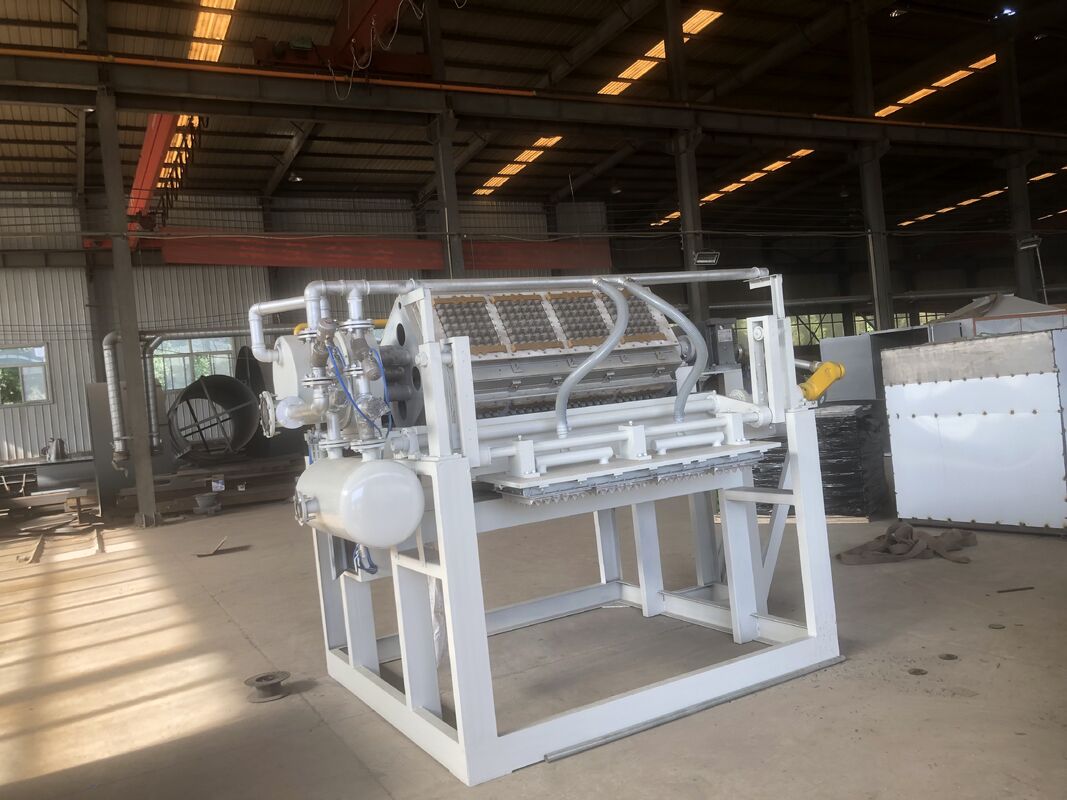

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

This paper egg tray machine/egg carton production line is a medium size automatic line without dryer, including paper pulping system, forming system, air compressor, vacuum pump and all supporting accessories


Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

Pulping machine for 4*4 molds egg tray machine

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine


Drying system is optional part
metallic dryer

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

Brick dryer

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

Rotary Paper Egg Tray Machine Egg Carton Production Line 2500-3000 Pcs/h Recycled Paper Pulp Molding Machine

Technical Specifications

Parameter Specification
Production Capacity 2500-3000 pieces per hour
Control System PLC automatic control with touch screen interface
Forming Method Rotary drum vacuum adsorption continuous forming
Demolding Automatic pneumatic demolding system
Total Power 108KW
Machine Weight 8,800 kg--150,00Kg
Raw Material Waste paper, recycled carton, newspaper, kraft paper scraps
Paper Consumption 190 kg/hr
Labor Required 5-6 workers
Mold Configuration 4x4 rotary mold with replaceable inserts
Drying Options Brick conveyor belt dryer, metallic dryer, or sun drying
Operating Speed 18-25 forming cycles per minute
Continuous Operation Supports 24-hour uninterrupted production


Flexible Payment and Delivery Terms

Condition Details
Price (EXW) USD 19,800 per set
Minimum Order 1 set
Payment Terms T/T 40% deposit plus 60% balance before delivery
Delivery Time Approximately 65 working days after deposit received
Supply Capacity 10 sets per month
Warranty 12 months full machine warranty with remote technical support
Packaging Export-grade containerized shipping with moisture protection

About Jinan Wanyou Packing Machinery Factory

Established in 2003, Wanyou has dedicated over two decades to perfecting paper pulp molding technology. Based in Jinan, Shandong, China, the factory exports 70-80 percent of its production to over 30 countries worldwide.

 Our philosophy — Quality First, Customer First, Turn Your Waste Into Money — drives every machine we build.


Welcome global clients to inquire about egg tray machine solutions for your factory project!

welcome to contact Cindy at +86 15665703348 on WhatsApp or WeChat for detailed specifications, factory videos, client references, and a customized quotation for your production requirements.
