Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-1000
Video
Video
Video
Main section of the pulp molding machine:
1. pulping system:including the hydrapulper,pump,disk mill,water tank,pulp tank,mixer,etc..to make the waste paper into pulp.
2. forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
the raw material is any wastepaper(without plastic) and water.
Technical parameters of the pulp molding machine:
| 1, | Egg tray mould quantity | 1pcs | 2pcs | 3pcs | 4pcs | 6pcs |
| 2, | Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper |
| 3, | Output for egg tray | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 2000pcs/hour |
| 4, | Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
| 5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 0.2ton / hour |
| 6, | The volume of water consumed | 0.05ton / hour | 0.15ton / hour | 0.2ton / hour | 0.4ton / hour | |
| 7, | Operators number | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers |
| 8, | Area of workshop | More than 200M² | More than 240M² | More than 240M² | More than 240M² | More than 400M² |
| 9, | Capacity of power | 25KW | 40KW | 50KW | 60KW | 100KW |
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)This production line is suitable for the following products:
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn’t change frequently) pulp molding products with large quantity.
1. controlled by computer, no needs infrastructure construction.
2. Egg tray forming molds easy changed, and it’s very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan…
4. with 2years warranty.
5. The installation of the whole line is easy.

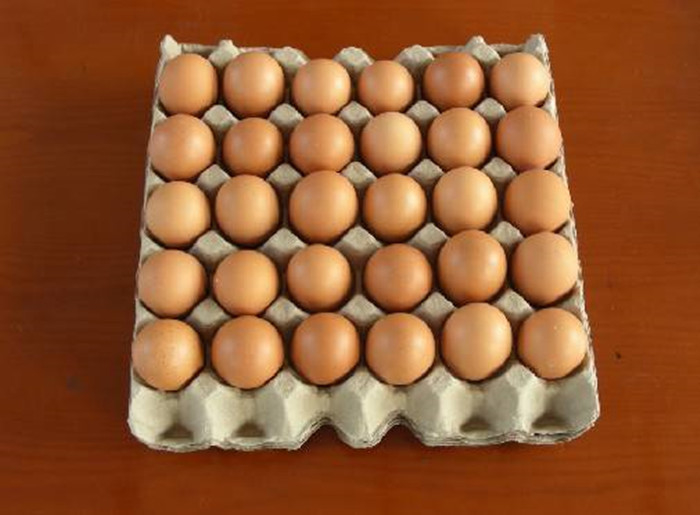

Samples by pulp molding machine:
