2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy

2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy

customized paper egg tray machine

low energy pulp molding machine

700pcs/h paper pulp mold machine

Place of Origin:

Jinan, Shandong, China

Brand Name:

Wanyou

Model Number:

ZJM

Contact Us
Request A Quote
Product Details
Condition:
New
Raw Material:
Waste Paper, Waste Cardboard, Carton
Guarantee:
1 Years
Capapcity:
700pcs/h
Processing Type:
Pulp Molding Machine
Pulping Part Driven Type:
Hydraulic
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
9800
Packaging Details
International Standard Packing
Delivery Time
20 working days after get deposit payment for normal
Payment Terms
T/T,L/C,Western Union,MoneyGram
Supply Ability
1 sets per month
Product Description
2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy
Product Specifications
Attribute Value
Condition New
Raw Material Waste Paper, Waste Cardboard, Carton
Guarantee 1 Years
Capacity 700pcs/h
Processing Type Pulp Molding Machine
Pulping Part Driven Type Hydraulic
Product Features
  • Computer-controlled operation, no construction required
  • Customizable molds with easy changeover capability
  • Incorporates England technology with premium spare parts from Germany, Taiwan, etc.
  • 2-year warranty included
  • Easy installation of complete production line
  • Ideal for small business starters and low-budget entrepreneurs
Production Process
  1. Pulping System: Uses waste paper and water as raw materials to create pulp

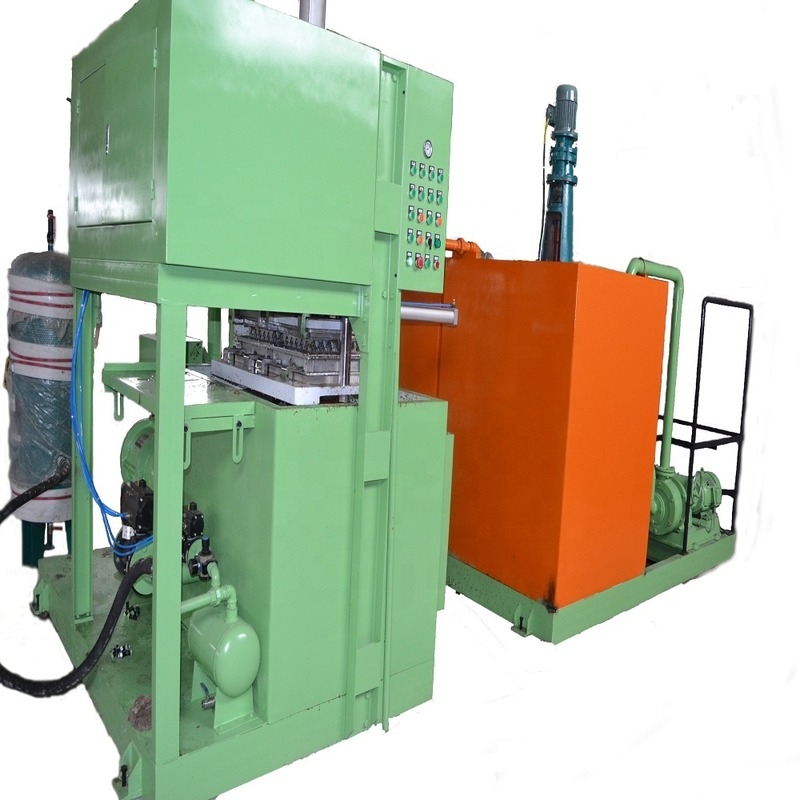

  2. 2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 0 2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 1
  3. Forming System: Pulped material delivered to product tray molds, forming the tray plate shape

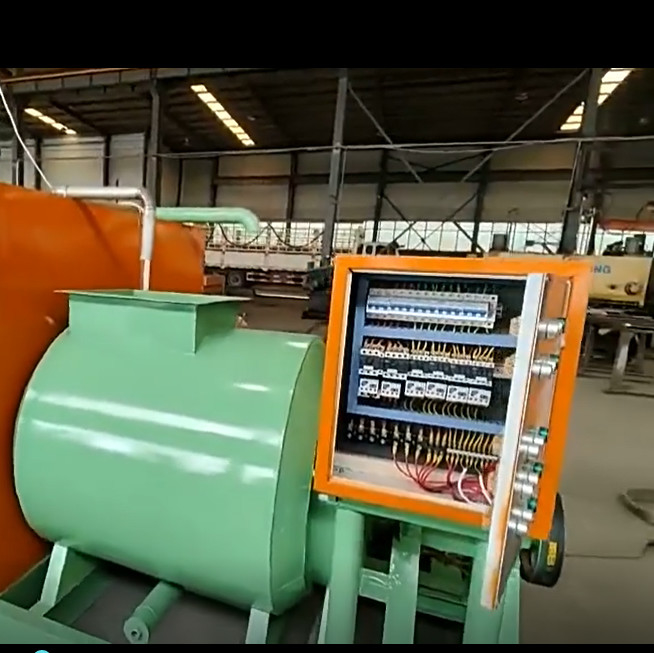

  4. 2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 2 2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 3
  5. Drying System: Formed trays delivered to dryer for final hardening

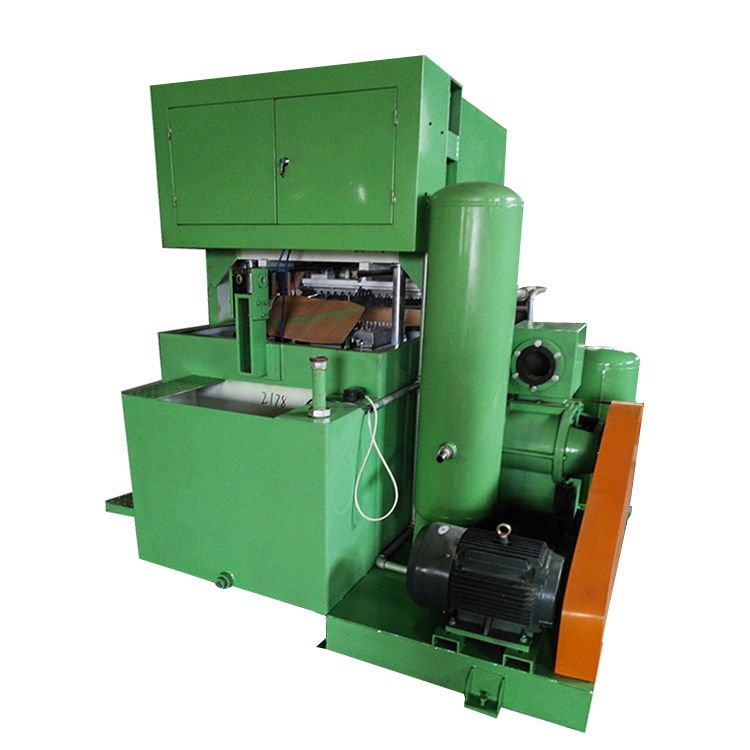

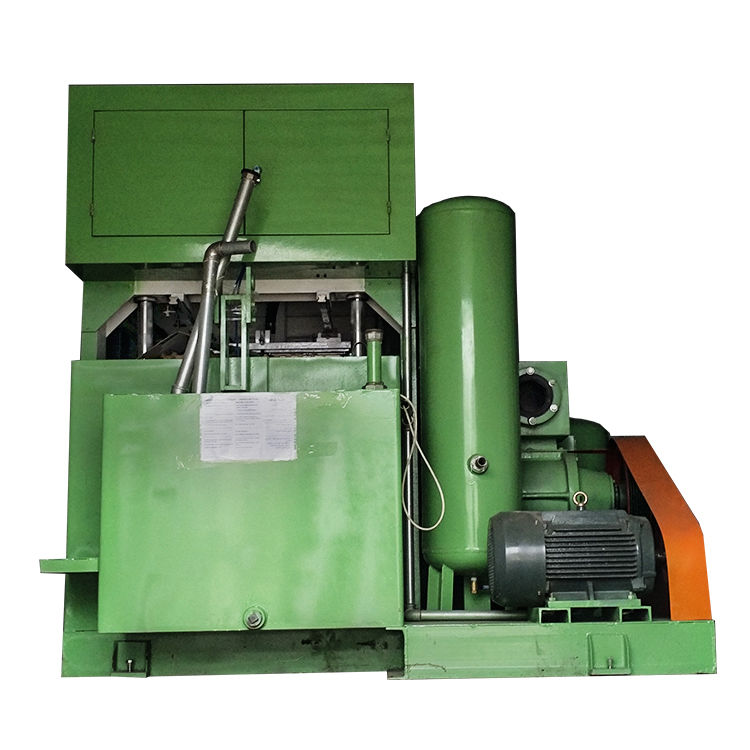

  6. 2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 4 2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 5

The entire machine is computer-controlled for easy operation, requiring no advanced technical knowledge from workers. Our Paper Egg Tray Machine saves production costs and space, making it ideal for small and medium enterprises. Transform your waste paper into profitable products!

Technical Specifications
Parameter Value
Egg Tray Mold Quantity 2pcs
Raw material Waste paper
Egg tray Capacity 700pcs/hour
Net weight per piece (gram) 70g-75g
Waste paper consumption 0.06ton / hour
Water Consumption 0.1ton/hour
Natural Gas Consumption of Dryer 20-25cbm/h
Worker requirement 3-4workers
Machine Length 7m-23m
Machine weight 7-20tons
Power Requirement (Without dryer) 30KW
Power Requirement (With dryer) 45KW
Area of workshop (Without dryer) More than 100M²
Area of workshop (With dryer) More than 240 M²
Payment & Delivery Terms
Term Details
Trade terms FOB Qingdao or EXW Factory
Delivery time Depends on the machine capacity
Payment term 30% Deposit + 70% Balance or 30% TT Deposit + 70% LC
Warranty time Two years after machine received
Package In container
Certification CE
About Our Factory

Jinan Wanyou Packing Machinery Factory is a renowned packing machinery company with over ten years of experience in research, development, and manufacturing. We combine advanced domestic and international technologies to produce high-quality machinery including paper pulp molding plants, automatic print fluting machines, and paper slitters. Our products are exported worldwide to countries including Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, and Taiwan.

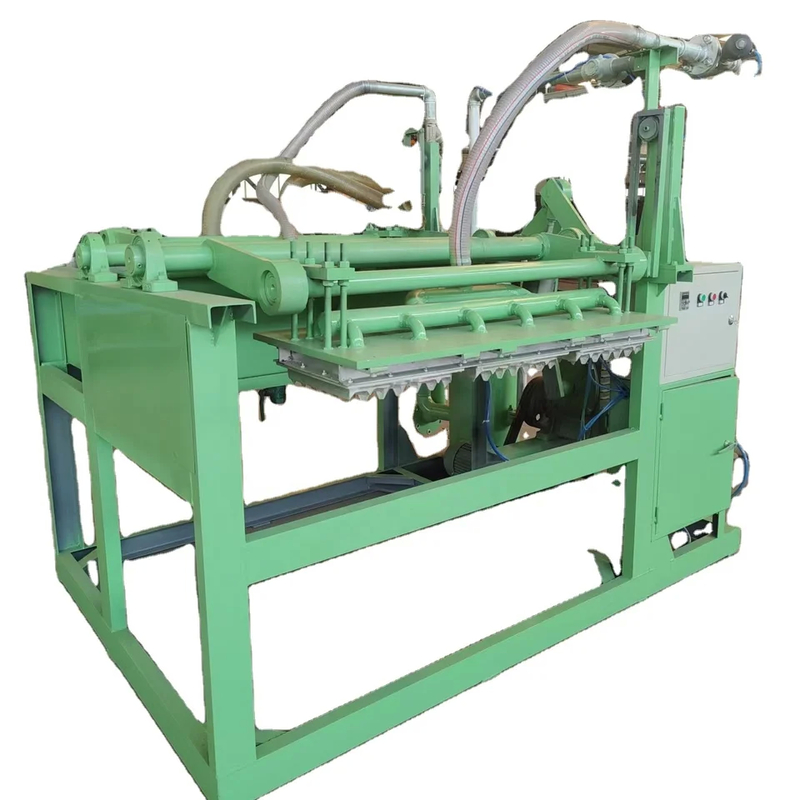

2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 6 2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy 7
Don't miss the opportunity to enhance your production efficiency. Contact us today!
