Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-700
Full Automatic Pulp Molding Machine wine tray coffee cup tray packaging tray
Machine Introduction:
Product Name | Full Automatic Pulp Molding Machine wine tray coffee cup tray packaging tray |
Product Model | RL 3000 |
Applicable industries: | Poultry, animal husbandry, agriculture, carton production industry, printing industry, paper industry |
Usage | egg tray, egg carton, fruit tray, apple tray, coffee cup tray, wine tray,Industrial Packaging Tray |
Capacity: | 3000pcs/h |
Customize: | Yes |
Egg Tray Production Line Description:
---Using high precision reducer servo motor to form and transfer the trays, ensuring fast and smooth operation.
---Using absolute encoder to realize accurate correction/calibration.
---The use of high quality casting static and dynamic ring structure is more suitable for product drying technology.
Egg tray machine Pulp Molding Machine is composed of the following sections:

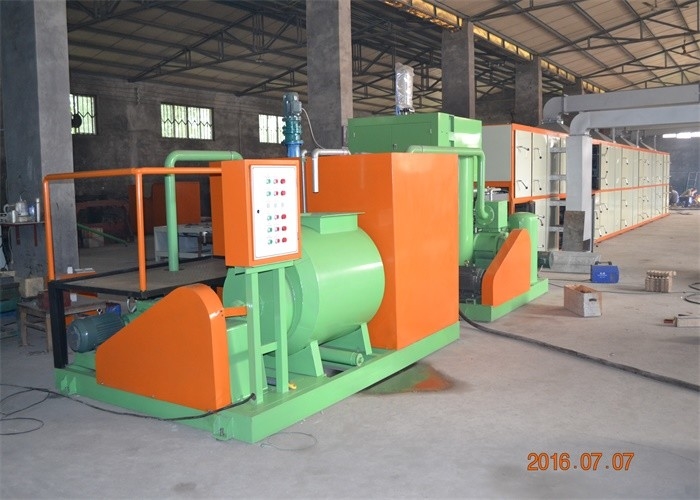

Pulping System
Turn waste paper, such as old newspapers, magazines, cartons, into a certain concentration pulp through pulping, screening, or adding chemical additives , for forming of molding machines.
Forming System
Attaching the pulp onto the specially made forming mold evenly through vacuum effect to make it into wet trays and then deliver it to drying system.
Drying System
Using heat source like Gas, Diesel, Steam, Conduction oil, coal, Wood to dry the wet trays after forming.
Stacking & Packing System
Count the number of dried trays, separate them and pack them for automatic packaging.
Vacuum System
Offer vacuum for forming product
Air Compressor System
Supply compressed air for transferring product
High Pressure Water System
Supply high pressure water for washing molds of forming machine.
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2 years warranty.
5. The installation of the whole line is easy.
Technical data
Pulping Part | HydraPulper | 35kw/h |
Power:25KW,material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.
|
Mixer | 1.5kw/h |
Stainless steel shaft and impeller,Mixing diameter:1200mm,match with pulp chest of 2 meters deepth,match with pulp chest of 2 meters deepth. not included support bracket.
|
|
Disc Mill Pump | 7.5KW | It makes the waste paper into pulp, works continuously | |
Forming System | 8faces Rotary Forming machine |
32pcs forming molds and 4 pcs transfer molds and 4pcs press molds
|
PLC control,stainless steel pulp tank,the surface of platens covered with stainless steel,the products should be transferred to a plate manually.The main electrical elements is Siemens brand.
|
Auto Drain System |
Match with Forming System,include Air-water Seperation Tank,Auto Drain Tank,Support,Check Valve,Electromagnetic Valve, Inductor,etc
|
||
Control Cabinet for Forming System
|
The main electrical elements is China Famous brand.
|
||
Drying system | 4-layer drying oven |
Effective length 40m, transfer speed adjustable. Fuel : Diesel oil/Nature gas/LPG
|
|
Control Cabinet for Drying System |
380v/50hz 440v/60hz 220V/60HZ |
Control the drying system. | |
Explosion-proof device
|
it can release the combustible gas remained in the drying line after ignition failures, preventing the explosion of drying line and protecting the worker and property.
|
Payment and delivery:
Trade terms | FOB Qingdao or EXW Factory | ||||
Delivery time | About 80 working days after receiving the deposit. | ||||
Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
Warranty time | Two years after the Egg tray machine received. | ||||
TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
Package | In container | ||||
Certification | CE |
Installation | |||||
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||

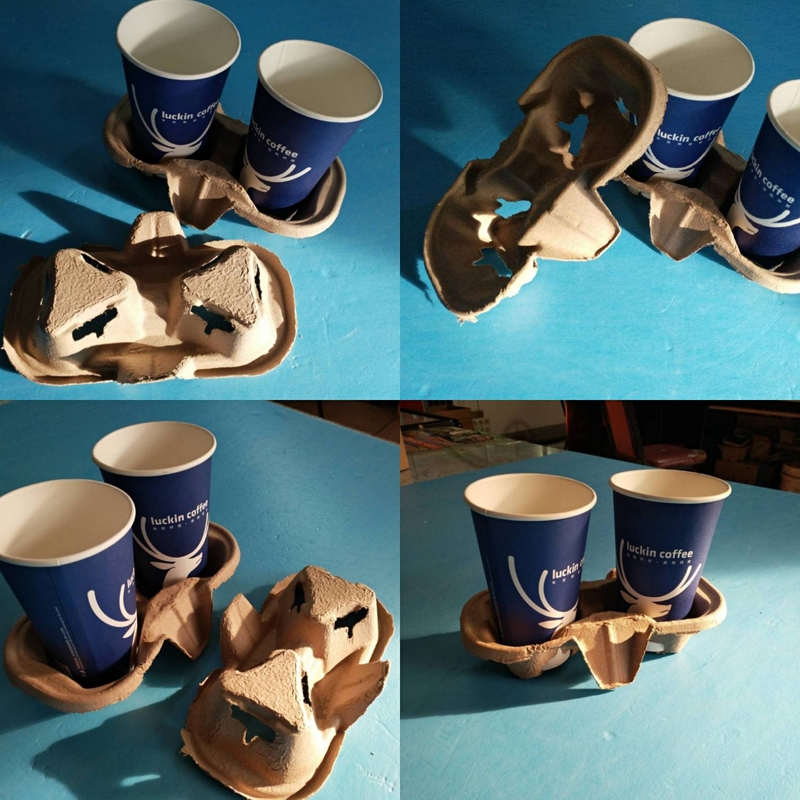

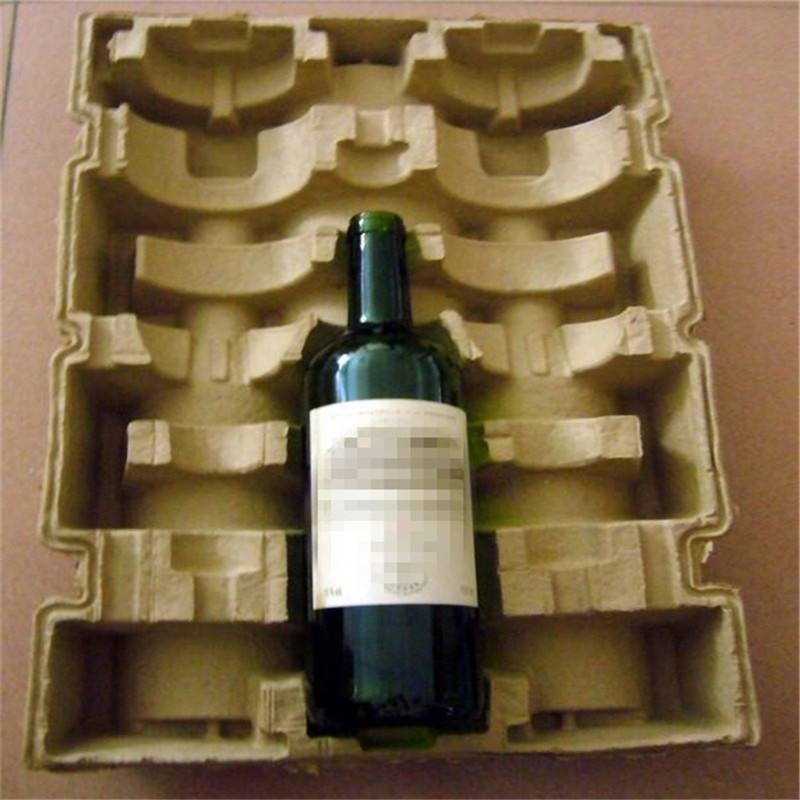

Egg Tray Machine end products includes: The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.
