Big Capacity Egg Tray Paper Pulp Molding Machine With 2 Years Guarantee

Big Capacity Egg Tray Paper Pulp Molding Machine With 2 Years Guarantee

egg tray manufacturing machine

egg tray moulding machine

Place of Origin:

Jinan, Shandong, China

Brand Name:




Model Number:

ZSJ series

Contact Us
Request A Quote
Product Details
2 Years
220V/380V,380V,220v,50hz,380v / 450v
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support
Processing Type:
Pulp Molding Machine
Raw Material:
Waste Paper
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
in container
Delivery Time
80 working days after get deposit payment
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
1 sets per month
Product Description


Full Automatic Pulp Molding Machine Industrial Packaging Tray Machine PLC Control Easy Operation


Big Capacity Pulp Molding Machine Egg Tray Machine PLC Control Easy Operation

Machine Introduction:

Product Name Big Capacity Pulp Molding Machine Egg Tray Machine PLC Control Easy Operation
Product Model RL 1000
Applicable industries: Poultry, animal husbandry, agriculture, carton production industry, printing industry, paper industry
Usage egg tray, egg carton, fruit tray, apple tray, coffee cup tray, wine tray,Industrial Packaging Tray
Capacity: 1000pcs/h
Customize: Yes


Egg Tray Production Line Description:

---Using high precision reducer servo motor to form and transfer the trays, ensuring fast and smooth operation.

---Using absolute encoder to realize accurate correction/calibration.

---The use of high quality casting static and dynamic ring structure is more suitable for product drying technology.


Egg tray machine Pulp Molding Machine is composed of the following sections:

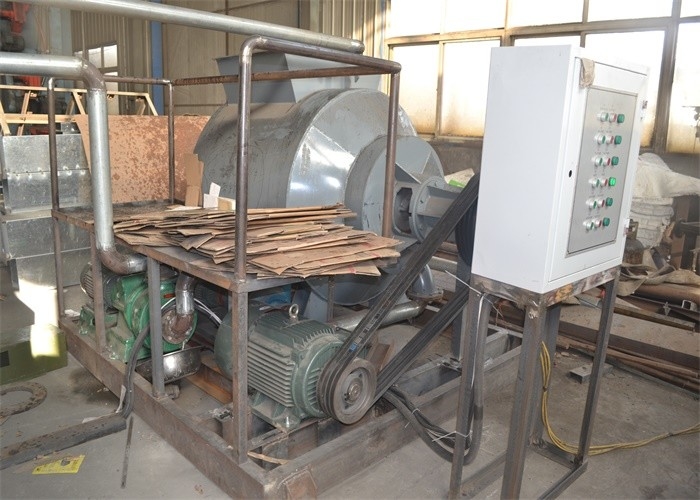

Pulping System

Turn waste paper, such as old newspapers, magazines, cartons, into a certain concentration pulp through pulping, screening, or adding chemical additives , for forming of molding machines.


Forming System

Attaching the pulp onto the specially made forming mold evenly through vacuum effect to make it into wet trays and then deliver it to drying system.


Drying System

Using heat source like Gas, Diesel, Steam, Conduction oil, coal, Wood to dry the wet trays after forming.


Stacking & Packing System

Count the number of dried trays, separate them and pack them for automatic packaging.


Vacuum System

Offer vacuum for forming product

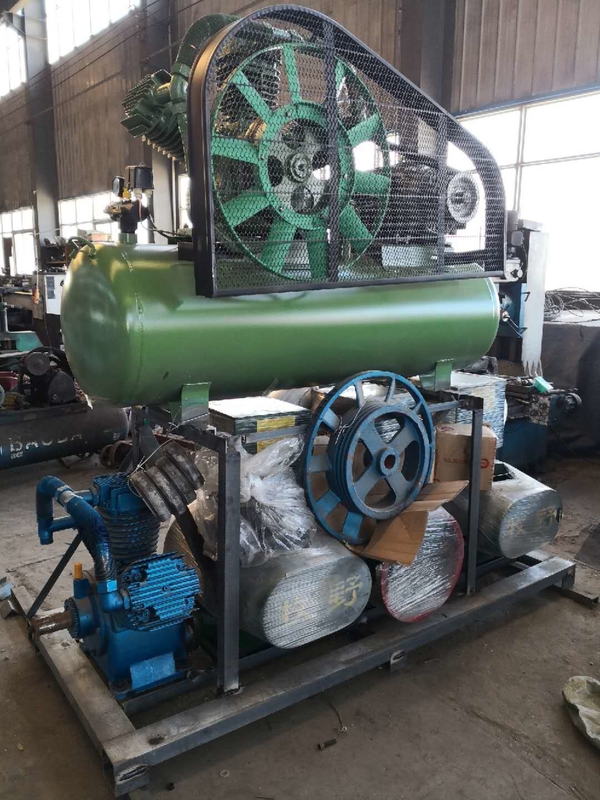

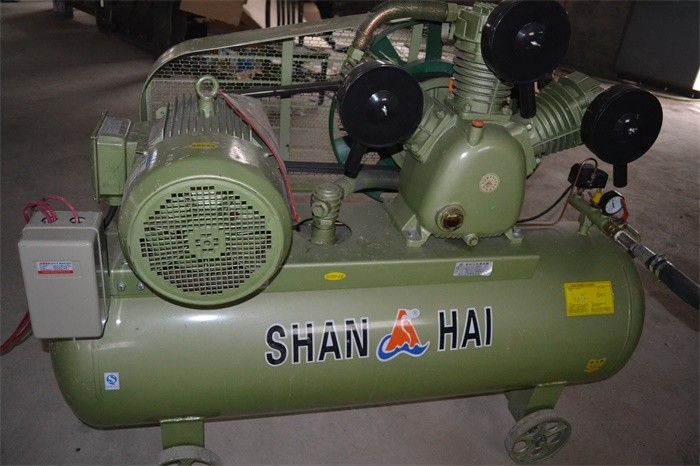

Air Compressor System

Supply compressed air for transferring product


High Pressure Water System

Supply high pressure water for washing molds of forming machine.


Quick Detail


Condition:  New

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of Origin: Shandong, China (Mainland)

Brand Name: RUNLIANG

Voltage: 220-440V

Power(W): Different Machine Model

Dimension(L*W*H): 7m*2.2m*2.2m

Weight: 8 tons-15tons

Certification: CE & ISO

Warranty: 2 years

After-sales Service Provided:  Engineers available to service machinery overseas

Capacity: 350pcs/h -2500pcs/h

Color: As  customer needs

Frequency:  50Hz-60Hz

Application:   egg tray,fruit tray,bottle tray

Workshop required:  150-300㎡

Worker required:  5-6 persons

Fuel:  Coal, Natural Gas, Disel, LPG and so on

Automation: Automatic and fully automatic

Keyword: Egg tray machine


1. controlled by computer, no needs any construction.

​ 2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.

​ 3. England technology, and​ spare parts is very famous brand from Germany, Taiwan...

​ 4. with 2 years warranty.

​ 5. The installation of the whole line is easy.


Technical data


  Main parts Quantity

Pulping system



Including :

mill pulp pump -1set

water pump-2sets

pulp pump -2sets

1M³pulping machine –1sets


Forming system



3 moulds forming machine -1set

Vacuum pump-1set

Compressor -1set

Washer –1set

Vacuum tank-1pcs

Air tank—1pcs


Drying system



Drying oven –1set

(L 18M*W2M*H2.2M)

Chain and try –1sets

Hot air pipe –1sets

Chain wheel with shaft—1sets

Delivery belt –1set

Drive motor –1set





Boiler –1set

Natural gas burner(Riello)-1set

Fan with motor -1set

Electric control -1set

1 Set

Payment and delivery


Trade terms  FOB Qingdao or EXW Factory
Delivery time  About 80 working days after receiving the deposit.
Payment term  BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC
Time of payment  When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time  Two years after the Egg tray machine received.
TERMS OF DELIVERY  FOB Qingdao Port, China
Package  In container
Certification  CE


1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day )
Our Machine Advantages:
1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time


Don’t miss the chance of promoting the production efficiency of your company.




Egg Tray Machine end products includes: The trays for the cup of coffee, the trays for the bottle, Egg tray / Egg tray box, Electronic products tray, Fruit tray, Air fresher tray, Mechanical and electrical products tray, Industrial Packaging Trays.
