Medium Capacity Paper Egg Tray Machine Egg Tray Making Machine 1300-1500pcs/h Home Business
The 1300-1500pcs/h capacity egg tray machine or egg tray production line includes 2 or 3 parts as customers actual needs:
1. pulping system: including the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the wastepaper into pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(customerized/Selectable)
Egg Tray Machine is with 1300-1500pcs/h capacity.
And this egg tray machine is in computer PLC control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.
Technical Parameters of the 1300pcs/h capacity 4molds egg tray machine( pulp molding machine/ egg tray production line)
| Technical Parameters |
| Egg Tray mould quantity |
4pcs |
Container Required |
| Raw material |
Waste paper |
About 40HQ*1 |
| Output for paper tray |
1300-1500pcs/hour |
| Net weight per piece (gram) |
Estimated 70-75g |
| Waste paper consumption |
Estimated 113kg / hour |
| Water consumption |
Estimated 338kg / hour |
| Machine Weight |
5 tons around |
| Installed power |
65kw
Practical usage is 70% of this power
|
| Power supply |
380V/50HZ |
| Workshop demand |
At least 15L*10W*4mH |
| End tray Size |
295*295mm |
|
Remarks:
1.Usually, all installation and debugging work will be done before shipment.
2.We will offer online installation support for buyers. Either by video call or by phone call.
3. Customers need to build underground type water and pulp tanks(pools) with size of 1.5mL*1.5mW*1.5mDepth
|

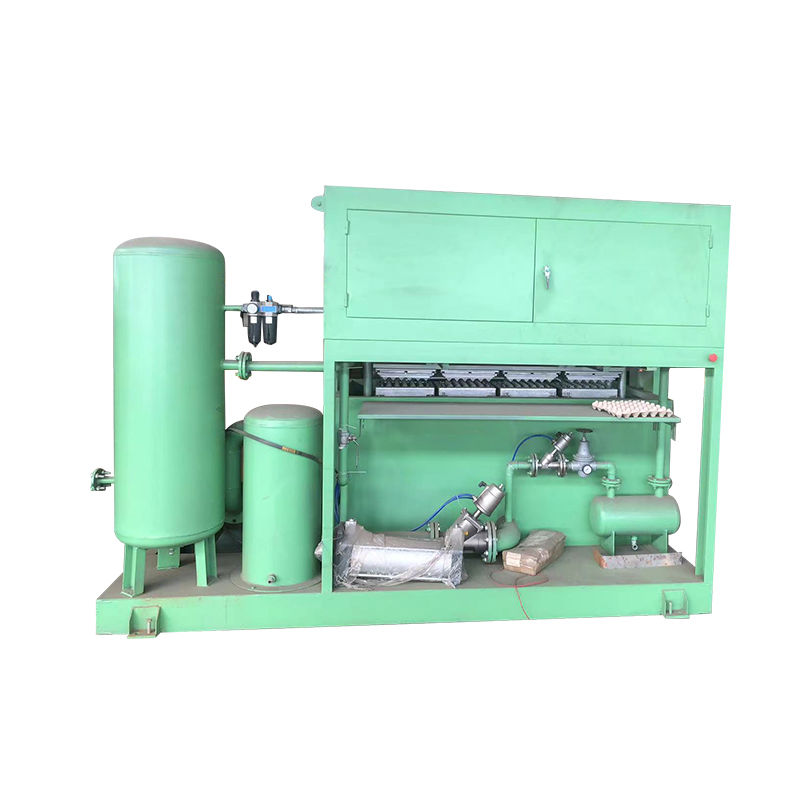

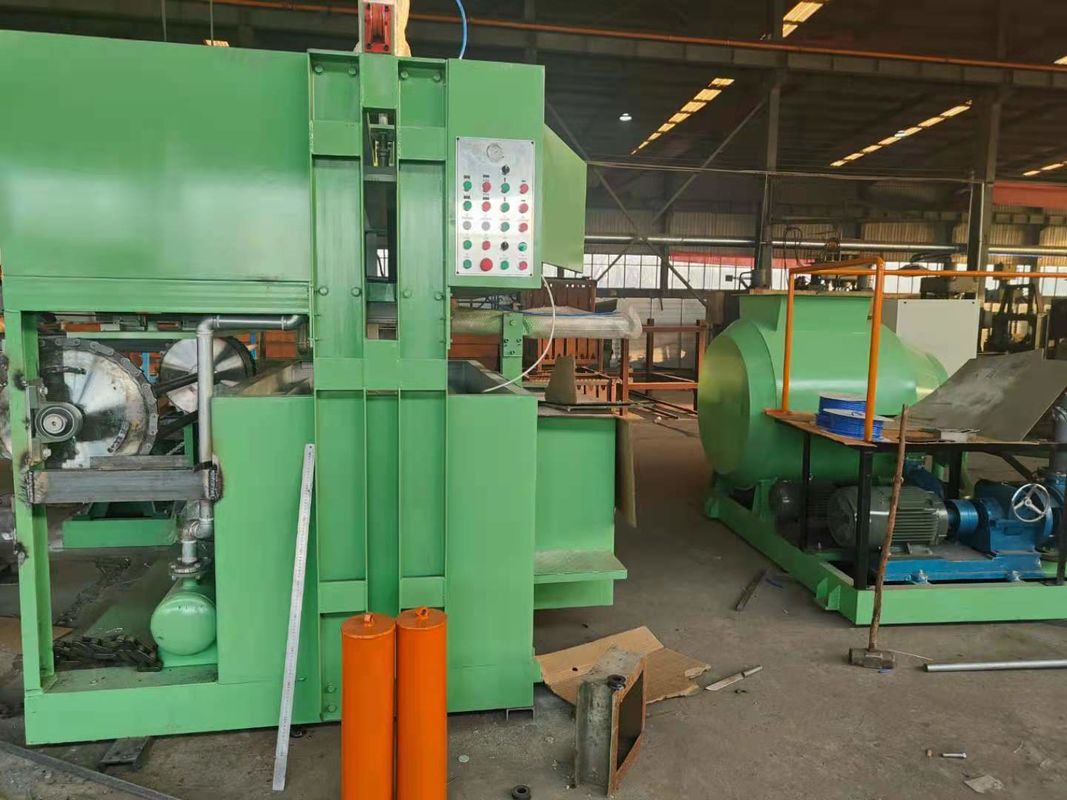

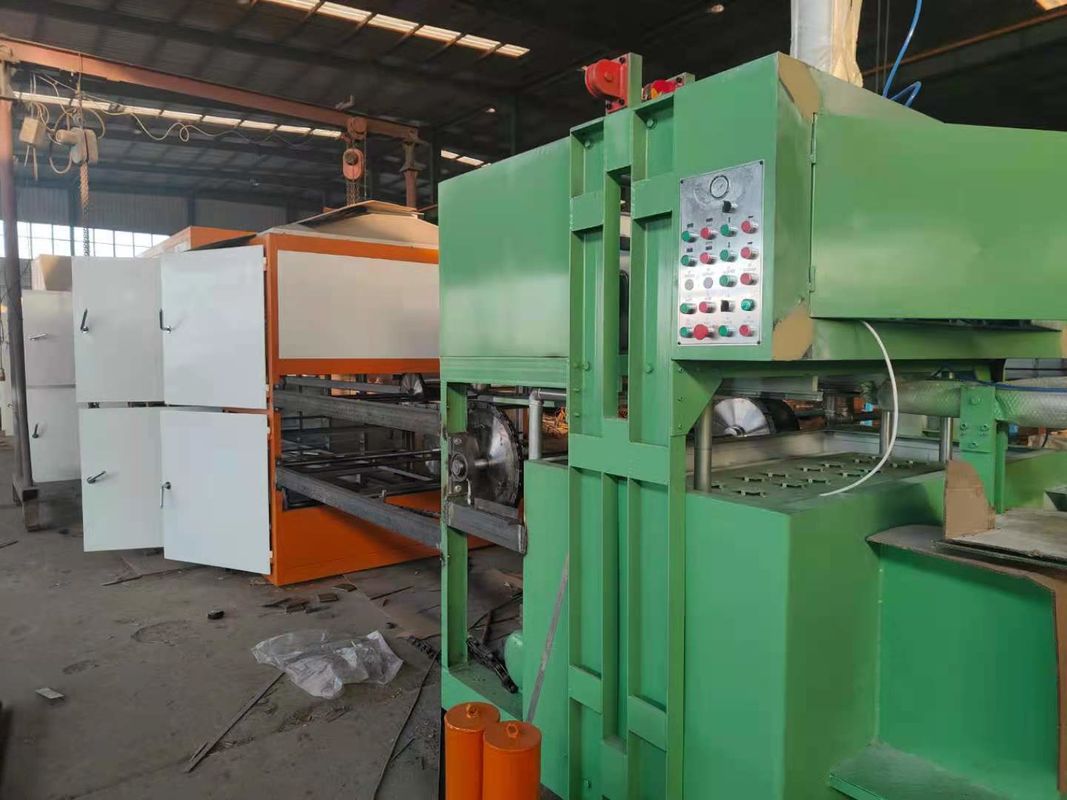

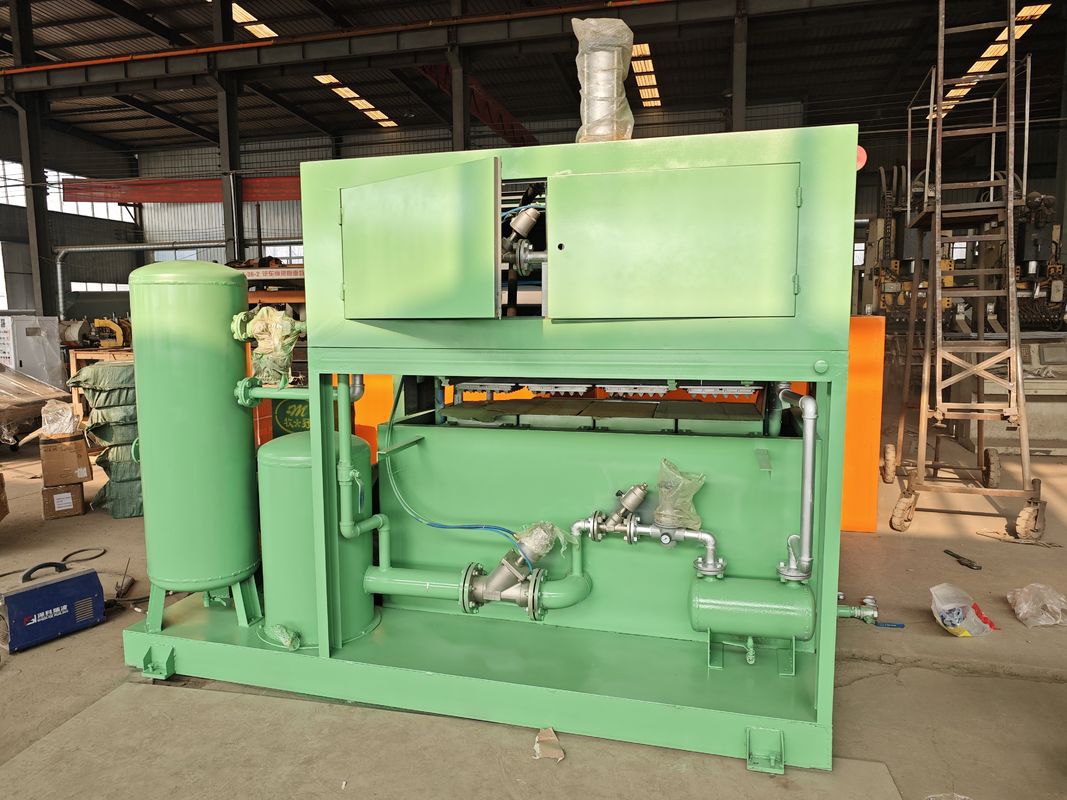

Forming machine part of 1300pcs/h capacity egg tray machine
Pulping machine of 1300pcs/h capacity egg tray machine
Applications:
Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.
With lower cost investment, you can achieve big profit by our machine.
Delivery of our machine
Business Terms
| The offer This offer valid30 days |
| Machine Model |
QTY |
Unit price |
EXW Jinan |
| WY-4 without dryer(with 4 pieces 30 egg tray molds free) |
1 |
|
|
|
Delivery Time: 40 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
| Warranty time |
2 years after the Egg tray machine received. |
| Terms of delivery |
EXW Jinan, China |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
