Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-350
Pulp Molding Machine Processing Type Egg Tray Machine with drying system
Pulp Molding Machine Processing Type Egg Tray Machine with drying system
Pulp molding products are one kind of new packing material. This is a new buzz in recent years. Pulp molding machinery is a type of environmentally friendly equipment that mixes waste paper and water as raw material. The pulp moulding machine cost is low and you don’t need to spend too much money. The pulp molding machines have great develop prospect on the market.
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .

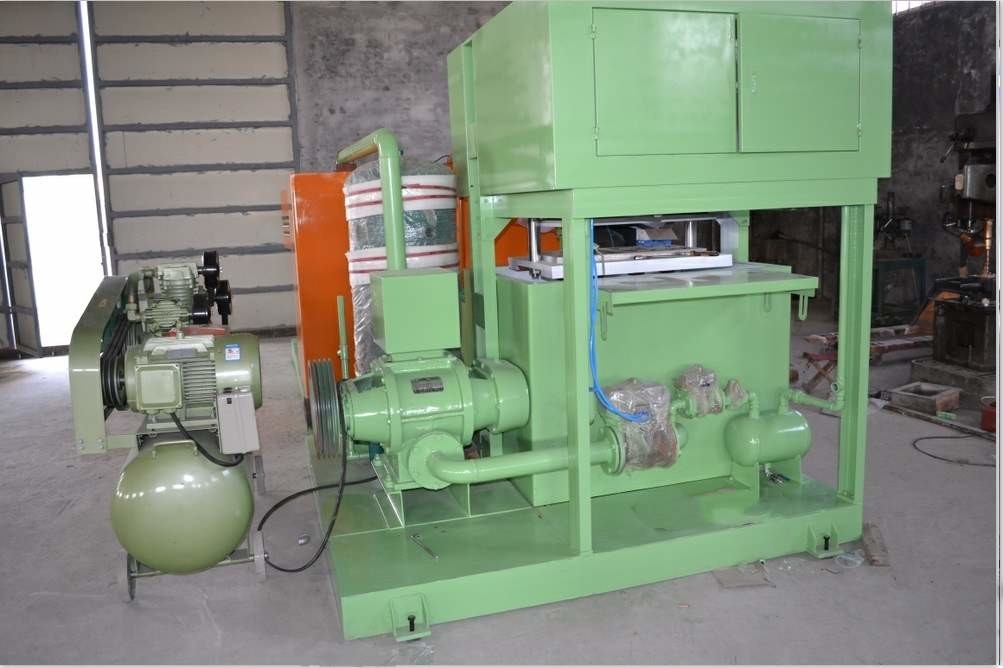

2. Forming System :

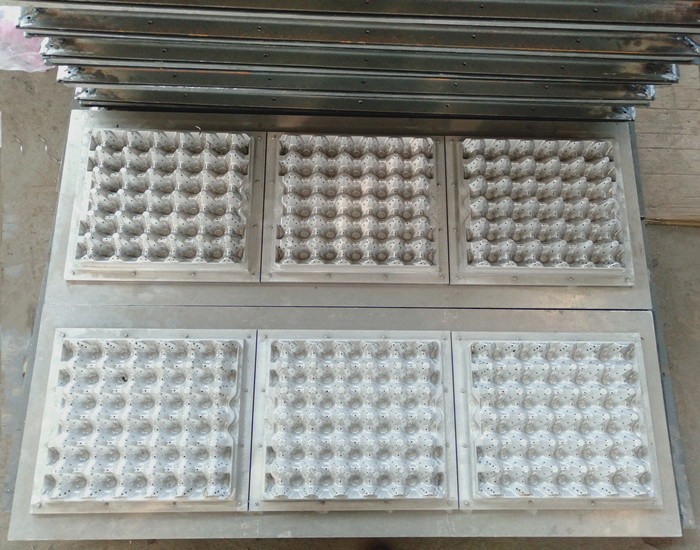

The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production. Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.
A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.
Technical data
| Egg Tray mould quantity | 3pcs | |
| Raw material | Waste paper | |
| Output for egg tray | 1000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| The volume of waste paper consumed | 0.075ton / hour | |
| The volume of water consumed | 0.22ton / hour | |
| Natural Gas consumption of the Bolier(about) | 45cbm/h | |
| Machine Length | 25-30meters | |
| Egg tray Size | 295mm*295mm 30eggs | |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 45 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Certification | CE | ||||
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.

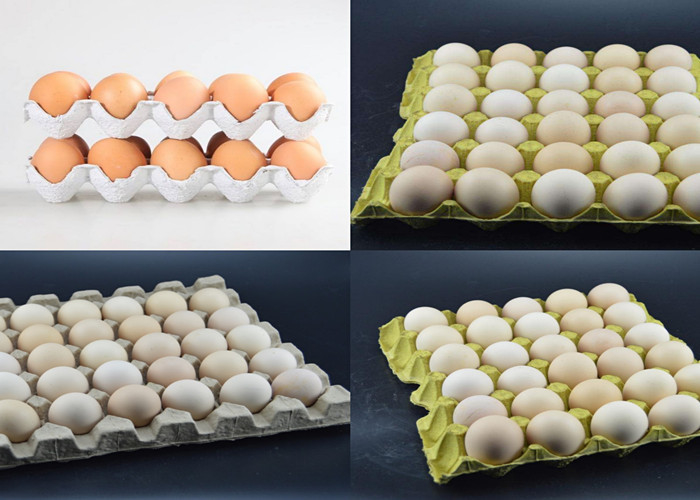

Samples by egg tray making machine:
Our machine make your waste paper and books into Money!
