Energy Saving Paper Egg Tray Machine Egg Tray production line Convenient Installation
This model egg tray machine or egg tray production line includes 2 or 3 parts as customers actual needs:
1. pulping system: including the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the wastepaper into pulp.

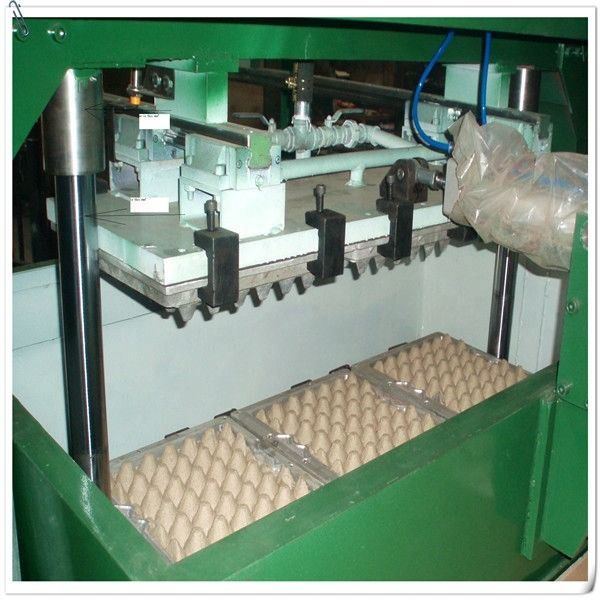

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(customerized/Selectable)
Egg Tray Machine is with 1000pcs/h capacity.
And this egg tray machine is in computer PLC control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.
Technical Parameters of the 1000pcs/h capacity 3 molds egg tray machine( pulp molding machine/ egg tray production line)
|
Egg Tray Mold Quantity
|
3pcs
|
|
Raw material
|
Waste paper
|
|
Egg tray Capacity
|
1000pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
Waste paper consumption
|
75kg / hour
|
|
Water Consumption
|
0.15ton / hour
|
|
Natural Gas Consumption of Dryer
|
35cbm/h
|
|
Worker requirement
|
4-6workers
|
|
Machine Length
|
7m-25m
|
|
Machine weight
|
8-20tons
|
|
Power Requirement
|
Without dryer
|
40KW
|
|
With dryer
|
60KW
|
|
Area of workshop
|
Without dryer
|
More than 120 M²
|
|
With dryer, dryer-16m
|
More than300M²
|
|
Container Requirement
|
Without dryer
|
40ft*1
|
|
With dryer
|
40ft*3
|
|
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s
plant.
|

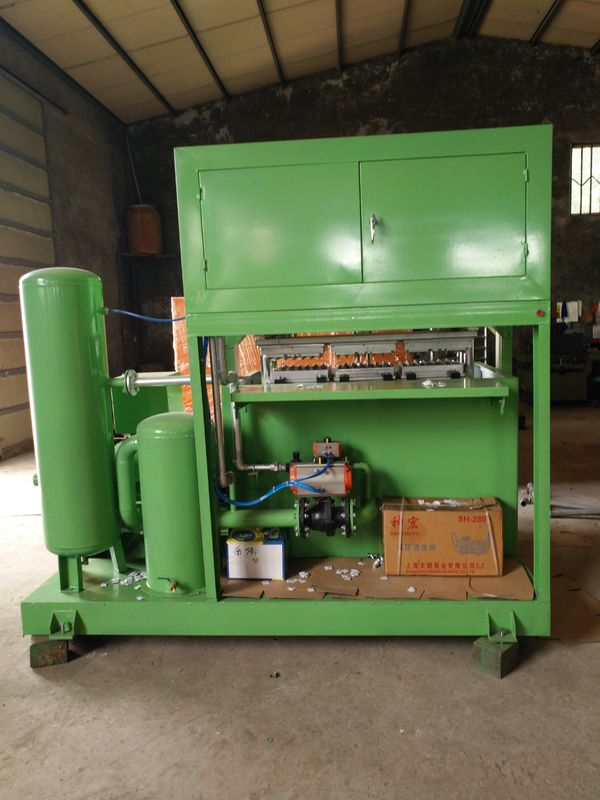

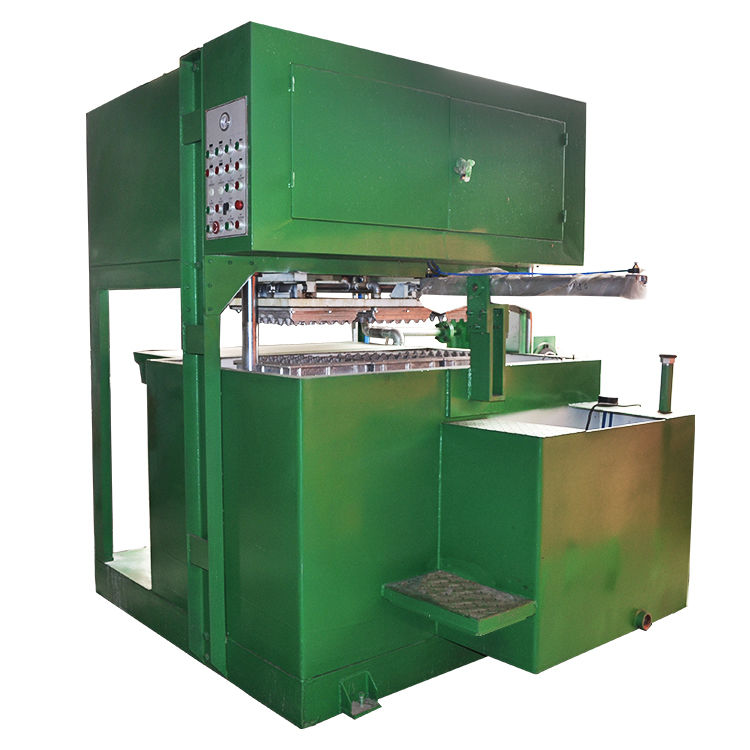

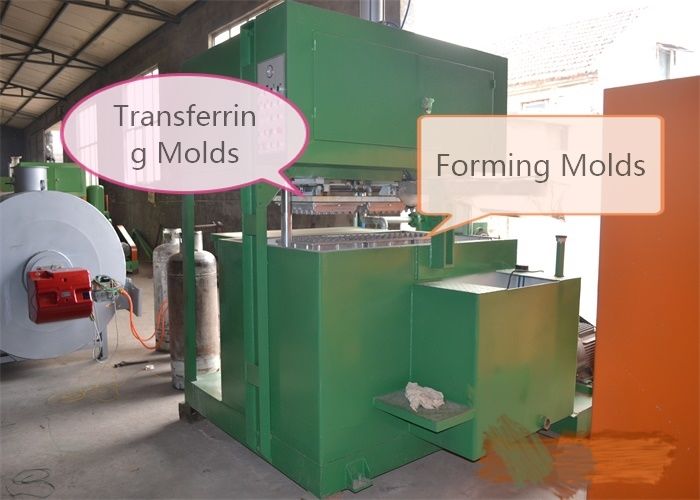

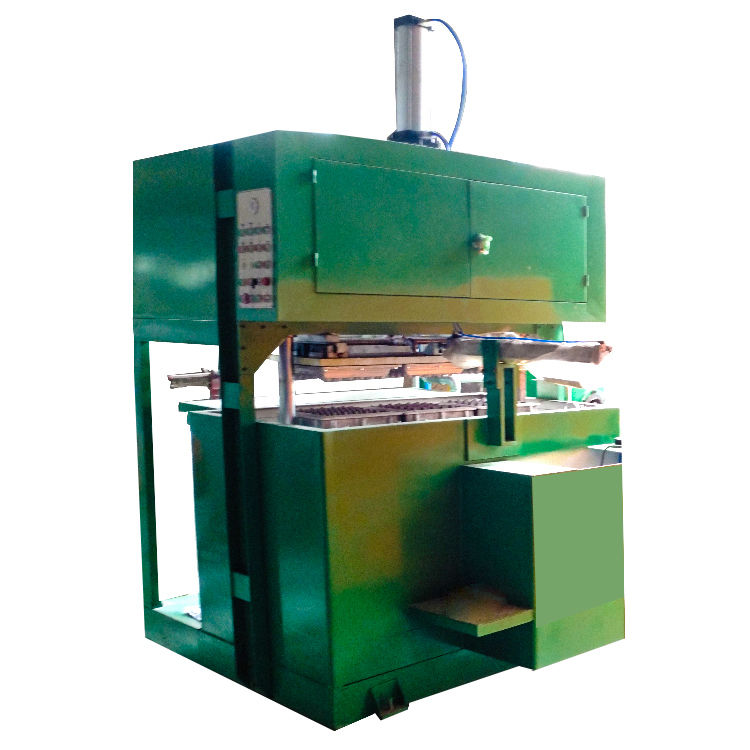

Forming machine part of 1000pcs/h capacity egg tray machine
Pulping machine of 1000pcs/h capacity egg tray machine
Applications:
Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.
With lower cost investment, you can achieve big profit by our machine.
Delivery of our machine
