Place of Origin:
Jinan, Shandong, China
Brand Name:
Wanyou
Certification:
CE
Model Number:
ZSJ-4000
Production Line Controlled By Computer 4000pcs/hCapacty Recycled waste paper egg tray making machine
This machine is composed of the following sections:
1. Egg Tray Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Egg Tray Molding Forming System :
The Egg Tray Molding Forming System consists of various equipment and dies.

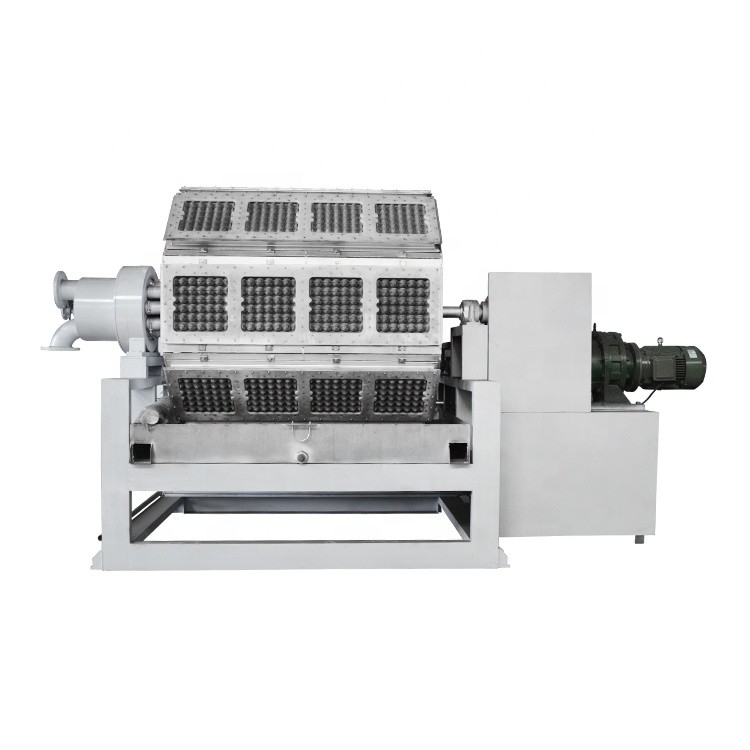

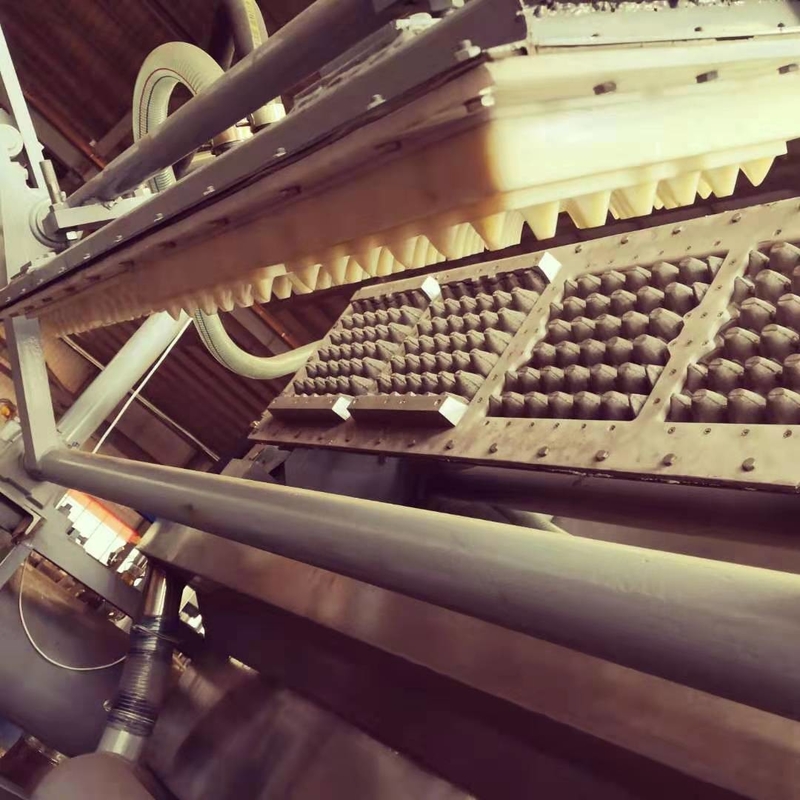

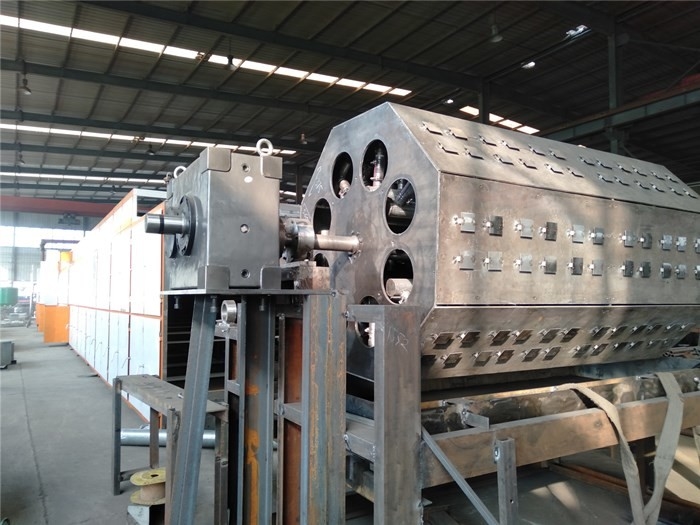

The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.
The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.
The forming die, mounted on the molding drum is rotated at a uniform speed, immersing it in a taper flow vat containing the pulp slurry of about 1% consistency of fibers in recycled water. A vacuum system attracts the fibers to deposit on the forming die screens as the suspending recycle water is drawn through the screen and drainage holes.
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)
There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
4. Egg Tray Automatic Stacking Machine:
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Machine Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2 years warranty.
5. The installation of the whole line is easy.
Many capacity egg tray machines we offered:
Egg Tray Mold Quantity
|
32pcs(4*8)
|
Raw material
|
Waste paper
|
Egg tray Capacity
|
4000pcs/hour
|
Net weight per piece (gram)
|
70g-75g
|
Waste paper consumption
|
300kg/hour
|
Water Consumption
|
0.9ton/hour
|
Natural Gas Consumption of Dryer
|
120cbm/h
|
Worker requirement
|
8-10workers
|
Machine Length
|
8m-38m
|
Machine weight
|
8-32tons |
Payment and delivery
Trade terms | FOB Qingdao or EXW Factory | ||||
Delivery time | About 90 working days after receiving the deposit. | ||||
Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC | ||||
Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
Warranty time | Two years after the Egg tray machine received. | ||||
TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
Package | In container | ||||
Certification | CE |
Installation | |||||
1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||
