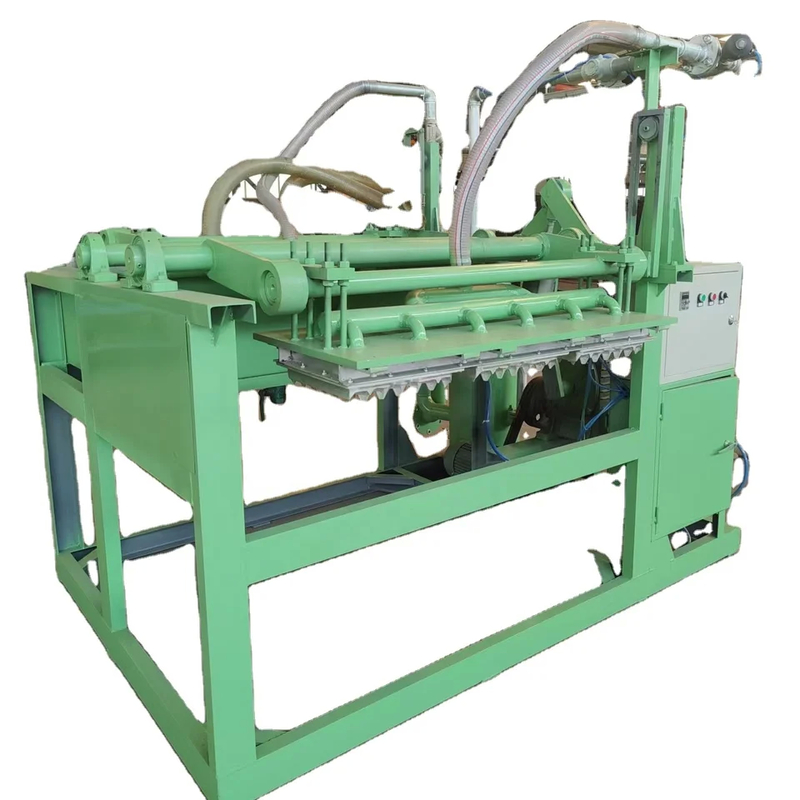

Semiautomatic and Automatic Waste Paper Egg Tray Machine Egg Crate Making Machine High Capacity Easy Operation For Paper Pulp Molding Machine
Paper Pulp Molding Machine Egg Tray Machine Features:
1. Pulping system: Use waste paper and water as raw material and pulp up;
2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;
3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate
The drying system is with one boiler.
The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.
For the moment, many enterprises have began to use paper egg carton to meet the environmental friendly goal. So egg tray machine complies with the trend of times. The egg tray making machine uses the raw material of waste paper and water to produce paper egg trays.
The egg tray manufacturing process is raw materials pulping – ingredients (as per customer needs)– mold forming – drying –packing. The additive is Food-Grade pigment which you can use to produce all colors of egg cartons. Another kind of additive is glue which has the anti-water function. When you use the additives, you should add the appropriate amount. The type machine can not only produce egg tray / carton but also produce apple tray, shoe trays, bottle trays, strawberry carton, etc.
We have variety capacity egg tray machines: 700pcs/h, 1000pcs/h, 1300pcs/h,1500pcs/h, 2000pcs/h, 4000pcs/h, 5000pcs/h, 6000pcs/h, 8000pcs/h. We are OEM factory, we can manufacture the machine as per your requirement.
Our machine is all in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 2300mm*1950mm*1600mm
Weight: 8 tons-50tons
Warranty: 1year
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h-6000pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-560㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG, wood and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.

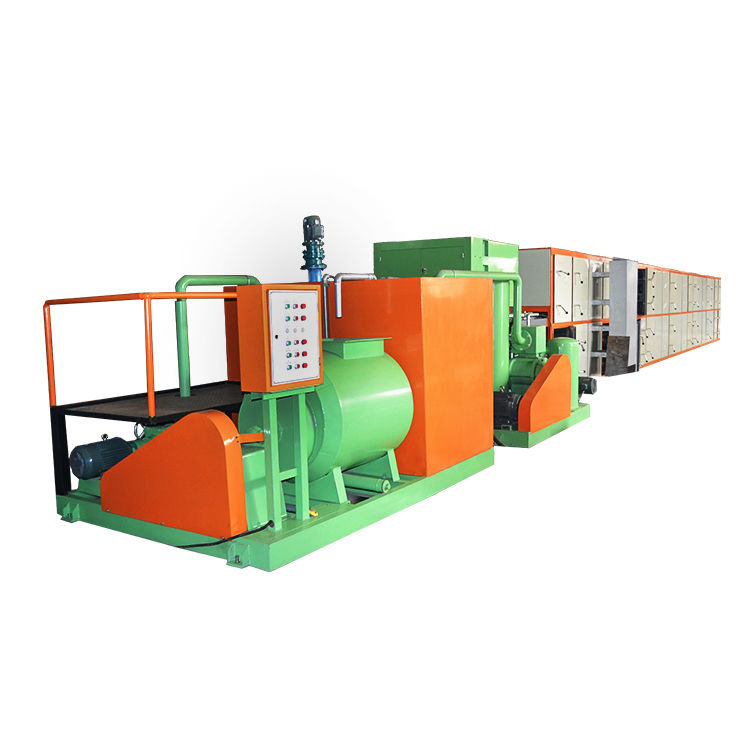

Technical data (4000-5000pcs/h for example)
| Technical Parameters of the Egg Tray Machine |
| pulp system |
Hydraulic Pulper |
30KW |
Effective Power:25KW,material of tank and disc:carbonized steel ,material of screen plate:stainless steel , pulping consistency:3-4%.
|
| Mixer/Crusher |
1.5KW/h |
Stainless steel shaft and impeller,Mixing diameter:1200mm,match with pulp chest of 2 meters deepth,match with pulp chest of 2 meters deepth.not included support bracket.
|
| Vibration Screen |
3kw/h customized
Some type machine donnot need this equipment
|
Screen area:0.9m2 including protective casing.
|
| forming system |

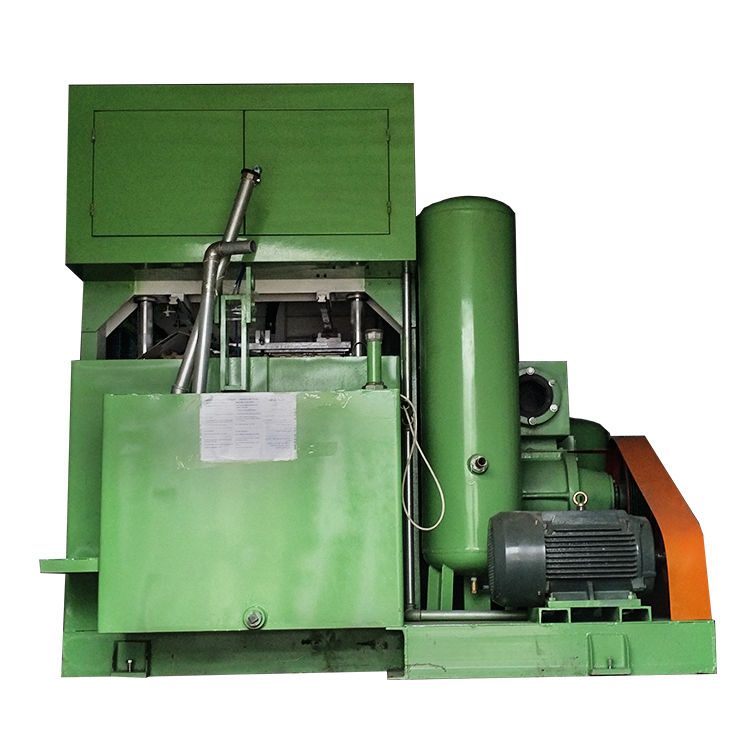

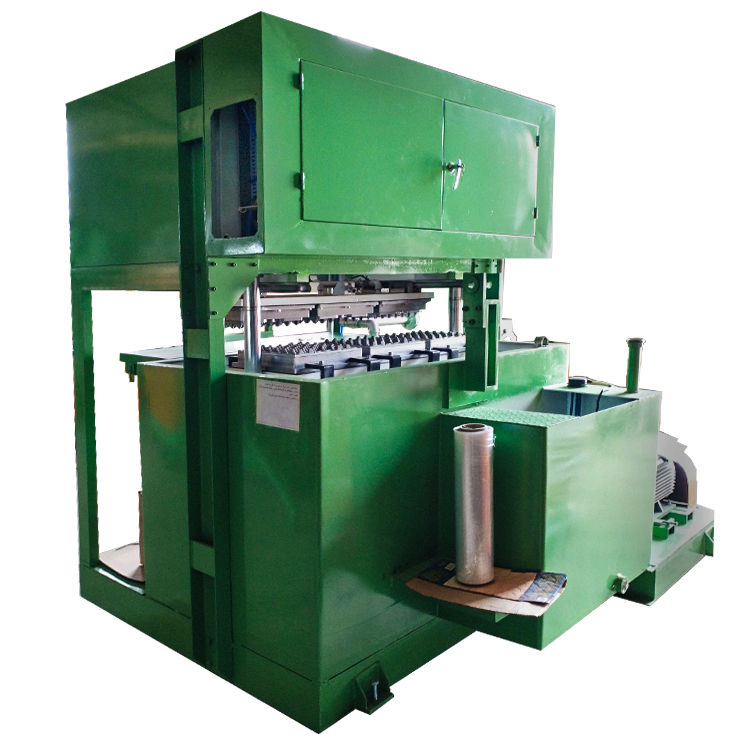

8 faces Rotary forming machine |

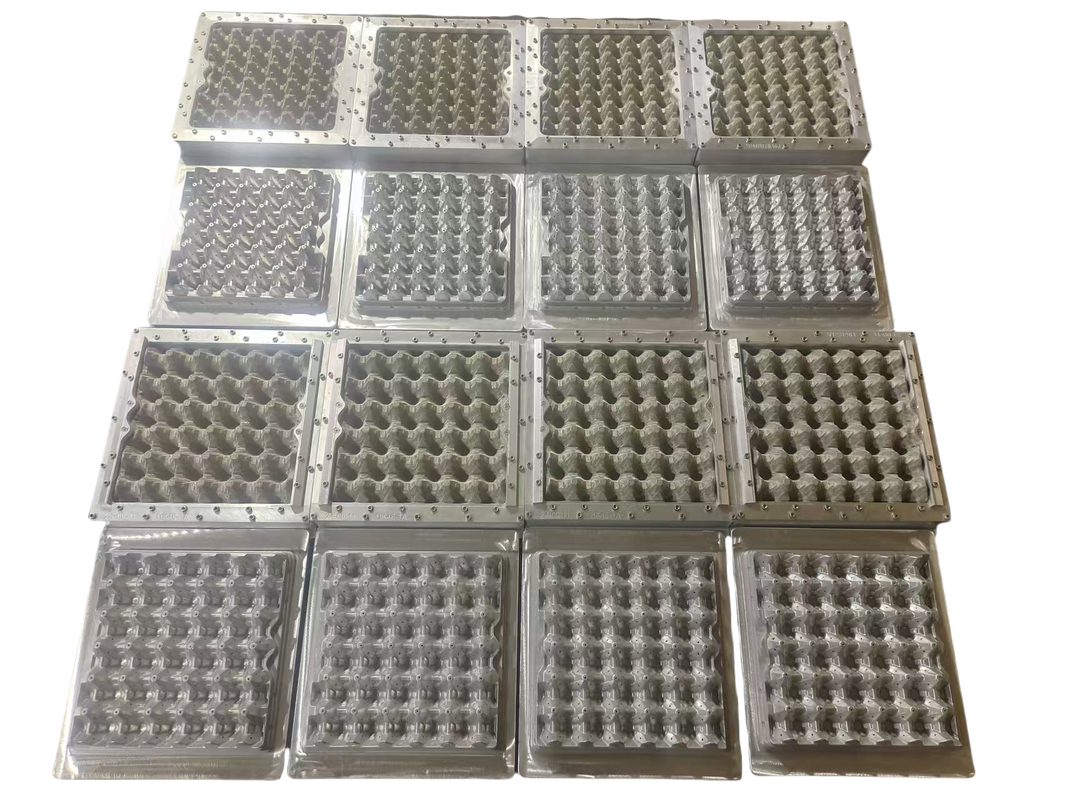

40pcs forming molds and 5 pcs transfer molds and 5 pcs press molds
|
PLC control,stainless steel pulp tank,the surface of platens covered with stainless steel,the products should be transferred to a plate manually.The main electrical elements is Siemens brand. |
| Auto Drain System |
|
Match with Forming System include Air-water Separation Tank,Auto Drain Tank,Support,Check Valve, Electromagnetic Valve, Inductor,etc |
|
Control Cabinet for Forming System
|
/ |
Control the forming machine.The main electrical elements is Germany brand. |
| Drying system |

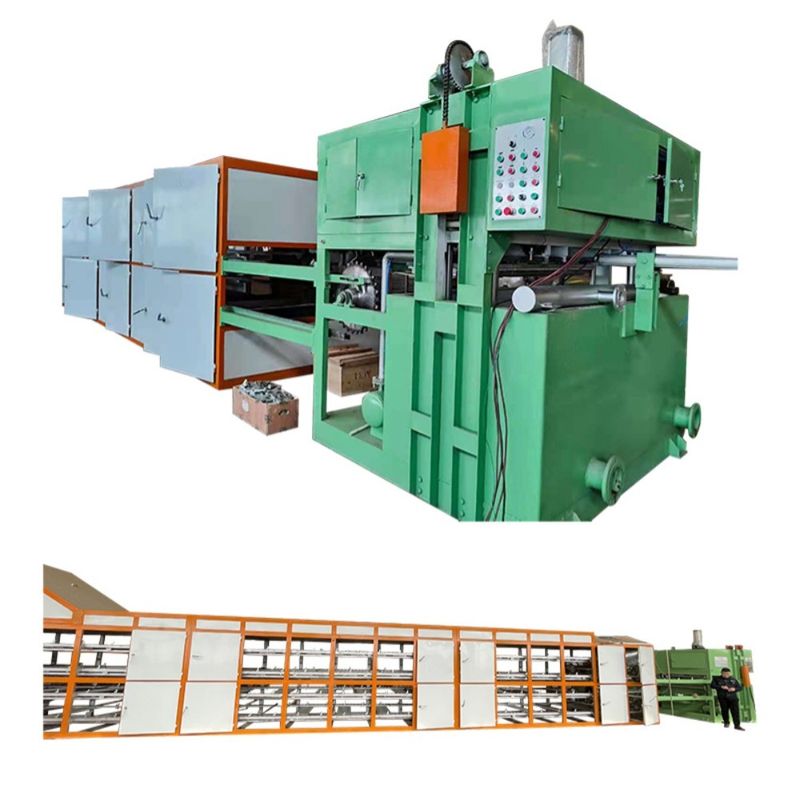

6-layer Drying Line |
16kw/h |
Effective length 100m, transfer speed adjustable. Fuel : Diesel oil/Nature gas/LPG
|
|
Control Cabinet for Drying System
|
380v/50hz 440v/60hz |
Control the drying system.The main electrical elements is Taiwan brand.
|
| Burner |
|
Riello Brand |
| Boiler |
|
China Famous Brand |
Payment and delivery
| Trade terms |
FOB Qingdao or EXW Factory |
| Delivery time |
About 30 working days after receiving the deposit. |
| Payment term |
BY T/T 40%DEPOSIT+60%BALANCE or 40% TT Deposit + 60% LC |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
1 years after the Egg tray machine received. |
| TERMS OF DELIVERY |
FOB Qingdao Port, China |
| Package |
In container |
Factory Introduction
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
