Automatic High Efficiency Paper Egg Tray Machine Egg Carton Production Line Controlled By Computer
Machine Introduction:

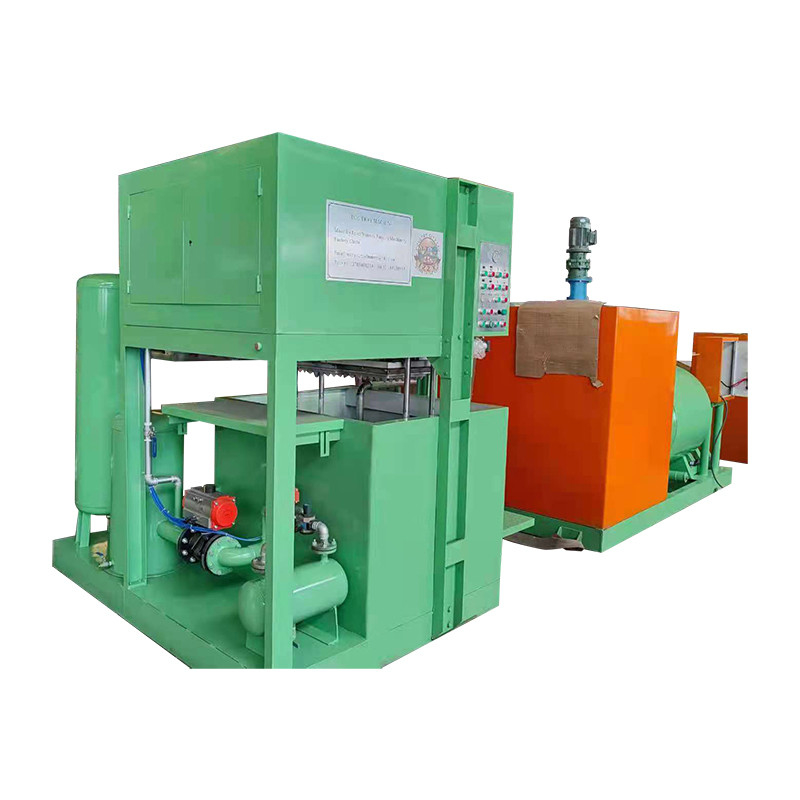

Egg tray machine
The paper egg tray machine pulp molding machine is composed of the following sections:
1. Pulping system

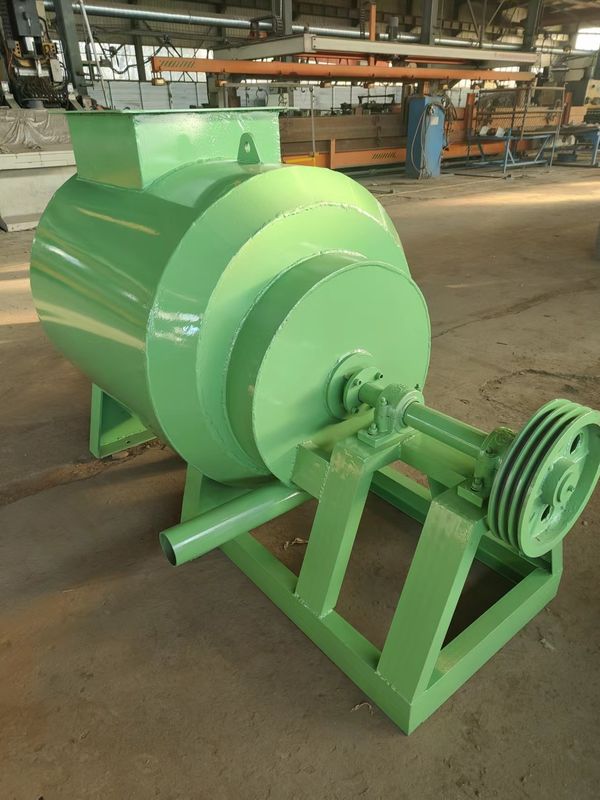

Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc
Also some parts are customized as per customer's needs.

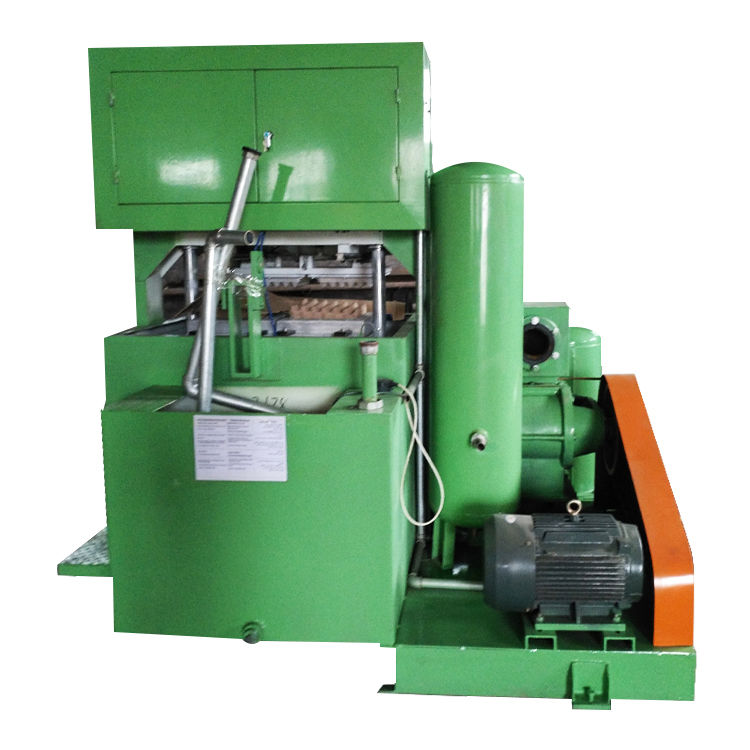

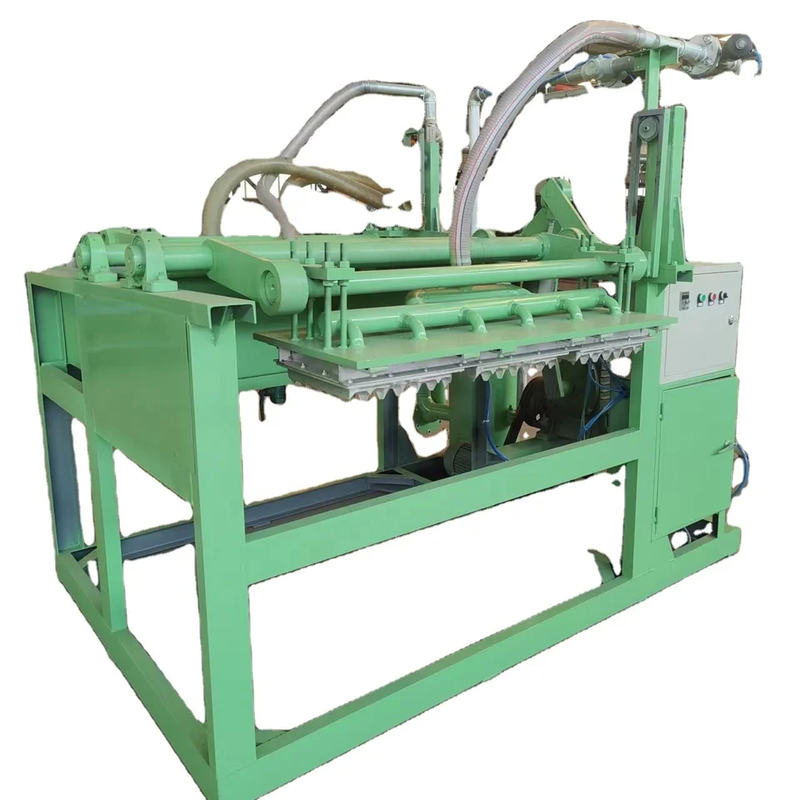

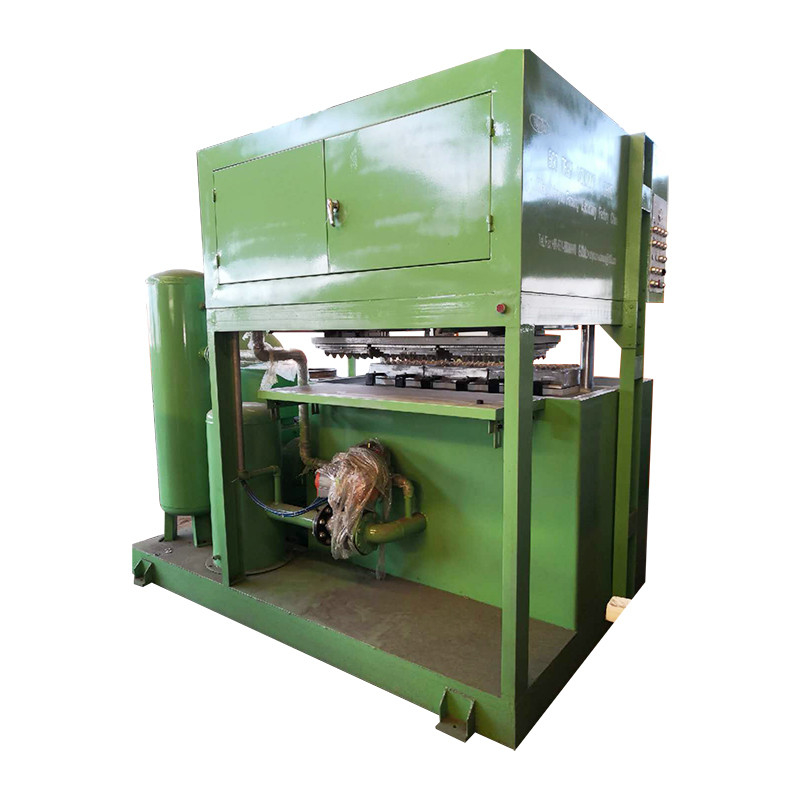

2. Forming system
Consist of 1pc of forming platen and 1 pc of transfering platen.

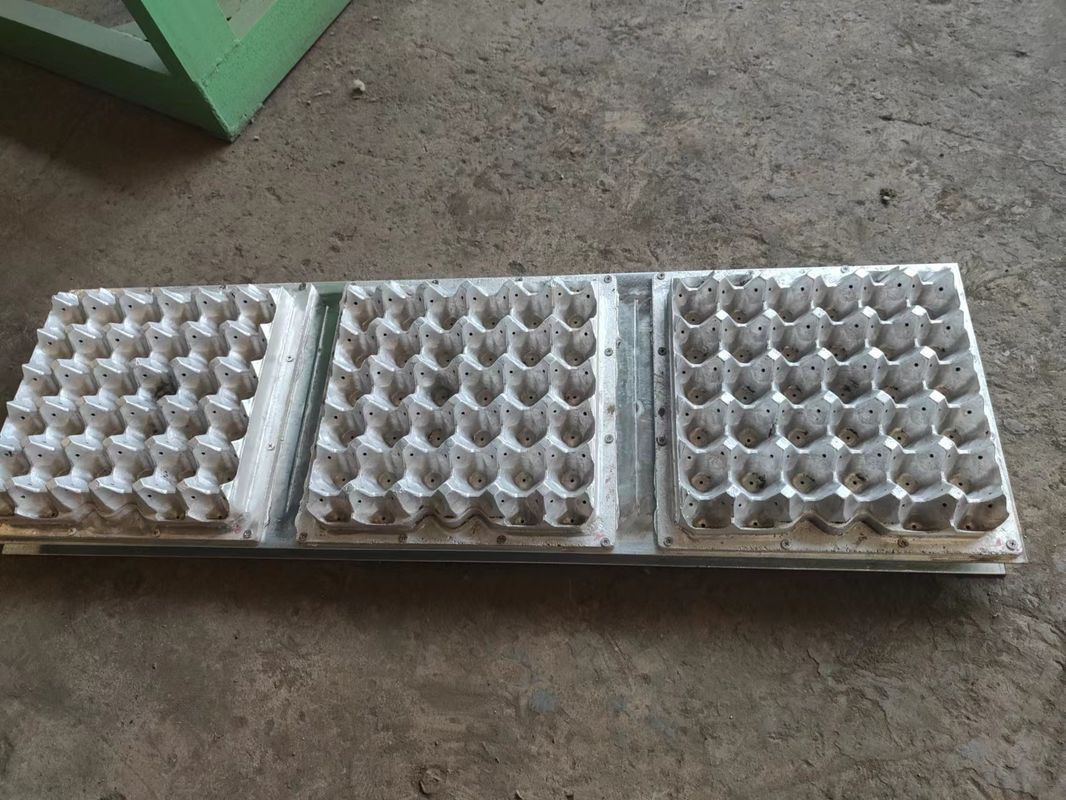

Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.
Forming efficiency:5-6cycles/min;
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
3. Drying system
Outline dimension:20080x2650x3600mm;
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
Machine Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2 years warranty.
5. The installation of the whole line is easy.
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Brand Name: RUNLIANG
Voltage: 220-440V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
Certification: CE & ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h -2500pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
Many capacity egg tray machines we offered:
| Egg Tray Mold Quantity |
4pcs |
| Raw material |
Waste paper |
| Egg tray Capacity |
1300pcs/hour |
| Net weight per piece (gram) |
70g-75g |
| Waste paper consumption |
97.5kg / hour |
| Water Consumption |
0.2ton / hour |
| Natural Gas Consumption of Dryer |
50cbm/h |
| Worker requirement |
4-6workers |
| Machine Length |
8m-35m |
| Machine weight |
8-30tons |
| Power Requirement |
Without dryer |
45KW |
| With dryer |
65KW |
| Area of workshop |
Without dryer |
More than 150 M² |
| With dryer, dryer-24m |
More than320M² |
| Container Requirement |
Without dryer |
40ft*1 |
| With dryer |
40ft*3 |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
Payment and delivery
| Trade terms |
FOB Qingdao or EXW Factory |
| Delivery time |
About 30 working days after receiving the deposit. |
| Payment term |
BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
Two years after the Egg tray machine received. |
| TERMS OF DELIVERY |
FOB Qingdao Port, China |
| Package |
In container |
| Certification |
CE |
| Installation |
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) |
|
Our Machine Advantages:
1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
8. 2 years warranty time
Factory Introduction
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
